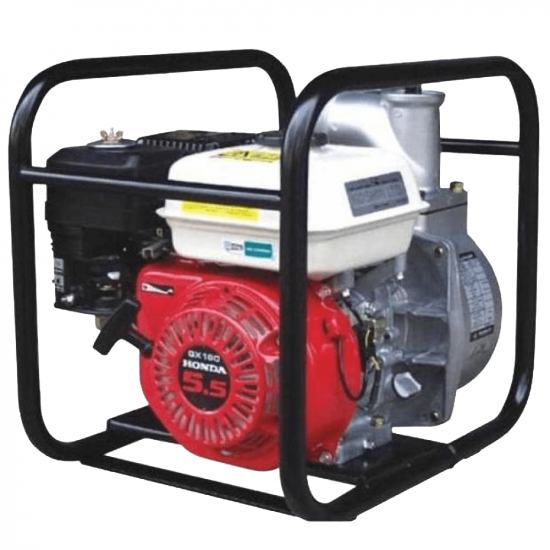

Koshin SEH 80 X Petrol Water Pump - Honda GX 160 Engine

Questions & Answers (5)
ID: K4692

EAN: 9900000002367

MPN: 880280

7,6/10
After-sales assistance & Spare parts
Koshin SEH 80 X Petrol Water Pump - Honda GX 160 Engine
+200 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Honda
Motor Model
GX 160
Cubic capacity
163 cm³
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1100 L/min
Fittings diameter
80 mm
Max. head lift
30 m
Max. suction height
7 m
Engine speed
3300 RPM
Manufacturing country
Japan
Product Features
Model:
Koshin SEH 80 X
Power supply:
Petrol
Starting mode:
Recoil
Manufacturing country:
Japan
Motor data
Motor brand:
Honda
Motor Model:
GX 160
Cubic capacity:
163 cm³
No. of cylinders:
1
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Manufacturing country:
Japan
Pump data
Pump brand:
Koshin
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3300 RPM
Fittings diameter:
80 mm
Flow rate:
1100 L/min
Max. head lift:
30 m
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
Japan
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
53x39x47 cm
Net weight:
35 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
54x40x48cm
Gross weight (packaging included) :
36 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/01/2025 - 09/01/2025
€ 588,41
Vat included

You're viewing:
Customers also viewed:
Description

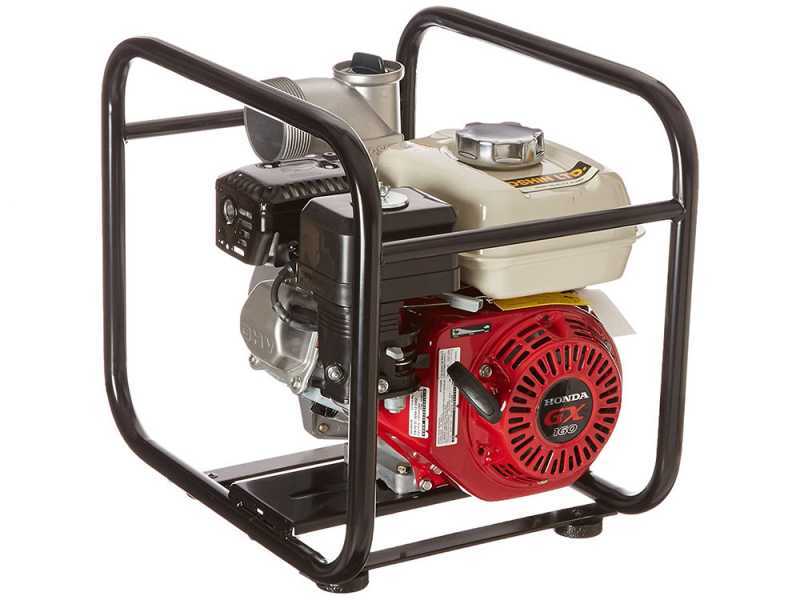

Koshin SEH 80 X Water Pump

The Koshin SEH 80 X Water Pump is an ideal tool for pumping water from any type of source for irrigation by means of hose or sprinkler.

Thanks to Koshin proven construction quality, this motor pump is indispensable when water has to be distributed in the absence of electricity, or in the countryside, when water has to be extracted from a well, a pond, cisterns and tanks that are difficult to reach, or even when draining a cellar or garage that has flooded.

Equipped with a highly reliable, 4-stroke, 160 cc Honda GX 160 petrol engine.

The pump type is self-priming and it can start working by simply topping up the water via the cap in the pump body.

This model is an excellent compromise between power and size. It also comes with a sturdy frame made in high-strength tubular, which protects it from unwanted shocks and possible hits.


These water pumps are suitable for transferring water (for example form one cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with sprinklers of different typologies or various types of real irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

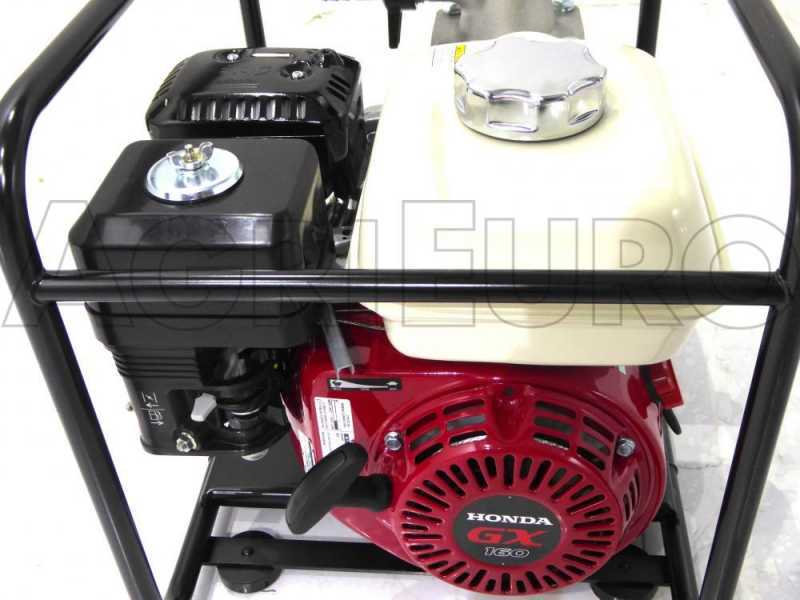

HONDA GX 160 Engine Technical Features

Engine features:

Model: GX 160
Type: 4-stroke, single cylinder, forced-cooled, OHV
Displacement: 163 cc
Power: 5.5 Hp
Fuel: petrol
Tank: 3.6 L

The engine has recoil start and a metal tank with fuel shut-off valve.

Focus on the engine setting controls that include the air control and the regulation of the engine throttle.

Focus on the pump filling cap

The Koshin motor pump is also equipped with an oil level safety device.

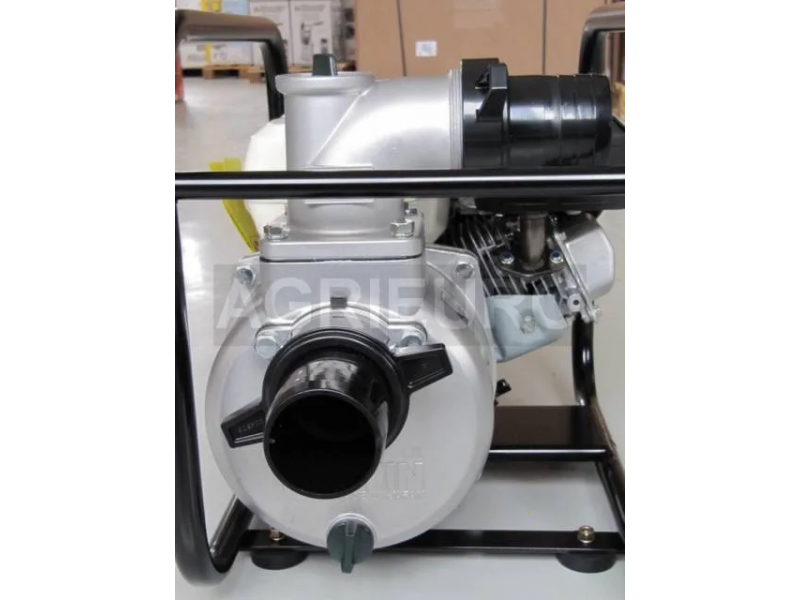

Pump Technical Features

The Konshin pump is completely made of cast aluminium alloy, which makes it light, sturdy and also able to withstand prolonged pumping work.

Characteristics of the pump:

  • Water suction: 80 mm - 3"
  • Delivery: 80 mm - 3"
  • Maximum suction height: 8 m
  • Maximum head: 27 m
  • Max flow rate: 1100 L/min

Focus on the 80 mm - 3 inches suction and delivery fittings

The motor pump works with a single delivery with an 80 mm coupling.

The shockproof steel frame provides protection for the motor and pump unit.

Pump draining cap

Pump filling cap

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Standard equipment

The pump is shipped in its original packaging on a pallet, equipped with assembly and maintenance tools. Thus, it comes complete with two 80 mm fittings, metal clamps, along with the suction filter.

Instruction manual included.
