Description

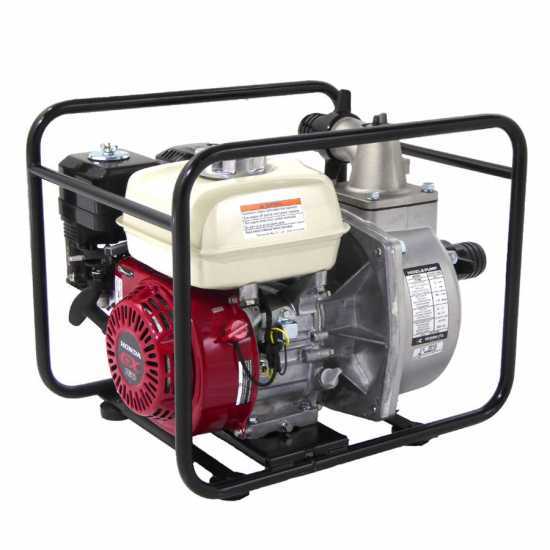

Koshin SERH-50B High-Head Lift Water Pump

Koshin SERH-50B water pump with high head lift is an ideal machine for pumping water from any type of irrigation system through a hose or sprinklers.

Thanks to Koshin excellent construction quality, this product is very useful when you have to distribute water without electricity, or in the countryside when you need to extract water from a well, from a cistern or ponds and tanks that are difficult to reach, or even when you have to drain a flooded cellar or garage.

This model is an excellent compromise between power and size, it is easily transportable. It also comes with a sturdy wraparound frame made with high-strength tubular which protects it from unwanted shocks.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameter, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Koshin SERH-50B Honda Petrol Water Pump - 50 mm Fittings - 2 inches, Self-priming

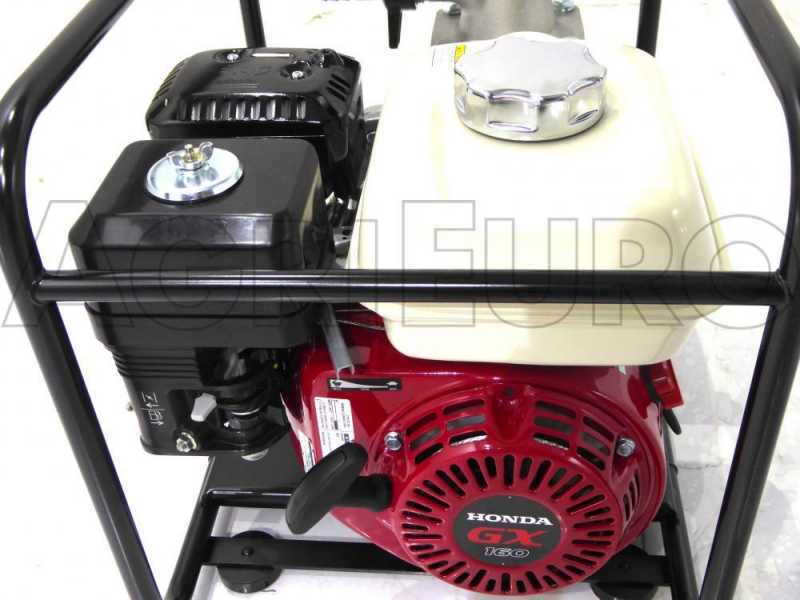

HONDA GX 160 Engine Technical Features

Engine features:

Model: GX 160
Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 163 cc
Power: 5.5 Hp
Fuel: petrol
Tank: 3.6 L

The engine features recoil start system and metal tank with fuel shut-off valve.

Focus on the engine adjustment controls that include the air control and the regulation of the engine throttle.

Focus on the pump filling cap

Koshin water pump is also equipped with oil level safety device.

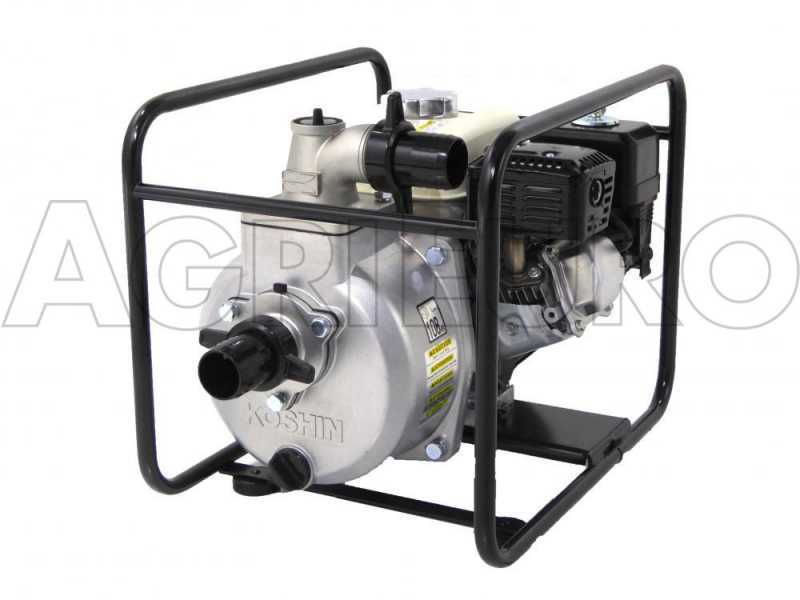

Water Pump Technical Features

The Koshin pump is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 50 mm - 2 inches
Discharge: 50 mm - 2 inches
Maximum suction height: 8 m
Max. flow rate: 440 L/min
Max. head lift: 57 m

The water pump works with a single delivery with 50 mm fitting

Focus on the 50 mm - 2 inches suction and delivery fittings

The shockproof steel frame protects the engine and pumping unit.

Pump-engine fitting

Pump filling cap

Pump emptying cap

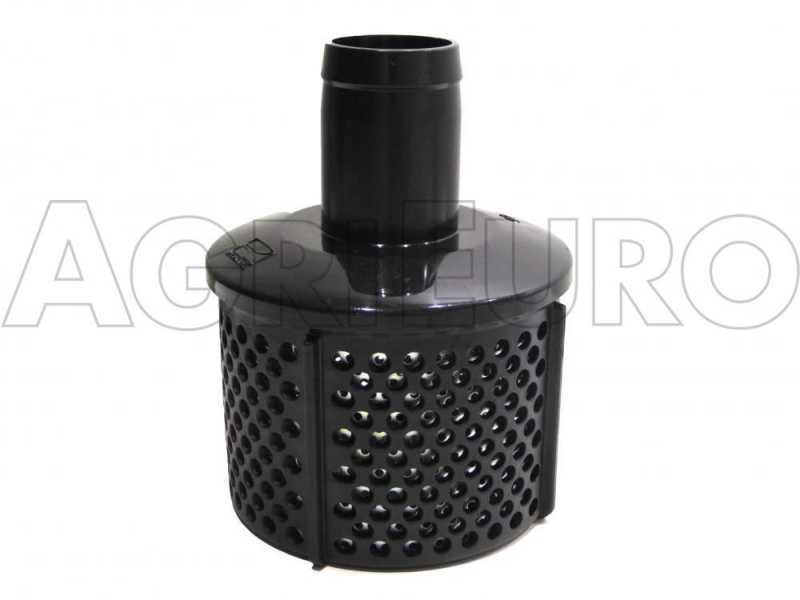

Plastic and steel suction filter to preserve the integrity of the pump by blocking possible debris.

The chart shows flow rate, head lift and suction values of the water pump in different situations of use. (Guaranteed Koshin values).
