Description

Lampacrescia MGM DL712 Garden Tiller

Lampacrescia MGM DL712 garden tiller is a powerful agricultural machine designed to simplify the tilling soil operations. Thanks to the 8-stars 90 cm cutter with side discs, this garden tiller is able to till on a big soil area in short time.

The Honda GX160 engine, known for its reliability and power, provides the necessary thrust to move the cutter through the harder soil.

The 2-speed forward and 1-speed reverse (2+1) gearbox offers maximum flexibility and control when operating with the garden tiller, allowing the selection of the right speed according to the soil and working conditions.

The mechanic transmission in oil bath guarantees long-lasting and reduces maintenance, while height and lateral adjustable handlebars allow to customize the tilling depth and the tilt angle of the cutter in order to meet the specific needs of the soil and cultivation.

Lampacrescia DL712 is a powerful and reliable garden tiller, designed to simplify soil preparation and make plant cultivation easier and more efficient.

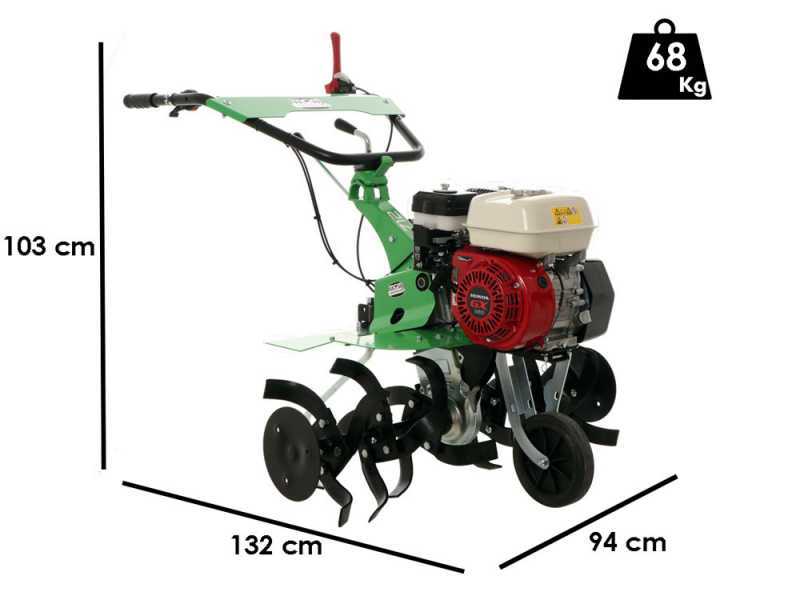

Lampacrescia MGM DL712 - 5.5 HP Petrol Garden Tiller - Honda GX160

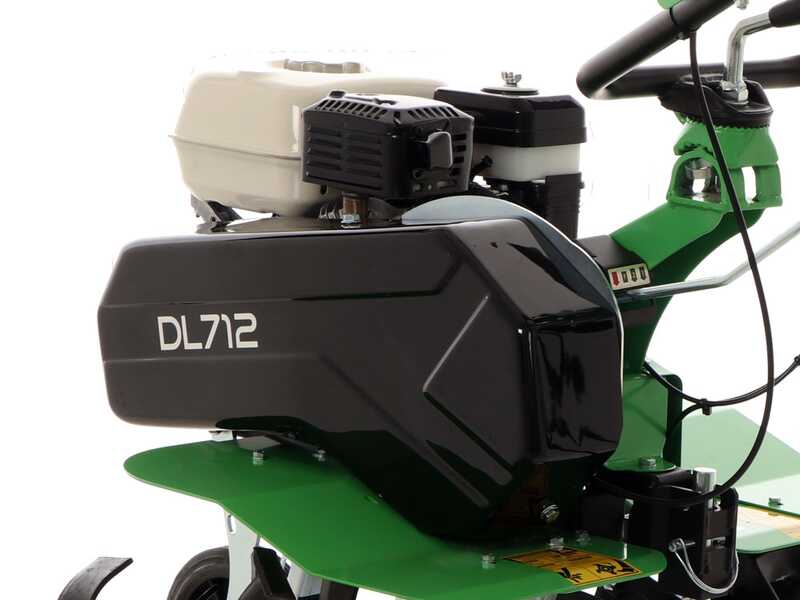

Honda GX 160 Engine

The Honda series GX 160 engine is
super-professional and SUPER-POWERFUL , belonging to the latest overhead valve technology.

Features:

Engine type:

4-Stroke - OHV - single cylinder

Cylinder type:

Aluminium

Cubic capacity:

163 cc

Compression ratio:

9.0 : 1

Max. rpm:

3600 rpm

Torque value

10.3 Nm / 1.05 kgfm / 2500 rpm

Fuel tank capacity:

3.1 L

Consumption:

1.4 L/h 3000 rpm

Dry weight

15.1 Kg

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

ATTENTION!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal power: 5.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Gearbox, steering handles and controls

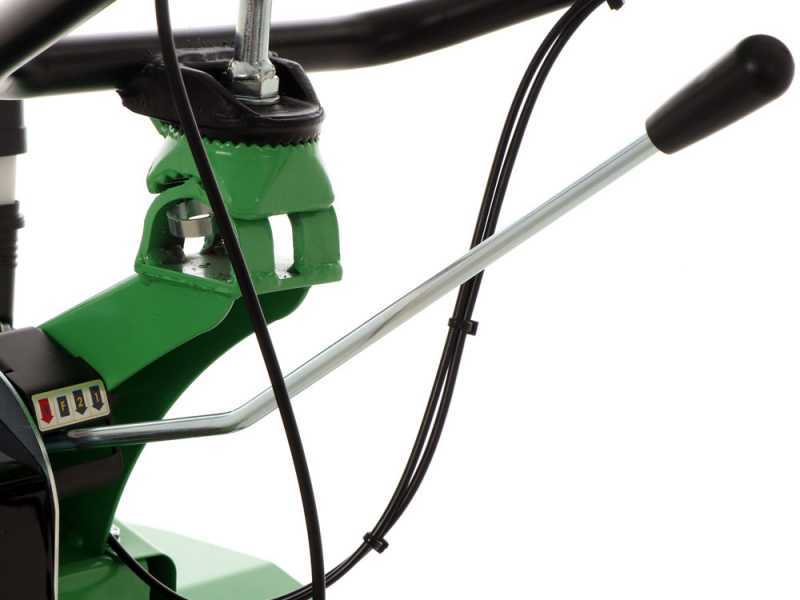

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Red lever: clutch lever that manages the motion of the tillers and the machine forwarding speed.

Focus on the throttle lever with STOP switch (red lever)

Height-adjustable handlebars thanks to the appropriate control system.

Gearbox detail 2+1

Gear transmission in oil bath

The direct gear transmission (in oil bath) is placed on the motor shaft and it requires a very low maintenance, ensuring maximum resistance to stress and possible hits while working on hard ground.

The gear transmission stands out to be incredibly sturdier and reliable compared to a belt-drive transmission, because the components are already all in contact with each other. Therefore, as soon as one of the component is made in operation, the others are also run, resulting in an immediate engine-tiller motion.

The gearbox in aluminium with steel protection caps.

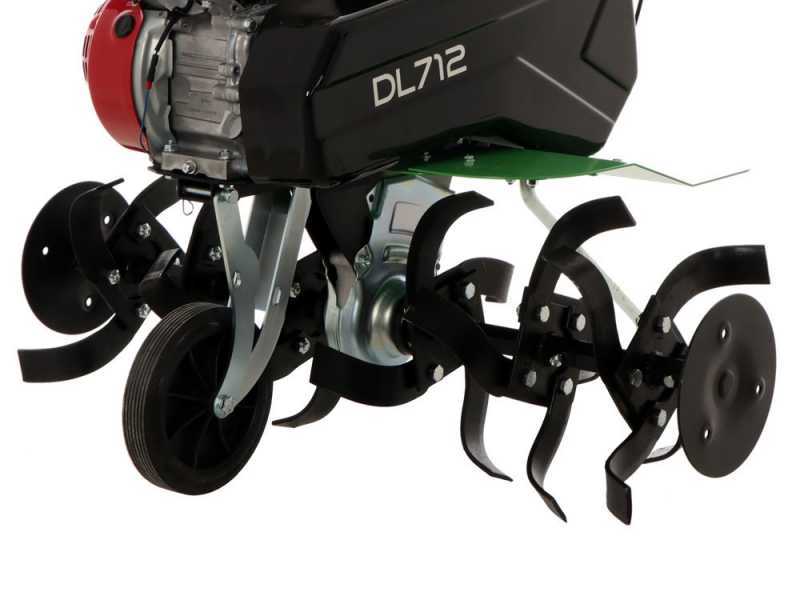

Cutter: 90 cm, with 3+3 tillers composed of 4 hoes each + side protection discs.

Converting from one width of cutter to another is a matter of seconds, simply inserting or removing the outermost element and storing the protective disc.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
