Lavor Texas R 1509 GL - Professional hot water high pressure washer - 160 bar - 540 l/h

Questions & Answers (2)
ID: K600987

EAN: 8013298028634

MPN: 36080-00018

8,0/10
After-sales assistance & Spare parts
Lavor Texas R 1509 GL - Professional hot water high pressure washer - 160 bar - 540 l/h
+80 sold
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
540 L/h
Max. pressure
160 bar
Engine speed
1450 RPM
Engine
Induction
Delayed Total Stop
Yes
Operating mode
Single-phase 230 V
Thermostat
Yes
Wheeled
Type
Trolley
Detergent tank
Self-priming pump
Weight
90 Kg
Manufacturing country
Italy
Product Features
Model:
Texas R 1509 GL
Wheeled:
Type:
Trolley
Operating mode:
Single-phase 230 V
Operation mode:
Hot water
Max. outlet temperature:
90 °
Delta T - water temperature change:
50 °
Thermostat:
Yes
Detergent tank:
2.5 L
Detergent delivery:
Low-pressure
Diesel tank:
16 L
Separated boiler ventilation unit:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Motor speed:
1450 RPM
Max. power absorption:
3.0 Kw
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Lavorwash
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Self-priming pump:
Pistons material:
Ceramic-coated steel
Pump head material:
Brass
Brass pump head:
Engine speed:
1450 RPM
Flow rate:
9.5 L/min (570 L/h)
Max flow rate per minute:
9 L/min
Max. flow rate per hour:
540 L/h
Operating pressure:
150 bar
Max. pressure:
160 bar
Safety valve:
Yes
Manufacturing country:
Italy
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Type of attachment:
M22 - Screw
Delayed Total Stop:
Yes
Burner:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
8 mt
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics

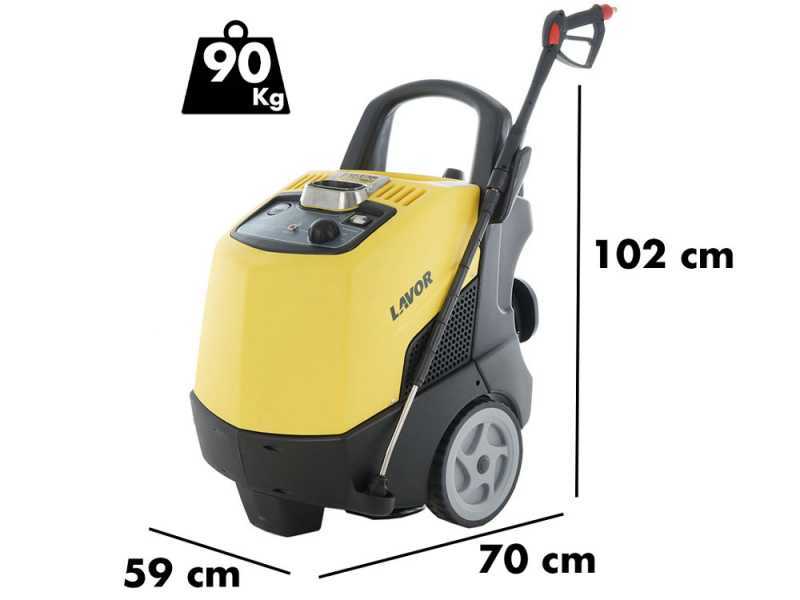

Product dimensions in cm (L x W x H):
70x59x102 cm
Net weight:
90 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
85x68x119 cm
Gross weight (packaging included) :
105 Kg
Assembly time:
Assembled
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 30/04/2025 - 05/05/2025
€ 1.876,18
Vat included
You're viewing:
Customers also viewed:
Description

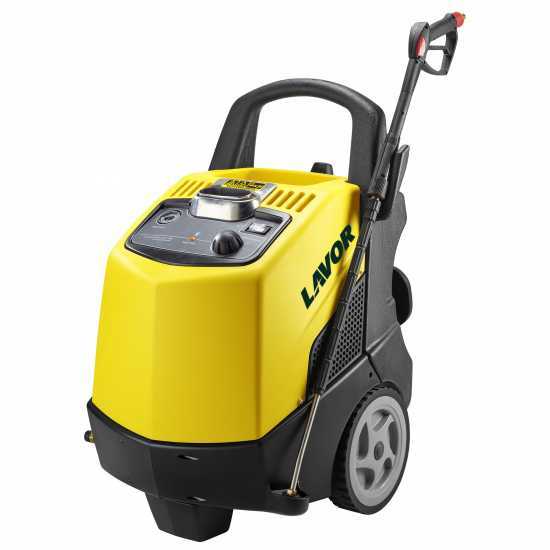

Lavor Texas R 1509 GL Hot Water Pressure Washer

The Lavor Texas R 1509 GL single-phase hot water pressure washer is a heavy-duty machine, studied for professional users who need to remove greasy dirt or oil residues from engines and other equipment.

Suitable for different uses, it is ideal in agriculture for cleaning and for maintenance of machinery, or for deep cleaning in all sectors. Thanks to the double handle on the rear part and four wheels, the machine is easy to move and use wherever needed.

The Lavor Texas R 1509 GL hot water pressure washer is among the most compact in its class. It is equipped with a vertical instantaneous diesel-fuelled boiler that allows water to be heated up to 90° C degrees (Delta 50°).

It features an induction motor and a linear pump with three ceramic-coated piston brass head, with integrated by-pass valve. Not only that, but it features a maximum pressure of 160 bar and a flow rate of 540 L/min.

This machine is complete with a built-in detergent tank and the hose and spray gun can be placed in the holders on the sides.

User-friendly controls: there is a knob to adjust the water temperature and a power switch, as well as a low fuel light.

In addition to its extreme practicality and high performance, this hot water pressure washer is lightweight, easy to handle, very comfortable to transport and has a very attractive design.

Why choose a hot water pressure washer, A hot water pressure washer is mainly required whenever there is the necessity to remove oily or particularly stubborn dirt in the shortest time. Hot water is considerably more effective than cold water (up to 50% higher in some cases), because the heat facilitates dirt dissolution. Thus, the heat on a surface results in quick drying. The use of a hot water pressure washer allows: lower washing time (in case of same dirt type), improved non-water-soluble dirt removal, lower drying time and less amount of detergent required. It means lower costs for cleaning.

FLOW RATE:

  • Maximum flow rate: 540 L/h (9 L/min). The flow rate is the most important technical data of a pressure washer, even more than pressure, as it indicates the real power of the machine

OPERATING PRESSURE:

  • 160 bar max, among the highest of its category.

The operating pressure is 150 bar.

High-quality product made in Italy.

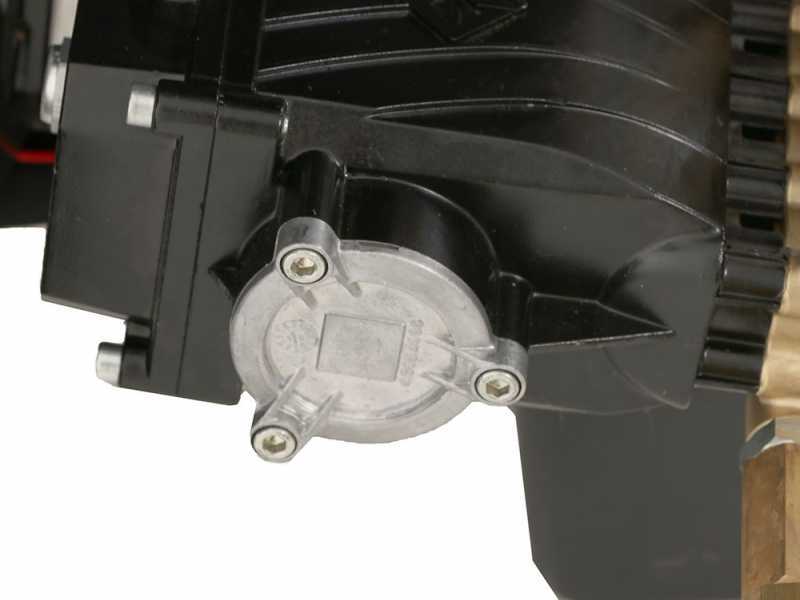

Main Features

High-performance vertical boiler with steel coil.

Alloy upper head

Auxiliary motor for ventilation (boiler unit)

THERMOSTAT FOR BURNER ADJUSTMENT: it allows adjusting the output water temperature (40° - 90°)(Delta 50°)

Large boiler outlet made of stainless steel.

Equipped with Delayed Total Stop system, which stops the pressure washer once you release the trigger, resulting in great energy savings and ensuring maximum power when re-started, more than with regular Total Stop system.

Low pressure detergent suction: The delivery of the chemical (which does not pass through the pump, but is suctioned in with Venturi system) is performed by reducing the operating pressure of the machine. It is then possible to spray the product with a wide conical jet on surfaces close to the operator.

MOTOR: 3 kW single-phase electric (220 V)

- 4.2 L detergent tank with adjustable low-pressure suction.

- Diesel tank (16 L)

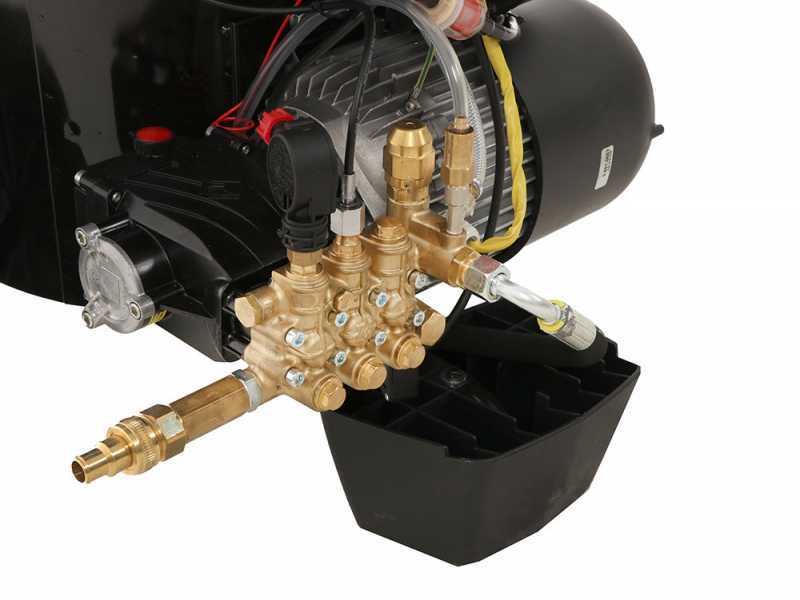

Pump Unit

Linear pump, brass head with three high-strength ceramic-coated steel pistons with integrated by-pass valve. Stainless steel suction and discharge valves.

FLOW RATE:

  • Maximum flow rate: 540 L/h (9 L/min). The flow rate is the most important technical data of a pressure washer, even more than pressure, as it indicates the real power of the machine

OPERATING PRESSURE:

  • 160 bar max, among the highest of its category.

Specifications:

  • Burner setting, optimized combustion.
  • Auxiliary motor for ventilation of the boiler unit.
  • High-performance vertical boiler with steel coil.

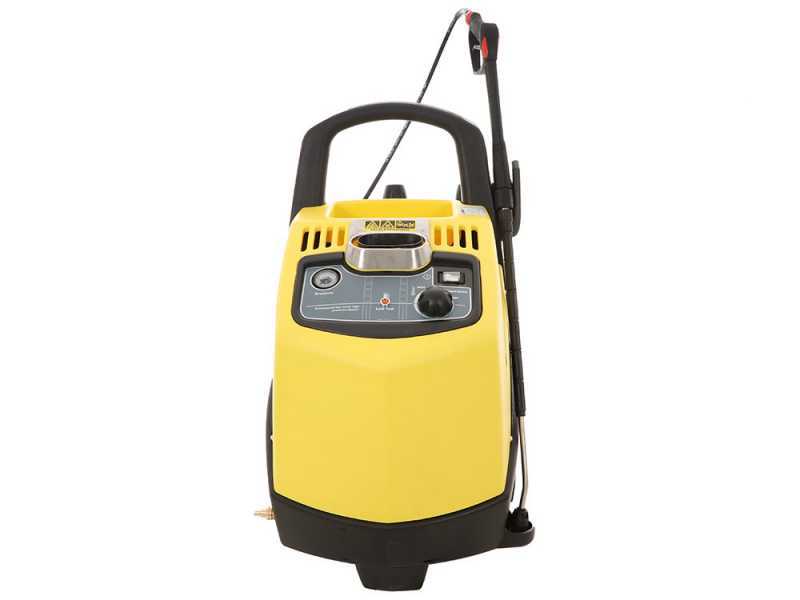

Additional Specifications

Easy and user-friendly controls which allow a quick use of the machine.

Focus on the wheels that allow you to easily transport the pressure washer.

Focus on the glycerine-filled pressure gauge

Focus on the hose holder

Focus on the handle for transport

Lance holder

Focus on the tanks

WEIGHT: 90 kg

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

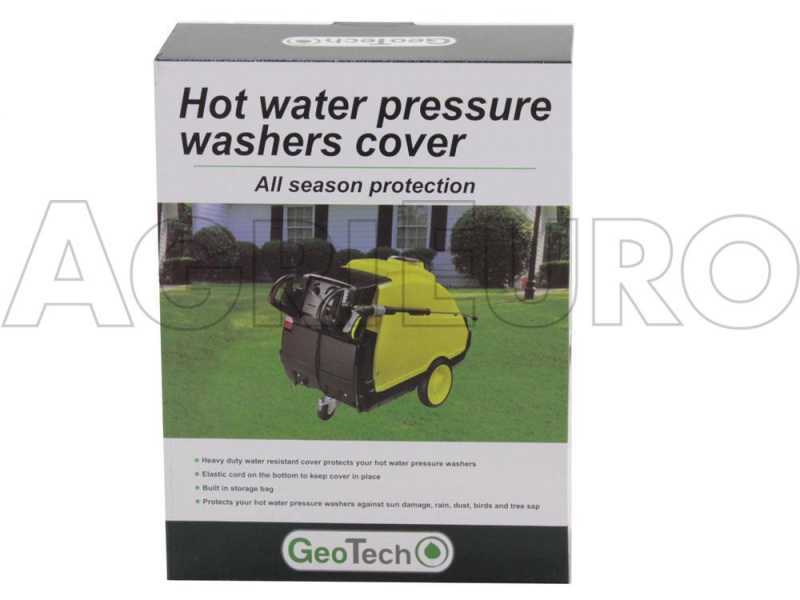

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.

Free Items Included

Lavor hot water pressure washer is shipped in its original packaging. You just need to assemble the lance.

The packaging also includes:

- professional hydro-gun

- angled lance

- 8 m high-pressure hose

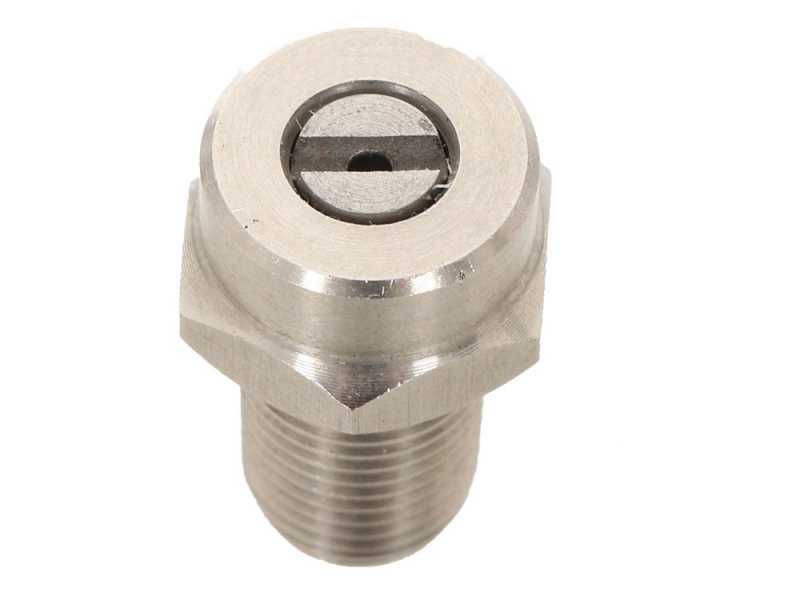

- nozzle

- instructions manual
