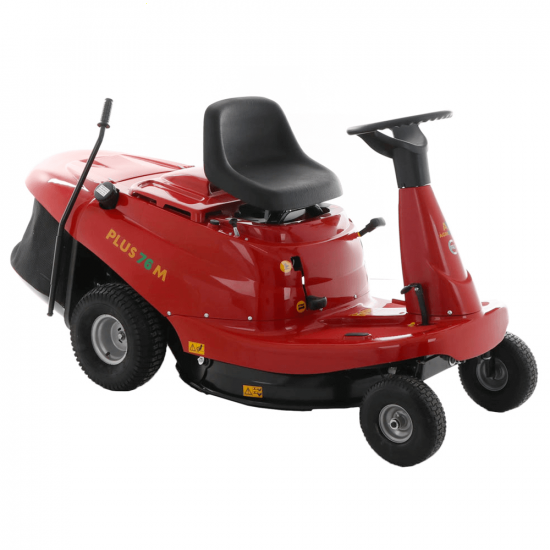

Line Plus 76 M Rider Riding-on Mower with EURO 352 LOncin Engine

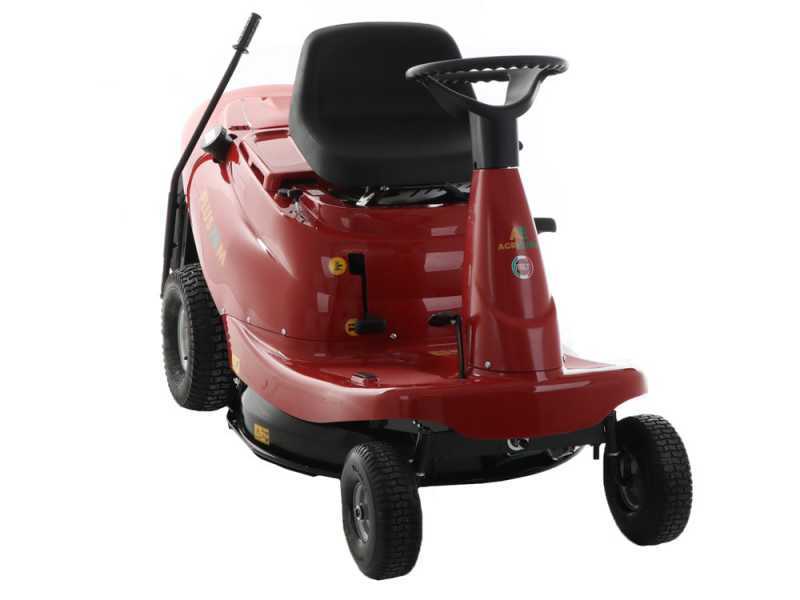

The AgriEuro Premium Line Plus 76 M is a compact and agile riding-on mower riding-on mower, ideal for mowing operations and maintenance in medium-sized lawns up to 3000 s.q. m.

The machine is equipped with a 150 L grass collector. Convenient and easy to empty thanks to the practical lever near the Operator's seat, which allows you to empty it at any time wherever you want.

76 cm cutting deck which makes it ideal for medium-sized gardens.

The mechanical drive with 5 available forward speed options is perfect for open spaces with a few obstacles, allowing you to perform long mowing sessions. Further to the 5 speed options, this riding-on mower is also equipped with a reverse speed.

The cutting height can be adjusted in 4 different positions from 40 mm to 85 mm.

The parking brake, that can be operated together with a lever, is placed under the Operator’s seat.

Another important feature of this riding-on mower is its triple-safety start, blade stop with sensor under the Operator's seat and a blade stop system with sensor on the grass collector.

The machine is equipped with a powerful 352 cc Loncin engine which can develop 7.2 Kw of power at max. rpm.

It is also provided with adjustable Operator’s seat and ergonomic steering wheel for higher comfort during use.

The optimal solution for semi-professional use.

Warning: never cross sideways on high slopes to avoid the machine overturning.

The engine compartment is placed under the Operator's seat, protected by a plastic cover.

Lifting the seat and removing this cover provides easy access to the engine and air filter, allowing for quick maintenance.

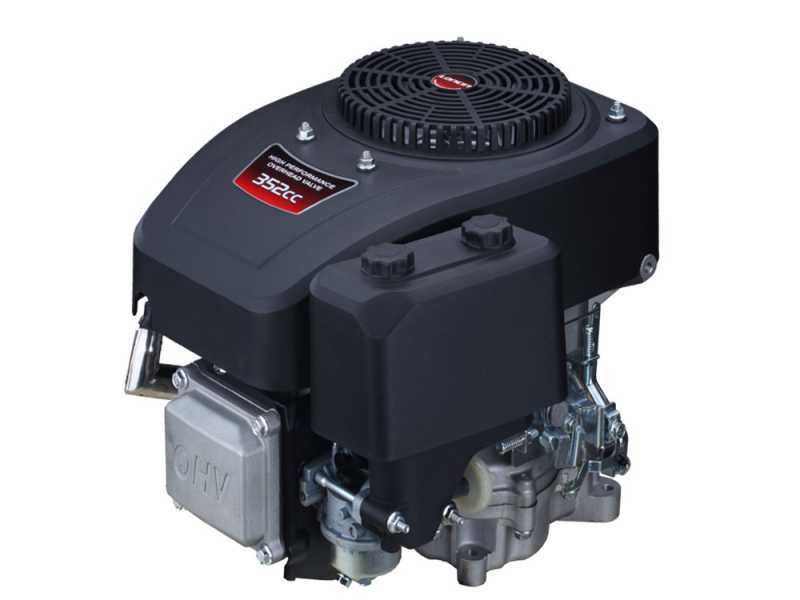

The 352 cc Loncin engine features a maximum power output of 7.2 kW. It is provided with “OHV” technology, which highly reduces vibrations during use.

This air-cooled engine can reach 2800 rpm/min.

Fuel tank capacity: 5 L.

Please carefully read the instructions manual before starting the unit.

- Focus on the air filter

Nominal power: 14 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9.65 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

GRASS COLLECTION SYSTEM:

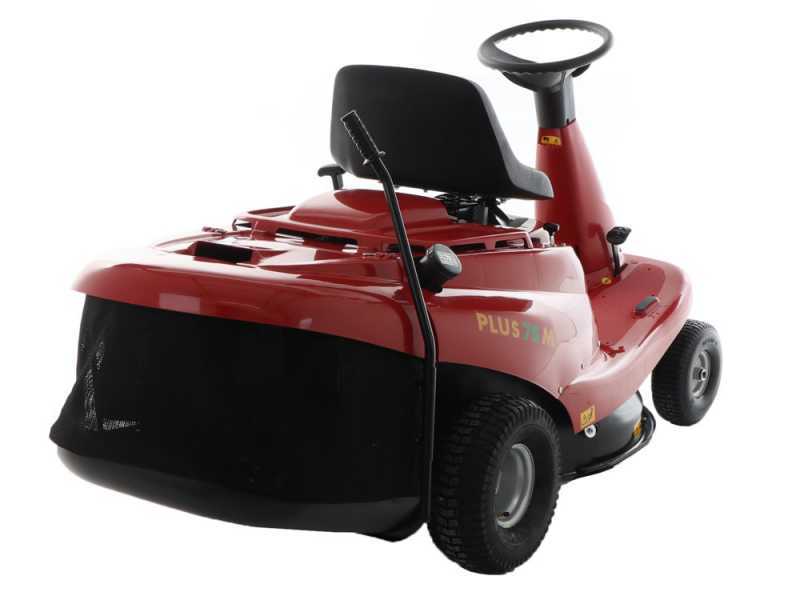

The riding-on mower is equipped with a large grass collector that allows collecting grass clippings and dispose of them after mowing operations. This allows longer mowing sessions without any interruption.

Once full, the grass collector can be easily emptied by means a lever near the Operator’s seat.

The collector can also be easily removed from the riding-on mower both for emptying and discharge the grass clippings directly from the back of the machine.

Grass collector: 150 L.

- Focus on the riding-on mower without grass collector.

- Focus on the grass collection opening on the machine.

This riding-on mower is equipped with a speed selector that allows you to choose among 5 different driving speeds:

• 1
• 2
• 3
• 4
• 5

Neutral and reverse position

Focus on the engine rpm adjustment lever.

Once selected one of the 5 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

Sturdy single-blade cutting deck : 76 cm cutting width.

The riding-on mower is equipped with a cutting blade designed for grass collection as standard.

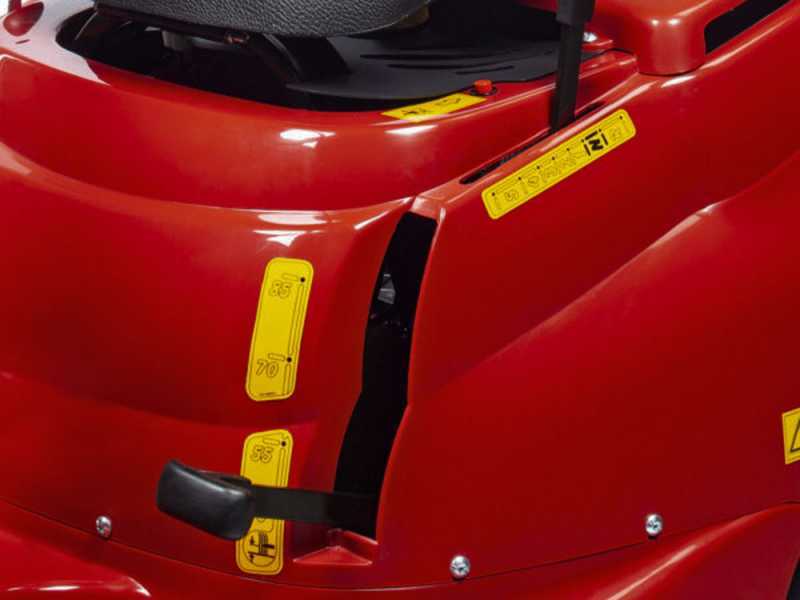

Adjustable cutting height in 4 different positions from 40 mm to 85 mm by means the proper lever.

The blade is operated by means the proper blade engagement lever.

- Focus on cutting deck adjustment lever

The Plus 76 M controls are easy and user-friendly:

Once started the engine, it is possible to easily select the gear, the forward speed, operate the machine brake and adjust the blade height and rotation, all directly from the Operator's seat.

- Blade engagement lever

- Braking pedal

- Engine rpm adjustment lever

- Cutting height adjustment lever in 4 different positions

- Parking brake

- Forward, reverse and neutral gear speed selection lever.

AgriEuro Premium Line riding-on mower additional features:

• The tyres ensure higher care of the lawn and great adherence to the ground and the best traction on a riding-on mower:

11x4,00-4” front tyres

15x6,00-6” rear-drive tyres

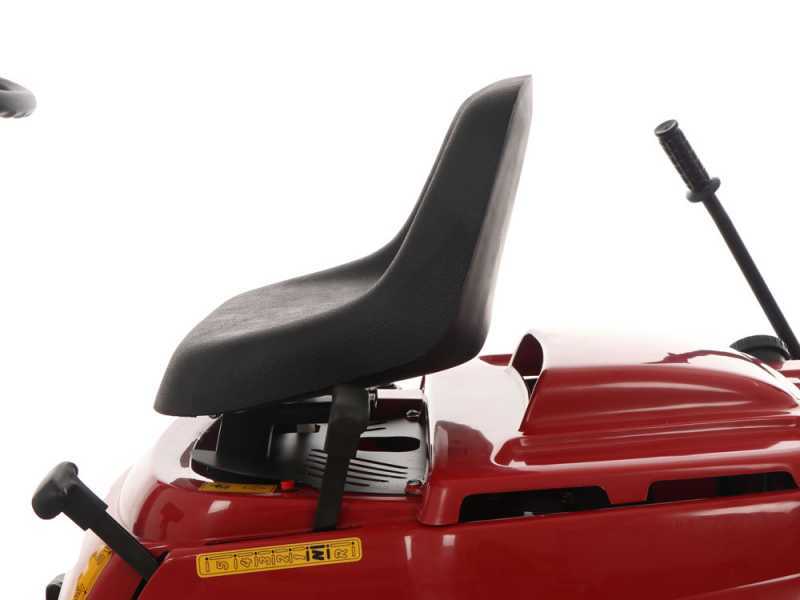

• Comfort Operator’s seat

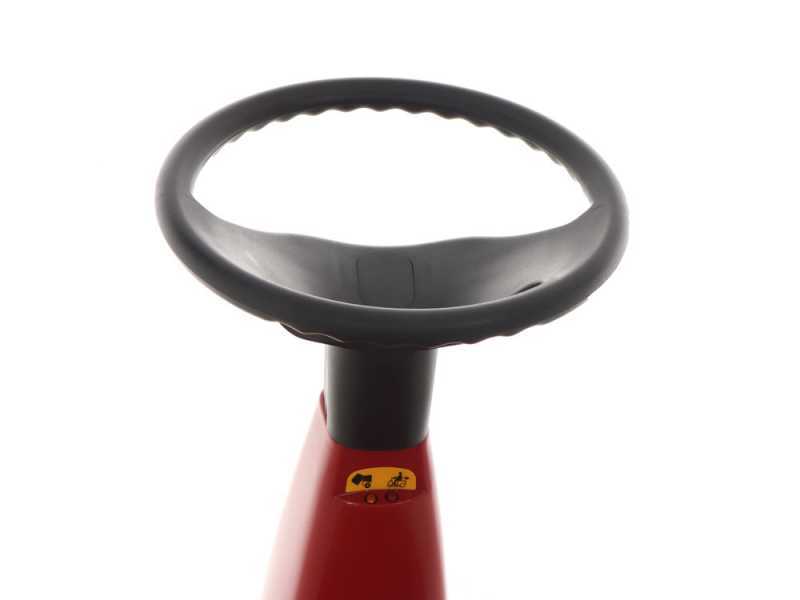

• Ergonomic steering wheel
• Battery housing

- Focus on the overturned Operator’s seat

- Focus on the anti-vibration spring under the Operator’s seat
