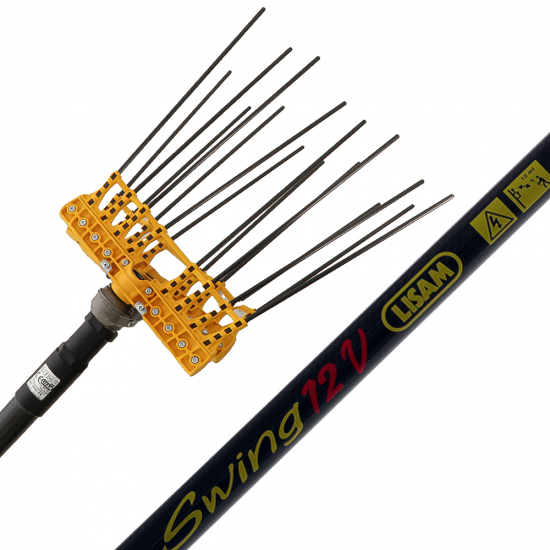

Name: Lisam Swing Electric Battery-powered Olive Harvester - With 8 + 8 carbon prongs - Fixed Pole
Brand: Lisam
SKU: K604654
Price: 831.64 EUR
Availability: InStock
Rating: 5 (1 reviews)

Description

Lisam Swing Olive Shaker

The Lisam Swing battery-powered olive harvester is a product that will allow you to harvest olives in a practical and effortless way.

Swing is the latest creation from Lisam: a highly professional electric olive harvester to facilitate and speed up olive harvesting.

This model is ideal if you are looking for a professional product that will fully meet your work needs and requirements.

The olive harvester is equipped with rakes with carbon fibre prongs, which are very over-lasting and easily replaceable in case of breakage.

The Swing model features a special characteristic, namely: when creeping between the branches of the olive trees, the two rows of rakes perform an elliptical rotation, meaning that they move back and forth alternately.

The pole material is also carbon fibre, which makes it very sturdy and light.

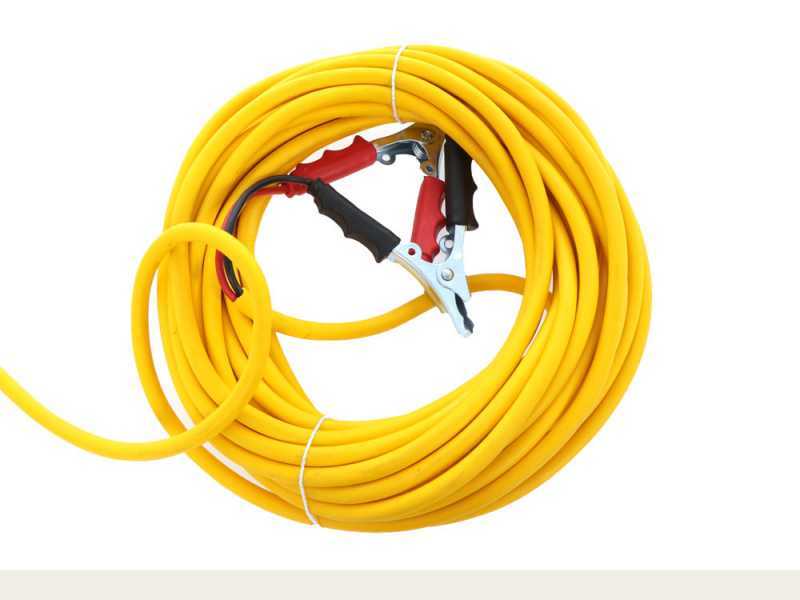

This model comes complete with 15 m cable and arranged with a fixed pole up to 245 cm.

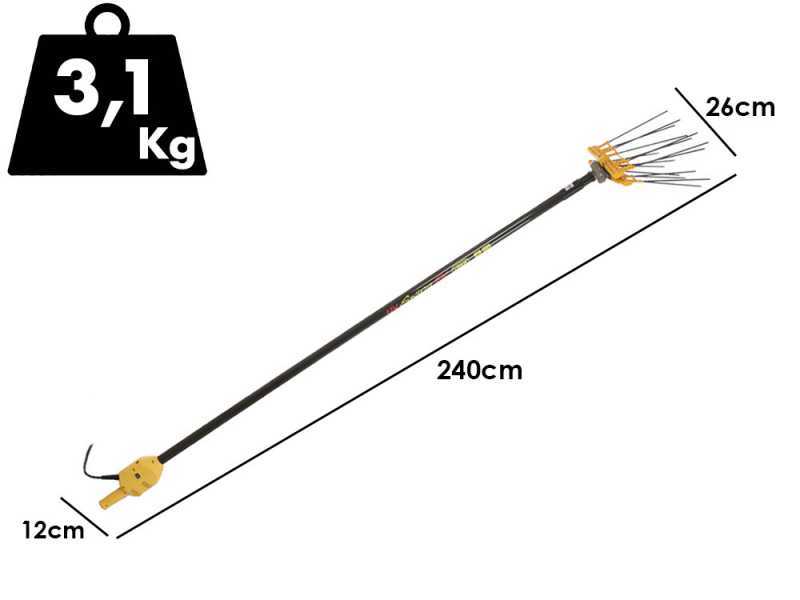

With a total weight of only, 3100 g, the Lisam Swing stands out to be extremely easy to handle.

Lisam Swing Electric Battery-powered Olive Harvester - With 8 + 8 carbon prongs - Fixed Pole

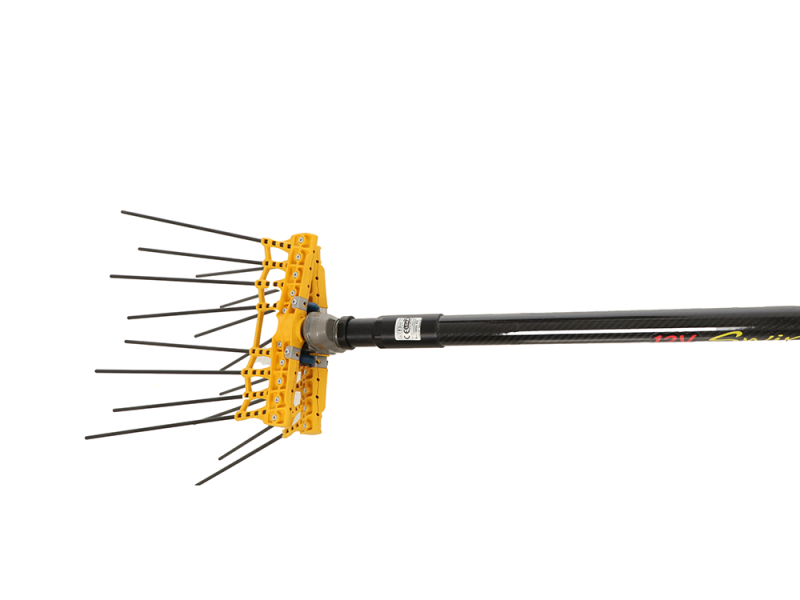

Main features

High penetration capacity in plant canopies: immediate function thanks to the minimal thickness and large distance of the sticks.

Particularly open shape and not perpendicular to the prong support as compared to classic, rectangular-shaped olive harvesters.

Aluminium fixed pole

Data sheet:	SWING	8C	SNACKE	OLIVECO	OLIWATT2	SWING 36 V	THOR	THOR 36 V
Supply voltage:	12Vdc	12Vdc	12Vdc	12Vdc	12Vdc	36Vdc	12Vdc	36Vdc
Average absorption at 12 V	9 A	3.5 A	3 A	3 A	8 A	4 A (at 36 V)	8 A	2.9 A (at 36 V)
Motor peak power	325 W	230 W	280 W	280 W	325 W	540 W	360 W	540 W
Frequency Beats 12 V	1300	1300	1100	1150	1300	1300 (at 36 V)	1300	1300 (at 36 V)
Recommended Battery	75A/h	75A/h	75A/h	75A/h	75A/h	80A/h	75A/h	80A/h
IP Grade	3 - 0	3 - 0	3 - 0	3 - 0	3 - 0	3 - 0	3 - 0	3 - 0

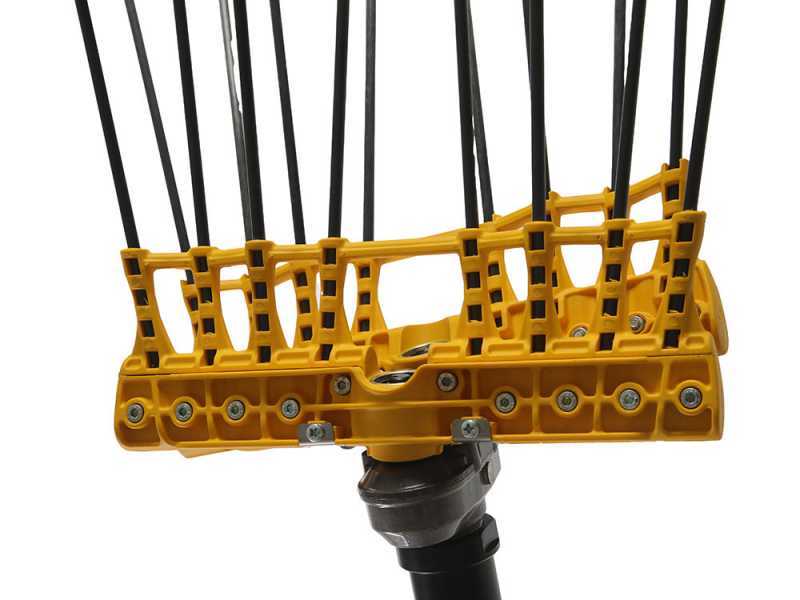

Head and Mechanics of the prong motion

The Lisam Swing olive harvester consists of 8+8 carbon prongs on the head that are easy to replace.

The arms therefore carry a total of 8 carbon fibre rods with easy replacement, the entire propulsion and transmission unit is hermetically sealed, without any possibility of penetration of external agents inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are more than 32 cm to allow you to deeply enter into the tree canopy.

Technical data about the head:

Working width: 24.5 cm
Hourly production: 80/120 kg/hour.
Shakes per minute: 1300.

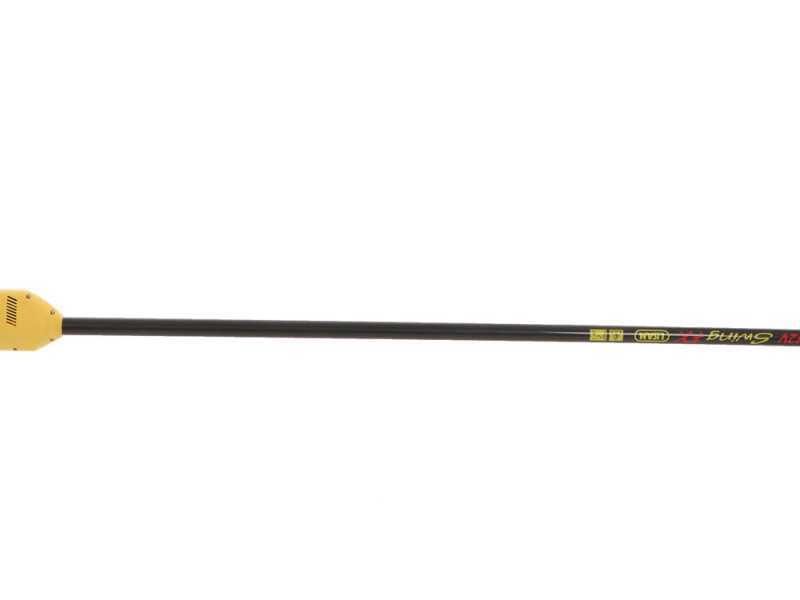

Harvester body

The body, which contains the electric motor made in Italy, is made of resin and nylon, ensuring strength and lightness.

There is a steel plate between the prong housing and the motor to ensure greater sturdiness. The 12 V motor ensures 1300 beats per minute and an absorption of 9 amp/h.

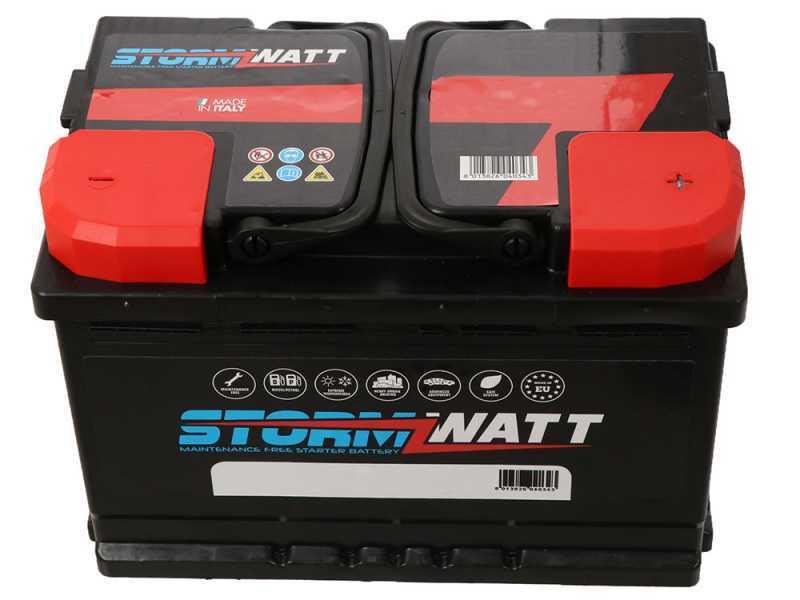

For power supply, it is recommended a 75 A/h battery.

Focus on the ignition switch.

At the bottom of the rod is the connector for connecting the harvester to the supplied extension cord.

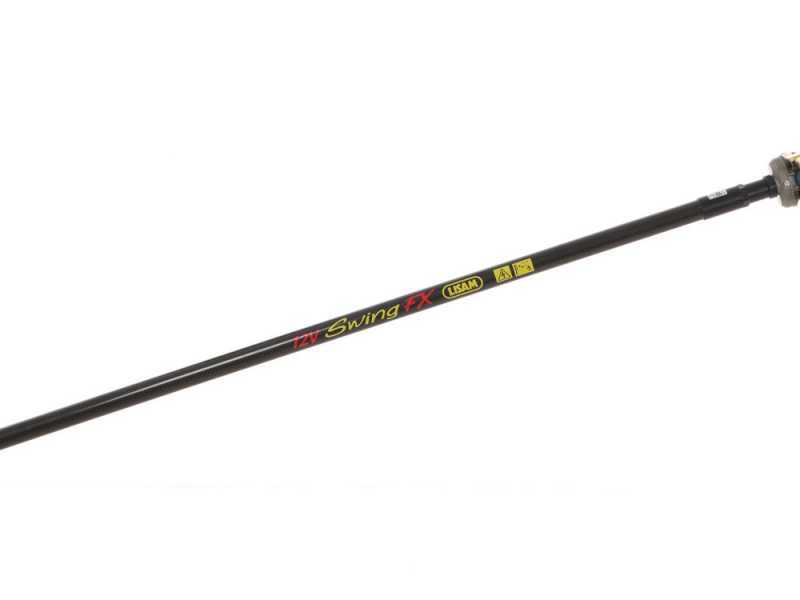

Motor mounted at the bottom of the pole

The motor at the end of the pole gives exceptional balance to this olive harvester model, which translates into less fatigue during use.
99% of the olive harvesters on the market today still mount motors at the head: a simpler and cheaper solution that makes the harvester extremely unbalanced in weight and very tiring to use.

Do not forget that in most cases the harvester is gripped at the bottom of the pole, and if the weight is all concentrated above, it becomes really heavy to handle and certainly impossible to use for a whole day.

In choosing a harvester, it is wrong to consider only the total weight in the evaluation of user comfort

The user comfort is given not by the total weight but from balancing weights, and then by mounting the engine at the bottom of the pole

Very powerful 325 W motor

It generates, despite the considerable size of rakes, up to 1300 rotations per minute.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
