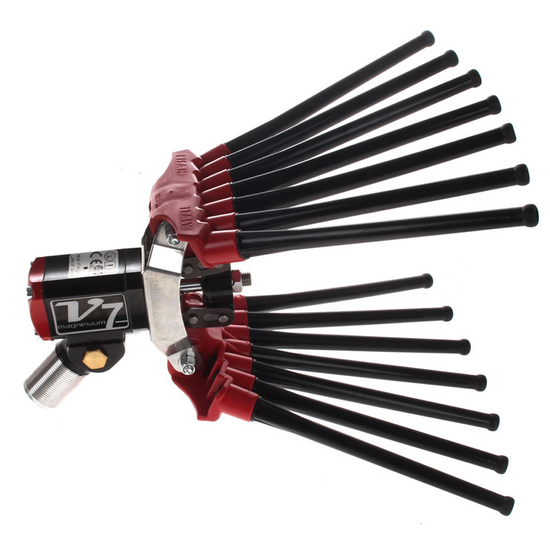

Lisam V7 Magnesium - Pneumatic Olive Harvester - 6 Bar Olive Shaker - 1600 Beats per Minute

Add a question
ID: K604585

EAN: 9999991097322

MPN: 9071 lisam

7,9/10
After-sales assistance & Spare parts
Lisam V7 Magnesium - Pneumatic Olive Harvester - 6 Bar Olive Shaker - 1600 Beats per Minute
FREE
Lubricant for olive harvestersLubricant for olive harvesters
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Head material
Magnesium
Motion
Vertical, double
Speed (bpm)
1600 bpm
Max. prongs opening
25 cm
Max. operating pressure
6 bar
Air consumption
160 L/min
Olive harvester head weight
900 g
Motor speed levels
1
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
V7 Magnesium
Head material:
Magnesium
Type:
Pneumatic
Motion:
Vertical, double
Speed (bpm):
1600 bpm
No. of prongs:
7+7
Prongs length:
16.5 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
25 cm
Max. operating pressure:
6 bar
Minimum operating pressure:
4 bar
Air consumption:
160 L/min
Lubrication type:
With oil for pneumatic tools
Olive harvester head weight:
900 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
No. of cylinders:
1
Power supply:
Compressed air

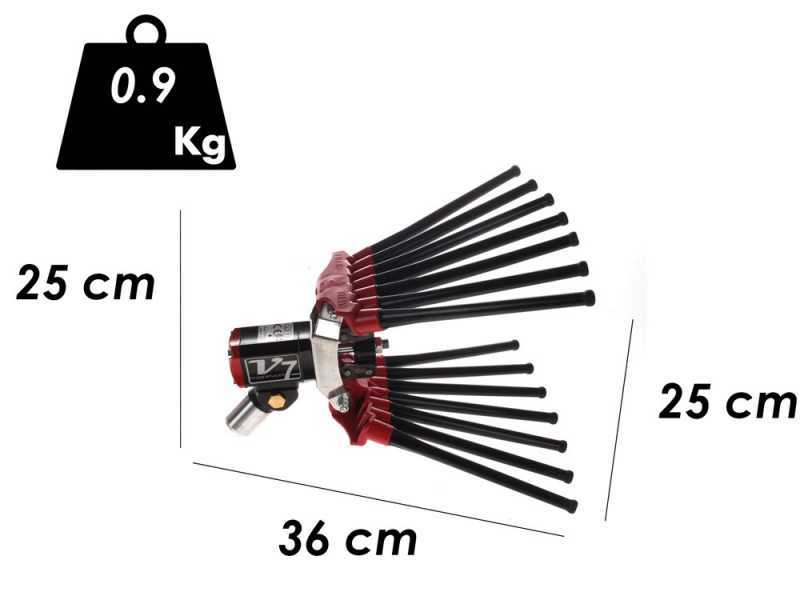

Dimensions and logistics
Product dimensions in cm (L x W x H):
36x25x25 cm
Net weight:
0.9 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
26.5x14.5x33 cm
Gross weight (packaging included) :
2 Kg
Assembly time:
Assembled
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 10/04/2025 - 14/04/2025
€ 410,73
Vat included
You're viewing:
Customers also viewed:
Description

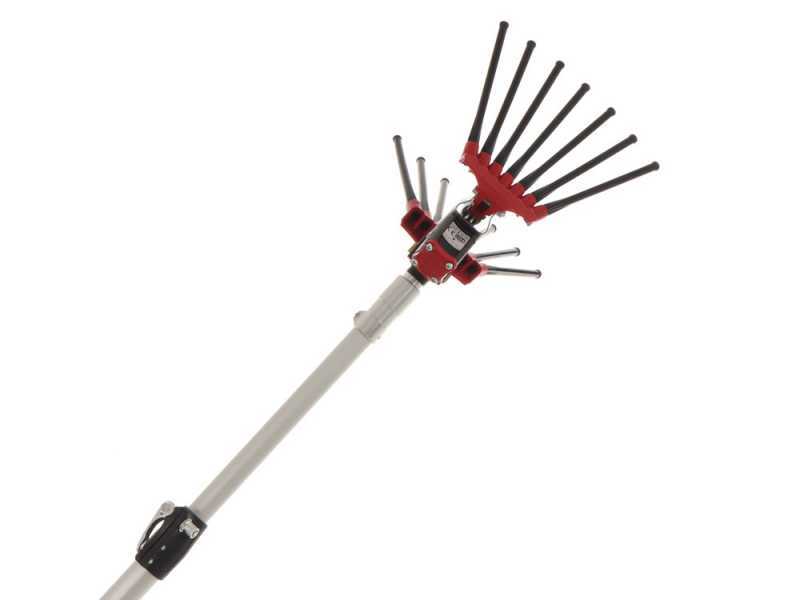

Lisam V7 Magnesium Pneumatic Olive Harvester

The Lisam V7 Magnesium pneumatic olive harvester and shaker is a tool intended for large olive groves.

This olive harvester has a comb-like motion (a type of movement that allows this olive harvester model to have a vertical action of the rakes).

V7 Magnesium is equipped with a rounded-shaped combs to increase productivity while respecting fruits, the plant and the surrounding environment.

The Lisam V7 Magnesium achieves a high speed, making it a very efficient harvesting tool.

This model features technology that can imitate the movement of the hand between olive branches. The teeth push the olives towards the base of the prongs, where they find a bottleneck in such a way as to facilitate the olive detachment from the branch.

The exhaust air is directed towards the moving components. This helps cooling and lubrication.

The Lisam V7 Magnesium has a plastic pin and a fan-shaped prong arrangement made of NYLON that makes the product extremely light.

These olive harvesters generally have a very low air consumption (160 L/min).

This model has a beating frequency speed of 1800 rpm, one of the highest speed for a pneumatic olive harvester.

With a total weight of only 900 g, the Lisam V8 Turbo stands out to be extremely handy and easily manageable.

Fully interchangeable.

NOTE: pole not included.

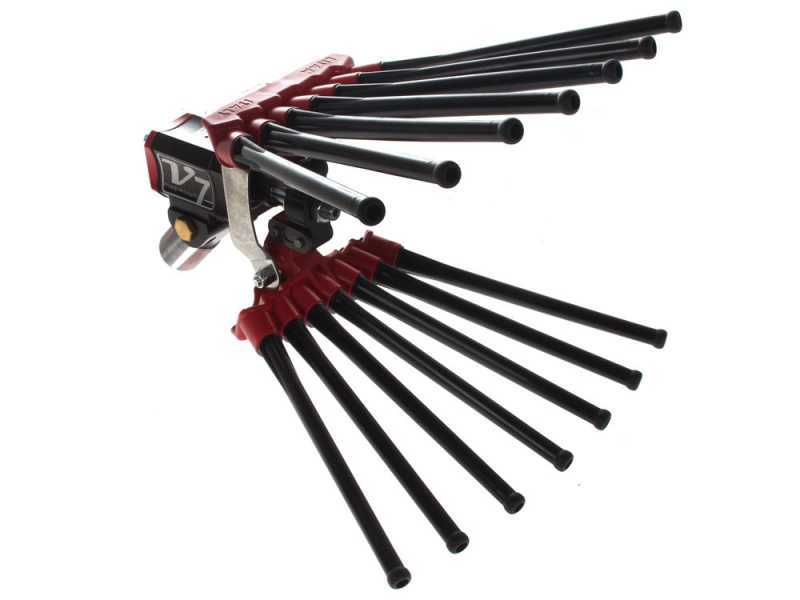

Prongs

This olive harvester is equipped with NYLON rakes with long, elastic prongs, which guarantee good performance without any damage.

All these characteristics make it particularly suitable for working on all types crops at all levels of ripeness, especially in thick foliage.

Thanks to the beating frequency speed of 1600 beats per minute, it can easily penetrate into the olive tree.

Technical Specifications:

  • Rake width: 25 cm
  • Number of prongs: 7 + 7
  • Prong length: 16.5 cm
  • Maximum opening: 25 cm

NOTE: pole not included

Technical specifications

One of the great strengths of these harvesters is definitely the beating speed, 1600 rpm, thanks to the short-stroke piston and rakes.

Weight: only 900 grams . Among the lightest on the market, although the considerable width and length of the combs.

Operating pressure: 6 bar

Air consumption: 160 L/min

NOTE: pole not included



Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

Free items included

The product is shipped in its original packaging.

The package also contains the user manual and 2 spare prongs.

NOTE: pole not included
