Lisam V8 Turbo - Pneumatic Olive Harvester - 6 Bar Olive Shaker - 1800 Beats per Minute

Add a question
ID: K604540

EAN: 9999991097254

MPN: 9070 lisam

7,9/10
After-sales assistance & Spare parts
Lisam V8 Turbo - Pneumatic Olive Harvester - 6 Bar Olive Shaker - 1800 Beats per Minute
FREE
Lubricant for olive harvestersLubricant for olive harvesters
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Motion
Vertical, double
Speed (bpm)
1800 bpm
Max. prongs opening
23 cm
Max. operating pressure
6 bar
Air consumption
160 L/min
Olive harvester head weight
800 g
Motor speed levels
1
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
V8 Turbo
Head material:
Titanium
Type:
Pneumatic
Motion:
Vertical, double
Speed (bpm):
1800 bpm
No. of prongs:
7+7
Prongs length:
17 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
23 cm
Max. operating pressure:
6 bar
Minimum operating pressure:
4 bar
Air consumption:
160 L/min
Lubrication type:
With oil for pneumatic tools
Olive harvester head weight:
800 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
No. of cylinders:
1
Power supply:
Compressed air
Dimensions and logistics

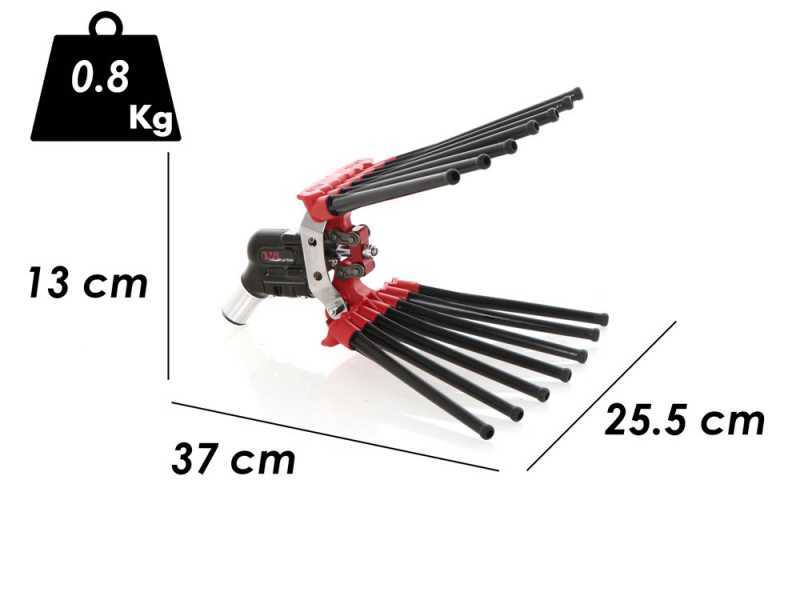

Product dimensions in cm (L x W x H):
37x25.5x13 cm
Net weight:
0.8 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
31x15.5x48 cm
Gross weight (packaging included) :
1.5 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 10/04/2025 - 14/04/2025
€ 446,46
Vat included
You're viewing:
Customers also viewed:
Description

Lisam V8 Turbo Pneumatic Olive Harvester

The Lisam V8 Turbo pneumatic olive harvester and shaker is a tool intended for large olive groves.

This harvester has a comb movement (i.e. a vertical movement), V8 Turbo is equipped with prongs with rounded-shaped tips to increase productivity always respecting fruit and plant.

The Lisam V8 Turbo achieves a high speed, making it a very efficient harvesting tool.

This model features technology that can imitate the movement of the hand between olive branches. The teeth push the olives towards the base of the prongs, where they find a bottleneck in such a way as to facilitate the olive detachment from the branch.

The exhaust air is directed towards the moving components. This helps cooling and lubrication.

The Lisam V8 Turbo has a plastic fork and a fan-shaped prong arrangement made of NYLON that makes the product super light.

These olive harvesters generally have a very low air consumption (160 L/min).

This model has a beating frequency speed of 1800 rpm, one of the highest speed for a pneumatic olive harvester.

With a total weight of only 800 g, the Lisam V8 Turbo stands out to be extremely handy and easily manageable.

Fully interchangeable.

NOTE: pole not included.

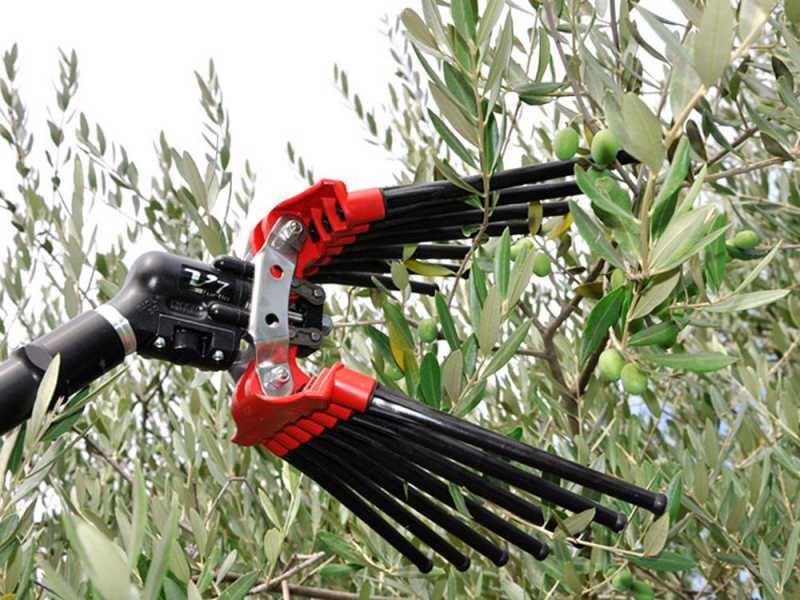

Prongs

This olive harvester is equipped with NYLON rakes with long, elastic prongs, which guarantee good performance without any damage.

All these characteristics make it particularly suitable for working on all types crops at all levels of ripeness, especially in thick foliage.

Thanks to the beating frequency speed of 1800 beats per minute, it can easily penetrate into the olive tree.

Technical Specifications:

  • Rake width: 25.5 cm
  • Number of prongs: 7 + 7
  • Prong length: 17 cm
  • Maximum opening: 23 cm

NOTE: pole not included

Technical features

One of the great strengths of these harvesters is definitely the beating speed, 1800 rpm, thanks to the short-stroke piston and rakes.

Weight: only 800 grams . Among the lightest on the market, although the considerable width and length of the combs.

Operating pressure: 6 bar

Air consumption: 160 L/min

NOTE: pole not included



Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

Free items included

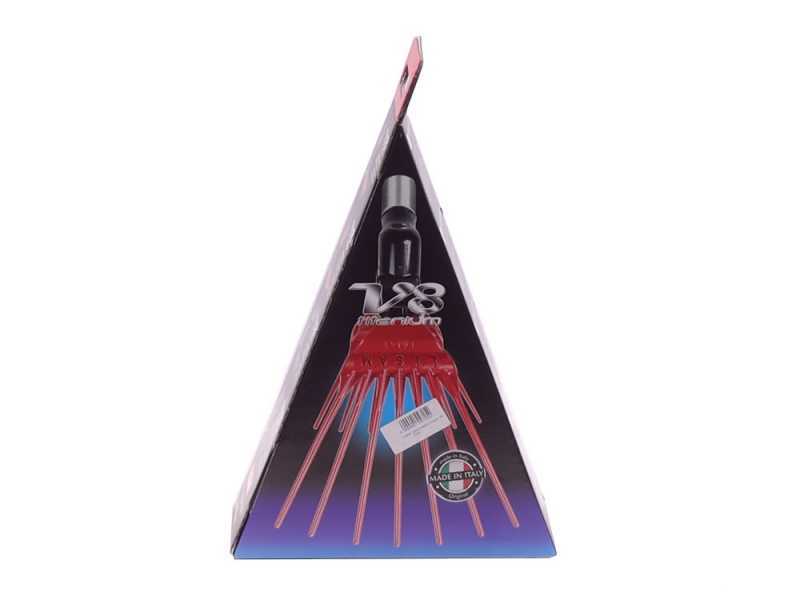

The product is shipped in its original packaging.

The package also contains the user manual and 2 spare prongs.

NOTE: pole not included
