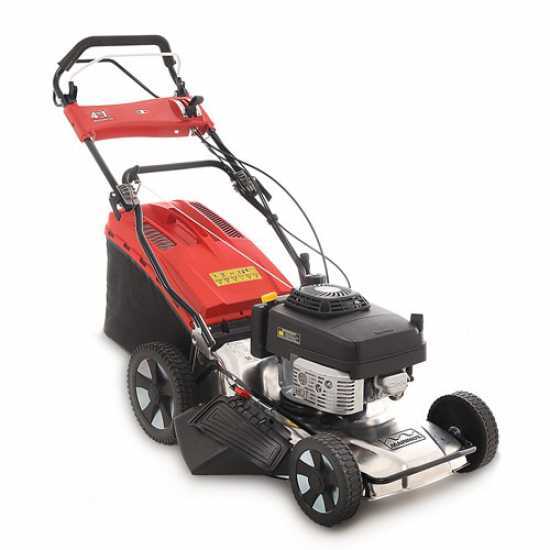

Marina Systems MX 55SK 3V lawn mower - 4 in 1 - Kawasaki FJ180V engine

The Ma.Ri.Na. Systems MX 55SK 3V FJ180 professional self-propelled petrol lawn mower was designed for very demanding users that require an efficient and reliable machine.

The high-thickness steel deck is reinforced by an iron bullbar (in the front):

4in1 mowing system:

• Grass collection
• Mulching (special mulching blade)
• Rear discharge
• Side discharge

The machine features a Kawasaki FJ180V 179 cc engine.

This Kawasaki engine is specifically designed for lawn mowers, resulting one of the best mower engines on the market.

The Ma.Ri.Na. Systems MX 55SK 3V FJ180 lawn mower is powerful, reliable and versatile and it is equipped with a 70 L grass collection bag.

Cutting width: 50.8 cm. The cutting height is adjustable: there are 5 cutting height options that can be set thanks to a centralised lever. Cutting height options: from 25 mm to 80 mm.

Large zinc-plated metal wheels with double waterproof bearings for professional mowing results, even on uneven surfaces.
The wheels are mounted on ball bearings so thelawn mower is very easy to move.

The Kawasaki FJ180V model is a highly efficient, reliable and durable engine thanks to its 179 cc cubic capacity.

Features:

Designed for high-level performances and reliable like no other engine. The 625 E series is perfect for gardening and agricultural equipment.

Focus on the air filter.

WARNING!

The engine WILL NOT CONTAIN OIL when delivered.
Read the instructions manual carefully before starting the engine.

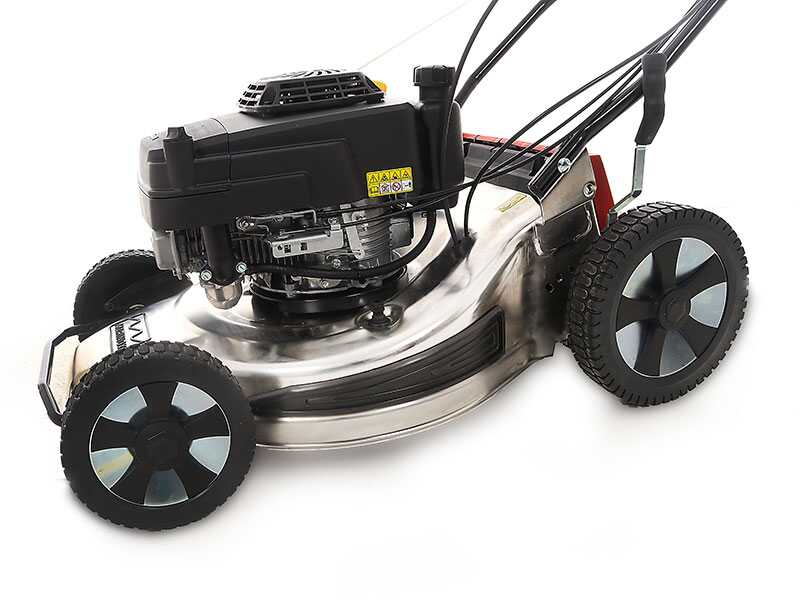

The centralised cutting height adjustment system allows setting the mowing height by means of a lever placed near one of the two rear wheels.

Very fast and easy height adjustment.

Minimum cutting height: 30 mm
Maximum cutting height: 80 mm

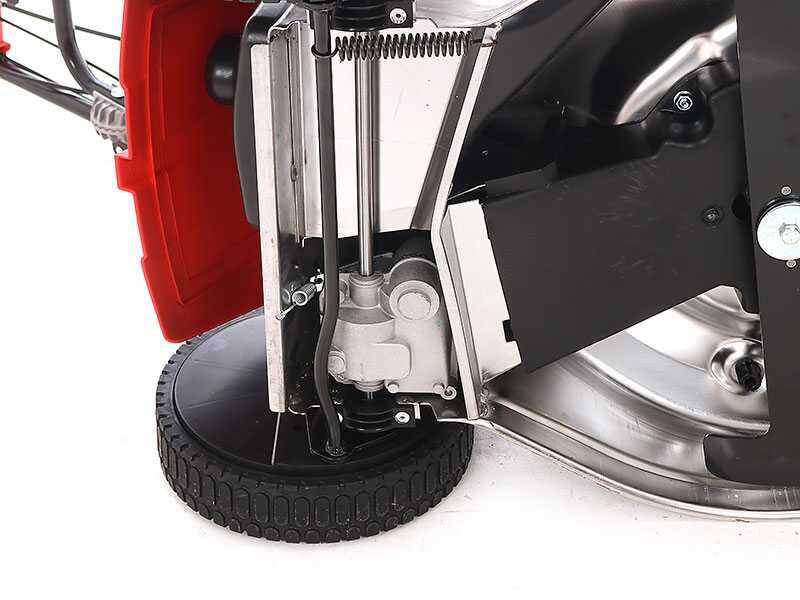

Rear-wheel drive (self propulsion)

Fitted with a sturdy drive belt and gear reduction unit for rear wheels.

This unit allows the operator to mow the lawn effortlessly and improves the lawn mower traction as well as its traveling efficiency.

Large zinc-plated metal wheels with 200-280 mm diameters, featuring double watertight bearings. These special wheels are also suitable for uneven surfaces. The wheels are mounted on ball bearings, so handling this lawn mower is extremely easy.

The high-wheel system makes this lawn mower extremely easy to move and durable.

The activation is made by means of the black lever on the handle

The most lawn mowers that offer several functions, like collection and mulching, mount a multi-purpose blade that provides good performances but without obtaining excellent cutting results.

This lawn mover mounts 2 heavy-duty blades specific for cuttings:

• a heavy-duty blade
• a specific blade for mulching

In this way, all type of cutting will provide the best possible result.

• the lawn mower comes with a heavy-duty lift-wing blade that improves the grass collection effectiveness. Thanks to this blade it is possible to mow even slightly wet, tall or thick grass.

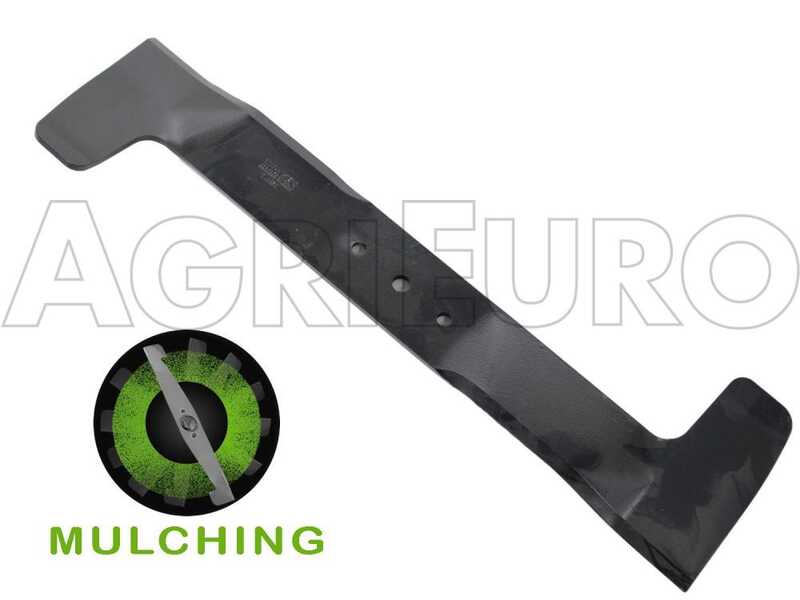

• Blade for mulching cutting, ensures a better result for this type of cutting, at the same level as the best machines especially designed for mulching cuttings.

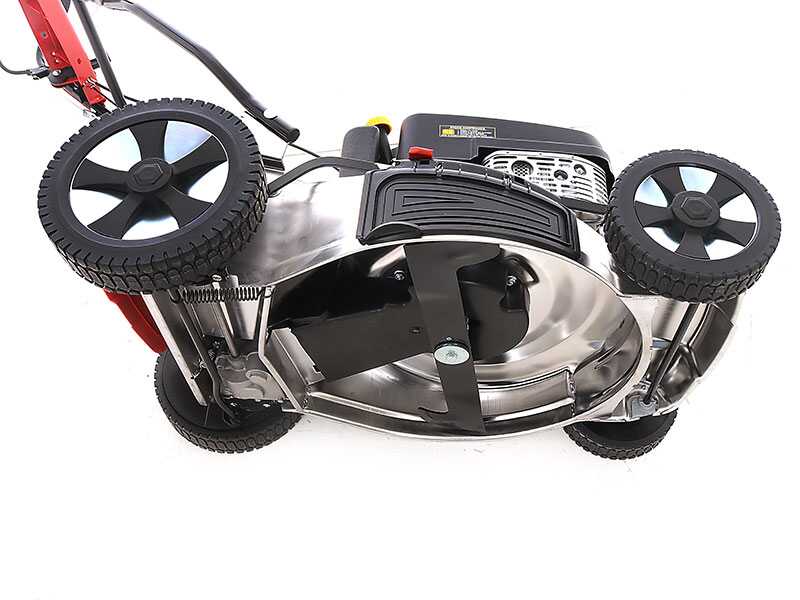

Extremely sturdy stainless steel deck for extended machine durability.

The water hose quick connection makes it very easy to wash the deck.

Iron front bumper for extra deck protection.

Focus on the 50.8 cm steel blade: the heavy-duty lift-wing blade creates a much more powerful air flow compared to classic blades, thus improving grass collection effectiveness, mulching efficiency and other mowing systems performances.

Focus on the high-thickness deck: 1.8 mm. The deck is highly resistant and hard to break even in case of shocks.

Standard supplied blade.

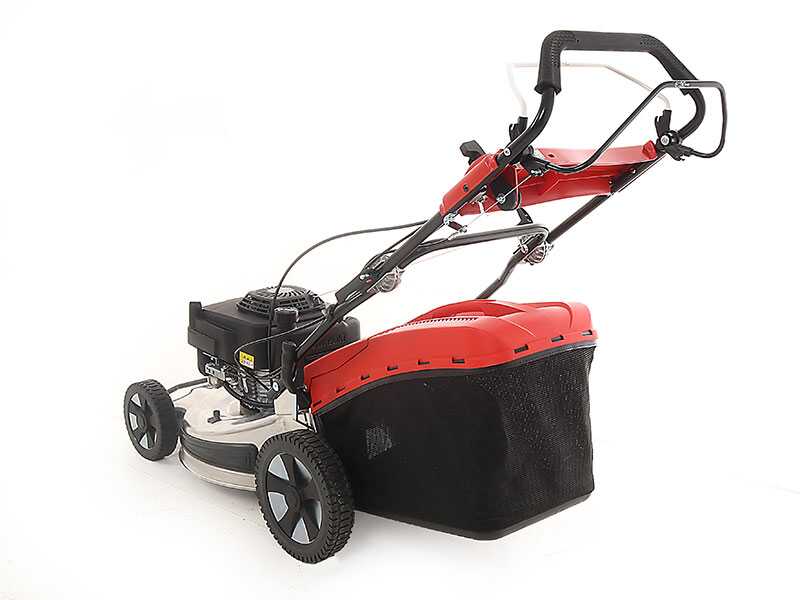

GRASS COLLECTION MOWING

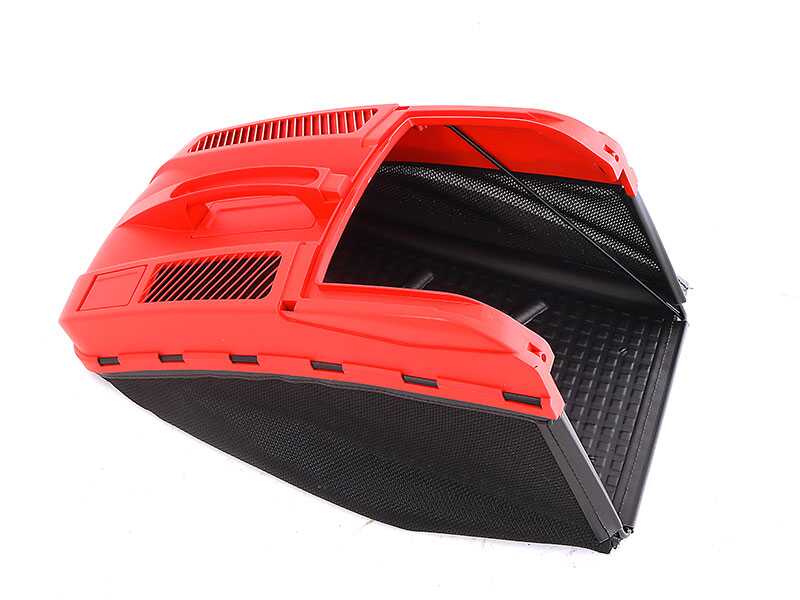

This lawn mower is equipped with a large 70 litre hard cloth grass catcher, which is very easy to remove and empty.

The bottom of the grass collector is made of sturdy and resistant plastic and it prevents the cloth bag from getting ripped while touching the ground.

The handle on the top part of the grass collection bag makes it easy to remove and empty the bag when full.

Indicator when catcher is full.

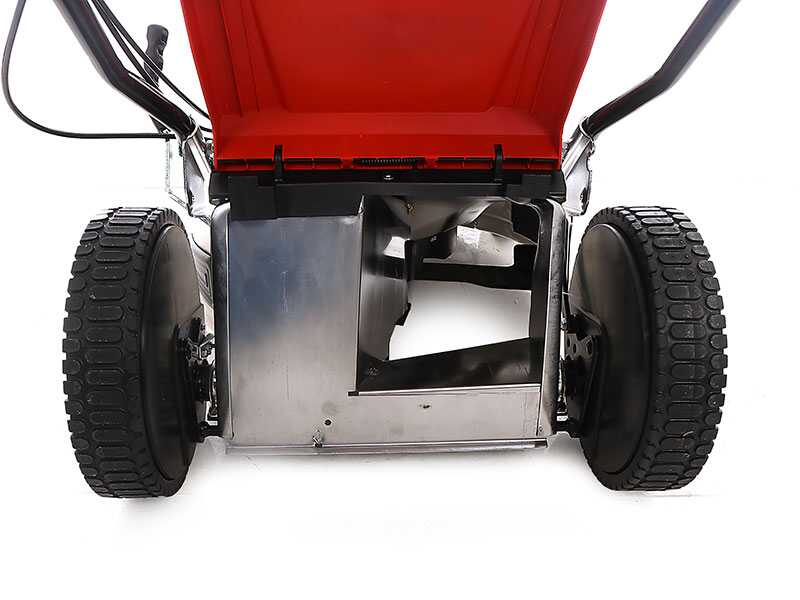

REAR DISCHARGE SYSTEM:

This system allows mowing grass without the collection bag or grass catcher, and discharging the grass clippings from the back of the lawn mower.

The rear discharge system engages automatically when removing the grass catcher.

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

This lawn mower comes with a standard-supplied special mulching blade for the best mulching results possible (the same performances as specific mulching lawn mowers).

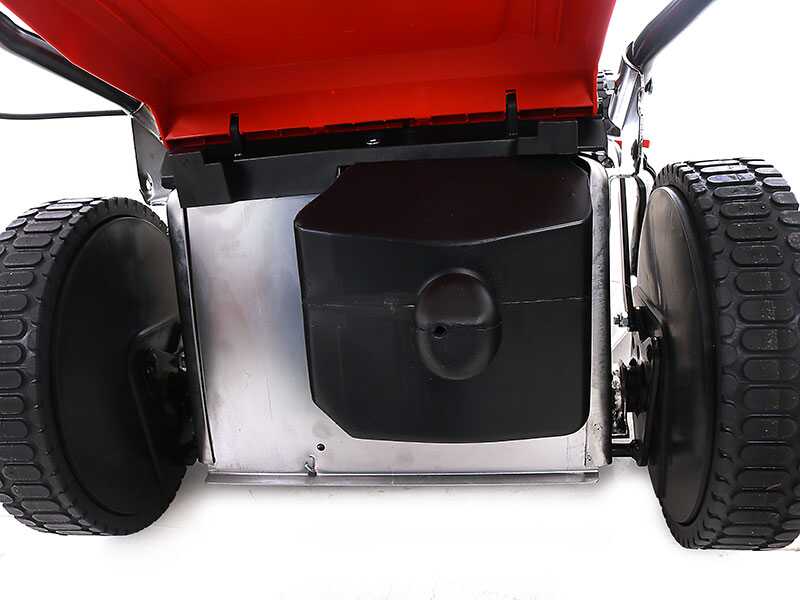

Switching to the mulching system:

• open the grass collector
• insert the standard-supplied mulching plug
• lower the rear deflector to engage mulching system

WHAT IS MULCHING ?

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. You won't have to worry about disposing of the grass clippings thanks to this time-saving and effortless cutting system. Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, if you're looking for great mulching results, don't forget the lawn has to be irrigated and the grass needs cutting at least once a week.

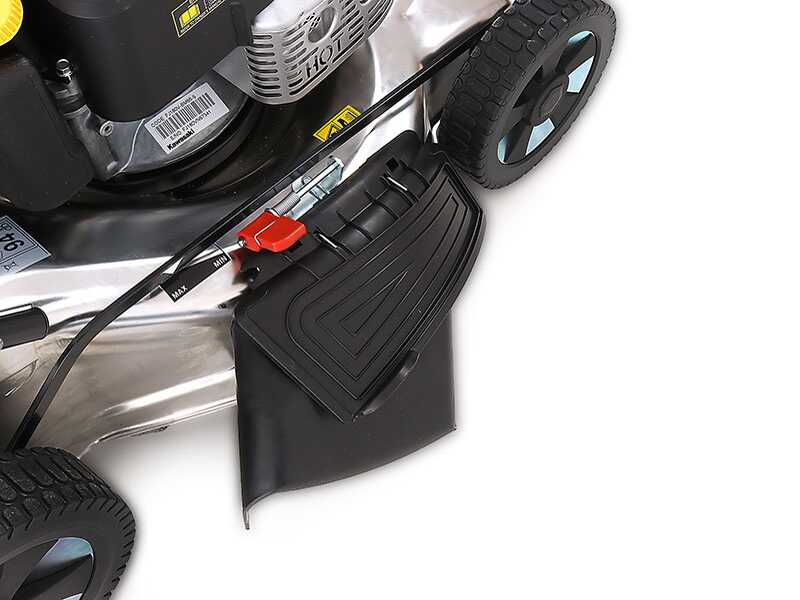

SIDE DISCHARGE MOWING SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass catcher. This option makes it possible to mow tall grass as well, thanks to the large grass discharging capacity of the side deflector.

Leave the mulching plug inside to prevent rear discharge from engaging and lift the black cover on the side to insert the standard-supplied side deflector.

Heavy-duty, ergonomic aluminium handle. Micrometric height adjustment system.

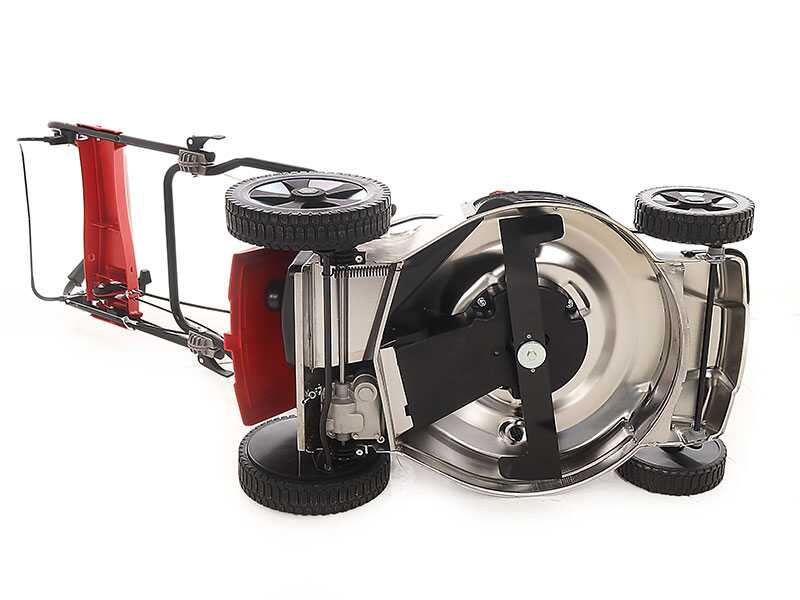

Simple and user-friendly controls, which are placed on the handle.

Blade control lever (in front of the handle)

Possible settings:

Cutting height adjustment lever.

Handle angle settings:

The handle features a plastic micrometric device for height settings. To set the handle position, use the two fast side levers.

Handlebar can be folded in case of long stowing periods.

Focus on the speed variator.
