Name: Master B2 PTC Electric Hot Air Generator with Fan - Heater
Brand: Master
Price: 109.8 EUR
Availability: InStock

Description

Master B2 PTC Eelectric hot air generator with fan

The Master B2 PTC is the brand new electric hot air generator suitable for everyone. Heavy-duty machine for heating small industrial, commercial or residential environments.

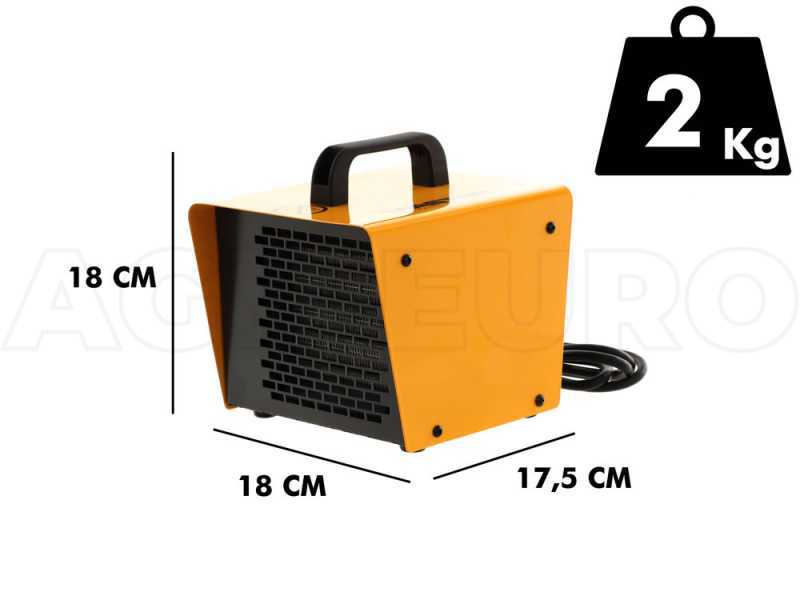

New compact design, made of sturdy and durable steel with IP21 protection, measuring only 18x17,5x18 with a weight of 2 Kg, easy to transport, it can also be stored even in small spaces.

Highly silent and absolutely no smokes, smells or condensation, no oxygen consumption and thermally protected motor.

Provided with PTC (Positive Temperature Coefficient) resistors which, unlike traditional resistors, increase their resistance as the temperature rises.

These electric exhalation heaters are efficient devices for many applications. They quickly provide clean and safe heat. They are excellent for temporary or emergency heating due to their mobility and ease of use. For the construction of the electric heaters, Master uses only the highest quality components, ensuring maximum reliability and efficiency of the devices.

Master guarantees a 3-year warranty!

Main features:

Built-in room thermostat
No oxygen consumption
Adjustable heat
Over-heating thermostat

Master B2 PTC Electric Hot Air Generator with Fan - Heater

Main features

Automatic reset
Summer-winter switch for ventilation only
No oxygen consumption
No smokes, smells and condensation
High silence 100% efficiency
Thermally protected motor
Armoured electric heating elements
Over-temperature thermostat
Built-in room thermostat
Adjustable heat
Made of sturdy and durable steel
Ventilation centrally placed to the resistances
Rear electric cable

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air sent there by an axial fan. The heating function is also controlled by the room temperature detection thermostat and the overheating prevention thermostat.

Focus on the controls:

Knob for selecting different speeds
On/Off switch

Upper handle for transport

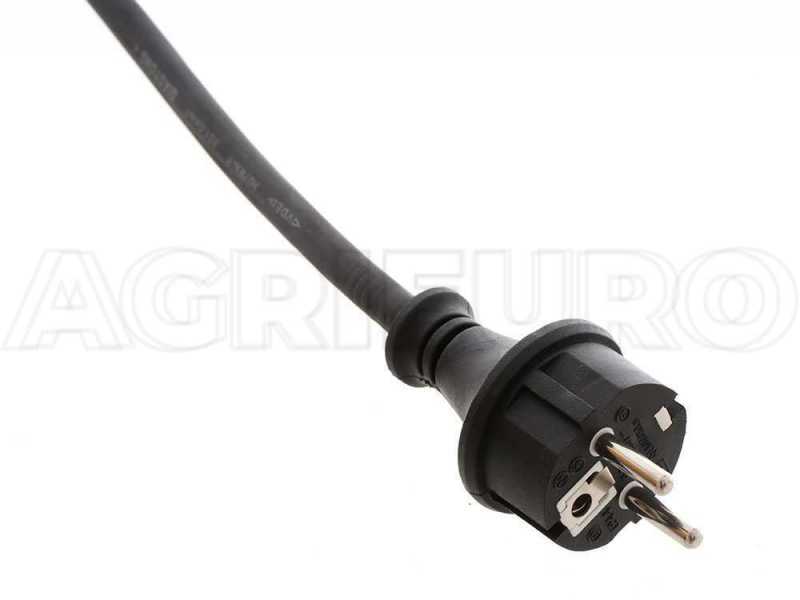

Focus on the plug

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [Î”T ] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 mÂ³

Î”T = outdoor temperature -5ÂºC, room required temperature +18ÂºC, room temperature = 23ÂºC

K = 4 not-insulated room

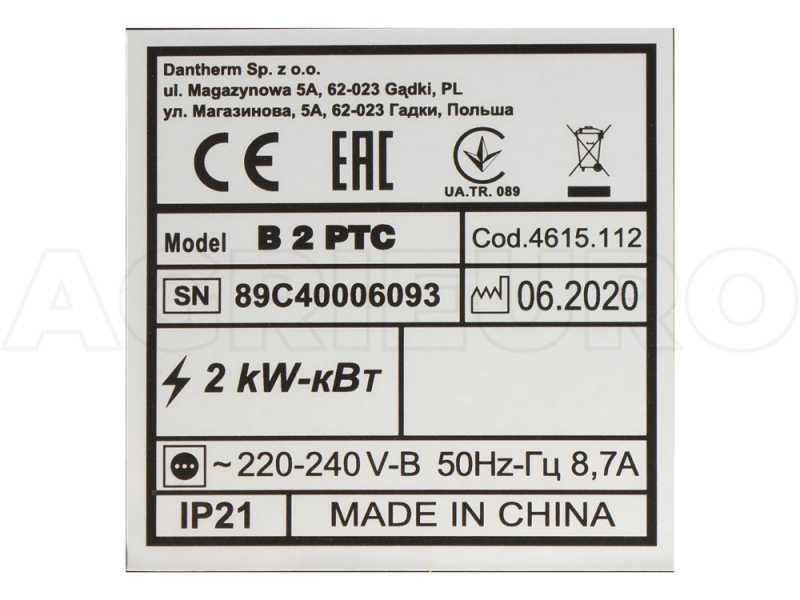

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

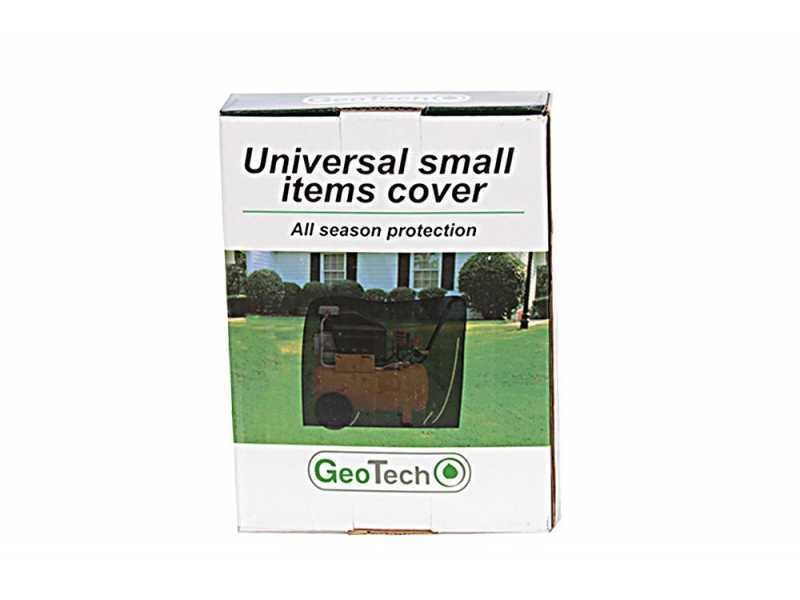

FREE ITEM: Cover and storage sheet

Essential for protecting your machine when not in use.

This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!
