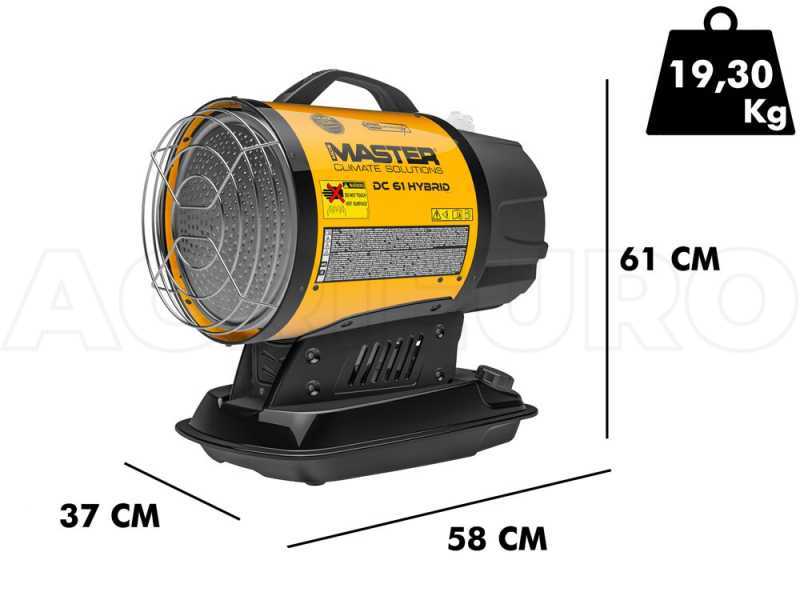

Name: Master DC 61 Hybrid - Direct Heating Diesel-fuelled Hot Air Generator
Brand: Master
SKU: K601470
Price: 1340.76 EUR
Availability: InStock
Rating: 4.5 (2 reviews)

Description

Master DC 61 Hybrid diesel-fired hot air generator

Master DC 61 Hybrid infrared diesel-fired hot air generator

Master DC 61 is the brand new diesel heater that can be powered by a lithium-ion battery. It can also be powered at 230 volts via the included adapter.

Professional design.

Thanks to its weight and small size, it can be easily transported and capable of heating any environment.

It is equipped with a diesel indicator to check the level of diesel in the heater and a socket for analogue or digital remote thermostat.

Ultra-safe 14V Lithium-ion battery, with 4 hours autonomy and very low recharge time, only 60 minutes for a full charge.

The hot air generators are equipped with safety devices for preventing the risk of overheating, an electronic flame control with photocell and anti-tilting sensors.

Master guarantees a 3-year warranty!

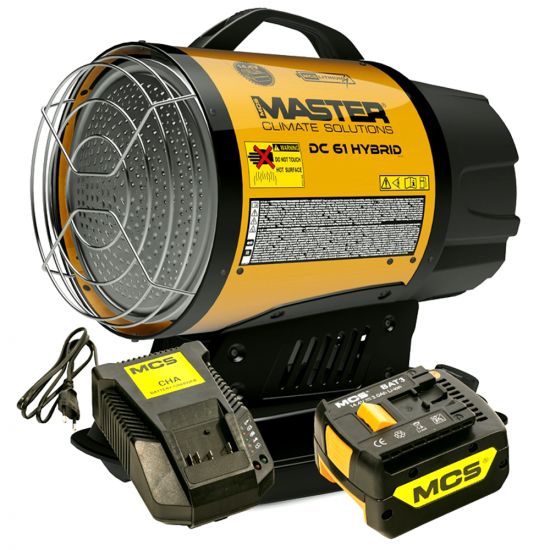

Master DC 61 includes a lithium-ion battery and a converter, but can be also powered through classic power socket.

Stainless steel combustion chamber.

Hot air generators are ideal for heating large spaces that are difficult to heat with traditional systems such as workshops, building sites, greenhouses, garages, livestock farms and much more.

Master DC 61 Hybrid - Direct Heating Diesel-fuelled Hot Air Generator

Main features

Highly silent
Radiant heating
No air displacement
Electronic flame control with photocell
Post-ventilation system
Fuel quantity indicator
Possible room thermostat connection
Pump filter, suction filter and inlet filter
Possibility of adjusting the heat direction (tiltable)
Cart included

Focus on the handle

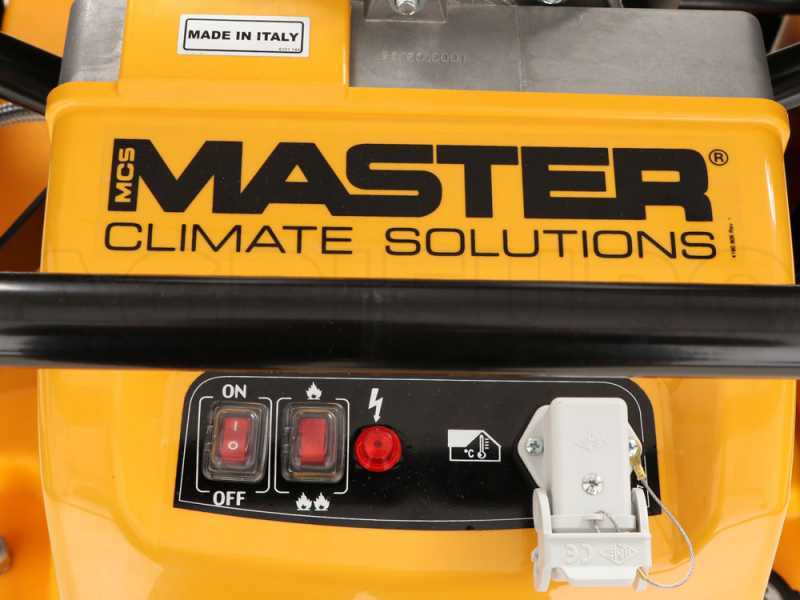

Focus on the controls

Focus on the wheels

Focus on the fuel tank level indicator

The types of fuels that can be used include:

Diesel
Transport diesel
Agricultural diesel
Heating oil
Kerosene

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT ] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

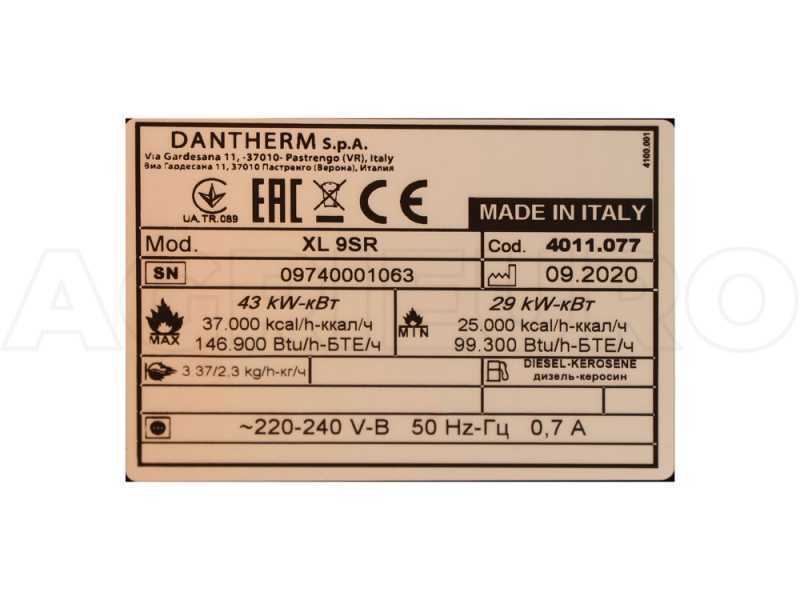

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

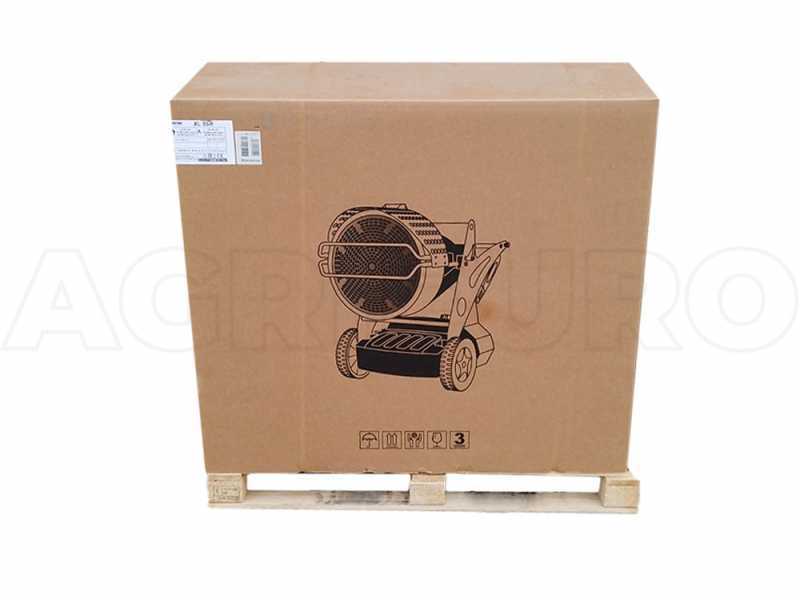

Free items & Standard equipment

COMPLIMENTARY: Heavy-duty cover for covering and storage

Essential to protect your generator when is not in use.

This cover is fast and easy to place: in just a few seconds your machinery is protected from dust and humidity.

Specifically designed to perfectly fit small machines.

Easy to fold and store thanks to its small overall size!
