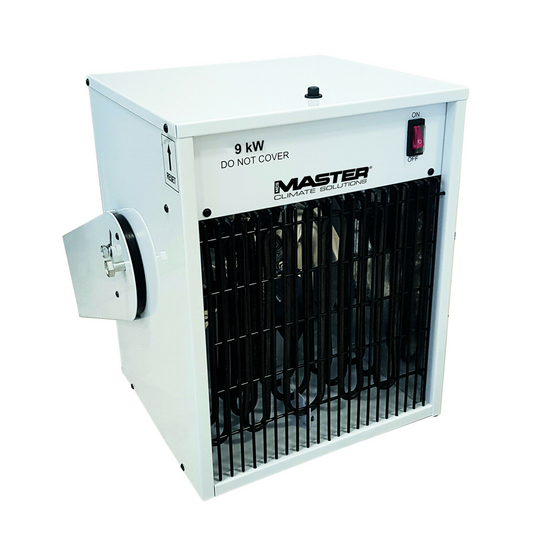

Name: Master TR 9 - Electric Three-phase Wall-mounted Hot Air Generator
Brand: Master
SKU: K601460
Price: 483.5 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

Description

Master TR 9 Three-phase hot air generator

Master TR 9 brand new electric hot air generator with three-phase fan.

The innovative TR 9 portable wall-mounted heater is a professional heater which can be used for quick heating in shops, halls, showrooms, meeting rooms,
bungalows, offices, workshops, garages, reception rooms, tensile structures and cellars, whether large or small.

Since they have no open flame or emissions, these heaters can be used even when the use of fuels such as gas or oil is prohibited and in closed rooms with poor ventilation.

Innovative design that allows you to mount the heater on the wall, thanks to the mounting bracket included in the package, you can orient the TR 9 up to 45°.

Highly silent
No smokes
No smells
No humidity

Equipped with remote control to adjust heat, power and working times.

Provided with PTC (Positive Temperature Coefficient) resistors which, unlike traditional resistors, increase their resistance as the temperature rises.

Master guarantees a 3-year warranty!

These electric exhalation heaters are efficient devices for many applications. They quickly provide clean and safe heat. They are excellent for temporary or emergency heating due to their mobility and ease of use. For the construction of the electric heaters, Master uses only the highest quality components, ensuring maximum reliability and efficiency of the devices.

Master TR 9 - Electric Three-phase Wall-mounted Hot Air Generator

Main features

TR 9 Main features:

Wall assembly.
Heat control.
The remote digital chronothermostat allows you to set the temperature and working time and choose between full power, medium power or ventilation only.
Built-in overheating thermostat.
High silence and maximum efficiency.
No oxygen consumption.
Remote control.
Easy to install.
The remote control box is pre-wired and contains the thermostat, setting and wall bracket.
The included wall bracket allows orient the TR at 45°.
Thermally protected motor.
Made of sturdy and durable steel

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air sent there by an axial fan. The heating function is also controlled by the room temperature detection thermostat and the overheating prevention thermostat.

These hot air generators are also characterized by their low noise level, transportability and the stainless steel heating elements.

Focus on the controls.

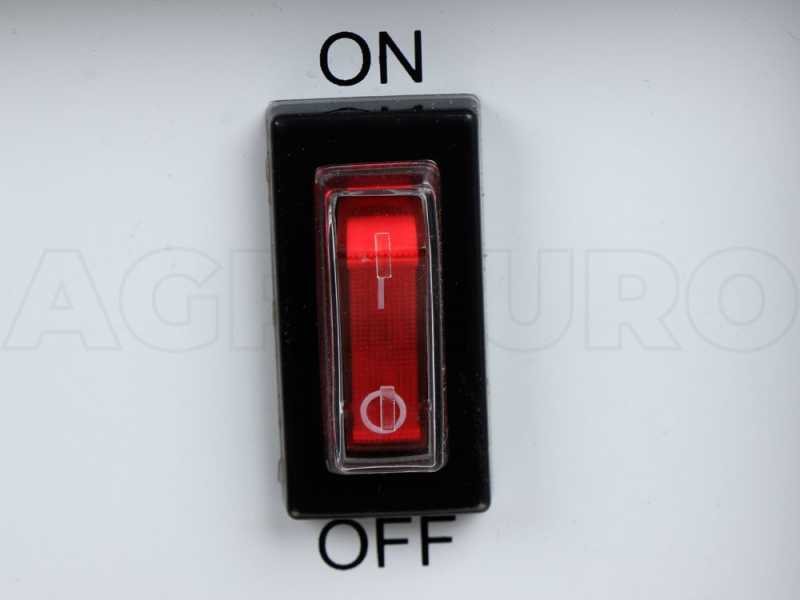

ON/OFF switch
Remote control for adjusting heat, power and working times.

Focus on the three-phase plug

Wall mounting

How to select the ideal hot air generator according to your needs

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT ] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

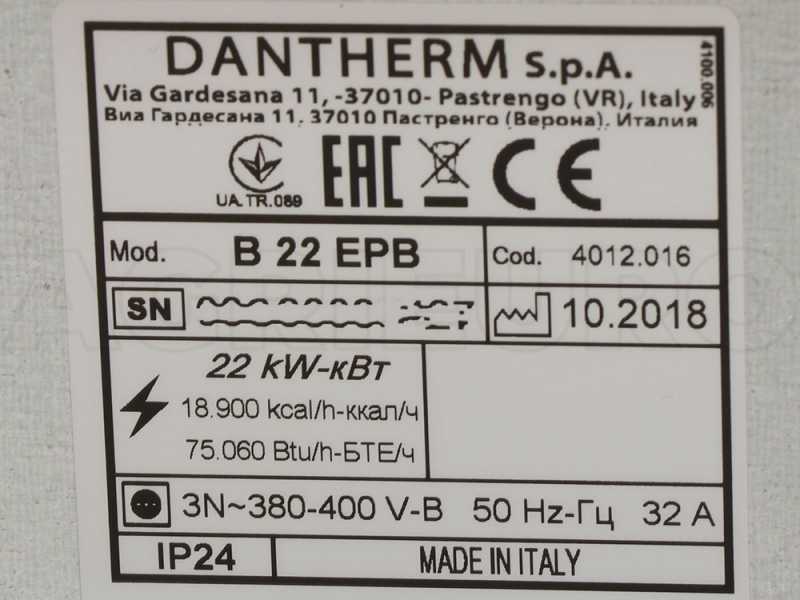

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

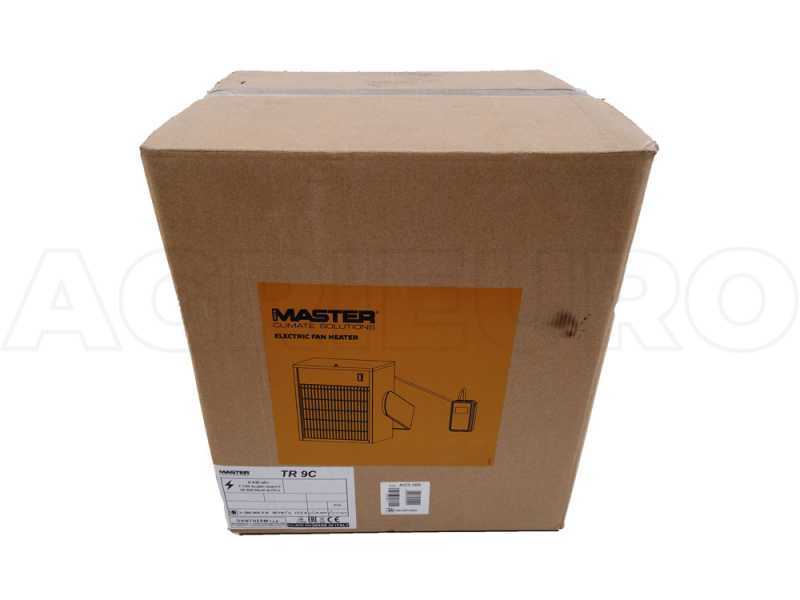

Free items & Standard equipment

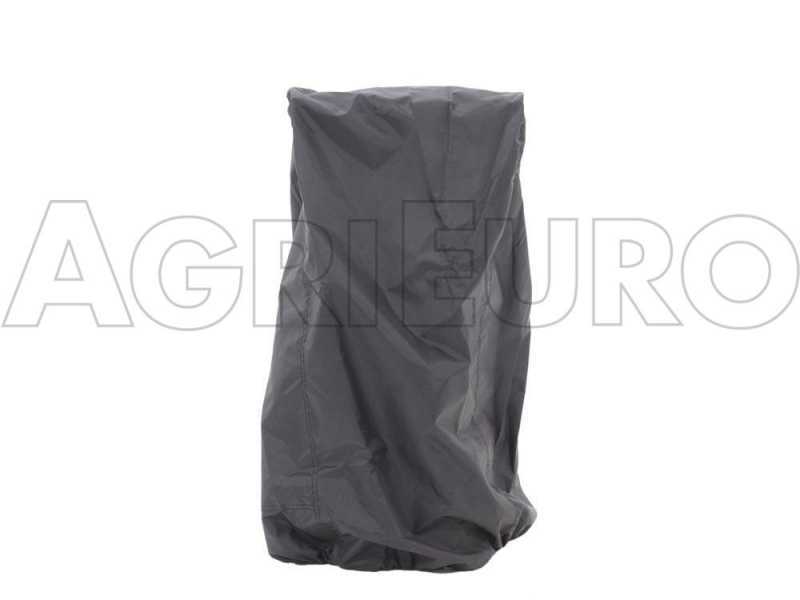

Protection and Storage Cover for Pressure Washers - Size: - Medium
