Name: Michelin VCX 100-3 - Belt-driven Air Compressor - 3 Hp Motor - 100L
Brand: Michelin
SKU: K501115
Price: 636.44 EUR
Availability: InStock
Rating: 4.36 (14 reviews)

Description

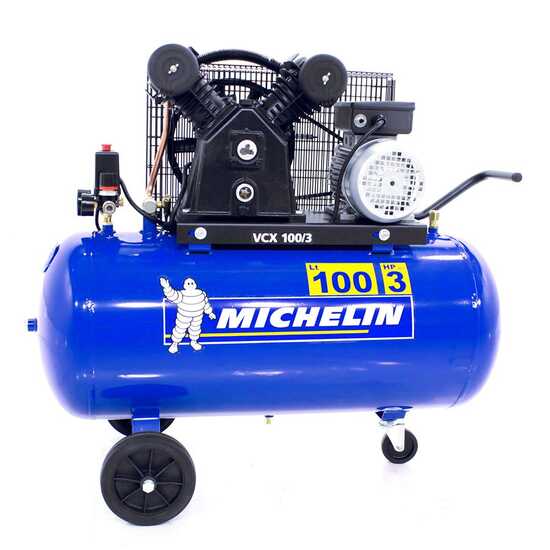

Michelin VCX 100 3 Belt-driven Electric Air Compressor

Michelin VCX 100 3 Air Compressor
Main features:

VCX (V-shaped cylinder head)

100 - Tank capacity in litres 100 L

3 - 3 Hp Motor

The Michelin VCX 100 3 air compressor is regarded as the best choice among demanding hobbyists and professionals looking for a reliable, silent and high-performing equipment.

Powered by a 3 Hp electric motor, this air compressor features a compressed air suction capacity of 350 L/min. It is capable of reaching a maximum pressure of 10 bar.

The air compressor comes with an electromechanical pressure switch, pressure reducer with pressure gauge and universal quick release valve.

It features a large-sized compressed air storage tank of 100 L.

The air compressor weighs 67 Kg and can be easily transported thanks to its wheels and the upper handle.

Michelin VCX 100-3 - Belt-driven Air Compressor - 3 Hp Motor - 100L

Technical features

Air intake flow: 350 L/min

Pumping unit type: belt-driven

Pressure: 10 bar

Electric motor power: 3 Hp

Tank: 100 L

Overall dimensions:
- Width: 1050 mm
- Height: 950mm
- Depth (or thickness): 500 mm

Weight: 67 kg

3 Hp single-phase electric induction motor

Power supply: 230V

Power: 3 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

V-shaped cylinder head

Air intake flow: 350 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1375 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Controls

The VCX 100 3 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Belt drive

These Michelin air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

Other features

Schuko plug

Ergonomic handle

Large wheels in sturdy plastic
Pivoting front wheel

Condensate drain valve

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
