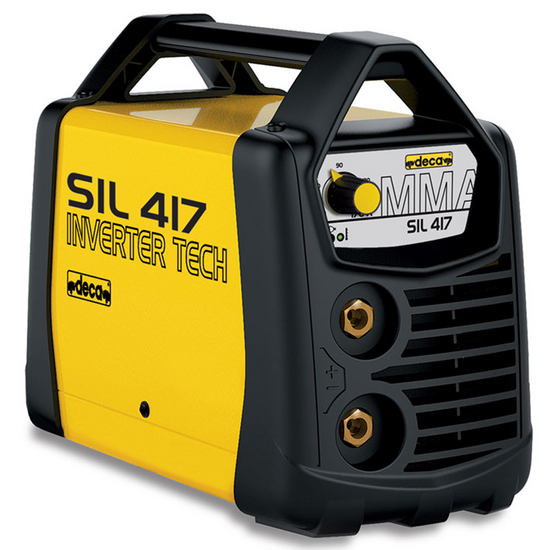

MMA Deca SIL 417 Inverter Welding Machine - 170 A - 230V

Questions & Answers (2)
ID: K502605

EAN: 8011399031225

MPN: 279891

8,0/10
After-sales assistance & Spare parts
MMA Deca SIL 417 Inverter Welding Machine - 170 A - 230V
Special offer
FREE
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Welding current range (A)
10 - 170
Open circuit voltage
102 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
8 %
Generator +/- 15%
TIG lift
Manufacturing country
Italy
Product Features
Model:
SIL 417 + DIN 11
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Fuse:
16 Amp
Suitable MMA electrodes:
1.6 - 4
IP:
21S
Open circuit voltage:
102 Volt
220 V max absorbed power:
4.9 KW
Min. required generator power:
7.3 KW
40°C duty cycle:
8 %
40°C duty cycle:
8%@160A
20°C duty cycle:
40%@170A
Welding current range (A):
10 - 170
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
31 x 13 x 21 cm
Net weight:
3,6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
37 x 37 x 22 cm
Gross weight (packaging included) :
5,4 Kg
Assembly time:
5 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 09/04/2025 - 11/04/2025
Lowest price:
€ 341,36
-8 %
€ 312,17
Vat included

You're viewing:
Customers also viewed:
Description

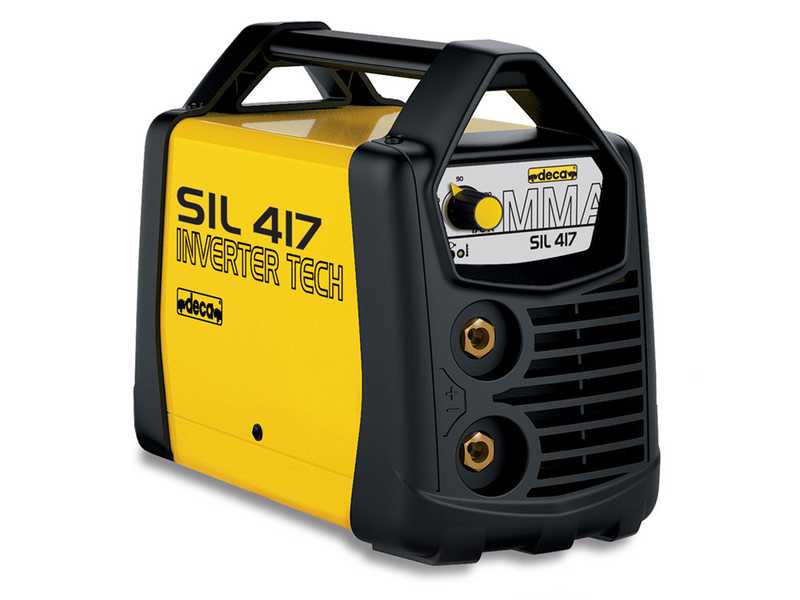

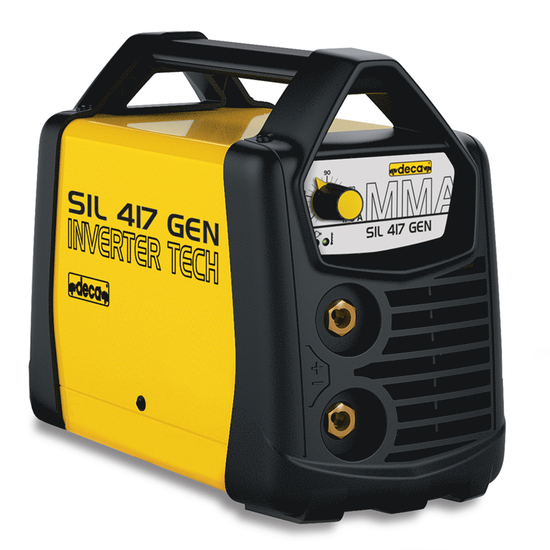

Deca SIL 417

The SIL series is the range of Deca welding machines ideal for users who need a reliable and user-friendly product.

The SIL 417 inverter welding machine, DC, single-phase, is equipped with electronic inverter technology, ideal for amateur use, to satisfy several needs of home users.

The best product ever for amateur use that you can find on the market in terms of reliability and quality of results.

Modern design Compact and lightweight product.

Different types of electrodes such as rutile, stainless steel, cast iron etc. can be used, from 1.6 to 4mm, to perform welding jobs on different metals.

SIL 417 also allows you to use the TIG "Scratch" system with scratch arc ignition. This system makes it possible to achieve that precision and accuracy of work that only the TIG system can achieve.

The welding machine is equipped with the HOT START system, a boost of additional power that facilitates arc striking, in case of electrodes that are difficult to strike. Also equipped with ANTI-STICKING, to easily detach the electrode if it remains glued to the piece Furthermore, when the welding arc is short, the ARC FORCE system increases the Amperes.

Characterized by thermostatic and overvoltage protection, it is able to withstand voltage fluctuations of 15% if it is attached to a motor generator.

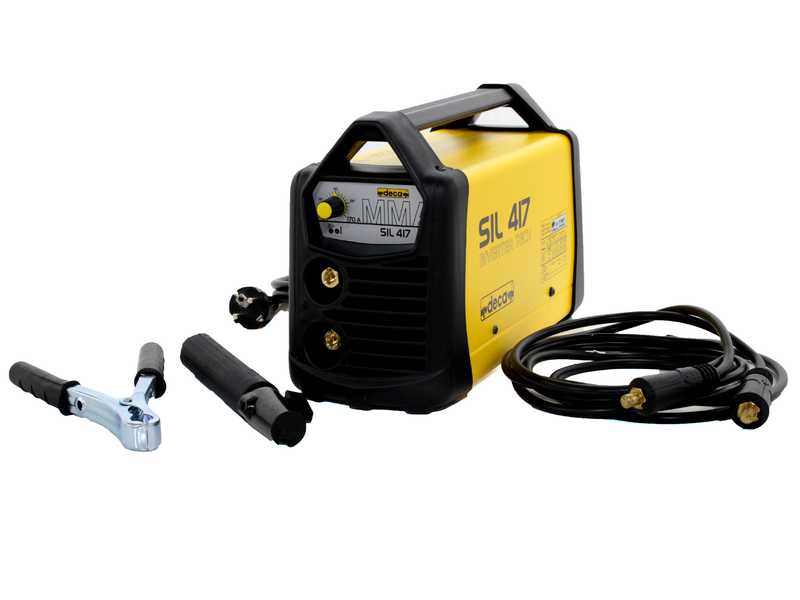

Also, there is the accessory kit: cables, electrode holder, ground clamp

COMPLIMENTARY: 80 2.0 mm SOGES electrodes + 50 2.5 mm SOGES electrodes + Welding gloves

Technical Features

Power supply: single-phase 230 Volt

Fuse: 16 Amp

Usable electrodes 1.6 - 4 Ø mm

Open circuit voltage: 102 Volts

Welding current range: 10 - 170

Duty cycle at 20°: 40% - 170 Amp

Duty cycle at 40°: 8% - 160 Amp

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

Simple and user-friendly controls:

Power switch

Handle for easy transport, which combined to its light weight makes this welding machine extremely easy to handle.

Voltage regulator, the voltage can be adjusted from a minimum of 10 Amps to a maximum of 170 Amps, so users can decrease or increase the current according to their needs

Welding cables must be connected to male/female brass sockets

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging along with the carrying case.

- instruction manual
