HOME Workshop and Do-It-Yourself Welders MMA Electrode Welders MMA Electrode Inverter Welders MMA Electrode Only Welders Stanley WD160IC1

MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle

Hobby
Add a question
ID: K603277

EAN: 8004386614372

MPN: 61437

Stanley
Catalog Stanley
7,0/10
After-sales assistance & Spare parts
25Pictures
1Videos
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
FREE
Stanley Welding HelmetStanley Welding Helmet
Stanley Magnetic Welding PositionersStanley Magnetic Welding Positioners
Type
Inverter MMA
MMA electrode
✔
Welding current range (A)
10 - 160
Open circuit voltage
60 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
15 %
Generator +/- 15%
✔
LCD display
Yes
Manufacturing country
Italy
Product Features
Model:
WD160IC1
Type:
Inverter MMA
MMA electrode:
✔
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
21S
Open circuit voltage:
60 Volt
220 V max absorbed power:
5.2 KW
Min. required generator power:
8.3 KW
40°C duty cycle:
15 %
40°C duty cycle:
15%@160A
Welding current range (A):
10 - 160
Generator +/- 15%:
✔
Synergic welding:
No
Manufacturing country:
Italy
Equipment
LCD display:
Yes
Free gifts/extra features
Welding equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics

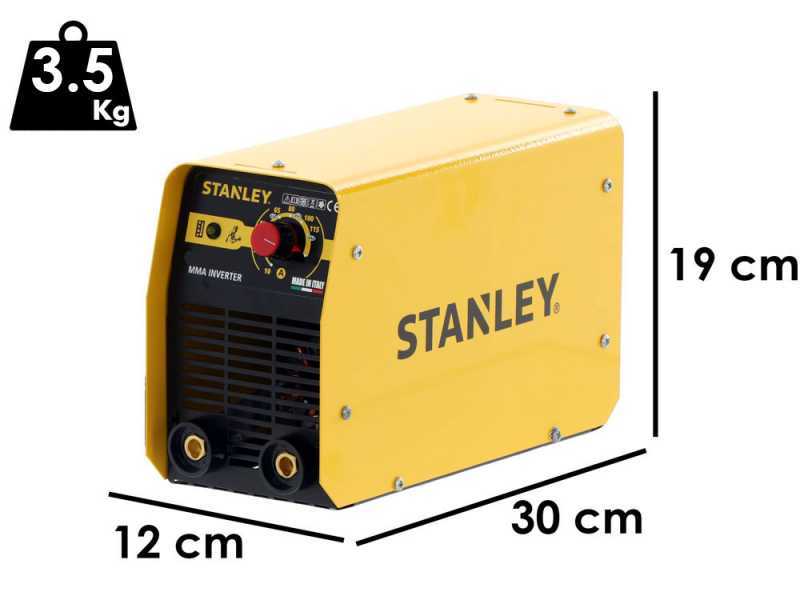

Product dimensions in cm (L x W x H):
30x19x12 cm
Net weight:
3.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
38x17x30 cm
Gross weight (packaging included) :
5.7 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 09/07/2024 - 11/07/2024
Free returns (up to 30 days after receipt) *
€ 254,51
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

MMA Stanley WD160IC1 Inverter Electrode Welder

MMA Stanley WD160IC1 Inverter Welder:

Equipped with Arc Force ignition system and Anti stick system to avoid electrode sticking.

The standard operation with the classic Schuko plug powered at 220 V (the household mains) makes it suitable for any hobbyist looking for a versatile and efficient product.

The Inverter technology allows the Operator to use this welding machine with ease and high safely, thanks to its power absorption stability. Extremely helpful voltage regulator and digital display.

Its compact size and top belt make it suitable for carrying and dynamic work. Additionally, it can be also easily stored anywhere.

This welder model guarantees a high stability of the welding current in case of variations of the supply voltage.

Welding machine of excellent workmanship guaranteed by the made in Italy quality.

The Stanley welding machine requires electrodes with a diameter of 1.6-3.2 mm and guarantees a cycle of use or service equal to 15% at 160A (this data is tested at 40° in compliance with current legislation).
Usable electrodes: rutile, basic, stainless, cast iron, and many others.

MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle

Technical features

Quality guaranteed by the Italian manufacturing.

Power supply: 230 Volts

Maximum power absorption: 5.2 KW

Usable electrodes 1.6 - 4.0 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 60 Volts

Power: 20 - 160 A

Duty cycle at 40°: 15% at 160A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40C, and when the power supply is at controlled temperature, after working for a certain time.

Power switch

Turbo fan to ensure the machine cooling

Shoulder harness for easy transport

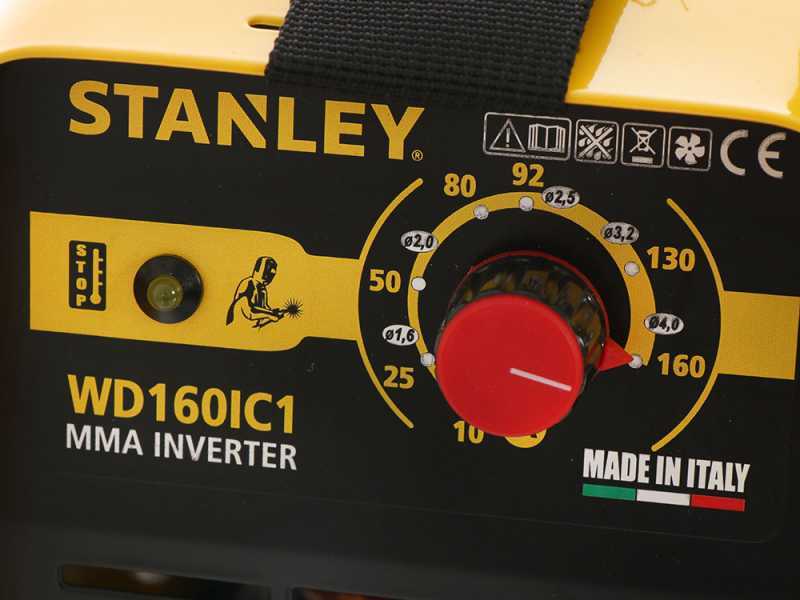

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
Free items & Standard equipment

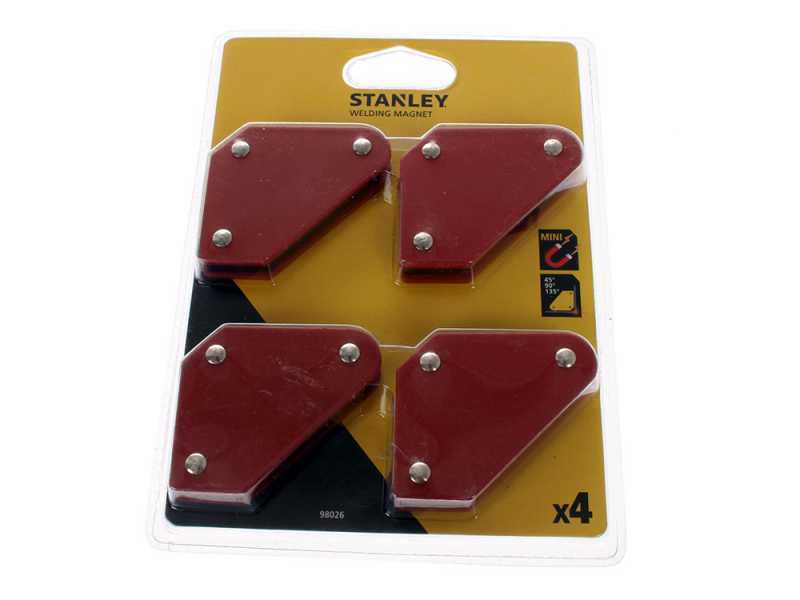

Stanley MINI MAGNETIC HELP SET Welding Magnets

Stanley MINI MAGNETIC HELP SET Welding Magnets

4 Stanley welding magnets that can be used with different angles such as:

  • 45°
  • 90°
  • 135°
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle

Stanley HELMET 2000E 11 Auto Darkening Welding Helmet

Stanley HELMET 2000E 11 Auto Darkening Welding Helmet

Versatile and adjustable, equipped with a protective spare visor included.

MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle

Free items included

The product is shipped in its original packaging complete with instructions manual.

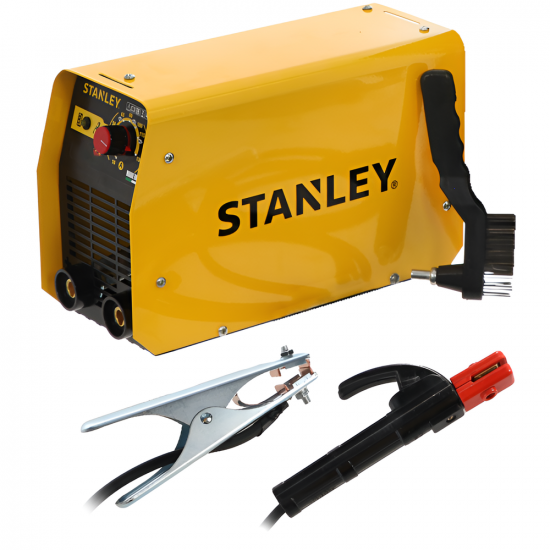

Wide range of accessories provided on standard equipment:

Power cable with Schuko socket

Ground clamp

Electrode holder

Brush/Hammer for debris removal

MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle MMA Stanley WD160IC1 Inverter Electrode Welding Machine - with MMA Kit - 15%@160A Cycle
