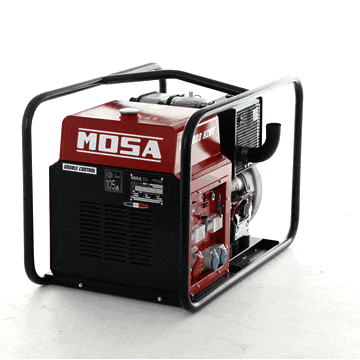

MOSA GE 12000 HZDT - 9.6 kW Diesel Power Generator - DC 8.8 kW Three-phase

The Diesel Power Generator GE 12000 HZDT is a product manufactured by the Italian company MOSA. The generator is also able to guarantee a running time of 7.2 H (75% of PRP).

Moreover, the generator is equipped with AVR, which controls the voltage. The alternator is manufactured by LINZ, a leading Italian company that produces high-efficiency, high-quality alternators.

This generator model can express a maximum single-phase power output of 9.6 kW.

Powerful and versatile, it is a functional product, suitable for any application, that will serve you reliably for many years.

Among the machine features, an automatic engine shutdown system, in the event of low oil level (Oil Alert).

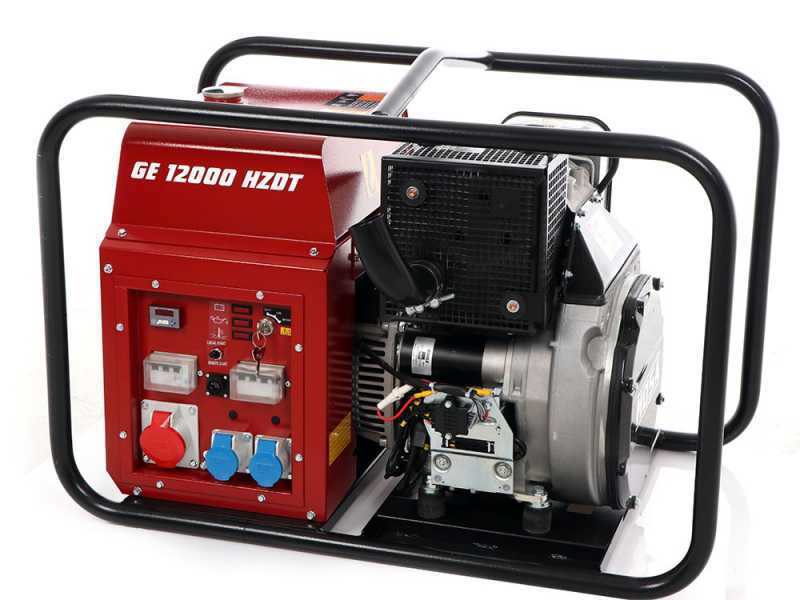

The HATZ 1D90 diesel engine is reliable and guarantees great performance, which is why it is considered one of the best.

The generator is a product made up of two basic elements: the alternator and the engine. This MOSA GE 12000 HZDT generator model features a high-quality engine and alternator.

Both the HATZ engine and the Linz alternator make the MOSA generator a product that stands out among all the other generators offered in the catalogue.

One of the most features of this generator model is the practical electric starter with key, which allows easily start the unit and it also ensures a quick connection with the ATS panel.

The anti-vibration pads placed both under the engine and under the alternator will significantly reduce vibrations and increase the stability of the generator.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum three-phase power output: 9.6 KW

Voltage: 400V

Operating frequency: 50 Hz

Tank: 18 L

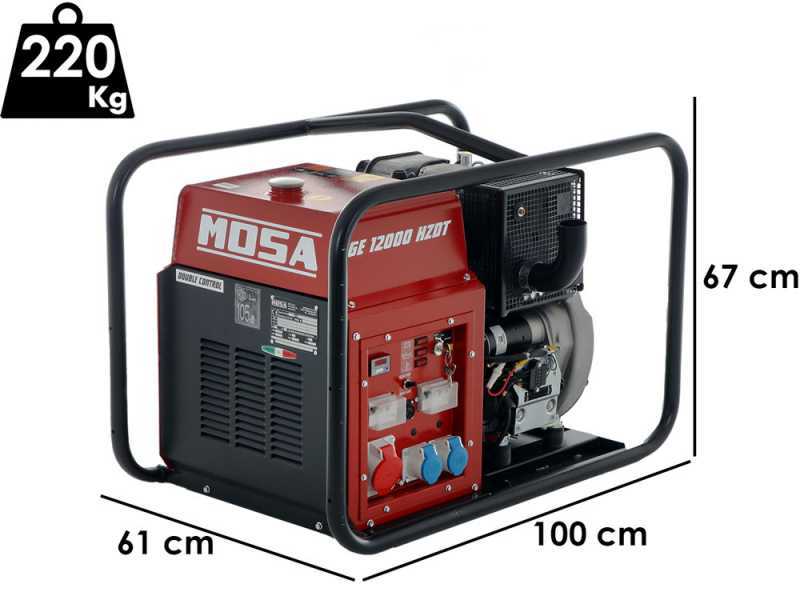

Dimensions: 100X61X67 cm

Weight: 220 kg

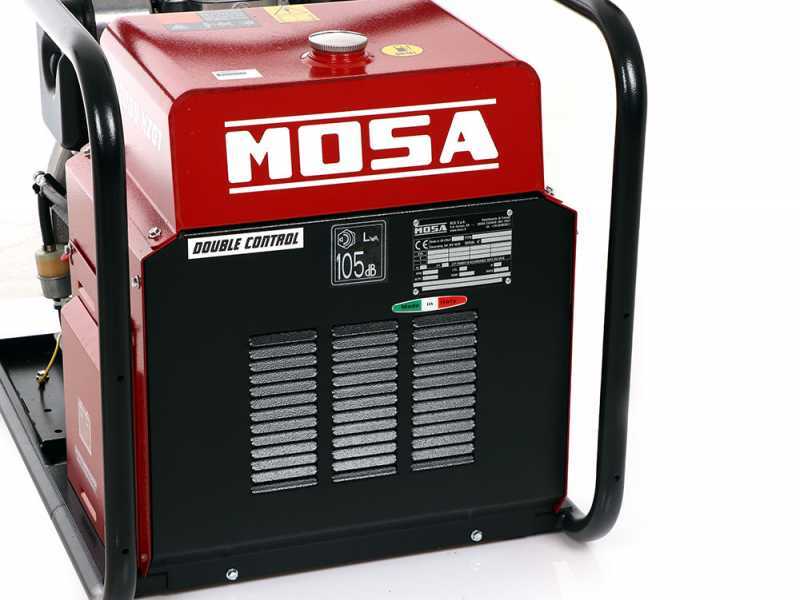

Noise level: 105 dB

Automatic engine stop on low oil level

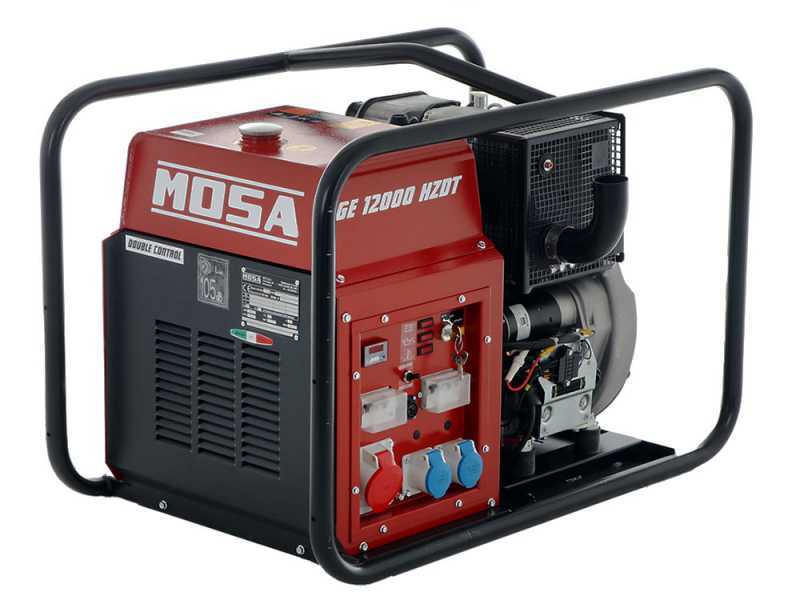

E1S10 KE Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ guarantee high-quality and reliability Made in Italy alternators.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 400V

Operating frequency: 50 Hz

Revolutions per minute: 3000 RPM

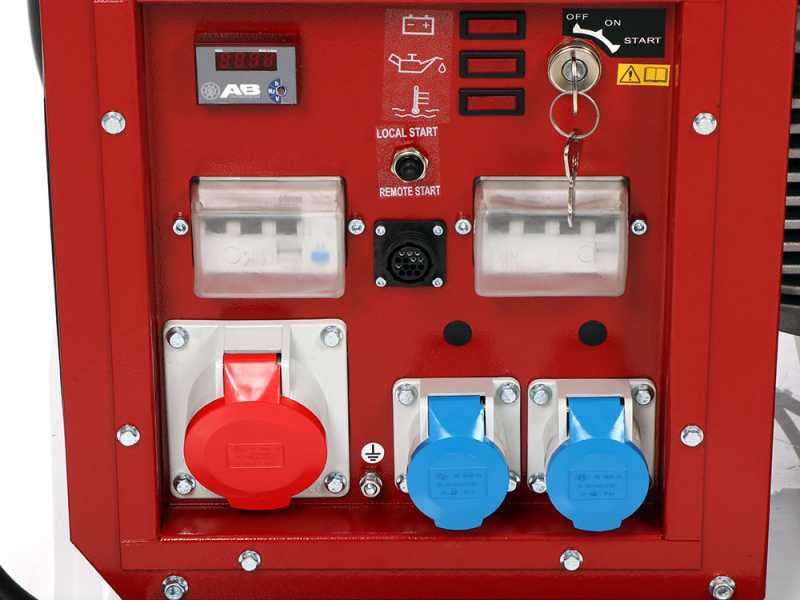

Electric control panel.

Three-phase CEE industrial socket 32 A 400 V IP44

2 CEE industrial sockets 16 A 230 V single-phase IP44

Circuit breaker

Residual current circuit breaker

Electric start with ignition key

Connection for ATS board

Multifunction digital display: Voltmeter - Frequency meter - Total and partial hour counter

Local-Remote Start switch

Focus on the ground discharge

Focus on the muffler

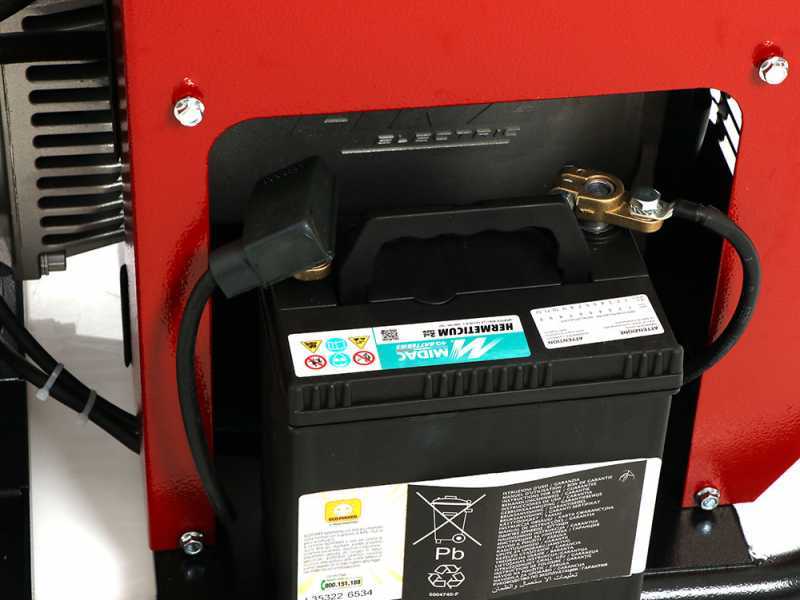

Focus on the battery

Focus on the oil filler neck

Focus on the recoil starter

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
