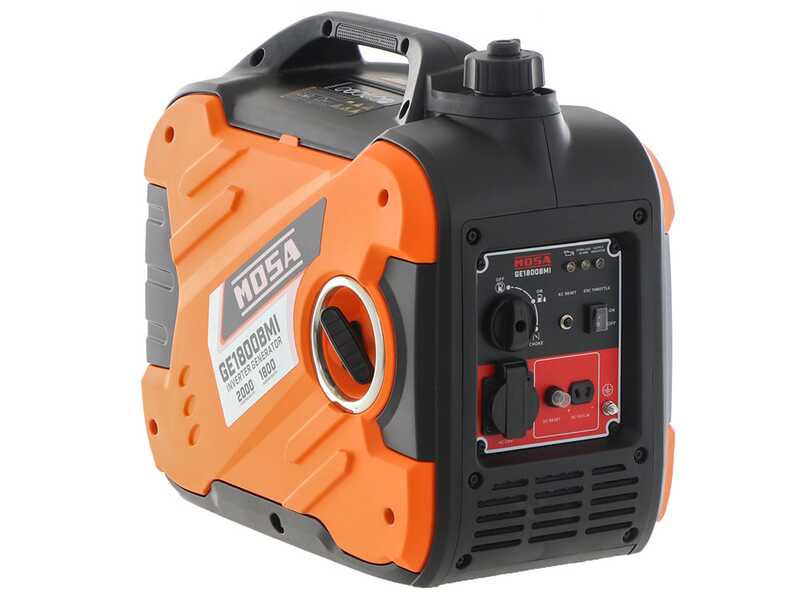

Mosa GE 1800 BMI - 2 kW Inverter Power Generator - DC 1.8 kW Single-phase

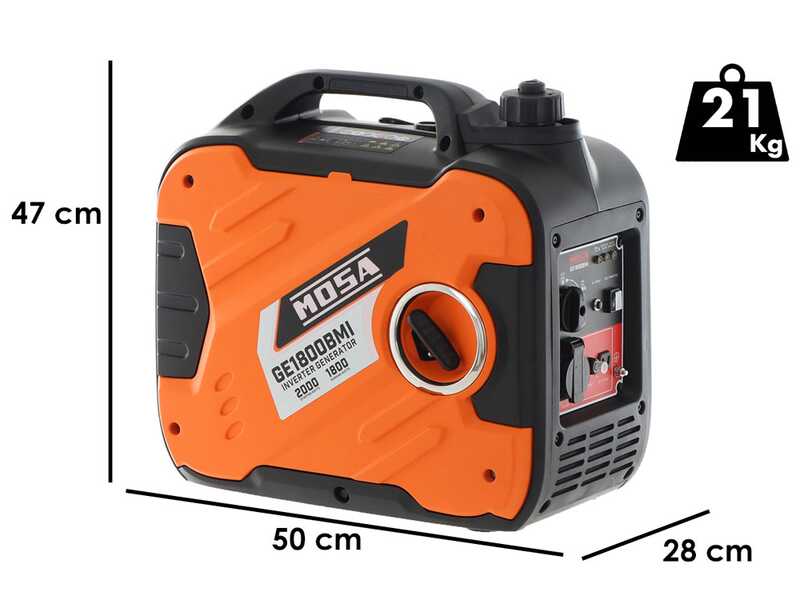

The Mosa GE 1800 BMI inverter generator is very easy to use and convenient to transport, weighing only 21 kg.

The generator is able to reach a maximum power of 2 Kw.

The generator control panel also features a 16A Schuko socket and a 12V 8.3A socket for battery chargers (cable included).

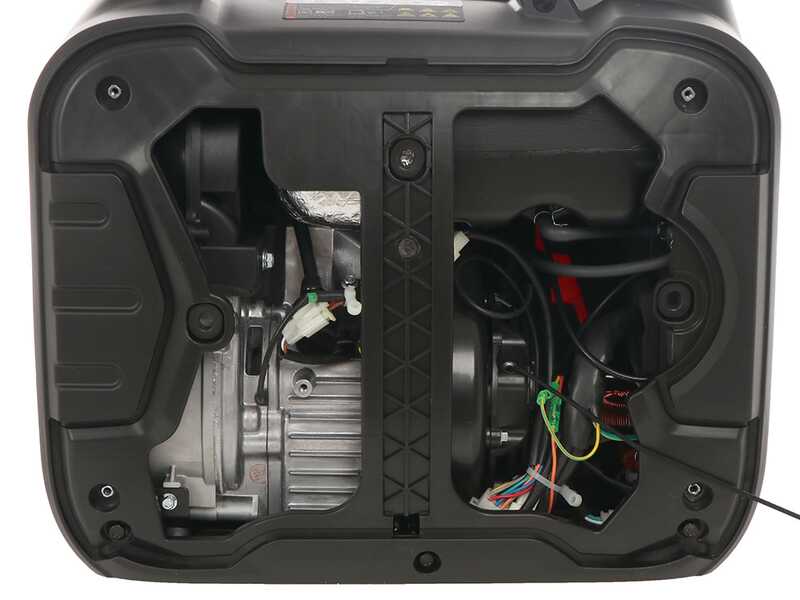

It has a Mosa GK 80-i engine with a displacement of 79.7cc and a rated power of 2.5 HP.

The inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments, and any particularly device sensitive to variations in voltage and frequency.

Silenced Generator:

this aspect allows the use in camping sites, mobile homes, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

CAUTION: All power generators like this, belonging to one of the lowest levels of the PROFESSIONAL level products (refer to the product level rating scale used on this site) should not work for longer sessions of 3-4 hours continuously, in order to not to compromise in the medium-long term durability of the alternator and other components due to overheating or to wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases we recommend to opt for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

Maximum nominal power: 2 kW

Nominal power in continuous running (COP): 1,8 KW
*This s the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 5 L

Running time: 4 hours

Weight: 21 kg

Noise level: 90dBa

Engine type: 4-stroke petrol

Displacement: 79.7 cc

Number of cylinders 1

Frequency: 50 Hz

Rated Power: 2.5 HP

Fuel tank capacity: 5 L

Cooling type:air-cooled

Running time at MAX Power 4 hours
Start type: recoil start with self-recovery

WARNING: Engine without oil
(make sure to add oil for 4-stroke engines before starting the unit)

Major advantages over conventional 2-stroke mixture engines:

• Greater reliability
• Higher durability
• Easier start especially after long periods of inactivity
• Lesser problems related to the preparation and to the fuel freshness
• Lower fuel consumption (less than half!).
• Less maintenance

1 Schuko power outlet IP44 16A 230 V

Charger socket:
The charger is equipped with overload circuit, which can activate the charger protection device.
If this happens, you should hold the reset button (on the side)

Energy saving button

3-1 Power switch that includes:

• Start & Stop
• Fuel tap opening
• Choke valve closure

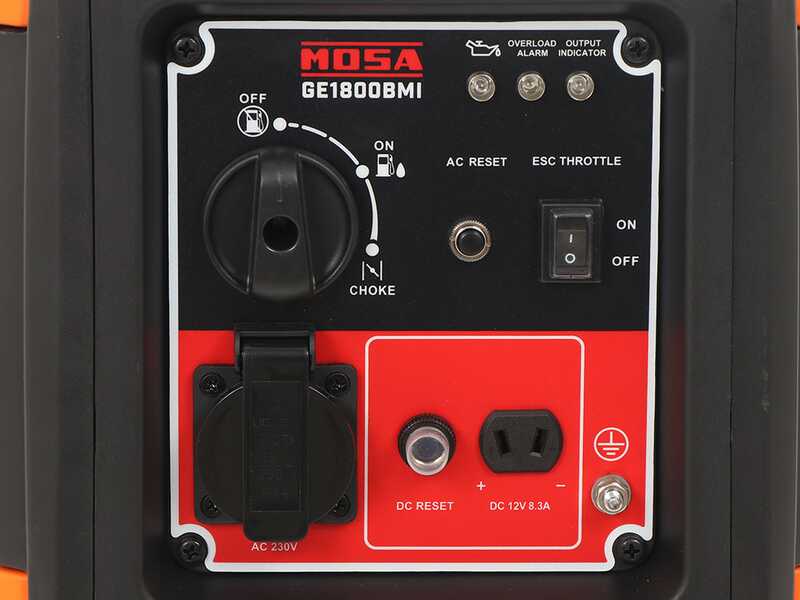

INDICATING LIGHTS:

- LEFT LIGHT: Oil warning system. Designed to prevent engine damage caused by an insufficient amount of oil. Before the oil level can drop below the safety limit, the red oil warning light turns on and the oil alarm system will stop automatically the engine. * Warning: the engine is provided without oil.

- RIGHT LIGHT: Electricity supply. It subsequently illuminates when power switch is on. Under normal conditions this green light should be the only one turned on.

- CENTRAL LIGHT: Overload warning. If the generator is overloaded (over 1.7 kW) or if there is a malfunction or a short circuit in a device connected, this red overload indicator lights up. After a few seconds, it will stop the power supply and the green light will turn off.
In this case, stop the engine and find out the cause of the overload

Focus on the supporting rubber feet which guarantee maximum stability

Focus on the spark plug

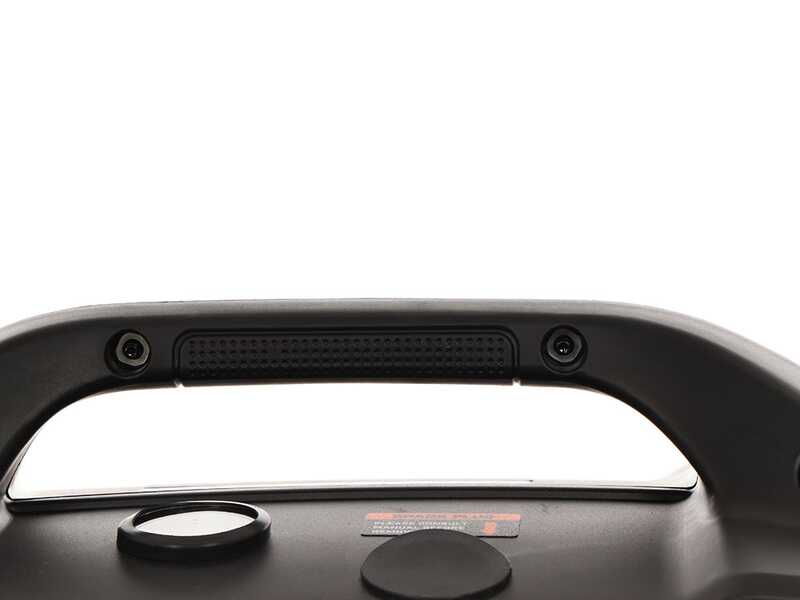

Transport handle

Exceptionally low weight: only 22 kg!

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

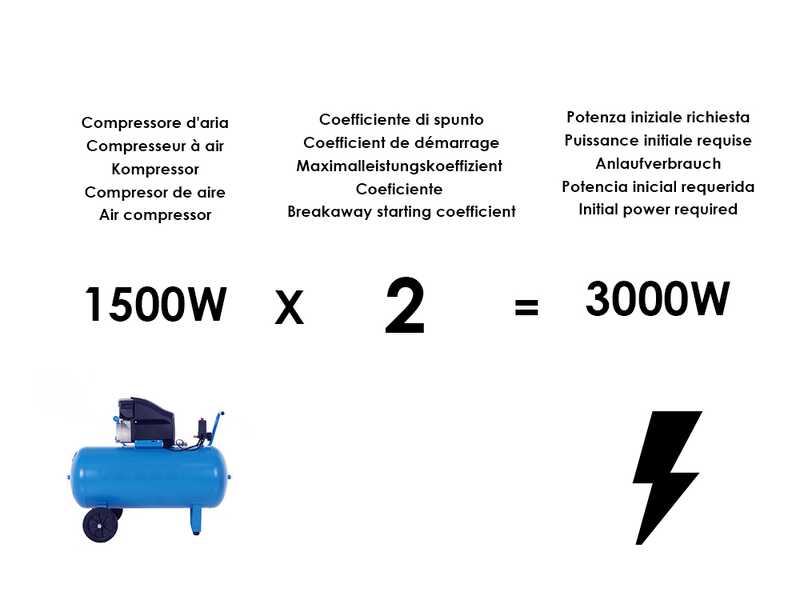

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).

• This inverter generator is provided with ELECTRONIC CARD, which allows stabilizing the electric power supplied, producing an almost perfectly shaped electric wave.

  This makes the generator particularly suitable for different applications, but also unsuitable for others.

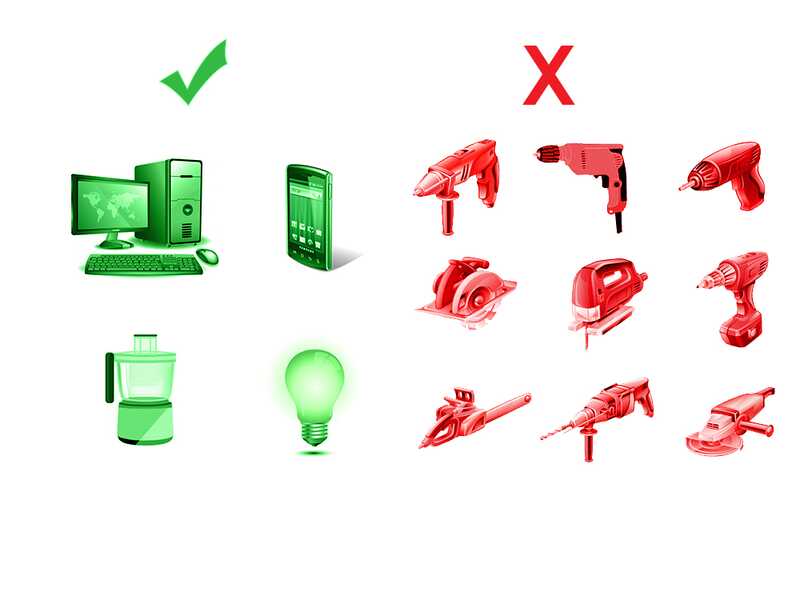

  RANGE OF APPLICATION, some examples: it allows powering all types of electronic equipment (as they are equipped with electronic card, consequently requiring stable electric current to avoid the risk of damaging these cards). It is also intended to ensure electric power to electric household appliances, kitchen appliances as well as leisure time equipment (appliances used on motor homes, boats, etc.).


  The generator is NOT SUITABLE FOR powering construction and workshop equipment, DIY equipment, welding machines and other appliances that are equipped with brush motors (they may cause electric power surges back to the unit in case of wear of the brushes damaging the generator electronic card). Inverter generators are not suitable for all the appliances listed above that are typically construction equipment applied on crafts or building sectors. In this case, you’ll need to address your choice on standard generators, which are not provided with inverter electronic card, but the ones featuring standard alternators with heavy-duty stator and rotor, which are specifically intended to power these appliances.

  We remind that the inverter generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator.

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
