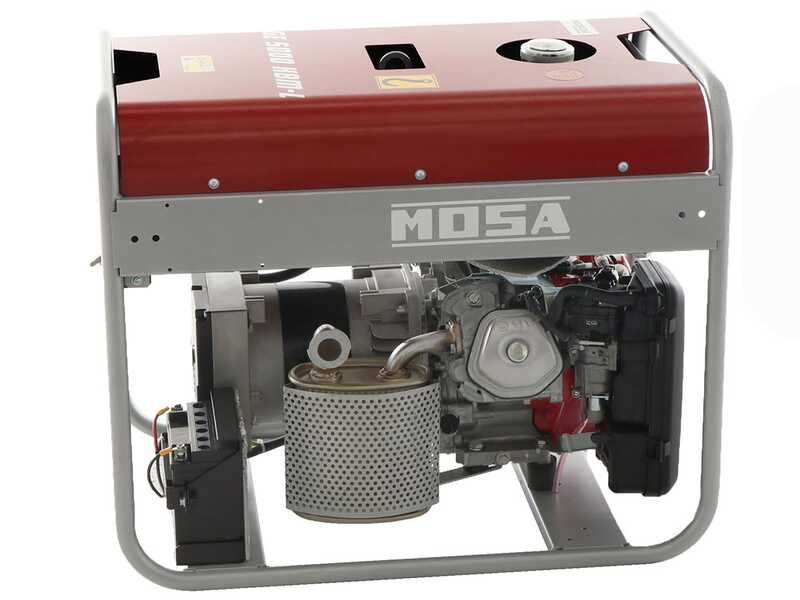

MOSA GE 5000 HBM-L AVR EAS - Single-phase 4.4 KW Power Generator - Italian Alternator

The petrol Power Generator GE 5000 HBM-L AVR EAS is a product manufactured by the Italian company MOSA.

It is powered by a Honda iGX 270 petrol engine 270 cc, which is able to reach 7.7 HP. It has a 20 L petrol tank, which allows extended use of the machine.

The generator is a product made up of two basic elements: the alternator and the engine. This GE 5000 HBM-L generator model features a high-quality engine and alternator.

The alternator is manufactured by NSM, a leading Italian company that produces high-efficiency, high-quality alternators.

The anti-vibration pads placed both under the engine and under the alternator will significantly reduce vibrations and increase the stability of the generator.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single-phase power output: 4.4 KW

Nominal power in continuous running (COP) Single-phase: 3.6 KW

*The latter is the figure to be taken into account as the actual and constant figure in the generator output during a variable power work cycle.

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 20 L

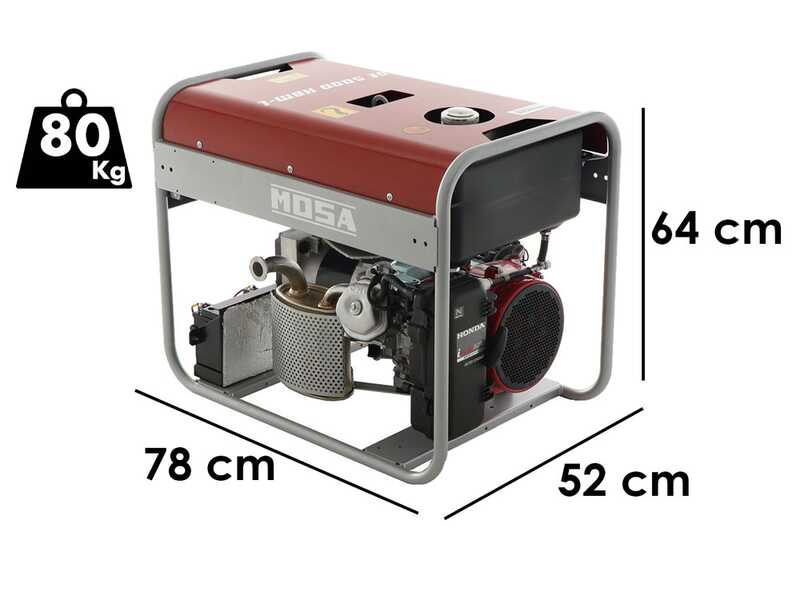

Dimensions: 78x52x64

Weight: 80 kg

Noise level: 96 dB

Automatic engine stop on low oil level

Thermal overload protection

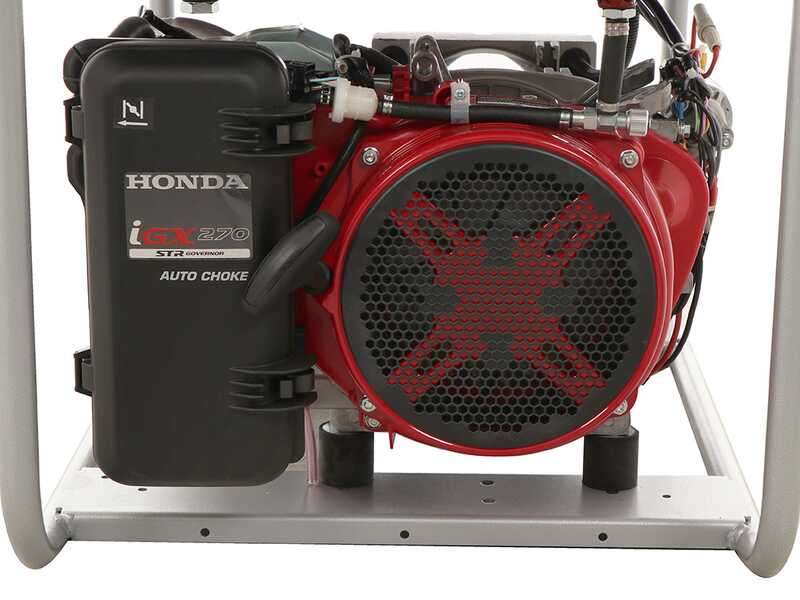

Standard-supplied Honda iGX 270 engine
Powerful and professional, with the latest generation OHV overhead valve technology.

Features:

WARNING

Oil free engine.

Before using the machine, read the instruction manual carefully.

Nominal Power: 7.7 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 6.2 HP

* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

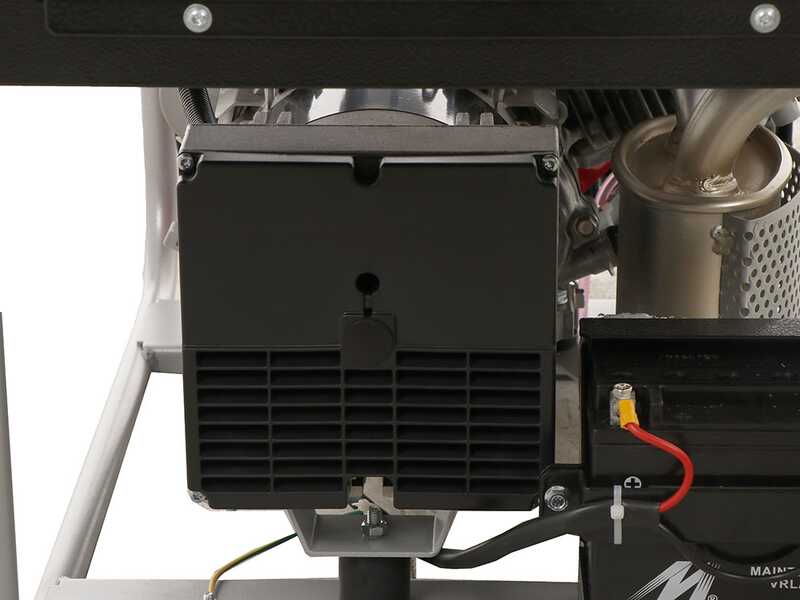

NMS KR100 E alternator

NSM is probably the most important Italian manufacturer of alternators. The vast experience of the group together with the high degree of innovation of the company NSM guarantee high-quality and reliability Made in Italy alternators. NSM alternators represent the top of the category on the market today.

High-quality and efficient alternator with copper winding.

Voltage: 230V

Operating frequency: 50 Hz

Revolutions per minute: 3000 RPM

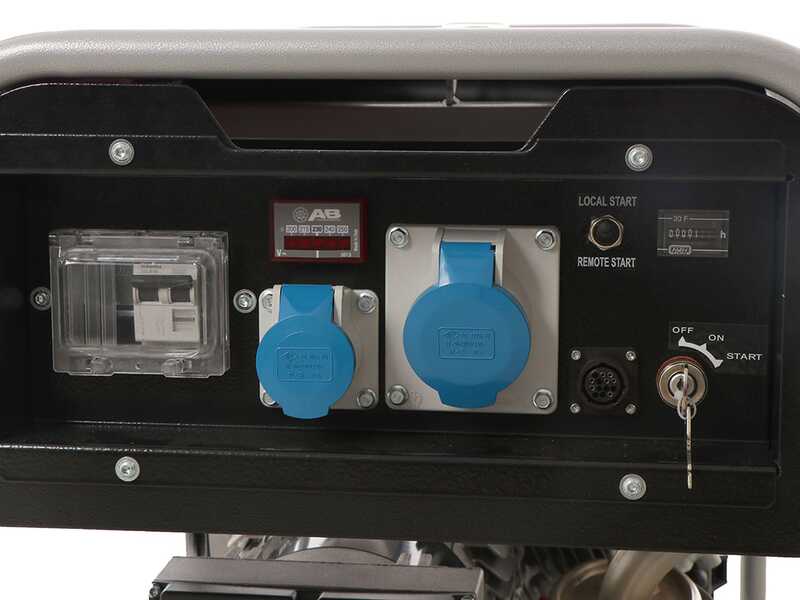

Electric control panel.

CEE industrial socket 16A 230 V single-phase

CEE industrial socket 32A 16 A 230 V single-phase

Hour meter

Voltmeter

Breaker switch

Connector for ATS switchboard

Remote start for operation with ATS panel

Key Start

Focus on the central lifting hook

Focus on the fuel level gauge

Focus on the oil tank plug

Focus on the ground discharge

Focus on the carrying handles

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
