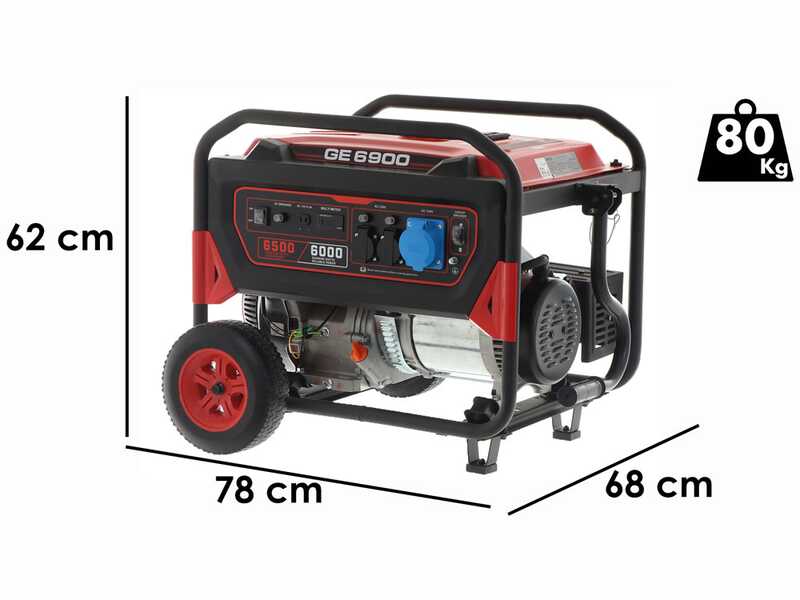

Mosa GE 6900 - 6.5 kW Petrol Silenced Power Generator - DC 6 kW Single-phase

The Mosa GE 6900 wheeled petrol generator is powered by a 420 cc GK 420 engine, which is capable of delivering a maximum rated power of 15 HP. The tank has a capacity of 20 L.

The control panel features two 16A Schuko sockets, a 32A single-phase industrial CEE socket and a digital display where the frequency, voltage and also the hours of use can be checked.

Equipped with AVR board: the current generator has an electronic card that automatically adjusts the output voltage, keeping it constant under varying load conditions

Generator safety devices include a shutdown in the event of a low engine oil level and thermal overload protection.

The generator can express a maximum power output of 6.5 kW.

It is very easy to transport thanks to its wheels and folding handle, and allows you to have power available wherever needed. (The handle and the wheels are standardly equipped and they can be assembled by any user) This generator can also be used in the portable, non-trolley-mounted version, just do not attach the wheels and handle.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

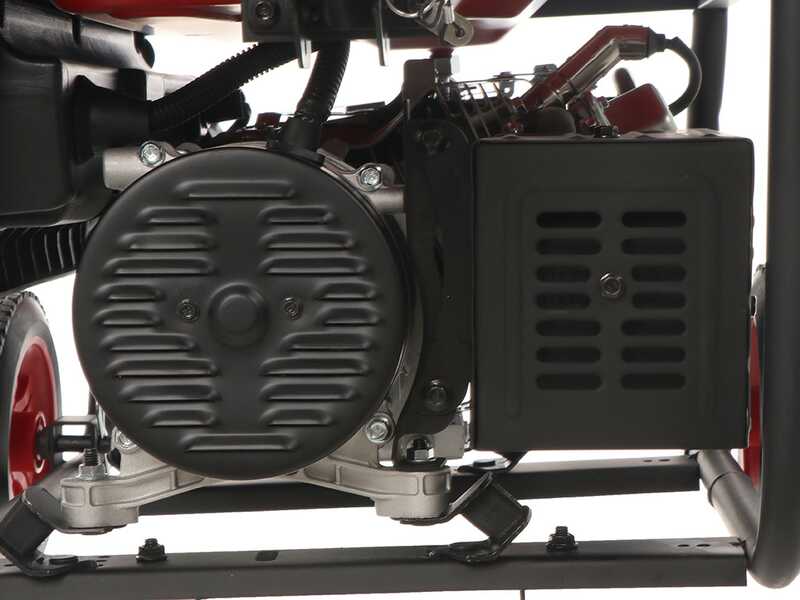

The generator alternator has a copper winding.

Maximum single-phase nominal power* emergency conditions LTP: 6.5 KW

* in case of an emergency the generator can reach this maximum power

Nominal power* in continuous running PRP: 6.0 KW

*This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

The generator is equipped with AVR board: an electric device which automatically regulates the output of tension, making it constant as the load changes.

Focus on the sturdy anti-vibration grommets that ensure the alternator to the frame.

Engine features:

Model: GK 420

Type: 4 stroke, single-cylinder, air-cooled, OHV, horizontal shaft

Displacement: 420 cc

Power: 15 Hp

Fuel: petrol

Tank: 20 L

Ignition mode: Recoil starter

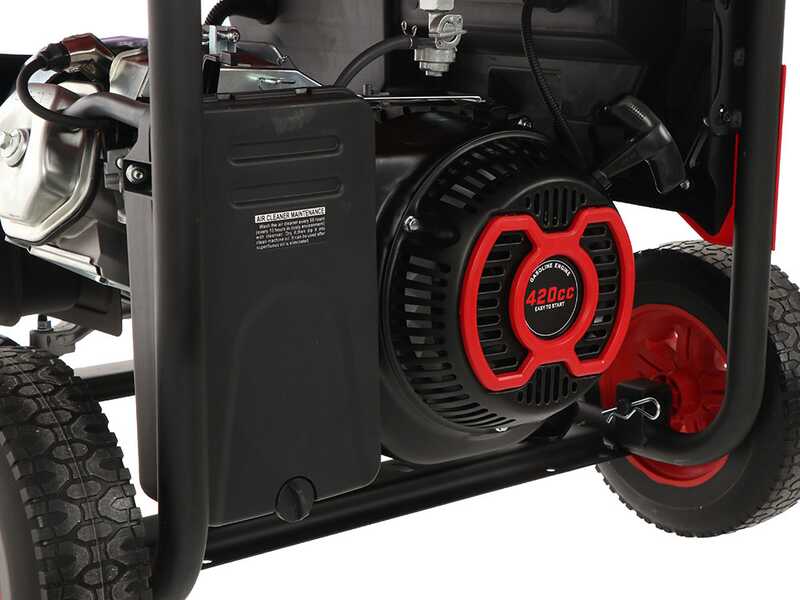

Focus on the engine air filter

Focus on the recoil start

OHV technology

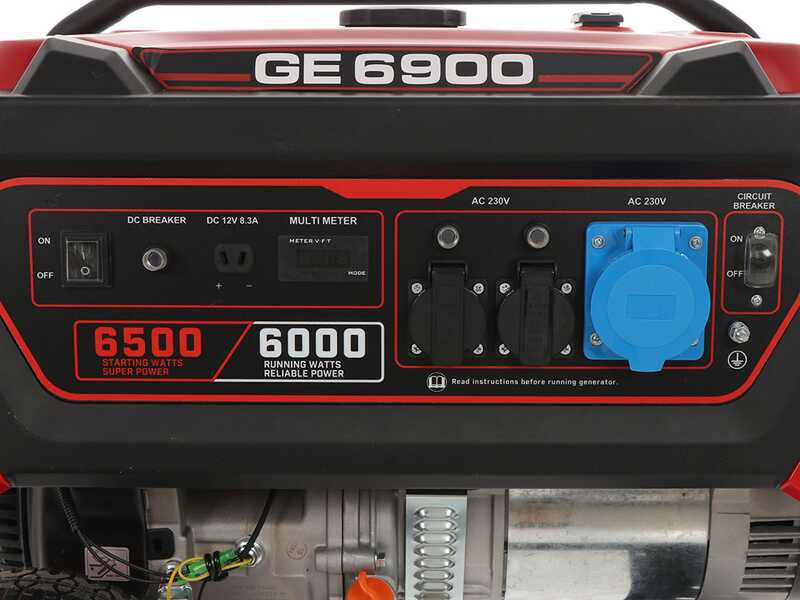

The control panel of the power generator is complete and full of functions.

• 2 Schuko power outlets AC 230V PI44 16A
• CEE Single-phase industrial socket IP44 32A
• Grounding discharge
• Power switch
• DC breaker
• Charger socket
• Contact breaker
• Voltmeter-Frequency-Counter

Additional features include:

Large tank of 15 L capacity This makes sure that the generator can guarantee an high autonomy.

This tank is designed in metal and is equipped with an external diesel control system.

Handle that can be closed to ease transport

Rear wheels for easy transport

Front rubber pads

Focus on the muffler

Oil tank plug

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs.

• The generator can only be used to power individual electrical equipment (respecting the rated power in KW produced by the generator in relation to the absorption of the appliances during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).
• The generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with standard 3000 rev/min alternator as this specific model, but it is designed with professional alternator with low speed: 1500 rev/min – with liquid-cooled engine and alternator – in this case you’ll see that the unit specifications and price are much different from this model).

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
