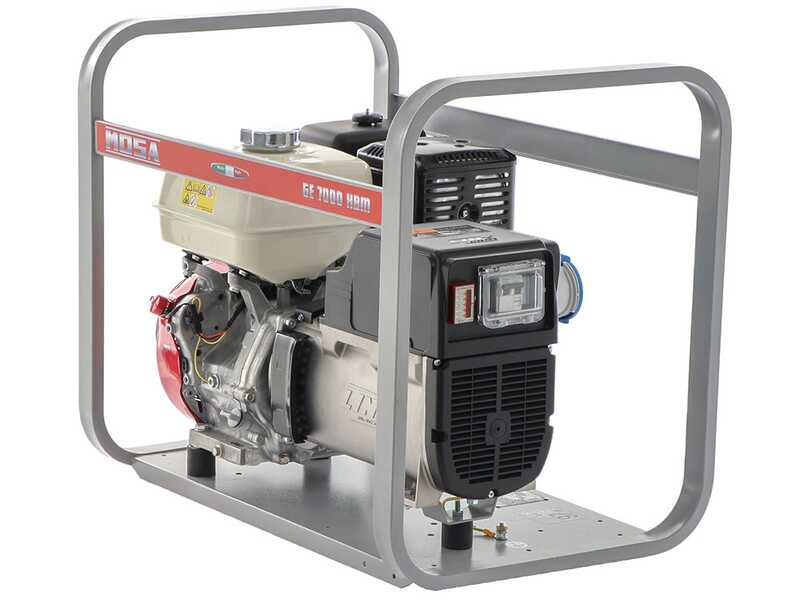

MOSA GE 7000 HBM - 6 kW Petrol Power Generator - DC 5 kW Single-phase

The Mosa GE 7000 HBM single-phase petrol generator is capable of a maximum rated power of 6 kW.

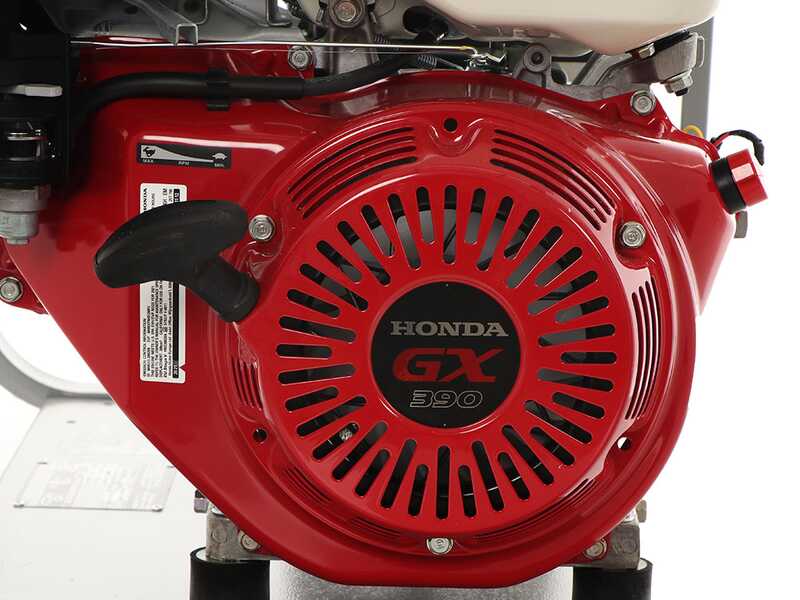

The Honda GX390 engine is highly reliable and guarantees great performance, which is why it is considered among the most outstanding petrol engines on the market. It ensures 389 cc and 13 HP rated power.

The generator is a product composed of two fundamental elements such as the engine and the alternator. This GE 7000 HBM generator model features a high-quality engine and alternator.

The professional control panel consists of a practical LED voltmeter, a current switch and two single-phase CEE industrial sockets, one 16 Ah and one 32Ah.

The alternator is manufactured by LINZ, a leading Italian company that produces high-efficiency, high-quality alternators.

The generator is also able to guarantee a running time of 2.5 H (75% of PRP).

Maximum single-phase power output: 6.0 KW

Nominal power in continuous running (COP) Single-phase: 5.0 KW

*The latter is the figure to be taken into account as the actual and constant figure in the generator output during a variable power work cycle.

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 7 L

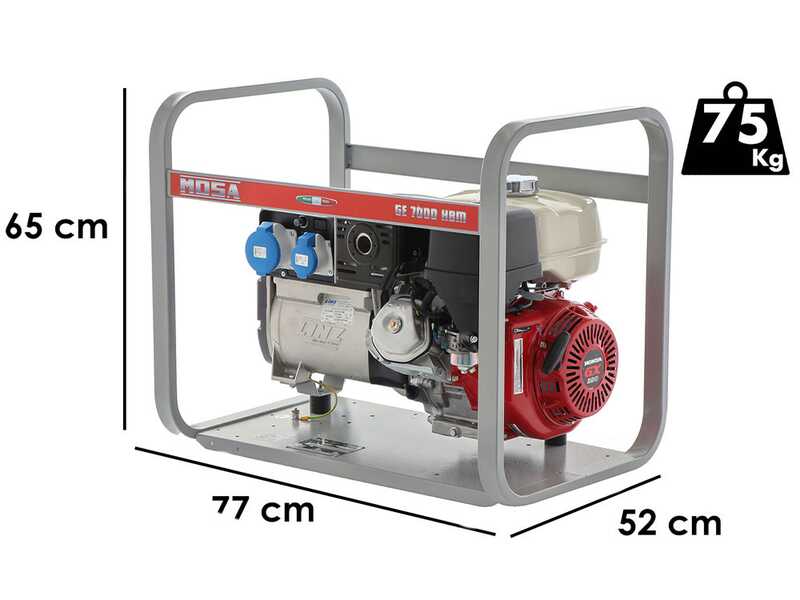

Dimensions: 77 x 52 x 65

Weight: 76 kg

Noise level: 99 dB

Standard-supplied Honda GX390 engine.
Latest-generation engine with OHV overhead valve technology.

Features:

WARNING

Engine provided without oil.

Before using the machine, read the instruction manual carefully.

Nominal Power: 13 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 9.4 HP

* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

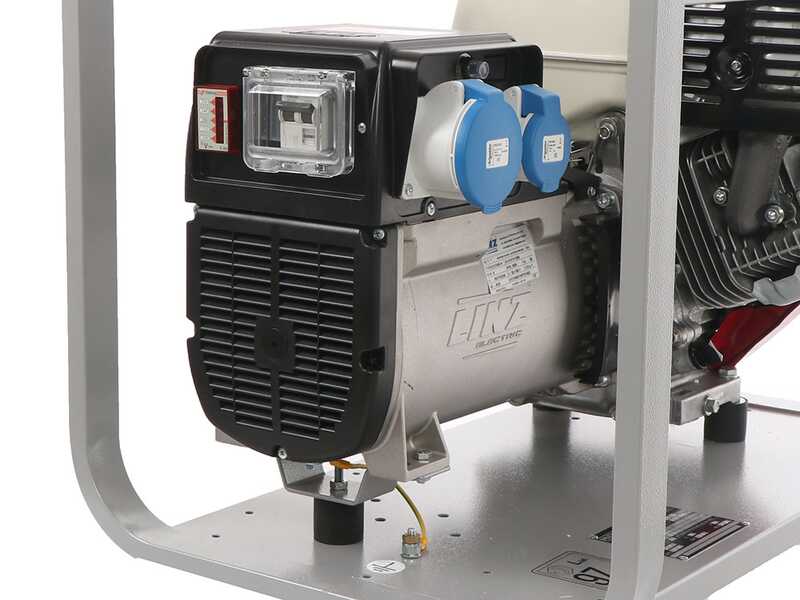

LINZ E1C10M H Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ alternators guarantee Made in Italy high quality and reliability.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 230V

Operating frequency: 50 Hz

Revolutions per minute: 3000 RPM

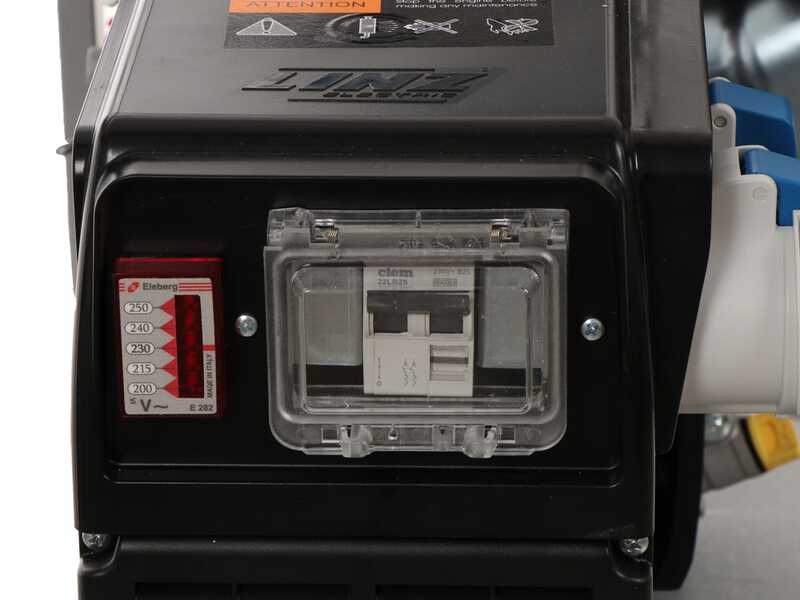

Electric control panel.

CEE industrial socket 16 A 230 V single-phase 3 poles

CEE industrial socket 32 A 230 V single-phase 3 poles

Led Voltmeter

Circuit breaker

Focus on the anti vibration pads

Focus on the oil tank plug

Focus on the ground discharge

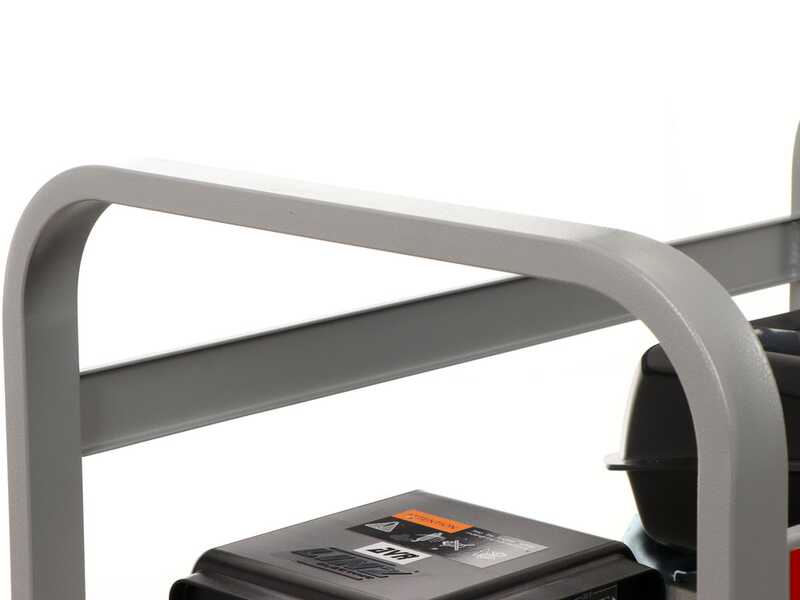

Focus on the upper handle.

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
