MOSA GE SX-9000 KDM - 8.8 kW Diesel Silenced Power Generator - DC 7.5 kW Single-phase

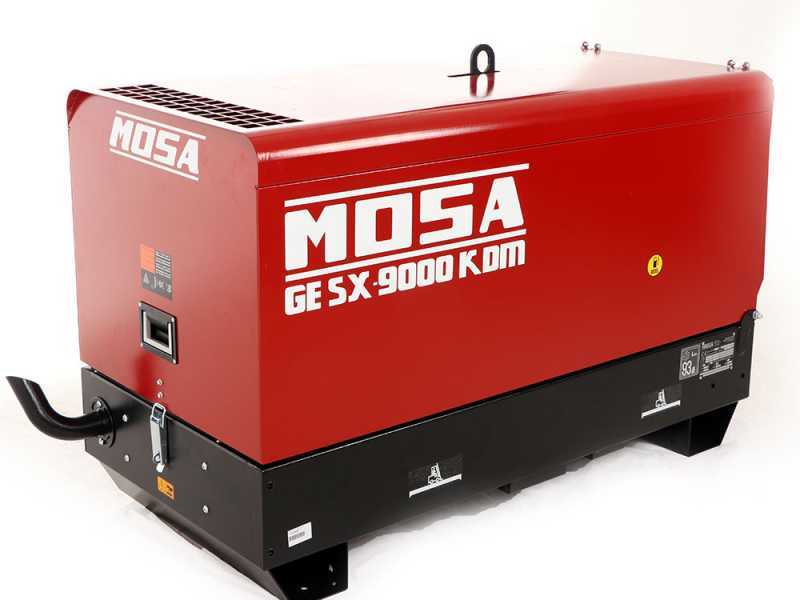

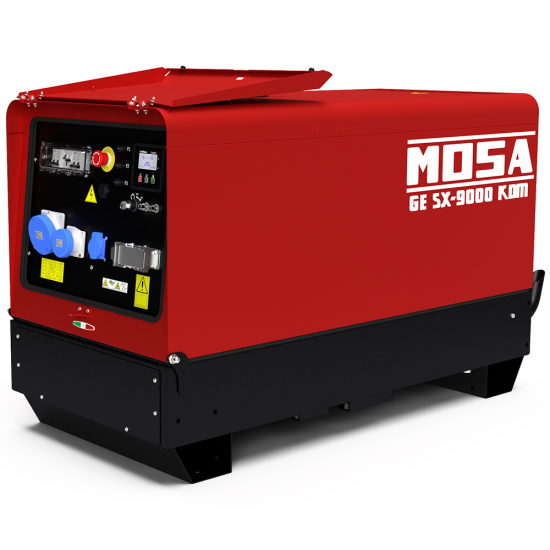

MOSA GE SX-9000 KDM silenced generator

a machine aimed at professional use on construction sites and beyond

The engine inside, the Kholer KDW702, is equipped with a liquid cooling system that allows the machine to operate for more hours than competitors with simple air cooling.

This demonstrates the professional nature of this generator.

The Linz alternator is capable of delivering up to 8.3 kW of single-phase current, while it can maintain 7.5 kW continuously.

The internal parts of the machine are enclosed and sealed with foam walls and rubber gaskets to attenuate the noise generated as much as possible, which allows it to generate only 93 db, a derisory figure for the type of machine.

On the control panel there are two professional sockets, both industrial, one 16 A and one 32 A. In addition to the main switch, there is also a practical voltmeter.

The over-sized 18 L tank gives the generator a higher autonomy compared to most of the generators on the market: 14.5 h

This generator is also equipped with an AVR card, which automatically regulates the output voltage and keeps it constant.

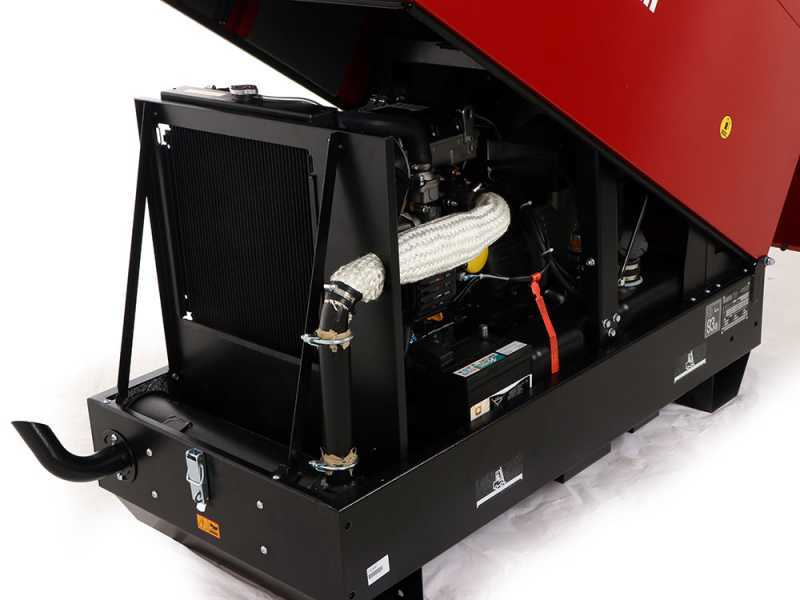

Focus on the liquid cooling radiator.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single-phase power output: 8.3 KW

Continuous power with variable loads (PRP) single-phase: 7.5 KW

*This is the data that must be considered effective and constant data for the generator output

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 38 L

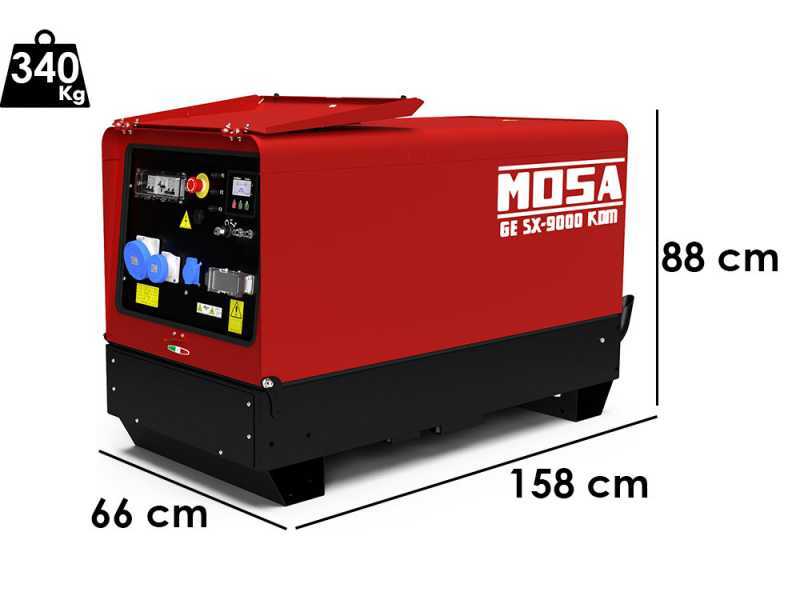

Dimensions: 158x66x88 mm

Weight: 340 kg

Equipped with engine protection device for low oil level

The machine is equipped with plugs for draining engine fluids under the outer shell, so that they can be replaced quickly and conveniently.

The machine bonnet is also designed with bevelled edges to facilitate water drainage in case of outdoor applications.

This machine is not recommended for stable use exposed to the elements; if this is its intended use, it is recommended that a structure be built to protect it from the elements.

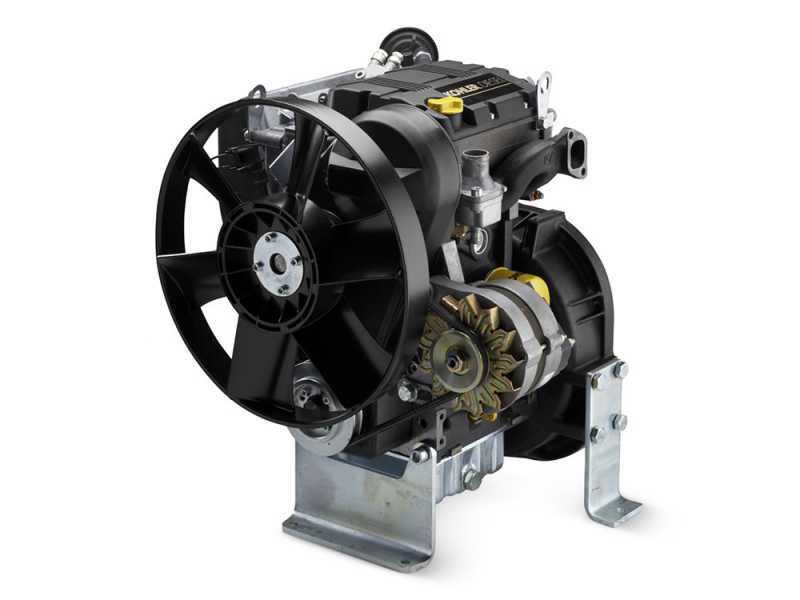

This power generator is powered by a Kohler KDW702, a 686 cc two-cylinder engine, which develops an rate power of 14 Hp.

Focus on the air filter

4-stroke "OHV” petrol engine of the latest generation, AVS anti-vibration system and an electric ignition system.

• Longer durability and improved reliability
• Drastically reduced vibrations
• More silent
• Lower engine oil consumption
• More regular torque

• Nominal Power: 14 HP
  The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

• Real power: 12.6 Hp
  It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

LINZ is a long-established manufacturer of alternators that supplies top-quality, reliable Made in Italy products.

This alternator is a very high-quality product with a copper winding.

3000 rpm

Voltage: 230 V

Operating frequency: 50 Hz

Focus on the inside of the soundproof fairings

Product that can be easily inspected

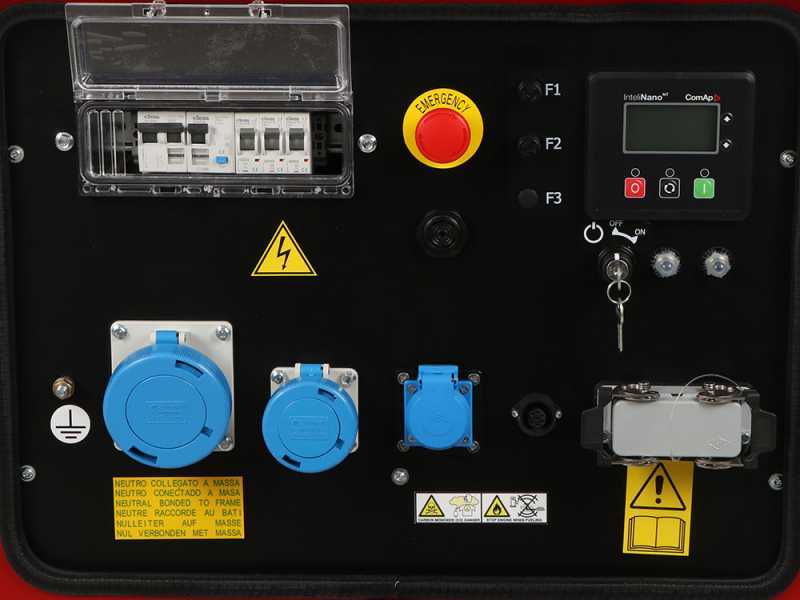

Other special features of this generator include:

No. 1 CEE industrial socket 230 V 16A

No. 1 CEE industrial socket 230 V 32A

1 Schuko socket

Connection to the ATS panel

Keys for starting

Emergency switch

Residual current circuit breaker

INTELI-NANO PLUS digital control unit:

• It allows you to choose between manual and automatic operation
• Backlit display
• Control switches
• Engine measuring unit
• Generator measuring unit
• Generator protections

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
