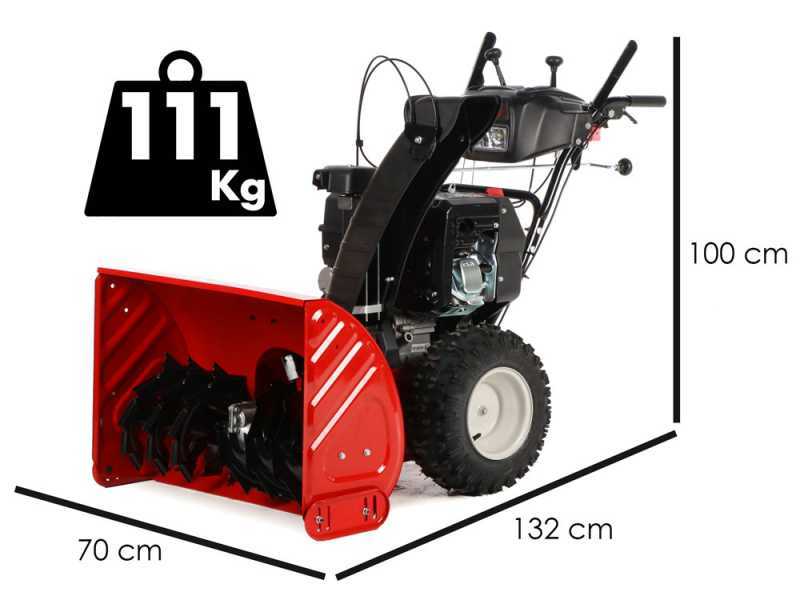

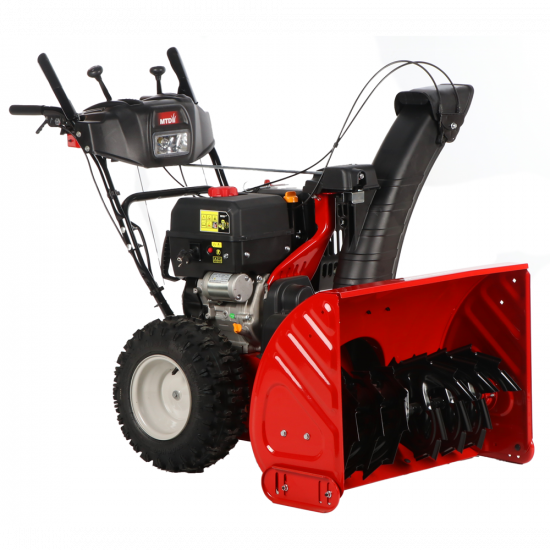

MTD OPTIMA ME 76 - Petrol Snowplough - SnowThorX 90

The MTD OPTIMA series stands out for its performances, quality and comfort. The discharge chute with Joystick control and the "Easy Turn" steering system are just two of the numerous features that make these Hungarian machines unique

The choice of the materials makes this snow blower a sturdy, solid and at the same time manageable and efficient tool.

It si equipped with electric start. The engine can be directly connected to the power line. It isn't provided with battery since the very low temperatures in which it uses to work would ruin them in a very short time. In fact, batteries won't stand the fast temperture changes.

As free items: 2 bottles of 1 L oil for 4-stroke engines.

The MTD SnowThorx 90 OHV engine is specifically designed to takle very cold temperatures. The engine is equipped with electric starter that can be connected directly to the power line. Winterized engines like this one aren't provided with air filter as, working in environments with low temperatures and snow, this last can create humidity that could freeze damaging the air filter and causing problems to the machine.

Specifications:

With heavy-duty OHV and metal tank.

Air is regulated by means of specific lever. (necessary for the ignition)

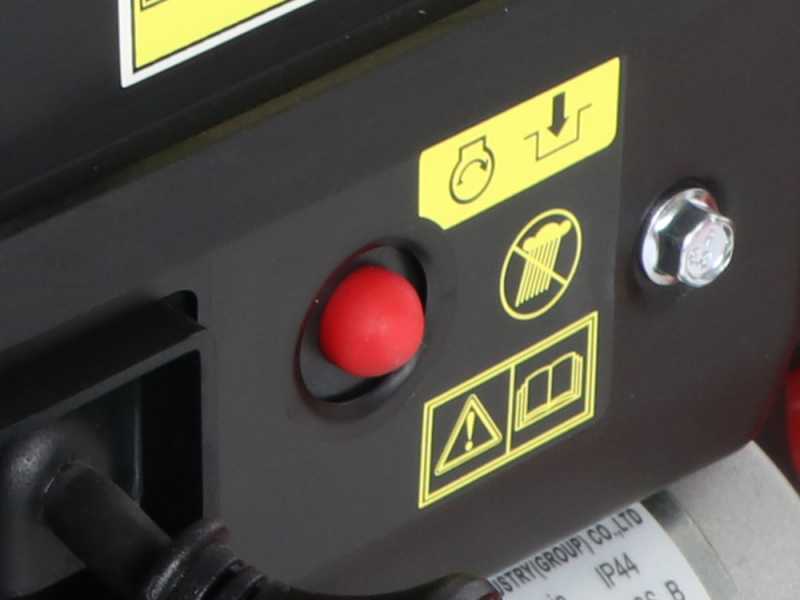

Also during ignition, the use of the primer pump (red pump) could be necessary. Just push it maximum twice before starting.

The engine is winterized, which means that it is equipped with a special cover in order to protect the most breakable component parts subject to cold weather and to protect the engine in case of sudden drop in temperatures. Therefore, the engine is adapted for work in low temperatures.

Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

Nominal Power: 12 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 10 HP (a rotation speed of 2800 rpm)
It corresponds to the real power of the crankshaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

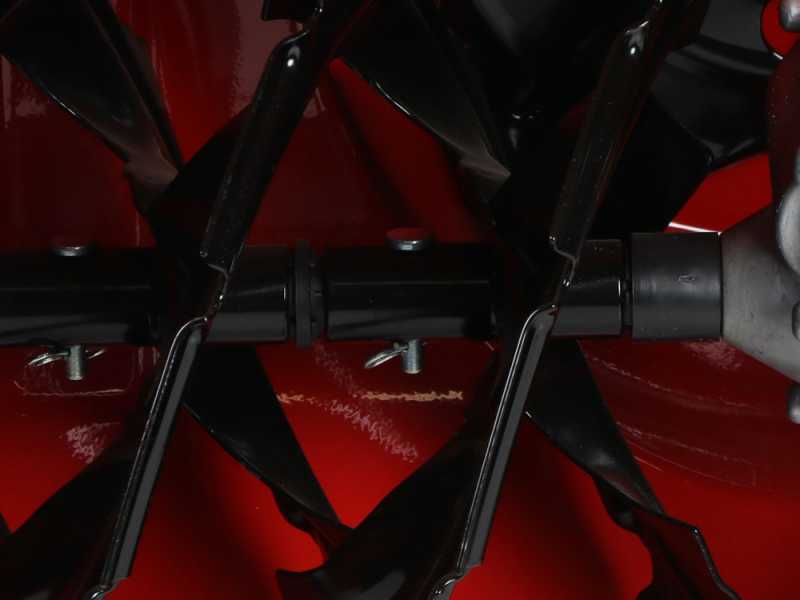

Auger screw housing width of 76 cm and height of 53 cm.

The provided has an advanced and toothed steel auger unit. This structure is best suited to churn up even the thickest snow.

The shear bolts protect the auger gearbox.

Therefore, they react to stones or other obstacles by automatically unhooked from the gearbox.

Two-stage system

The snow is fed into the housing by the ribbon auger and is then discharged away through the discharge chute by a high-speed fan impeller.

Aluminum reducer with steel auger gearbox in grease bath.

Adjustable metal skid shoes
They allow working on any surface, from smooth to rough surfaces (adjust the working height by means of the skid shoes). It can also work over gravel surfaces. The advantage of the plastic skid shoes is that they do not scratch the ground surface.

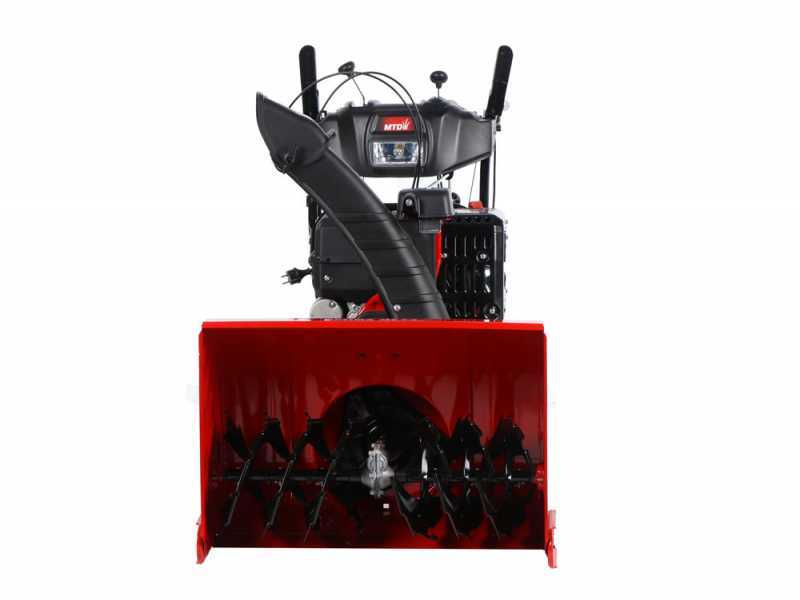

The snow ejection chimney can be swivelled up to 200° by means of the crank on the dashboard.

The snow ejection deflector can be operated by means of a lever on the control panel.

Left-oriented discharge chute

Right-oriented discharge chute

Deflector located completely at the top for the maximum expulsion distance

Deflector located completely at the bottom.

The discharge chute is equipped with safety grid.

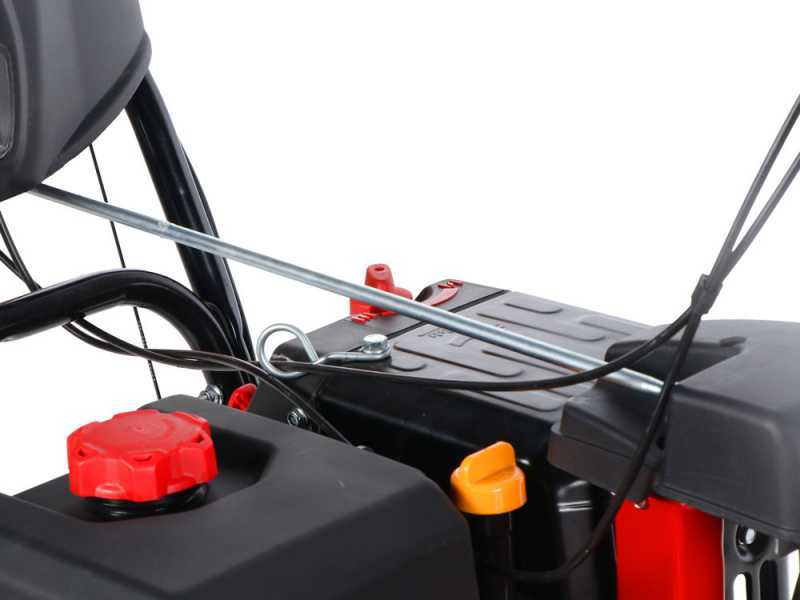

The control panel is rich in functions and very practical to operate.

Flap adjustment lever fitted with a lock, to adjust the flap simply push the lever forwards to lower it or backwards to open it.

The special crank, on the other hand, allows the chimney to the right and left with an easy and precise movement.

Adjust the ground speed by means of the automatic speed control lever on the right side. It has 6 forward and 2 reverse speed.

Variable forward and reverse speeds controlled by a lever on the panel.

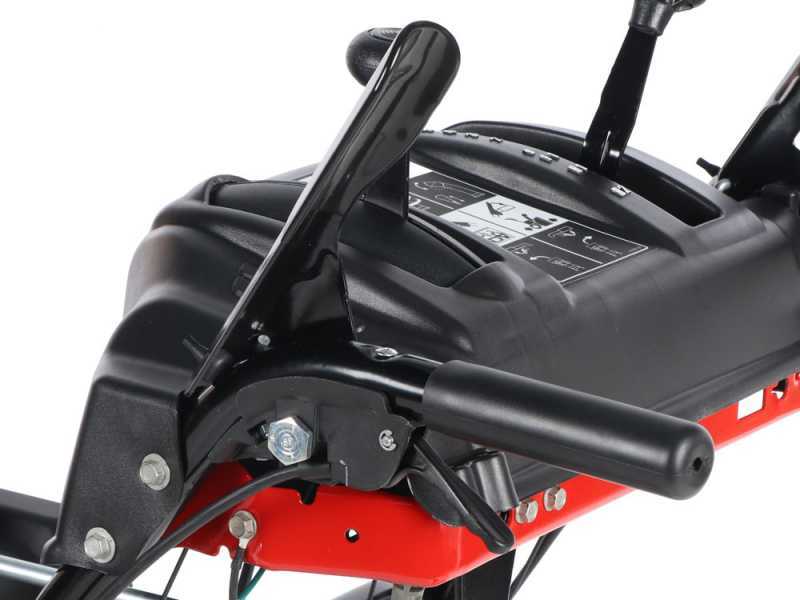

Power-assisted steering system: it allows disconnecting the traction drive from the 2 wheels. You can disconnect the differential lock and choose which wheel should drive by means of the two small levers located under handles.

Big black lever on the left side: it stops the forward and the reverse movement of the machine, independently from the selected speed. For safety reasons, the machine will stop automatically releasing the lever.

Big black lever on the right side: it controls the auger screw and the impeller fan (it controls both simultaneously).

Powerful artificial LED headlights positioned on the panel.

Professional X-trac tyres.
For maximum traction.
Sizing: 40 x 16

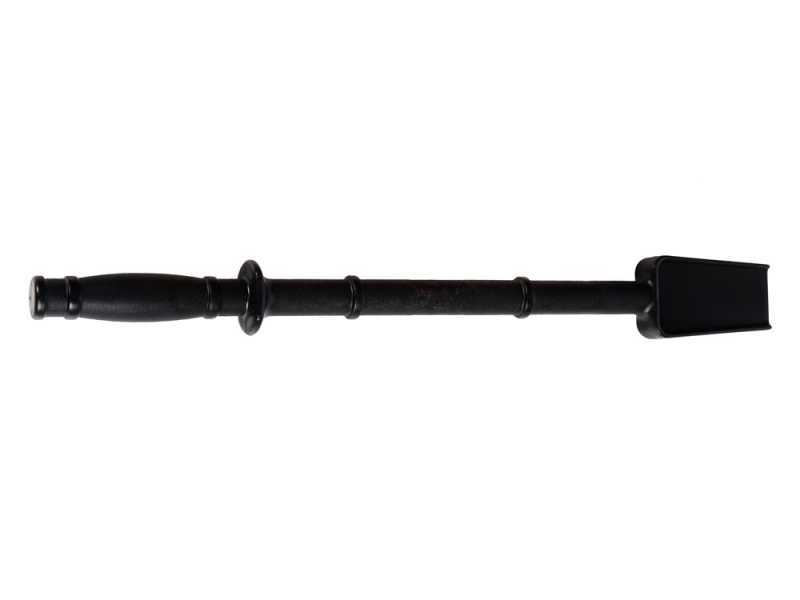

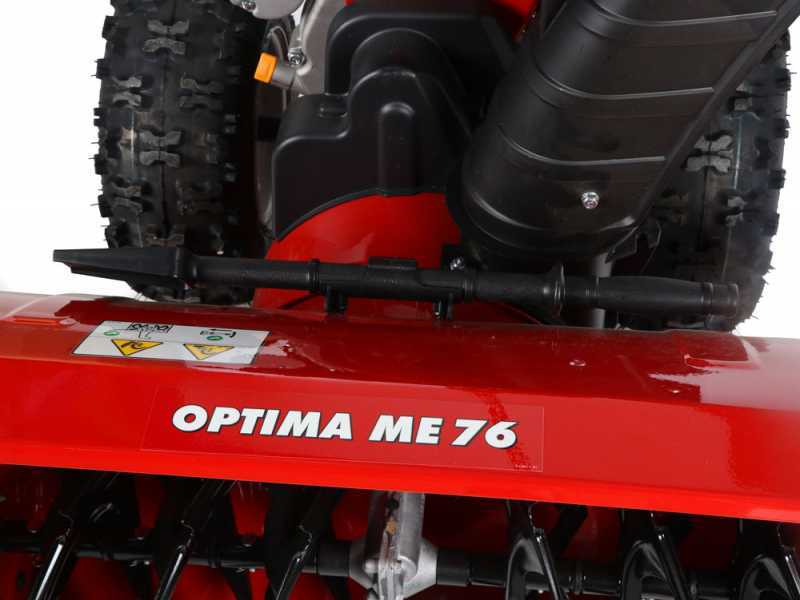

Clean-out tool.
If the discharge chute is clogged, use the clean-out tool.
