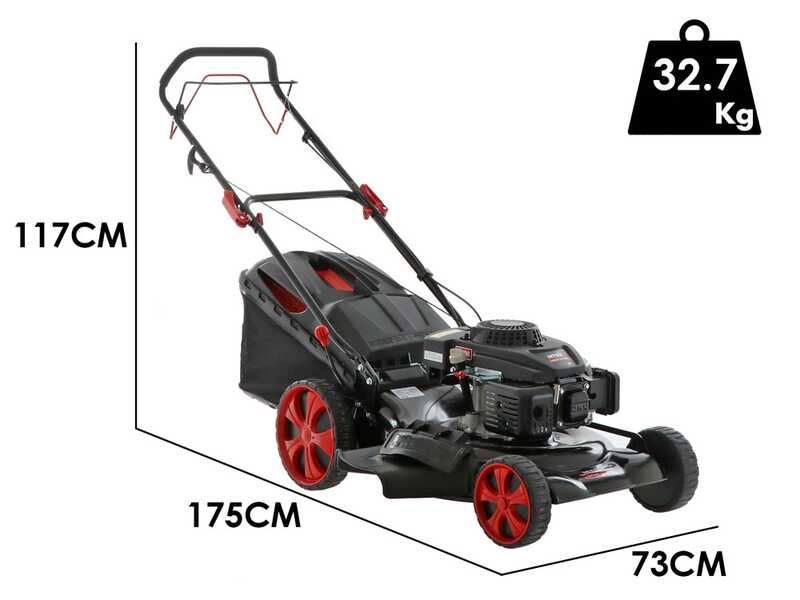

MTD Smart 53 SPO Self-Propelled Lawn Mower - 4-in-1 - ThorX 55 OHV Engine

The MTD Smart 53 SPO is a self-propelled lawn mower equipped with steel housing, designed for the most demanding customers. A really sturdy, high-performing and easy-manoeuvrable machine. It ensures optimum performance thanks to its powerful MTD engine and it is very practical for every need thanks to its light weight and manoeuvrability.

Ideal for taking care of your green area with extreme practicality and efficiency.

The steel housing is qualitatively far superior compared to the materials used for the housings of other lawn mowers on the market.

The MTD Smart 53 SPO lawn mower is equipped with a powerful and reliable MTD ThorX 55 OHV engine with 5.5 HP, which thanks the other features, makes this machine one of the best models for its price range.

This lawn mower is equipped with cutting height adjustment system in 7 different positions from 25 mm to 75 mm.

Rear collection with large-sized 70 L grass collector. 200 mm front wheels and 280 mm rear wheels.

The MTD lawn mower allows four types of cutting:

• 70 L grass collector
• Rear discharge
• Mulching cutting system and plug included
• Side discharge with deflector included

Thanks to the 53 cm cutting width and the features mentioned above, this lawn mower is suitable for areas up to 1300 s.q. m.

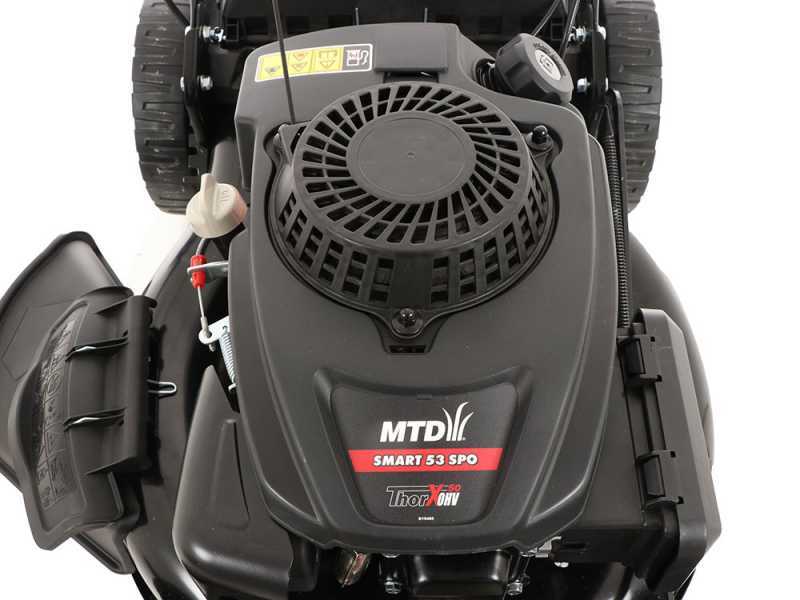

MTD ThorX 55 OHV is an air cooled 4-stroke petrol engine with overhead valve.

It features 159 cc, 2.5 kW and 2800 rpm.

Very easy to start thanks to the comfortable recoil starting.

Thanks to its good build quality and large fuel tank, this engine guarantees excellent reliability, low fuel consumption and a great running time.

Focus on the air filter.

Technical features:

WARNING:

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 5 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.35 HP (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

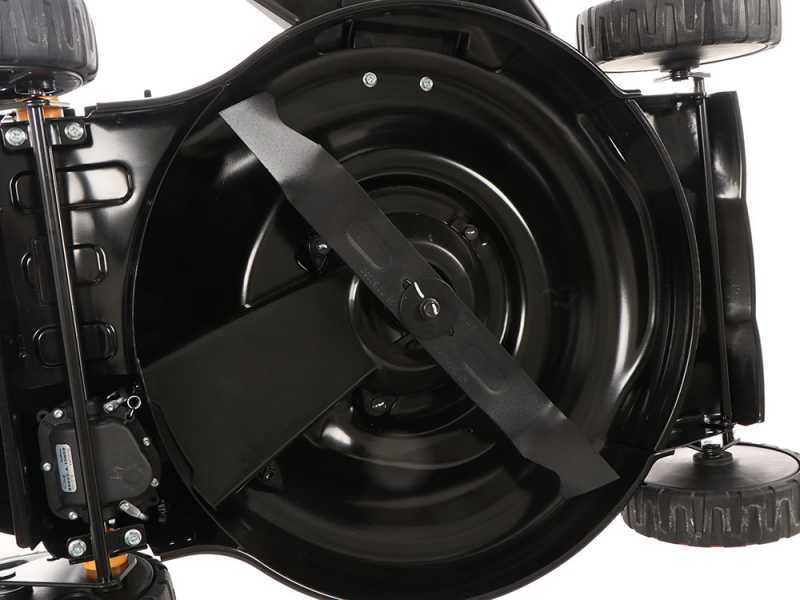

53 cm useful blade cutting width.

Universal hardened steel blade, suitable for all the 4 cutting systems the lawn mower is equipped with.

The steel housing gives this machine a high strength combined with a great manoeuvrability.

Focus on the blade.

This lawn mower is provided with 7 different cutting height adjustments from 25 mm to 75 mm. The heights are adjustable by means of a single lever on the rear wheels.

To adjust the height, simply move the lever

Rubber wheels for a perfect grip to the ground.

Front wheels diameter: 200 mm

Rear wheels diameter: 280 mm

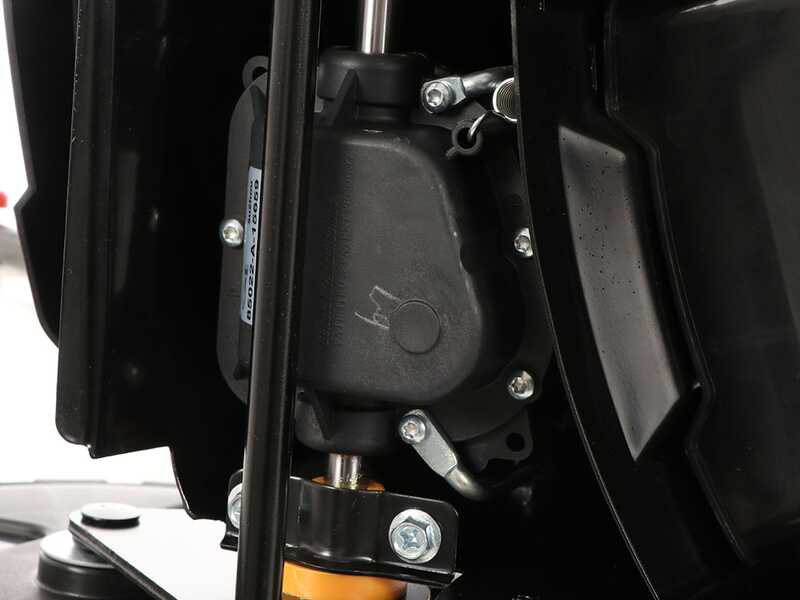

It allows the Operator to mow the grass effortlessly, optimising the machine traction and forward efficiency.

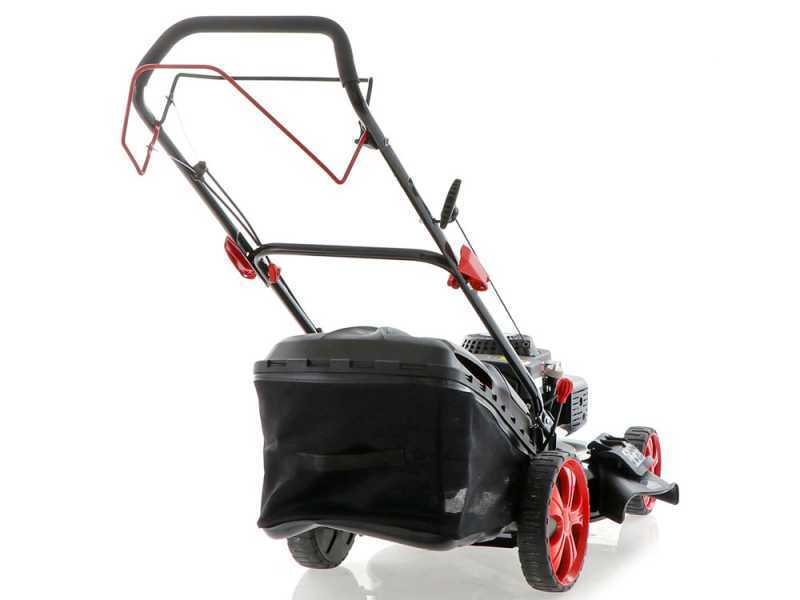

GRASS COLLECTION SYSTEM

The lawn mower is equipped with a large 70 L canvas grass collector, easy to remove and empty. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle on the upper side of the grass collector in order to facilitate the collector removal.

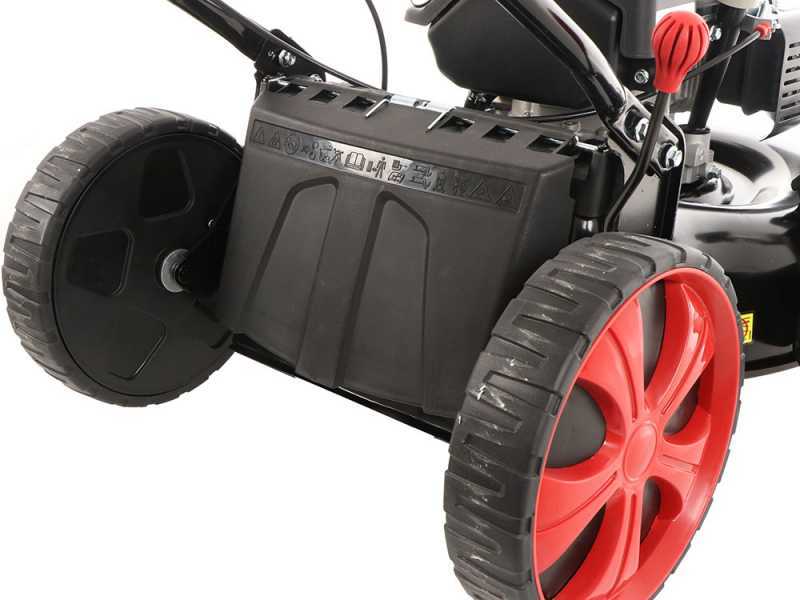

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector, leaving the rear discharge opened.

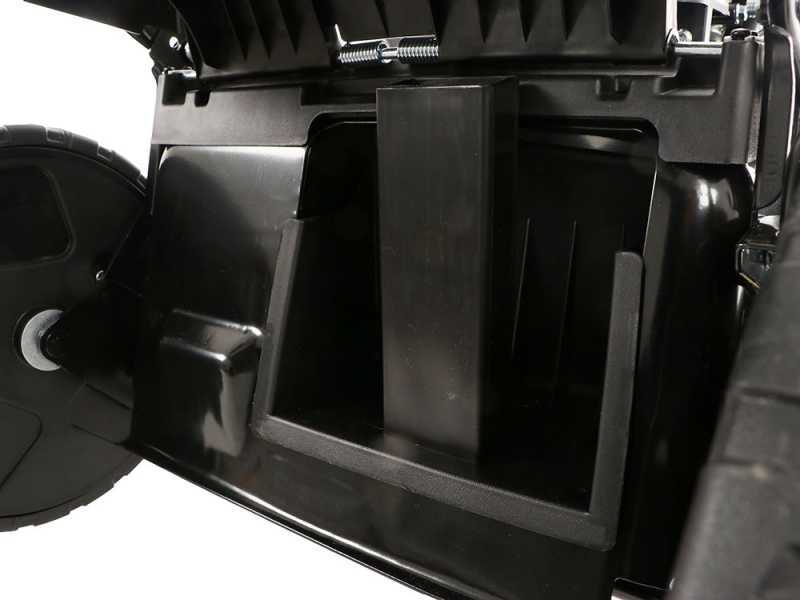

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

How to convert the lawn mower for the mulching cutting system:

• Open the grass collector
• Enter the mulching plug supplied
• Lower the rear deflector to operate the mulching cutting system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

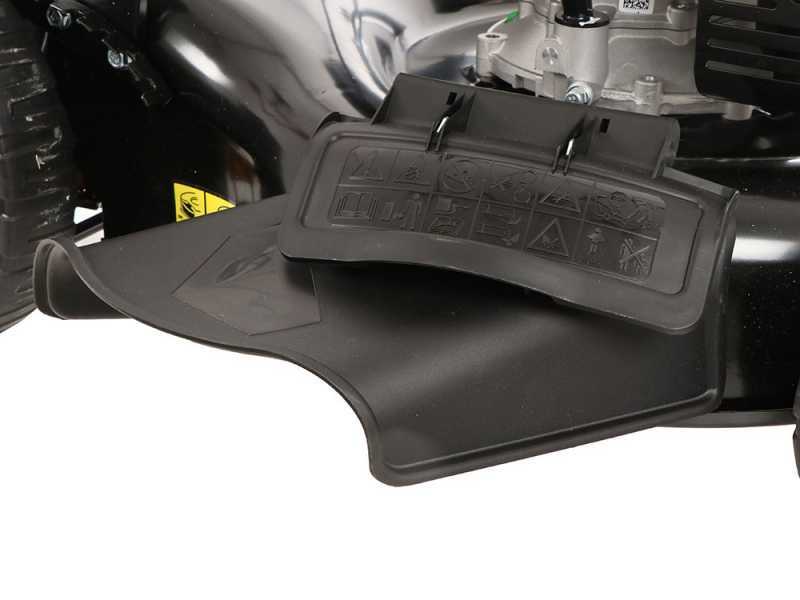

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

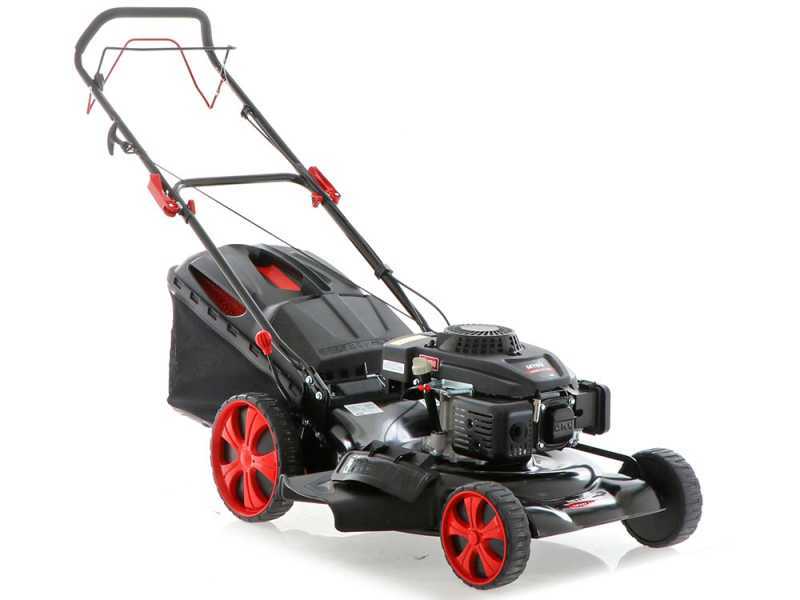

Easy and user-friendly controls placed on the handlebar.

Blade engagement black upper lever.

Lower pink traction and feed activation lever.

The handlebar is height adjustable and foldable for storage.

Centralised cutting height adjustment: by means of a single lever on the rear wheels, the cutting height can be adjusted in 7 different positions, from a minimum of 25 mm to a maximum of 75 mm
