Description

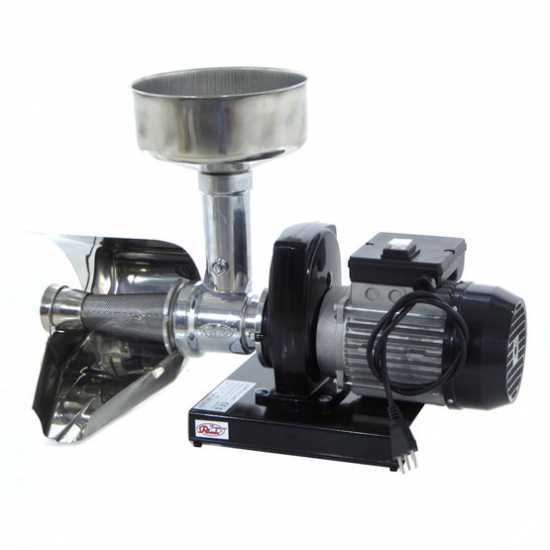

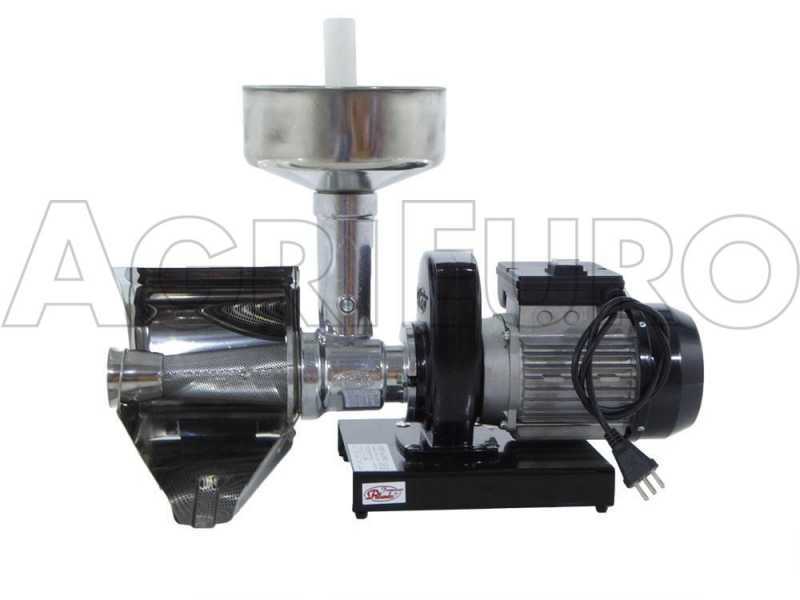

SM 3 INOX heavy-duty tabletop sauce maker

The SM 3 INOX heavy-duty sauce maker is a tomato processing machine for making “passata” or tomato sauce. This machine was designed to be operated on top of a table.

The machine body, the lock ring and the protective casing are made of food-grade die-cast polished aluminium. Other components, such as the screen (filter), hopper, chute and chute shield are made of stainless steel.

This tomato press is equipped with an asynchronous electric motor. Power supply: 230V. The motor features a watertight switch. The SM 3 INOX heavy-duty passata machine is compliant with the Machinery Directive 89/392. Suitable for professionals and particularly demanding hobbyists.

The heavy-duty SM 3 INOX sauce maker has an 180 Kg/h hourly oputput.

Palumbo Pavi SM 3 INOX - Electric Tomato Press - 335 W Electric Motor - 220V

Motor and transmission

This machine is equipped with a single-phase asynchronous electric motor. Power supply: 230 V. Developed power: maximum power of 0,5 Hp. The motor is mounted on a small metal frame with rubber vibration-damping mounts.

The drive shaft is made of F37 steel and it is not connected directly to the worm screw. In fact, there is a transmission component between the two which also has the purpose of reducing motor revolutions, thus optimising the machine performances.

This nylon gearmotor is extremely sturdy and robust.

The engine features a watertight switch

All of the machine components are made in Italy.

WARNING: this product is made entirely with food-safe materials, however its internal components do not undergo cleaning before it gets distributed. When you start using it, we recommend crushing 2 kg of tomatoes and throwing them out afterwards to ensure the inside of the machine is perfectly clean and remove any debris deriving from the manufacturing process (tiny plastic fragments, metal or tin).

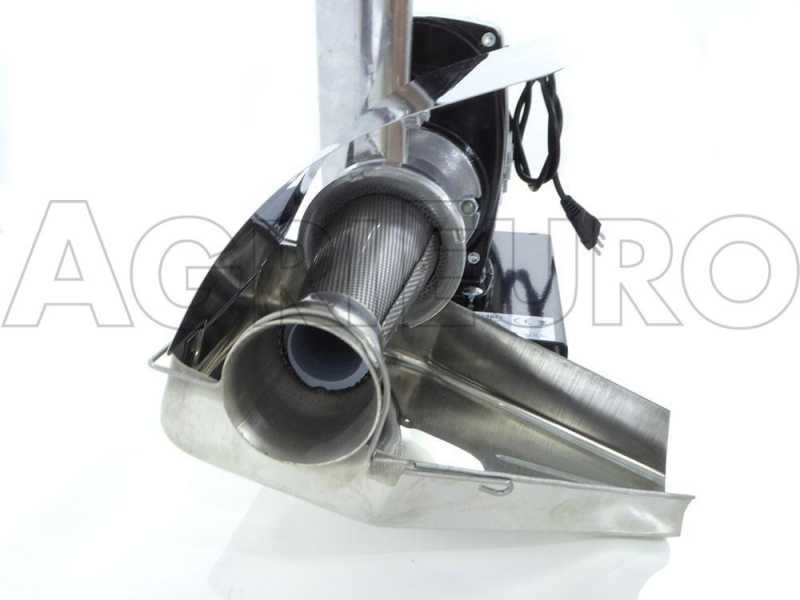

Machine body and components

This tomato press model is called SM 3 INOX because all of its components are made of AISI 304 stainless steel, except for the machine body, lock ring and the gearmotor protective casing. These parts are manufactured by moulding UNI 50 die-cast aluminium.

Stainless steel screen (filter). Screen length: 18 cm

Stainless steel hopper. Hopper diameter: 21 cm

Stainless steel chute and chute shield

The pestle is made of food-grade HD Polyethylene.

The worm screw is made of food-safe acetal resin.

Focus on the manufacturing brand, a symbol of reliability and high quality.
