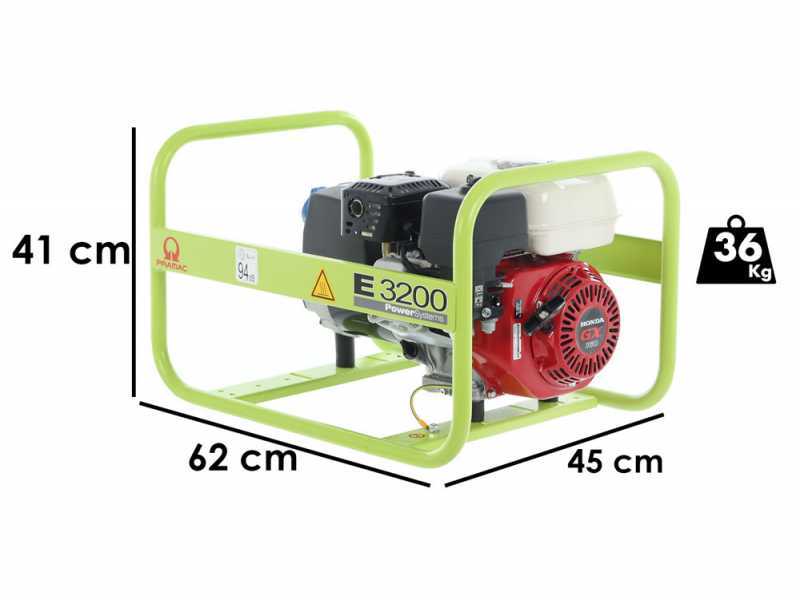

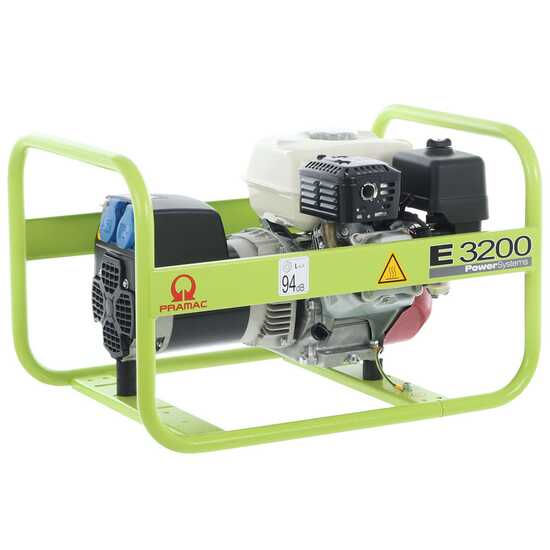

Pramac E 3200 - 2.6 kW Power Generator - DC 2.2 kW Single-phase

The E 3200 single-phase generator is powered by gasoline and manufactured by Pramac. It has an Honda GX 160 engine capable of emitting a power of4.8 HP and has a displacement of 163 cc. This type of engine is to be considered the top of the range for categories such as power generators. This model is very compact and also simple to carry,in addition the frame also protects it from unwanted shocks.

The generator, with this engine, is designed for uses such as construction, agriculture, etc... . The alternator, on the other hand, is branded NSM (Nuova Saccardo),original Made in Italy. Company that expresses the highest quality and reliability for this kind of components.

It is a product suitable for professional uses, simple to use and it is possible to use it on many different occasions. It has a compact design that simplifies its movement and mounts components of maximum reliability. It can deliver a continuous power of 2.2 kw and a maximum power of 2.6 kw.

It has a 3.1 L tank guaranteeing an autonomy (at 75% load) of more than 3 hours.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

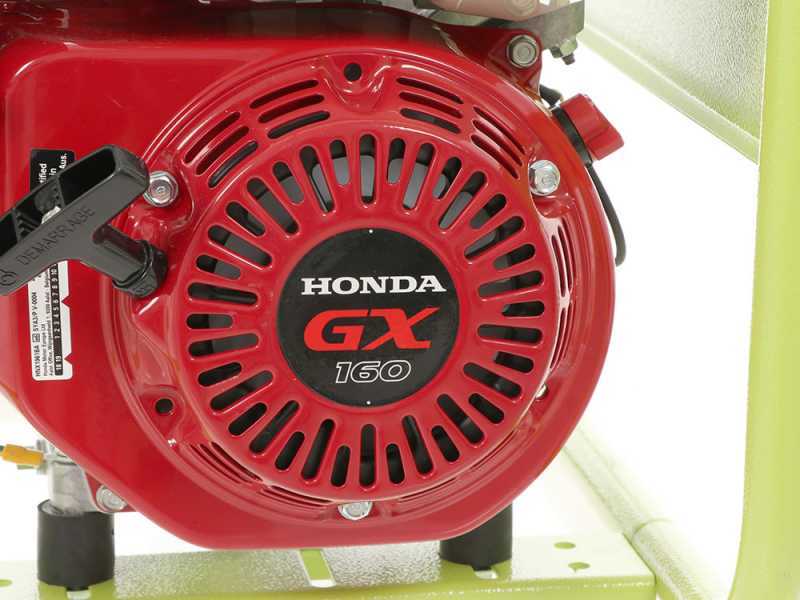

The Honda GX 160 is light and high performing, it is suitable for works where power is requires, given by the 163 cc of displacement.

Features:

4-stroke petrol engine of the latest generation with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, inclined cylinder of 25 ° forced air cooling, cast iron cylinder

The engine is mounted on the anti-vibration grommets

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

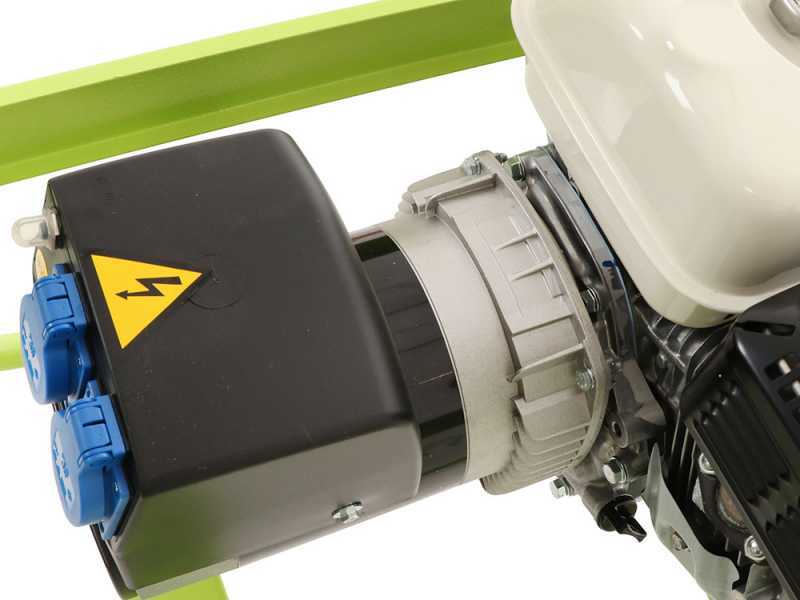

Single-phase two-pole alternator K80 C by NSM (Nuova Saccardo).

Maximum nominal power in emergency conditions LTP: 2.6KW

* in case of an emergency the generator can reach this maximum power

Nominal power in continuous running PRP: 2.2KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Other engine features include:

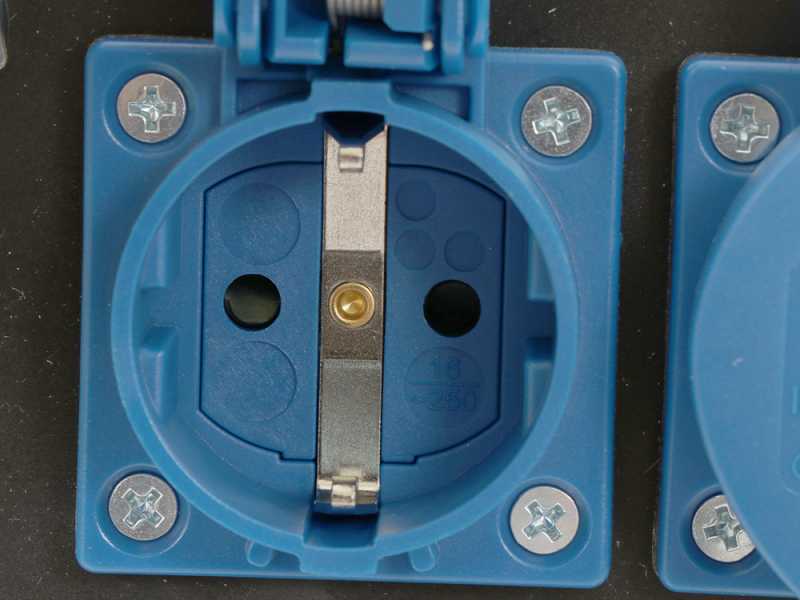

Schuko socket

Focus on the muffler

Petrol tank plug

Focus on the spark plug

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
