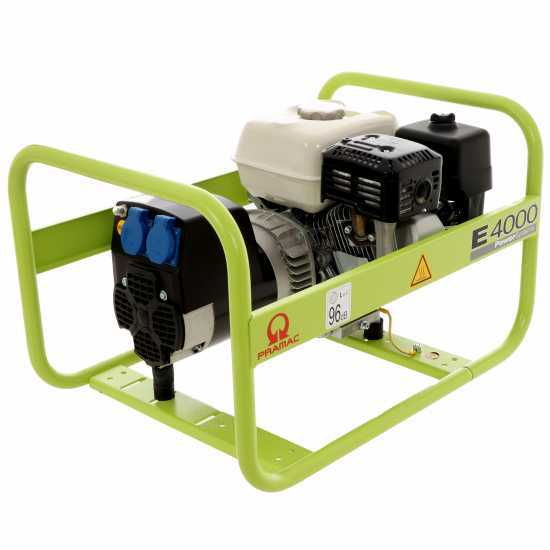

Pramac E 4000 - 3 kW Power Generator - DC 2.6 kW Single-phase

The E 4000 by Pramac single-phase generator is powered by petrol. It is suitable for heavy-duty use, user-friendly and versatile. It features a compact design that makes the transport easier and mounts components of extremely high reliability.

It is powered by a Honda GX 200 engine designed for the use in the construction sector, agriculture, for generators, welding equipment and for other similar products.

The alternator is made by NSM (Nuova Saccardo), original Made in Italy. This company represents one of the best Italian companies in matter of alternators that guarantees maximum performances and reliability.

It is equipped with a 3.6 L tank that ensures a slightly more than 2 hours running time (with 75% load).

Max single-phase power output: 3.1 KW

Single-phase rated power output (COP) in continuous running: 2.6 KW

The latter is the data that must be taken into consideration as an actual and constant datum in the supply of the generator (it grants an unlimited working time).

Voltage: 230 V

Operating frequency: 50 Hz

Rated amperage: 16

Petrol tank capacity: 3.6 L

Dimensions: 640 X 450 X 400 mm

Weight: 36 kg

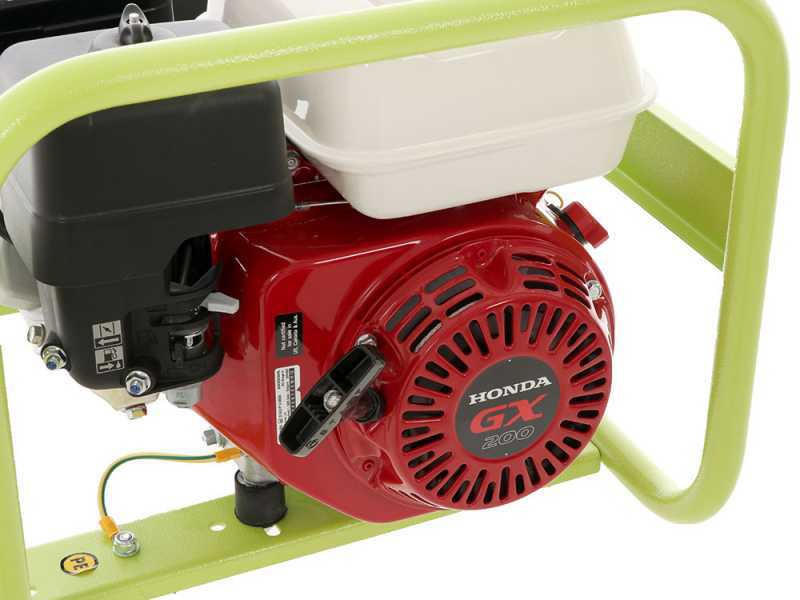

The Honda GX200 engine is part of the GX series, designed for products used in agriculture or construction sector. Among the innovative features of this engine there is the easy start, a low consumption level and low vibrations level.

The K 80 E alternator is made in Italy by Nuova Saccardo NSM, which represents one of the best Italian companies in the production of alternators. It represents the maximum reliability and quality.

The alternator is completely covered in copper.

ENGINE TECHNICAL FEATURES:

• ENGINE TYPE: Honda GX 200
• CUBIC CAPACITY: 196 cc
• RATED OUTPUT: 5.8 Hp
• ENGINE TYPE: 4-stroke
• POWER SUPPLY: petrol
• OIL TANK CAPACITY: 0.6 L
• COOLING: air cooling
• STARTING: recoil start
• CONSUMPTION (with 75% load): 1.11 L/h
• VOLTAGE: 230 V
• FREQUENCY: 50 Hz

Focus on the air filter

Focus on the start control

Focus on the regulation levers

Focus on the starting cord

The engine is SHIPPED WITHOUT OIL.

Before starting, please carefully read the instructions manual.

Additional features of the machine:

No. 2 16 A sockets and protection breaker

Focus on the tank cap

Focus on the spark plug

Focus on the oil cap

Focus on the muffler

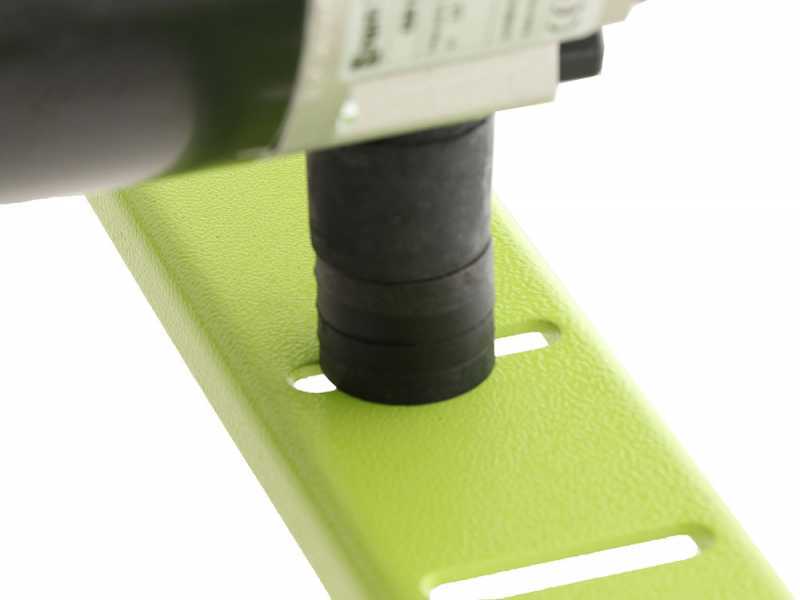

Focus on the anti-vibration rubbers

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).
