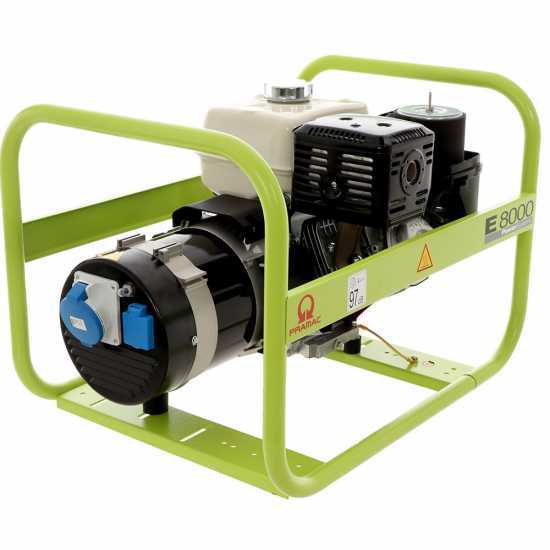

Pramac E 8000 - 6.4 kW Power Generator - DC 5.4 kW Singl-pPhase

The E 8000 by Pramac single-phase generator is powered by petrol. It is suitable for professional purposes and very easy to use. It features a compact design that makes the transport easier and mounts components of extremely high reliability. It is powered by petrol.

Among its components we find the S20W Mecc Alte alternator which is made in Italy. This company is one of the best in matter of alternators that provides extrelely high quality elements.

It is powered by a Honda GX 390 engine designed for the use in the construction sector, agriculture, for generators, welding equipment and for other similar products. It represents a reliable and high performance engine and is the top of the range among the petrol engines used for these products.

It is equipped with a 6.1 L tank that ensures almost 3 hours running time (with 75% load).

Max three-phase power output: 6.4 KW

Three-phase rated power output (COP) in continuous running: 5.4 KW

The latter is the data that must be taken into consideration as an actual and constant datum in the supply of the generator (it grants an unlimited working time).

Voltage: 230 V

Operating frequency: 50 Hz

Rated amperage: 26.4

Petrol tank capacity: 6.1 L

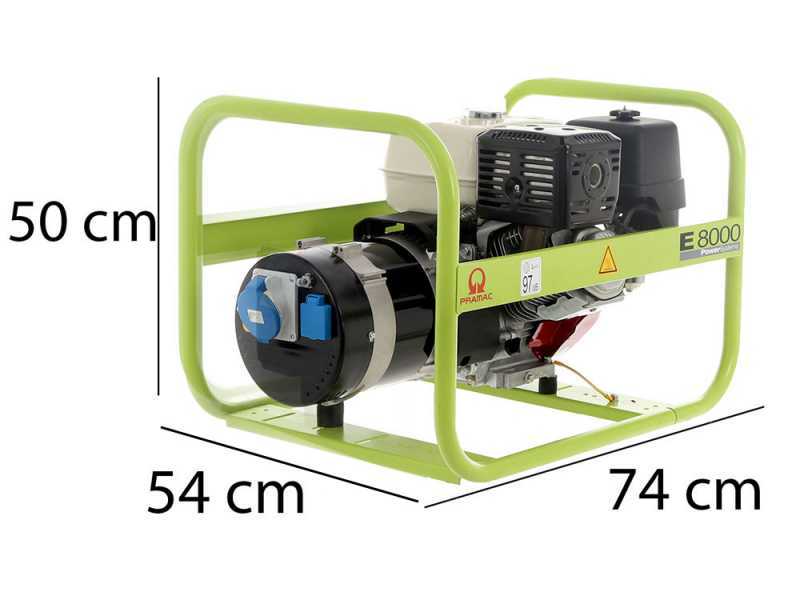

Dimensions: 740 X 540 X 500 mm

Weight: 71 kg

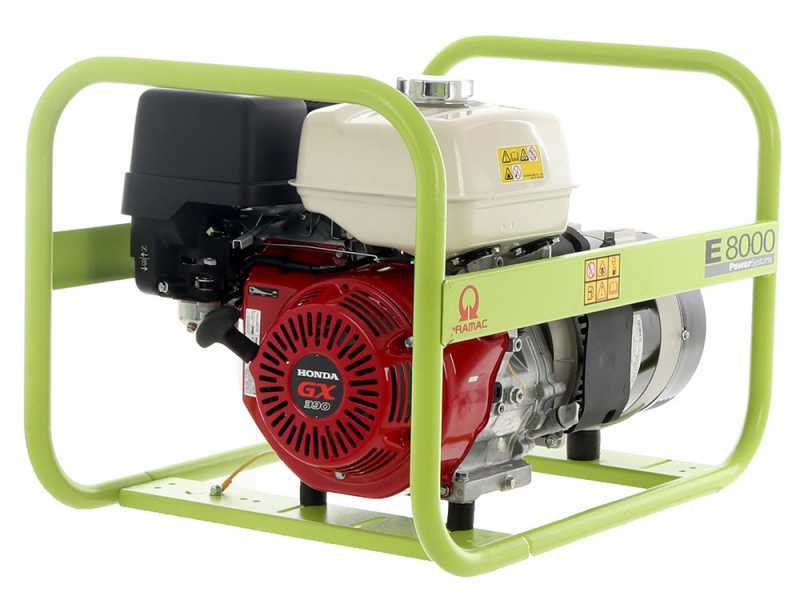

The Honda GX390 engine is part of the GX series, designed for products used in agriculture or construction sector. Among the innovative features of this engine there is the easy start, a low consumption level and low vibrations level.

The S20W alternator is made in Italy by Mecc Alte, which represents one of the best Italian companies in the production of alternators. It represents the maximum reliability and quality.

The alternator is completely wrapped in copper.

ENGINE TECHNICAL FEATURES:

• ENGINE TYPE: Honda GX 390
• DISPLACEMENT: 389 cc
• RATED OUTPUT: 11.6 Hp
• ENGINE TYPE: 4-stroke
• POWER SUPPLY: petrol
• OIL TANK CAPACITY: 1.1 L
• COOLING: air cooling
• STARTING: recoil start
• CONSUMPTION (with 75% load): 2.15 L/h
• VOLTAGE: 230 V
• FREQUENCY: 50 Hz

Focus on the air filter

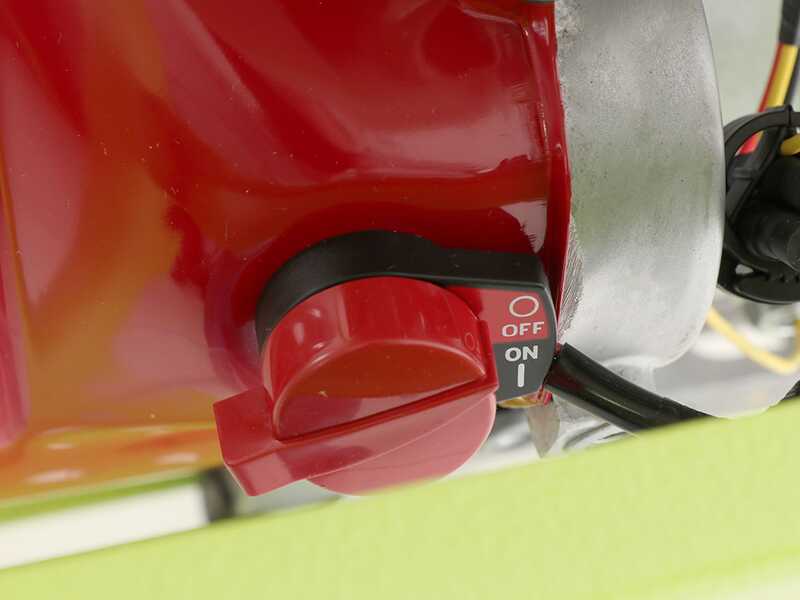

Focus on the start control

Focus on the regulation levers

Focus on the starting cord

OHV Technology

The engine is SHIPPED WITHOUT OIL.

Before starting, please carefully read the instructions manual.

Additional features of the machine:

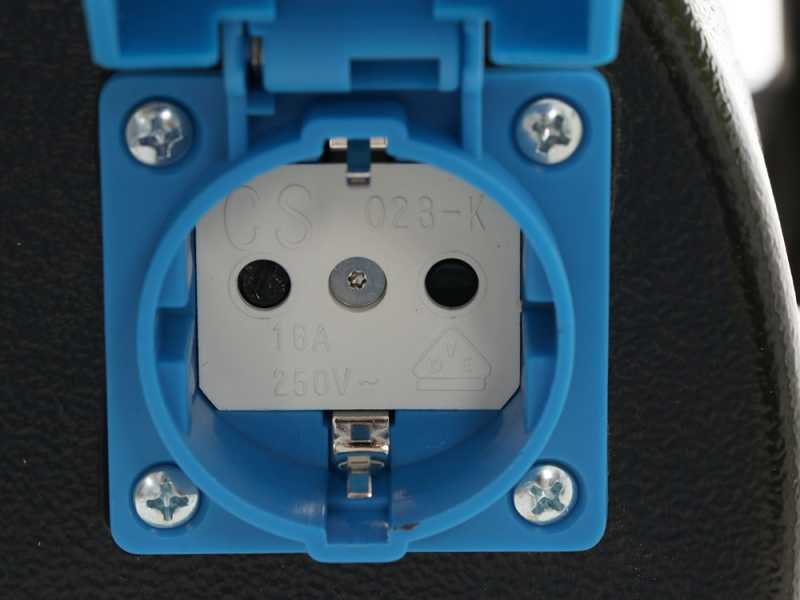

No. 1 16 A socket and protection breaker

No. 1 230 V industrial socket

Focus on the tank cap

Focus on the spark plug

Focus on the reset button

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).
