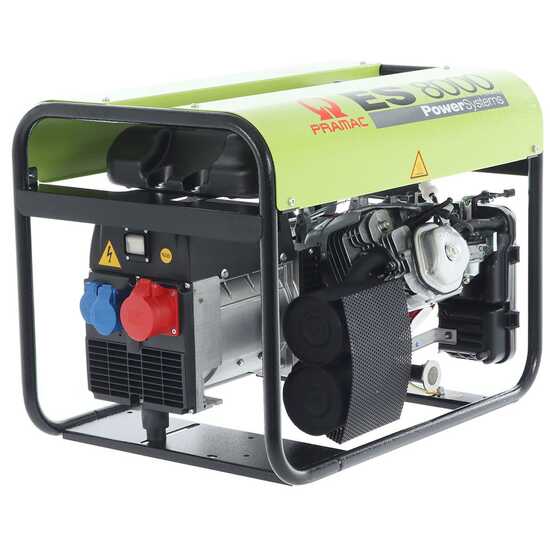

Pramac ES 8000 - 6.6 kW Power Generator with AVR - DC 6.6 kW Three-phase

The Pramac ES 8000 three-phase generatorgasoline powered is very compact and easy to use with simple and intuitive controls. Thanks to its components of the highest quality it can also be used for work of any kind, even heavy-duty.

It is able to emit a three-phase nominal power of 5.6 Kw and a maximum power in emergency service that reaches up to 6.6 Kw.

The engine is branded Honda,the model GX 390,series designed for use in the fields of construction, agriculture, generators, welding machines and others of this kind. It represents a secure reliable engine and great performance and it is the top of the range between the gasoline engines used for these products. It has an 11 L tank guaranteeing an autonomy (at 75% load) of almost 3 hours.

Then there is the Z100 SC alternator branded NSM with copper winding, produced in Italy. This company is among the best in the field of alternators, thus always providing elements of the highest quality.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum three-phase power disbursement: 6.6KW

Nominal power in continuous running (COP) three-phase : 5.6KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Maximum single- phase power disbursement: 3,2 KW

Nominal power in continuous running (COP) Single-phase: 3KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 400V

Operating frequency: 50 Hz

Fuel tank capacity: 11 L

Size: 730 x 500 x 560 cm

Weight: 75 kg

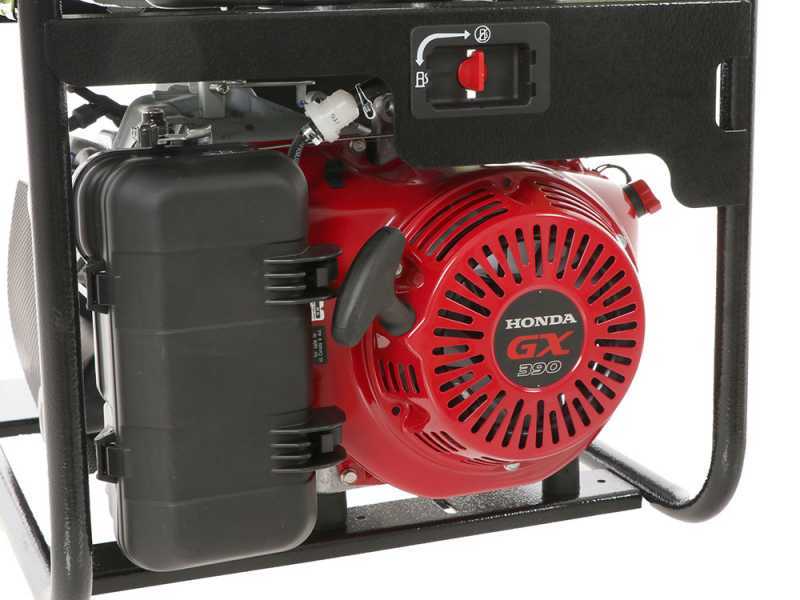

The Honda GX390 engine is part of the GX series, designed for products used in fields such as agriculture or construction. Among the innovative features of this engine we find a facilitated start, a low level of consumption and a low level of vibrations.

The S20W alternator is "Made in Italy", produced by Mecc Alte, a company that represents one of the best Italian productions for the alternator category. It represents absolute reliability and quality.

The alternator is completely wrapped in copper.

ENGINE TECHNICAL DATA:

• ENGINE TYPE: HONDA GX 390
• DISPLACEMENT: 389 cc
• NOMINAL POWER: 11.6 hp
• STROKE: 4
• POWER SUPPLY: gasoline
• OIL CAPACITY: 1.1 L
• COOLING: air
• START: Recoil start with self recovery
• CONSUMPTION (at 75% load): 2.15 L/h
• VOLTAGE: 230V
• FREQUENCY: 50 Hz

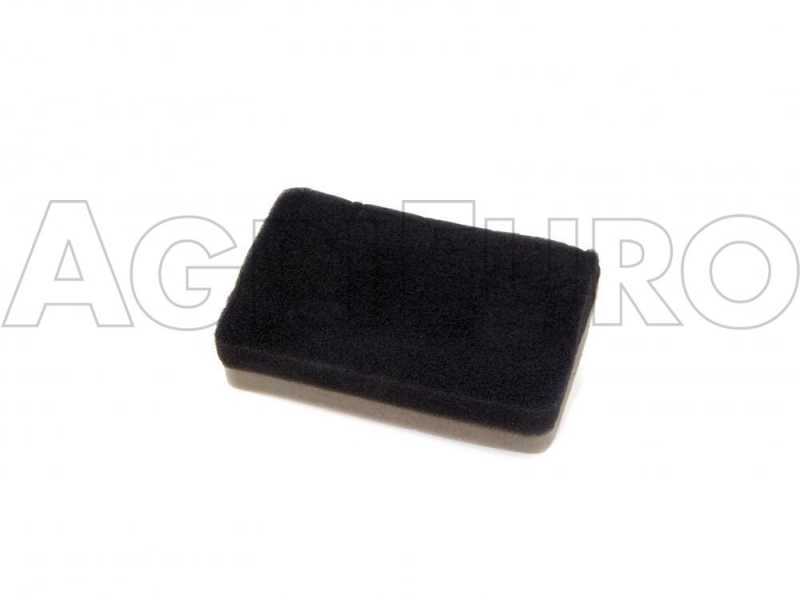

Focus on air filter

Focus on the ignition switch

Focus on the starter rope

OHV technology

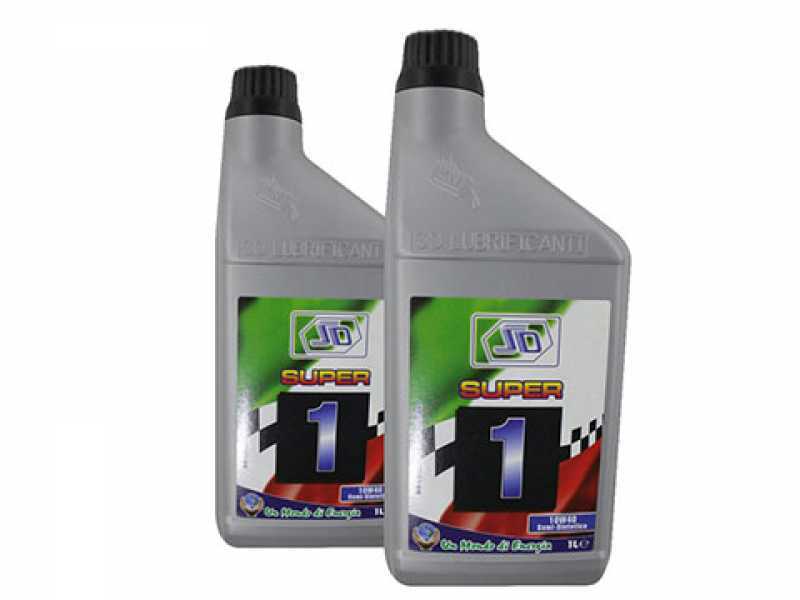

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

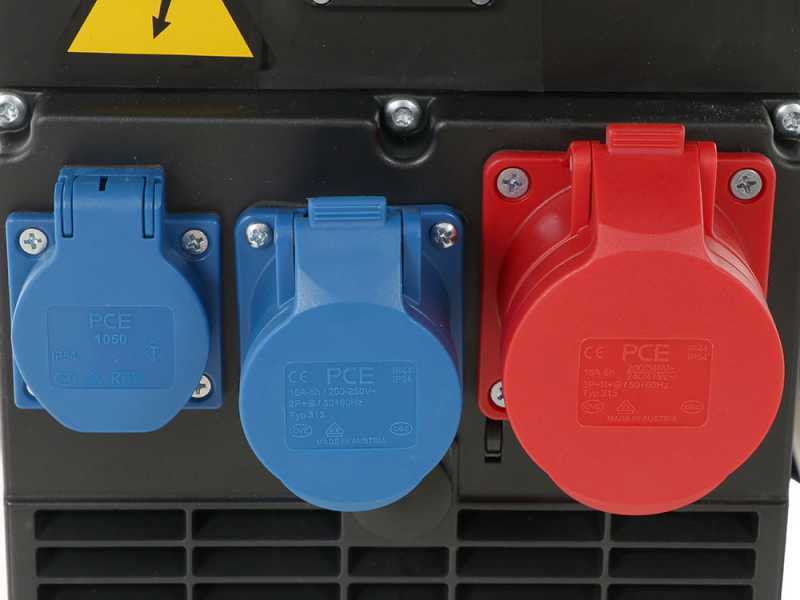

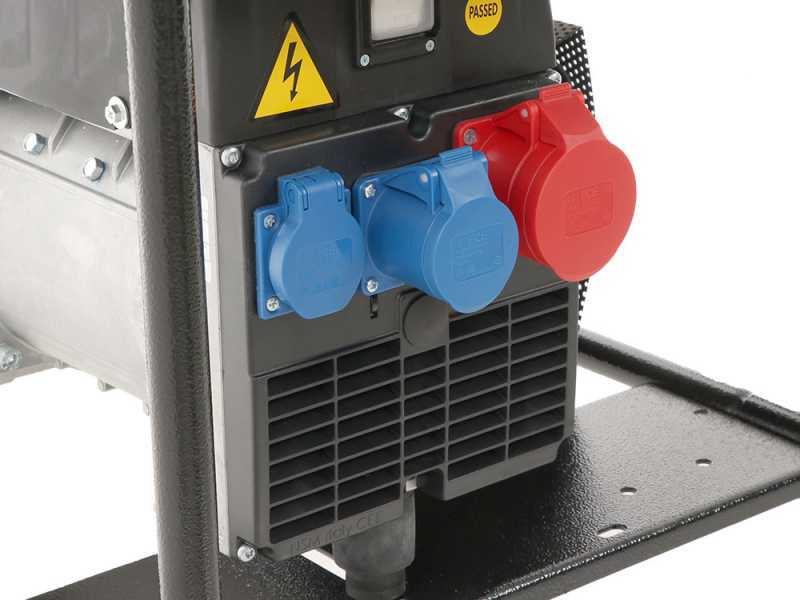

Among this generator’s characteristics it is possible to find:

1 Schuko socket 16A and breaker protection

1 230V Industrial power outlet

1 three-phase 400V power outlets

Focus on the power button

Focus on the oil tank

Focus on the ground discharge

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
