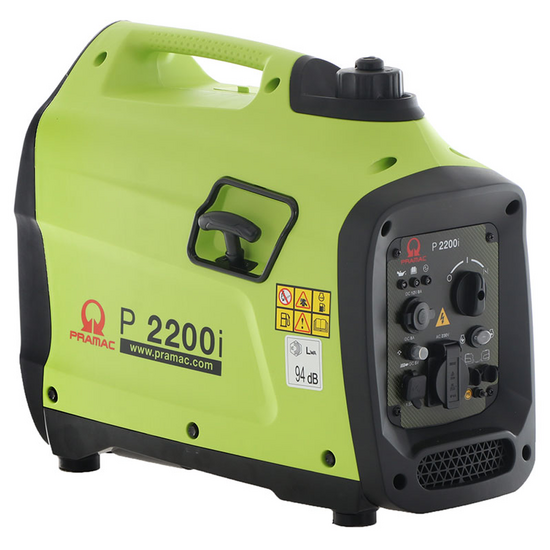

Pramac P2200i - 2.1 kW Silenced Inverter Power Generator - DC 1.9 kW Single-phase

The Pramac P2200i generator is equipped with inverter technology, allowing it to emit clean energy. Lightweight and easily transportable thanks to the practical top handle.

Equipped with a low oil level safety system that automatically protects the engine from damage.

It is therefore perfect for supplying power to even the most sophisticated and power-sensitive appliances or tools.

The generator is capable of delivering a maximum power of 2.1 kW.

On the control panel we find a 16A Schukosocket (IP44), a 5V 2A DC USB outlet and a 12V 8A DCsocket

The inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments and any special equipment that is particularly sensitive to voltage and frequency variations.

Silenced generator:

Silenced Generator: This aspect allows the use in camping sites, mobile homes, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

main applications:

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments and any special equipment that is particularly sensitive to voltage and frequency variations.

WARNING: All power generators like this one, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3-4 hours continuously, in order to not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases we recommend to opt for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

Maximum nominal power: 2.1 KW

Nominal power in continuous running (COP): 1.9 KW*

This is the data that must be taken into account as an actual and constant data in the generator’s output (it guarantees it unlimited hours)

TECHNICAL DATA:

• Voltage: 230 volts
• REGULARITY 50 Hz
• 'Tank capacity: 4.5 litres
• Autonomy (at 75% load): 4.5 hours
• WEIGHT: 22 kg

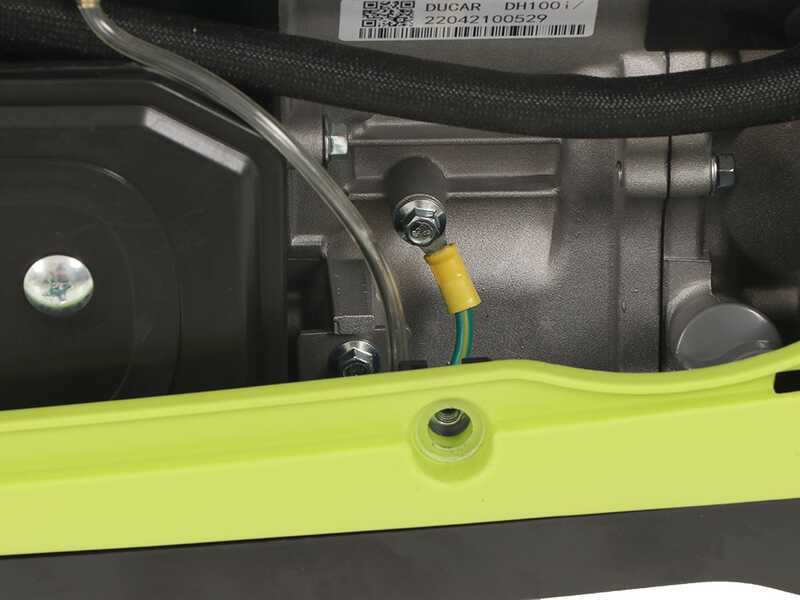

Engine type: 4-stroke petrol

COOLING: air cooling
STARTING: recoil start with self-recovery
CONSUMPTION (at 75% load) 1 l/h

WARNING: the engine is provided without oil
(fill with oil for 4-stroke engines before starting the unit)

Major advantages over conventional 2-stroke mixture engines:

• Greater reliability
• Higher durability
• Easier start-up (especially after long periods of storage)
• Lesser problems related to the preparation and to the fuel freshness
• Lower fuel consumption (less than half!).
• Less maintenance

Recoil start system with self- recovery:

Compartment with oil tank

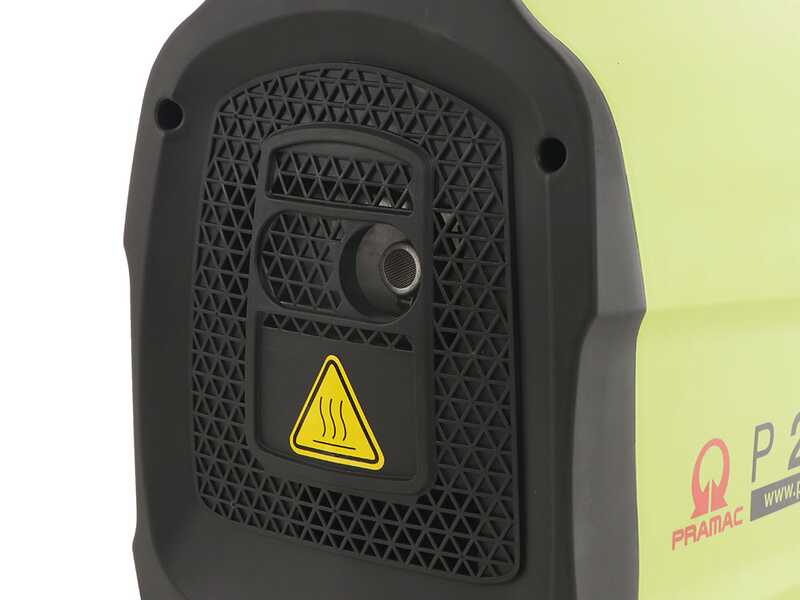

Silenced generator. The silencer allows the power generator to be used in campsites, campers, public places, homes, apartment blocks, terraced houses, hobbies or anywhere where quiet electricity is required.

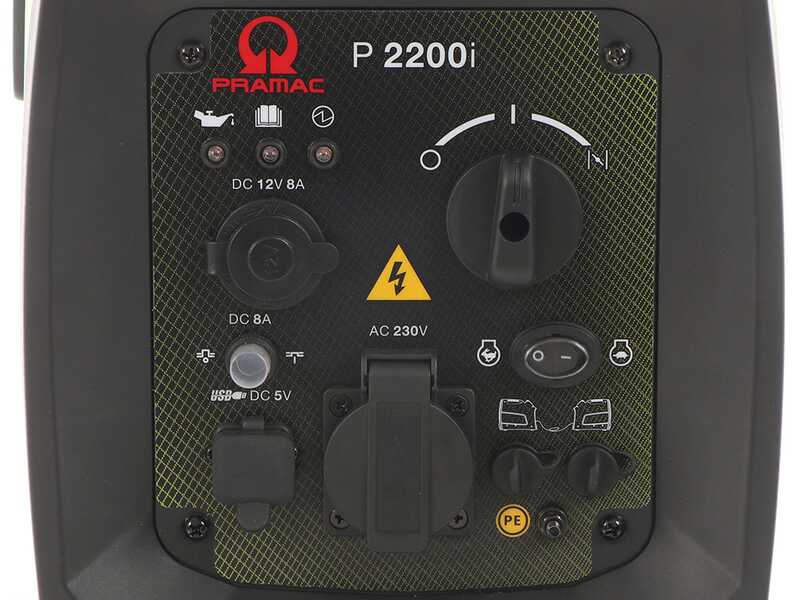

Main features of the control panel:

-Warning lights;

Speed variator

- USB socket, 5V 5V;

-12V 8A socket;

Coupling for parallel connection

Main switch

-16A Schuko socket IP44;

Among the additional features there are:

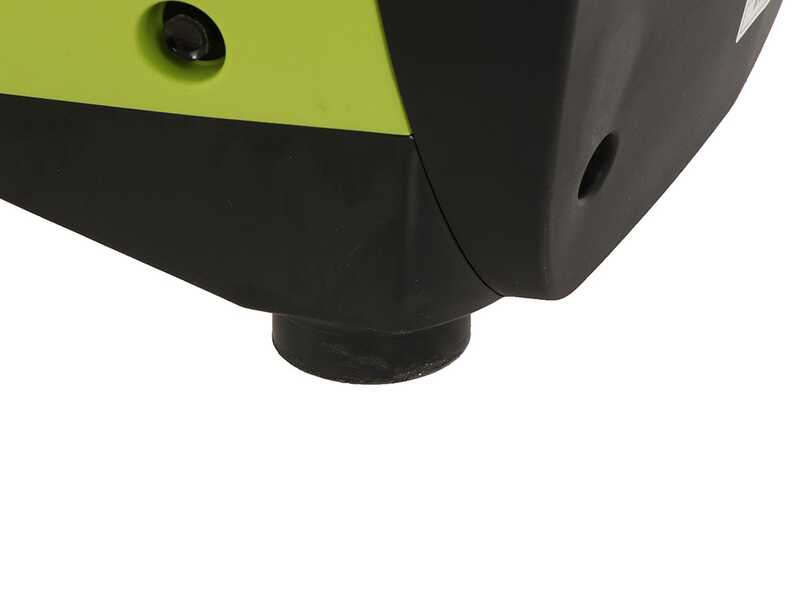

Rubber support feet that ensure maximum stability.

Carrying handle

Tank cap

quick to access spark plug

Through the dedicated kit, the generator can also be connected in parallel to another model of equal power (sold separately).

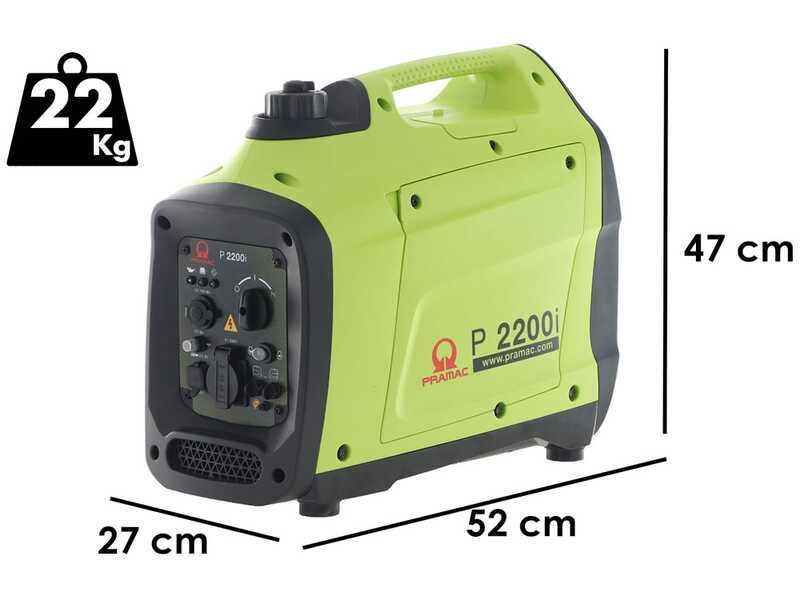

Exceptionally low weight: only 22 kg!

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criterion is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt) X Starting coefficient (2) = 3000 Watt, hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instructions and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• This inverter generator is equipped with an ELECTRONIC CARD in order to stabilise the output current, generating an almost perfect wave.
  This makes it particularly suitable for application in certain uses, but also not suitable for other.

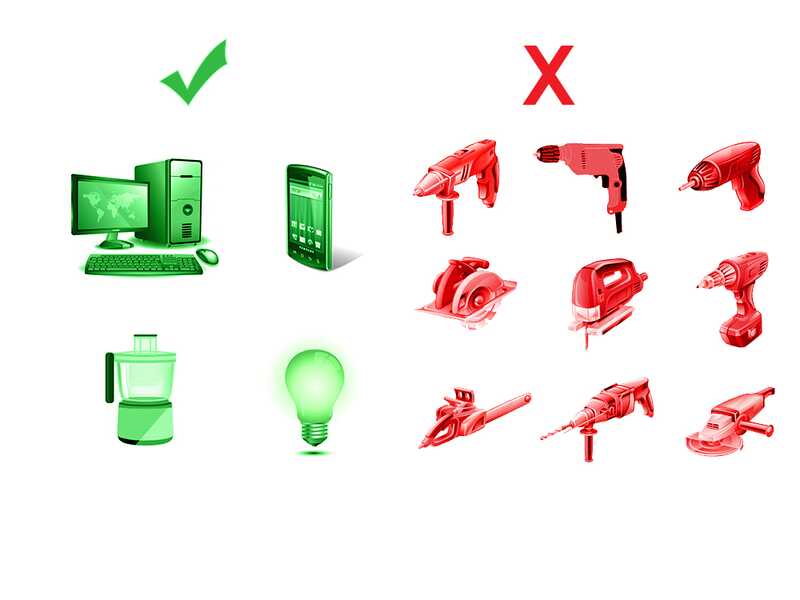

  Some examples of FIELD OF APPLICATION : Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for vacation and leisure use (in a camper, boat, etc ...)

  Some examples of NON APPLICATION FIELDS : Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

  We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
