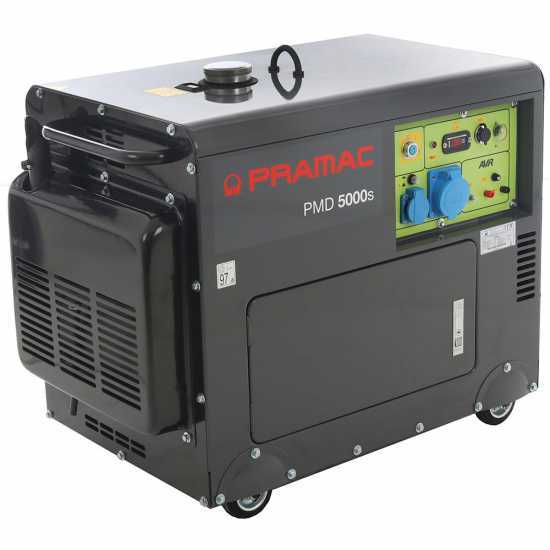

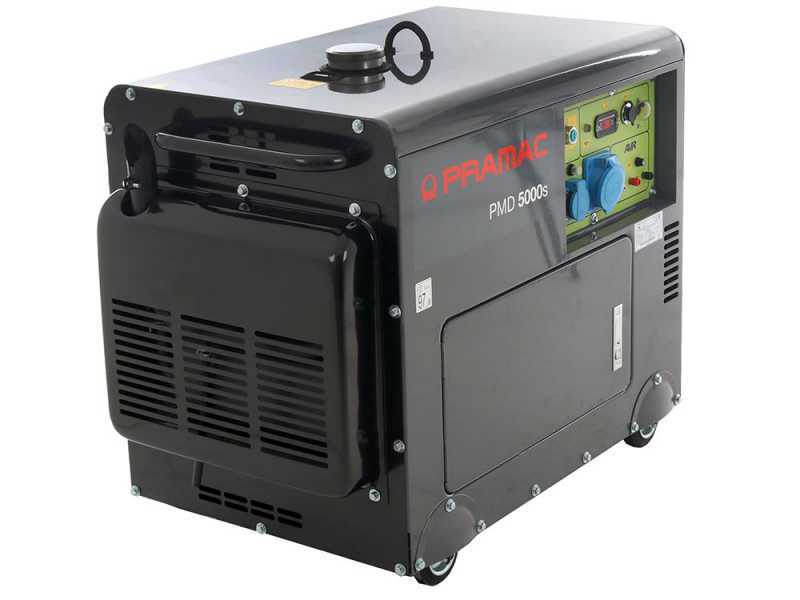

Pramac PMD5000s - 5 kW Silenced Diesel Power Generator with AVR- DC 4.2 kW Single-phase

Pramac PMD5000s single-phase silent diesel generator is a semi-professional product intended for private use. Large-sized product especially designed to be used in building sites, roads, workshops and is able to supply current in a constant, clean way, without sudden changes in voltage, thus also guaranteeing great safety for the products it supplies.

Easy to start unit thanks to its electric start.

Detail of the generator AVR card: it allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load. It is also equipped with two comfortable handles and 4 wheels that enable a handy transport.

The generator can be connected directly to the domestic power supply by means of an ATS panel to power everything we need in case of emergency. We recommend asking a qualified professional to carry out this operation to avoid unpleasant inconveniences on the machine.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

Single-phase Max power output: 4.2 kW

Single-phase rated power: 5.0 KW

Roomy tank: 14.5 l.

This generator is also equipped with AVR card that allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

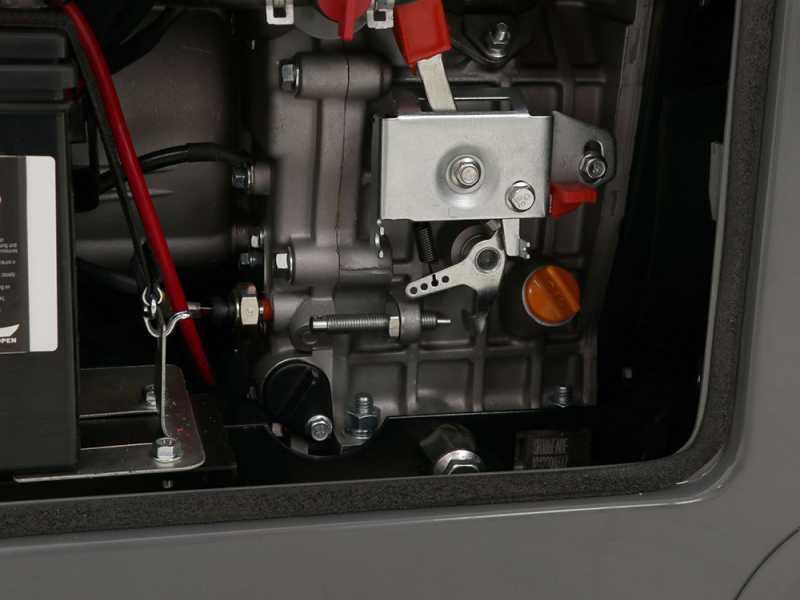

Engine features:

Engine type: 186FAD, 4-stroke, air-cooled engine with overhead valve OHV.

Engine power: 8.4 HP

Engine Max revolutions: 3600 rpm

Oil tank: 1.65 l

The generator engine features an electric start.

It is equipped with battery.

ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using it.

SILENT GENERATOR: considerably reduced noise emissions, 72 dBA (7 mt).

This feature makes the unit particularly suitable to be used in proximity to people and residential areas.

Detail of the residential silencer.

The engine is fitted with electric start with key on the control panel.

Standard supplied battery

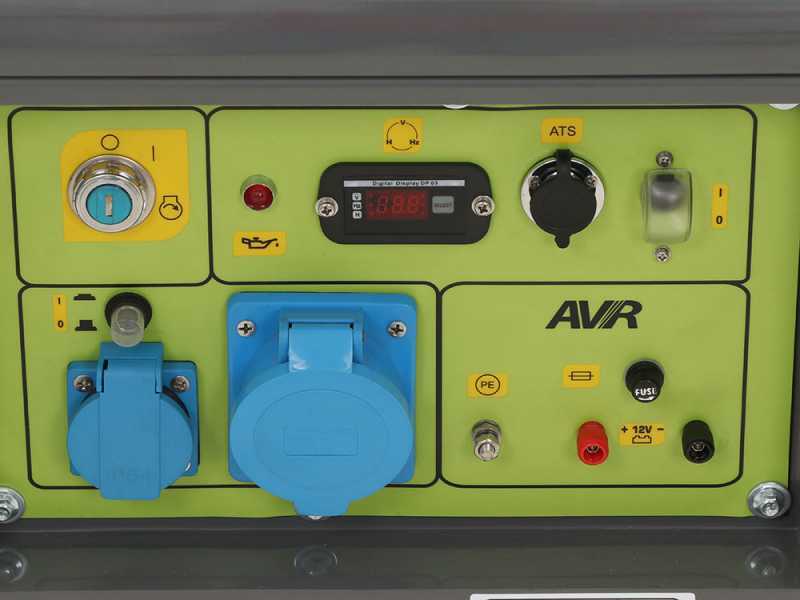

The control panel of this generator features a number of different functions.

• Engine electric key start.
• Master switch and connector for ATS
• Sockets for 12V battery charger
• 1 Single-phase Schuko power outlet
• 1 Single-phase industrial power outlet
• Digital display and oil control light

Tank cap

Equipped with hook to lift with forklift

Equipped with side handles to facilitate transport

Equipped with 4 rubber-coated wheels

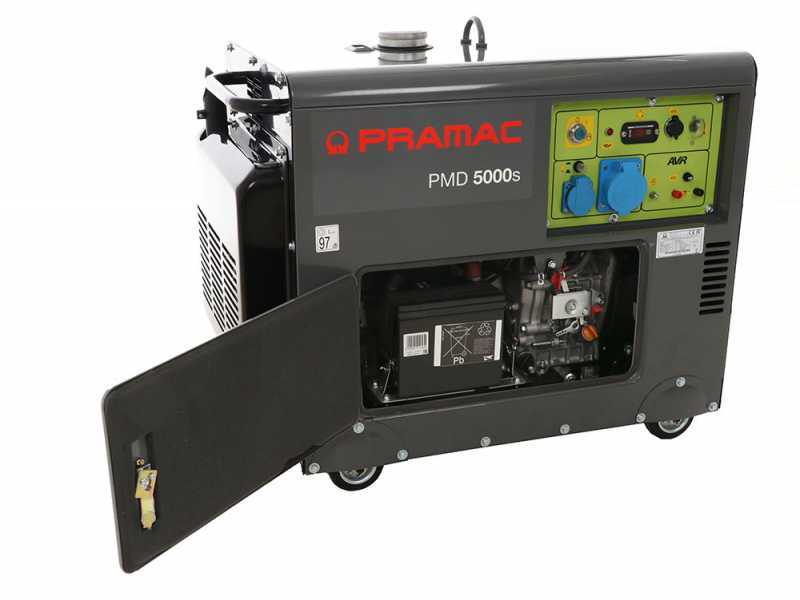

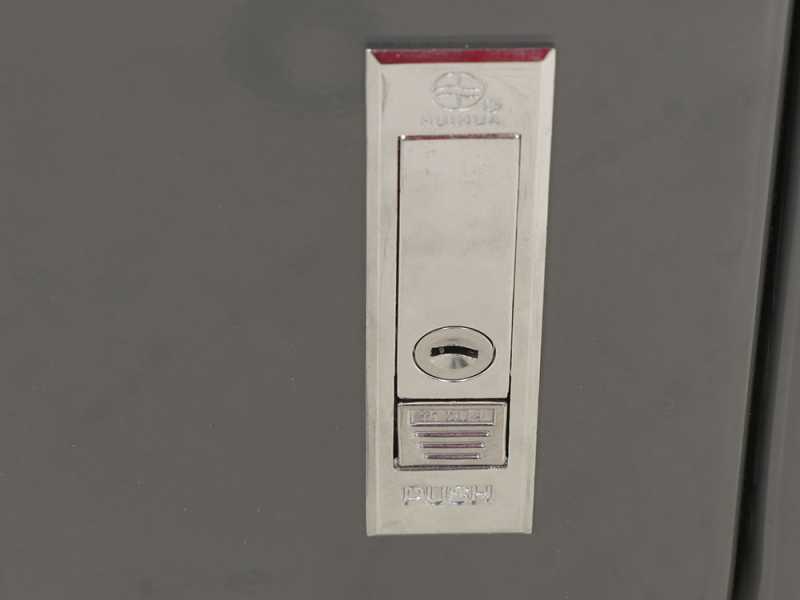

Door for battery access

Fuel level

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
