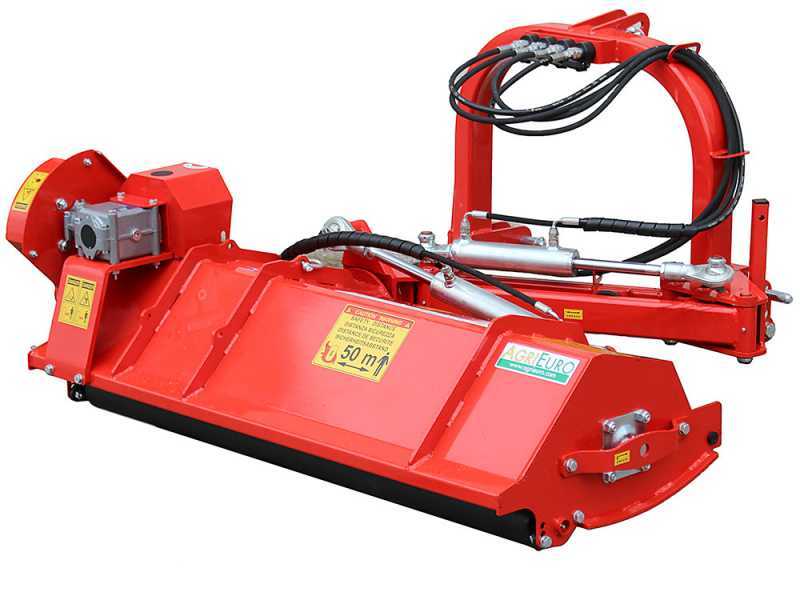

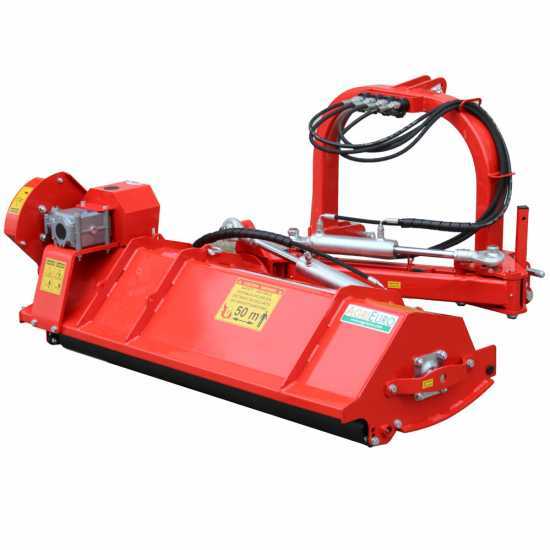

AgriEuro FU SPECIAL 112 Tractor-mounted Side Flail Mower with Arm - Light Series - Counterclockwise PTO (left-hand rotation)

Tractor-mounted side flail mower with arm

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The AgriEuro FU SPECIAL 112 tractor-mounted side arm flail mower belongs to the light series and it is completely Made in Italy.

This model ensures the highest flexibility of use among side flail mowers; indeed, the hydraulic shift is both horizontal and vertical. Its structure is lightweight and elastic and it is used for shredding light prunings, grass and small shrubs

It is suitable for different operations, such as:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Ideal for ditches, embankments and sloping terrain

The hydraulic shift is operated by 2 sturdy pistons.

The flail mower is provided with a 2-belt drive transmission.

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 106 cm
Real width (side skids already assembled): 112 cm
Weight: 225 Kg

ON STANDARD EQUIPMENT:

Category 1° 3-point hitch.
540 g/min aluminium gearbox with freewheel.
2-belt drive with adjustable turnbuckle.
Rotor with toothed hammers
The rear roller is adjustable in 3 positions.
PTO
CE compliant safety equipment

Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.

AgriEuro FU SPECIAL 112 Tractor-mounted Side Flail Mower with Arm - Light Series - Counterclockwise PTO (left-hand rotation)

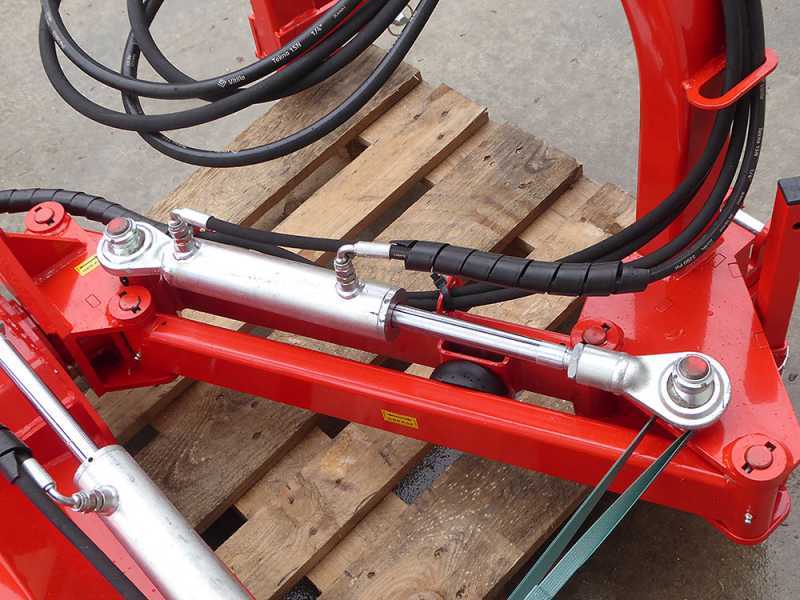

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 pistons. Equipped with 4 hoses with quick joints that must be connected to the hydraulic connections on the tractor.

This is a highly sturdy shifting system. It consists of articulated arms.

The flail mower can work up to 90° vertically upwards and - 50° downwards.

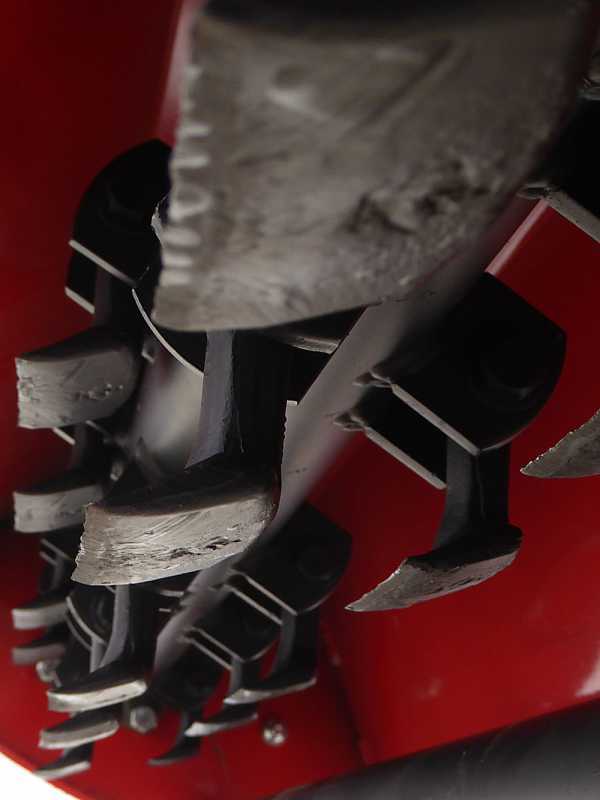

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 16

Focus on one of the the hammer flails (toothed hammers) mounted on supports welded to the rotor.

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Lightweight series flail mower, suitable for hobby use.

Rotor, hammer flails supports, side bearings

It finely shreds grass and twigs, while simultaneously rolling the turf.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas.

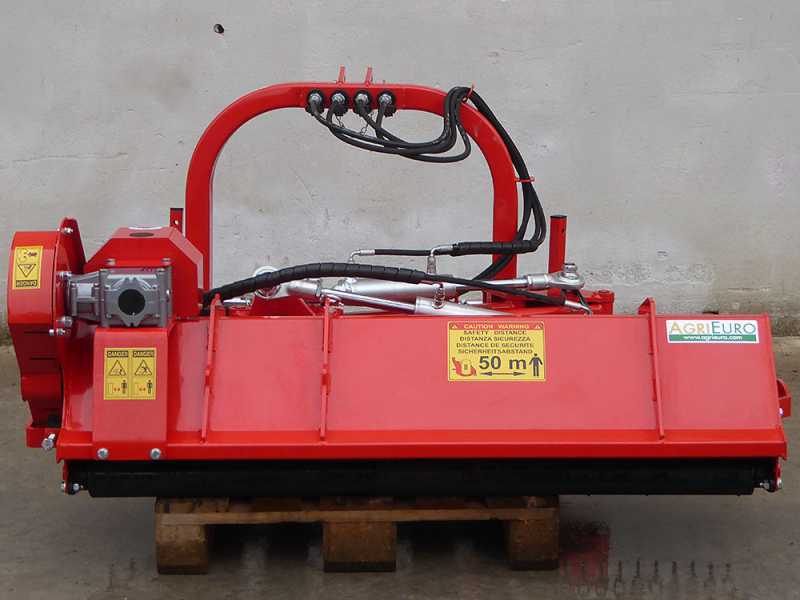

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

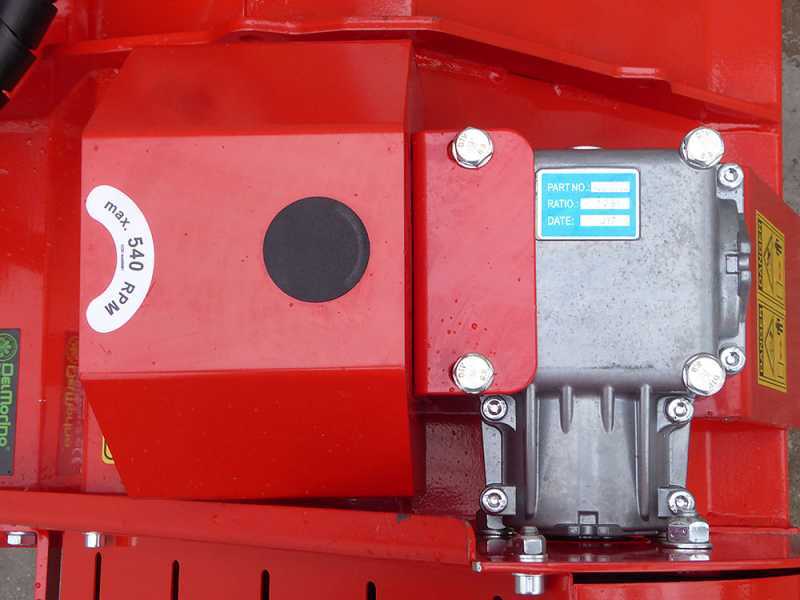

Side belt transmission and reduction gearbox

Reduction gearbox in oil bath.

2-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Easy tensioning of the side drive belts by means of a proper screw.

Simply tighten the screw a few turns to tension the belts.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position thanks to a specific opening.

Focus on the gearbox in oil bath.
Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
