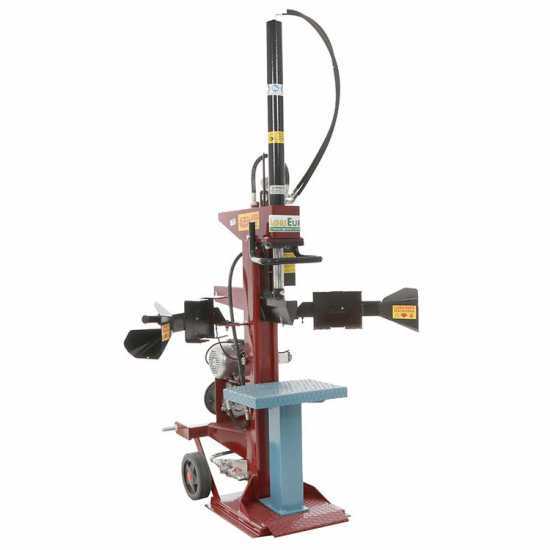

Premium Line SIE LUX - Tractor-mounted Log Splitter - Vertical - 10t

The AgriEuro SIE 10T is an electric vertical log splitter designed for a domestic use. It is powered by a single-phase electric motor with 2.2 kW of power.

With its 10 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 126 cm height. It is equipped with a large-capacity pump which guarantees a powerful splitting force and a high working speed, and is also equipped with an adjustable piston limit switch control system. The two wheels allow transporting the machine everywhere you need.

The log splitter allows operating with two different speeds that can be selected by simply pressing down on the control handles with more or less pressure.

Operating this log splitter is easy and safe thanks to its special safety devices for protecting the Operator during use.

The log splitter is equipped with ground split system and it is entirely made in Italy.

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

Equipped with a high-performance hydraulic pump that supplies oil to the hydraulic pushing cylinder. The hydraulic pump features a pressure gauge for checking the oil pressure.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

Focus on the oil-bath steel gear multiplier coated with cast aluminium.

The multiplier transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

This log splitter can also be powered by connecting it to the standard domestic mains electricity supply by using the single-phase 230 V 3 Hp motor with a 2.2 kW of power. The electric motor exploits the action of a double high-performance hydraulic pump that supplies oil, (drawn from the tank) to the hydraulic pushing cylinder. The advantage of the two-stage pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Furthermore, the two-stage pump allows you to halve the operating time and increases the productivity of the log splitter.

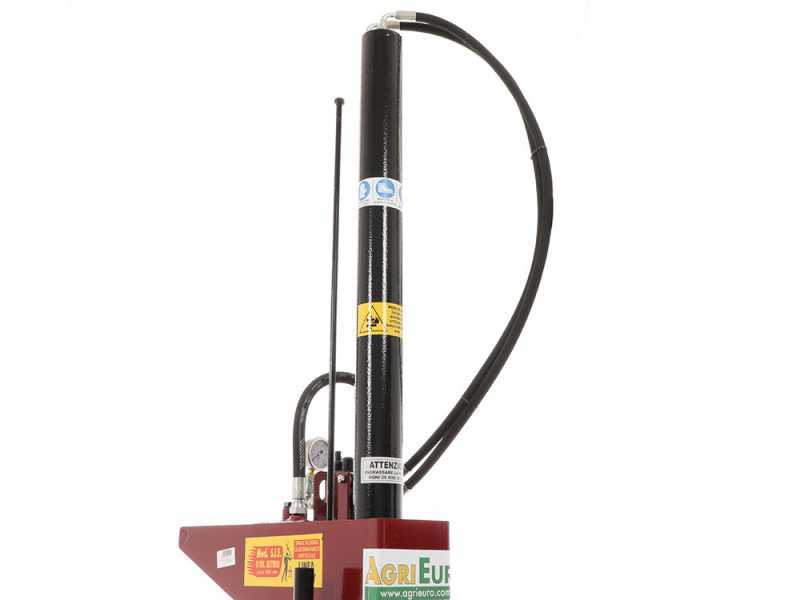

With its 10 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 112 cm height, thanks to its exceptionally sturdy and large 1000 mm piston cylinder with an 80 mm outer diameter and 50 mm internal diameter.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

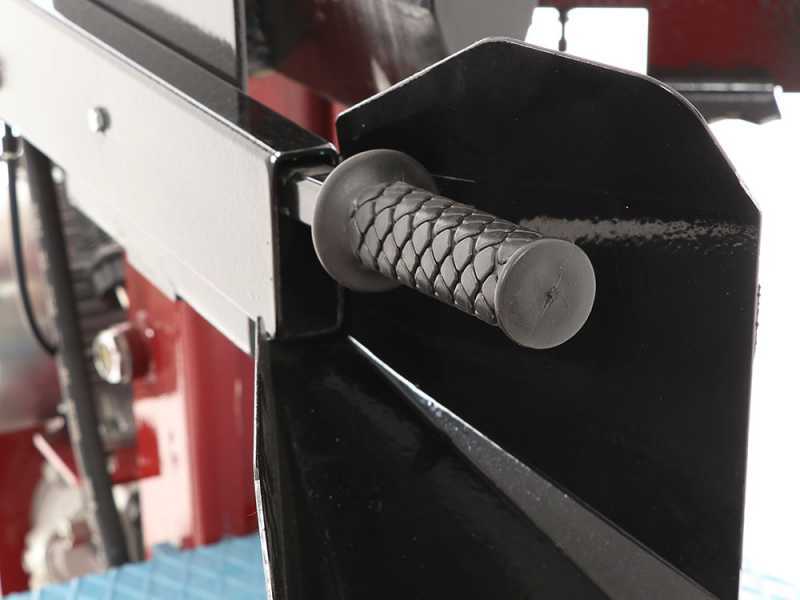

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 10 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Wedge lift locking device. pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the hydraulic distributor

Focus on the removable plate that can be removed so the Operator can split the logs down to ground level.

Focus on the hydraulic oil level

Focus on the oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the support platform

Focus on the transport wheels

Focus on the lower three-point attachment

Focus on the upper three-point attachment

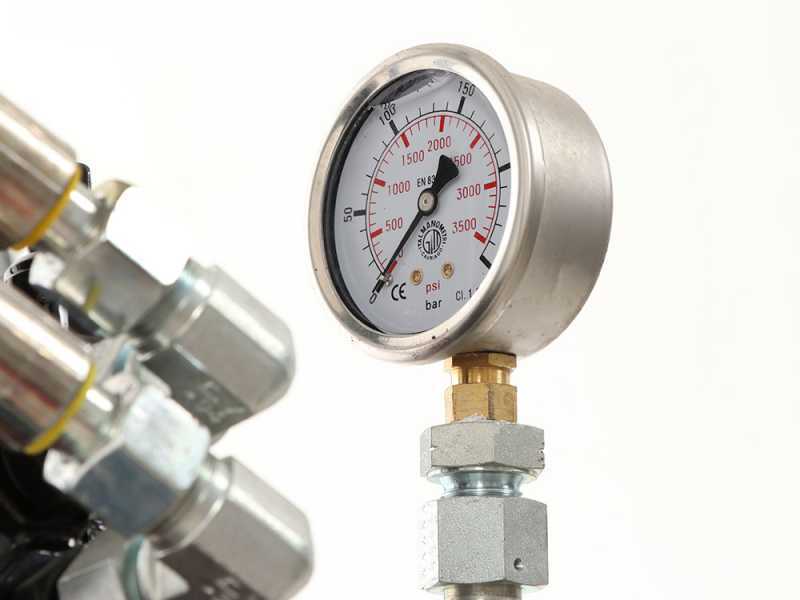

Pressure gauge that measures oil pressure inside the circuit
