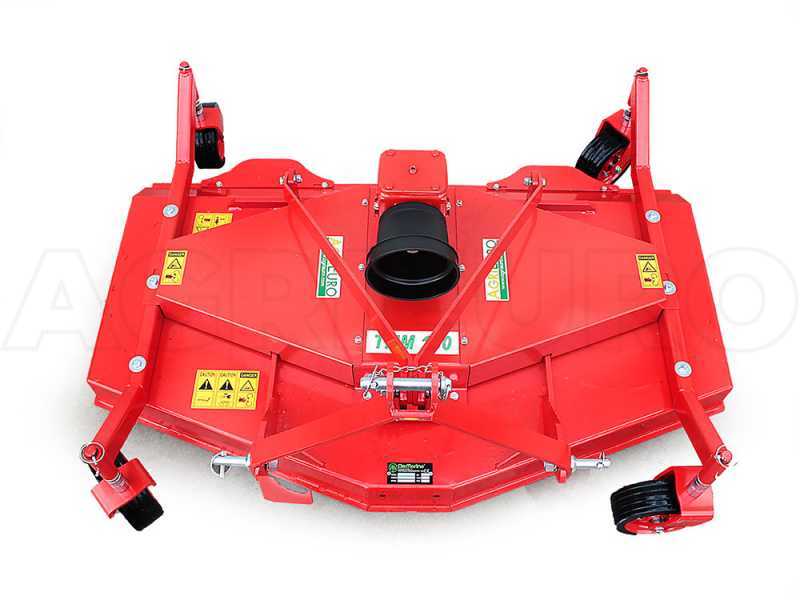

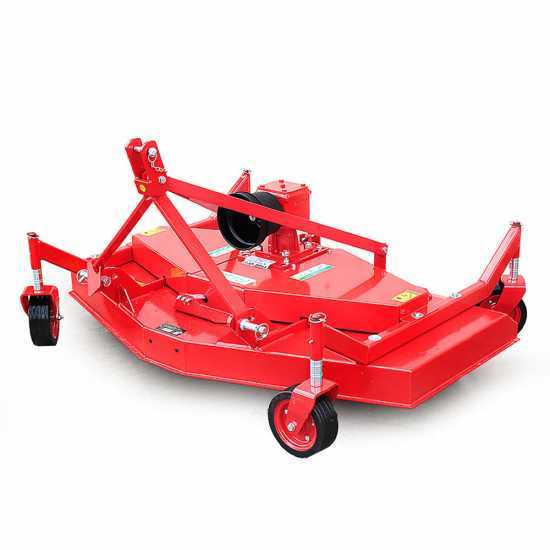

The TMM 120 lawn mower is a machine suitable fot the maintainance of lawns, golf courses, kick fields and public gardens also of big surfaces. It has a sturdy and elastic structure and thanks to the high rotation speed of the rotors it guarantees a precise and accurate grass cutting.
It has a working width of 120 cm, the cutting height is adjustable in several positions through the wheels that vary from 20 to 90 mm.
It is equipped with a side discharge with the possibility of assemble a mulching kit.
Suitable for tractors from 15 to 70 hp.

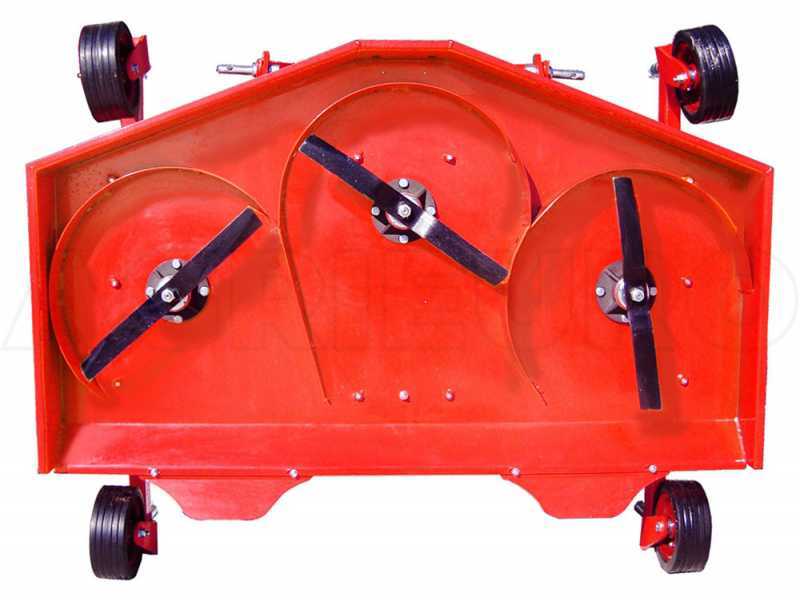

It is equipped with 3 rotors with 1 blade that ensures the long lasting in time always at high performances.
TECHNICAL DETAILS (in summary):
- Real working width: 120 cm
- Real working width of the machine: 130 cm
- Weight: 175 kg
- Suggested for tractors: from 15 to 70 HP

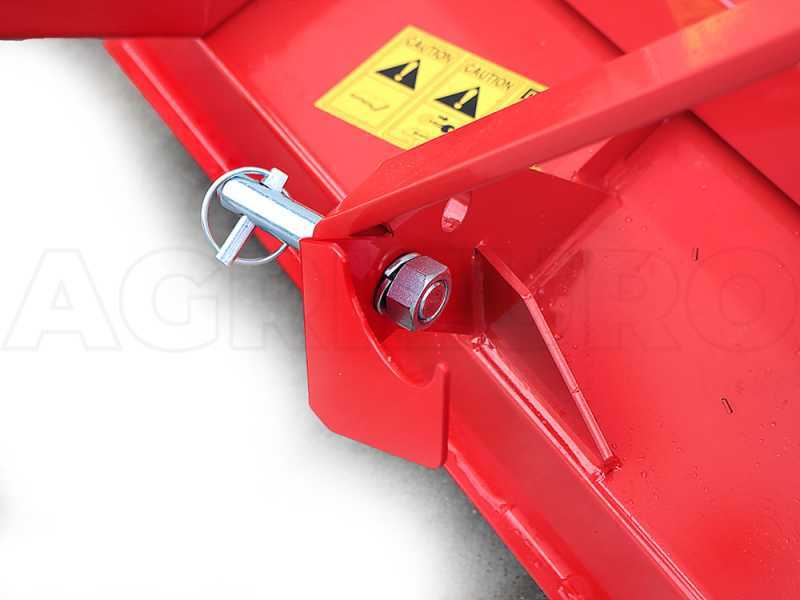

- 3 point linkage
- Belt transmission with cast iron reducer
- Rear discharge
- Adjustable swiveling wheels
They do not work with left direction of rotation!

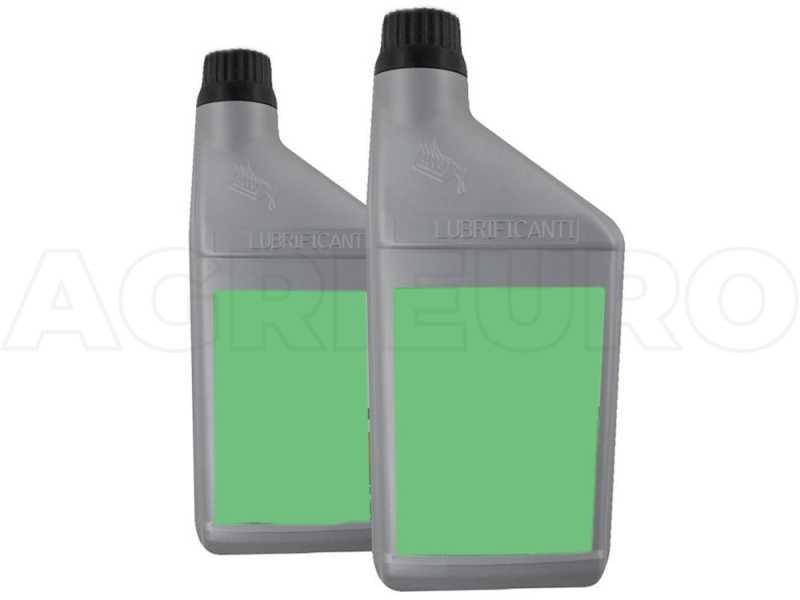

This machine DOES NOT provide oil in the transmission. Please add the oil to the due level before use.
