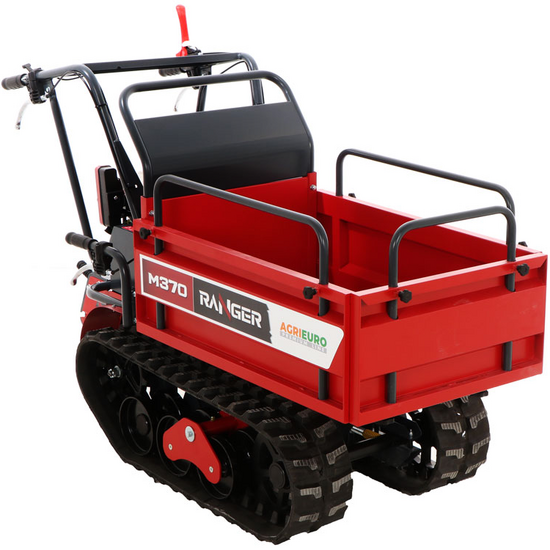

Ranger M370-E Extendable Tracked Power Barrow - Honda GX160 Engine - Electric start

The RANGER M370-E minitransporter stands out to be a sturdy-tracked power barrow with an effective load capacity of 350 Kg.

The body of this power barrow is extendable, which allows the load capacity of this machine to be considerably increased. Another great advantage is the additional removable tailgates, which allow for extraordinary versatility in work.

Among the features of this power barrow are its tracks, which guarantee stability and safety when using the machine.

Thanks to the self-propulsion on tracks and to the powerful HONDA engine, this power barrow is intended for carrying loads:

• Up to a maximum of 350 kg on level grounds
• Up to a maximum of 200 kg on slopes

The engine is equipped with electric start.

We remind that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

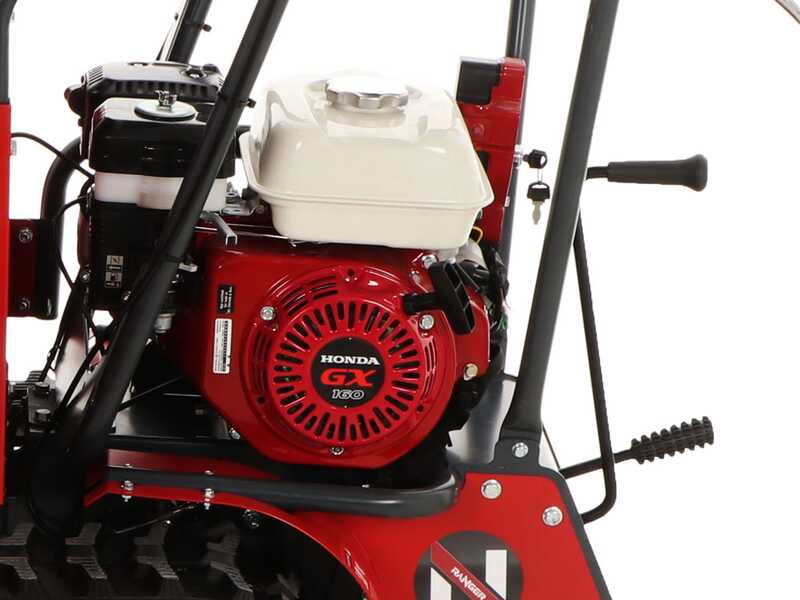

Honda series GX 160 engine:
Super-professional and SUPER-POWERFUL series, belonging to the latest overhead valve OHV technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty works in the building and agricultural field for generators, welders etc. Characterised by great durability and reliability.

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Rated Power: 5.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.

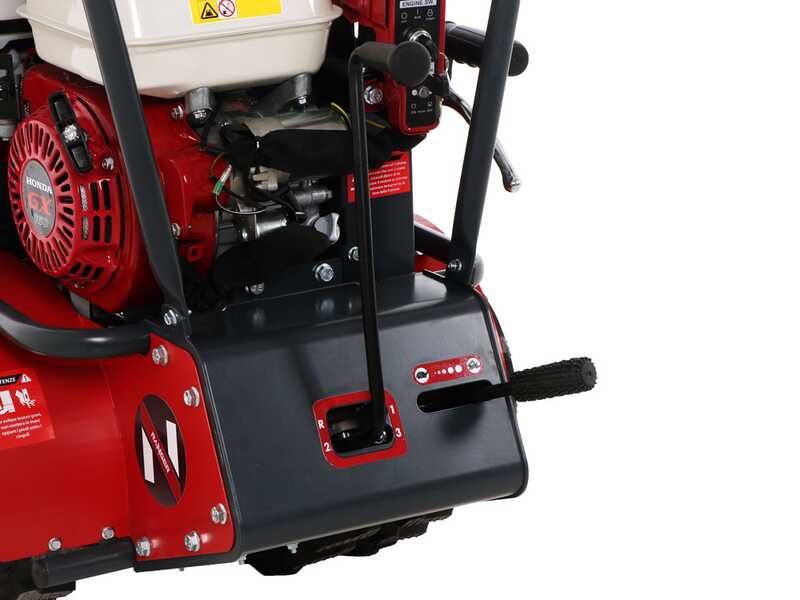

Gearbox: Large, reliable and accurate.

The power barrow is provided with reducer gears, which allows him to double the gears and get to 6 for the advancement and 2 for reverse. Thanks to the regulator will be able to always have the right traction in any situation. It uses the same concept as off-road vehicles. The two new levers allow a fast and convenient insertion of the desired gear. One to enter the 3 gears (forward and reverse), the other to select fast or slow mode.

A total of 8 gears can be engaged ( 6 + 2 ) Allowed by this adjustable speed from low to high of each gear. Using the lever to the right of the gearbox, you can choose between two speeds. The fastest gears are indicated for the sliding portions, while setting the low speed (Low range) it will be possible to cross with ease even the roughest spots.

Parking brakes :
annexes to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The ground clearance of the transmission is 144 mm

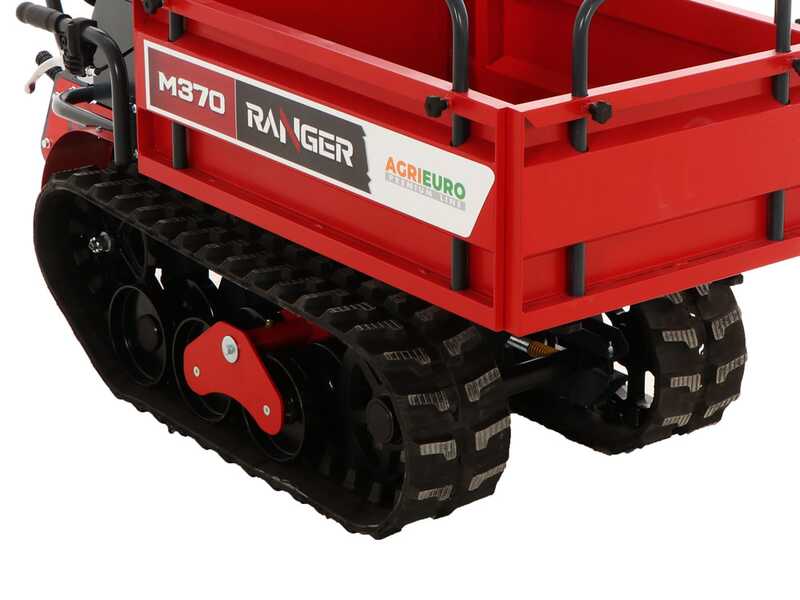

The power barrow is equipped with tilting tracks. The two central rollers, unlike the others, are mobile and can move depending on the obstacle in front of them, thus allowing the machine to always have maximum grip on the ground.

The shape of the tracks allows the wheelbarrow to easily pass over even the most insidious obstacles such as walls and steps, while still guaranteeing safety and stability. With their width and tread profile, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Barrow, made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations.

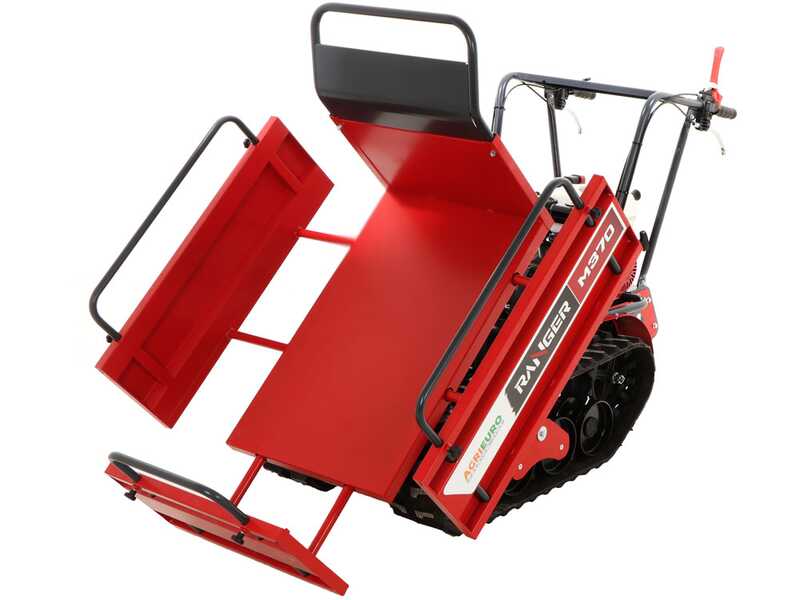

Mechanical tipping: activated manually with the rubber-mounted release lever fitted with a spring, and facilitated in the case of heavy loads thanks to the gas piston and the fulcrum positioned at the best point for tipping, a lever positioned on the side of the body.

To facilitate the tipping operation, unloading the operator's weight, and to keep the body in the tipped position, the power barrow is equipped with a gas piston placed under the frame.
This greatly facilitates all phases of work.

The load capacity can be increased considerably thanks to the extendable tailgates.

A further solution that allows the load capacity to be further increased is the possibility of completely extending the tail lifts.

An example of use is for transporting and loading wood.
By using the extension tail lifts, it is possible to increase the load capacity by considerably reducing the number of transports to be carried out for the job.

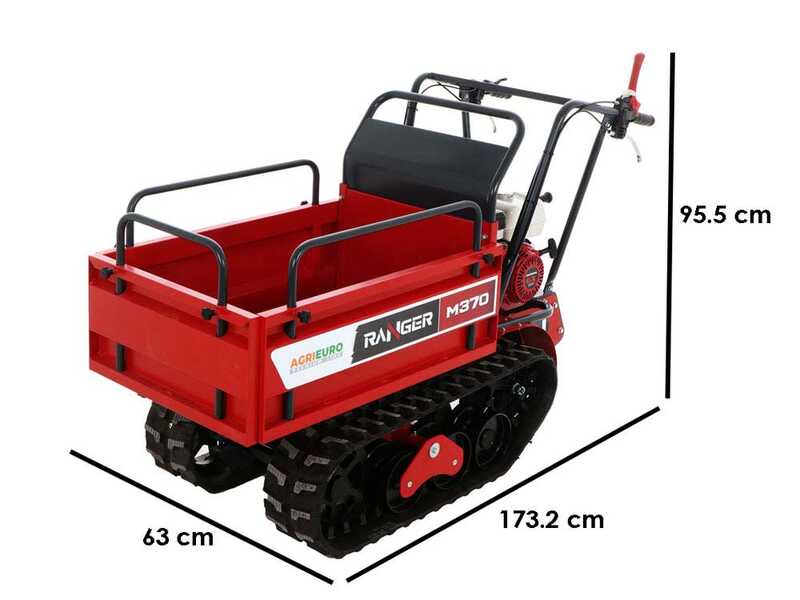

Closed barrow measurements: 82.5X54x41 cm (LxWxH)

Size when the body is opened: 100X91x41 cm (LxWxH)

The height of the loading bed from the ground is 420 mm

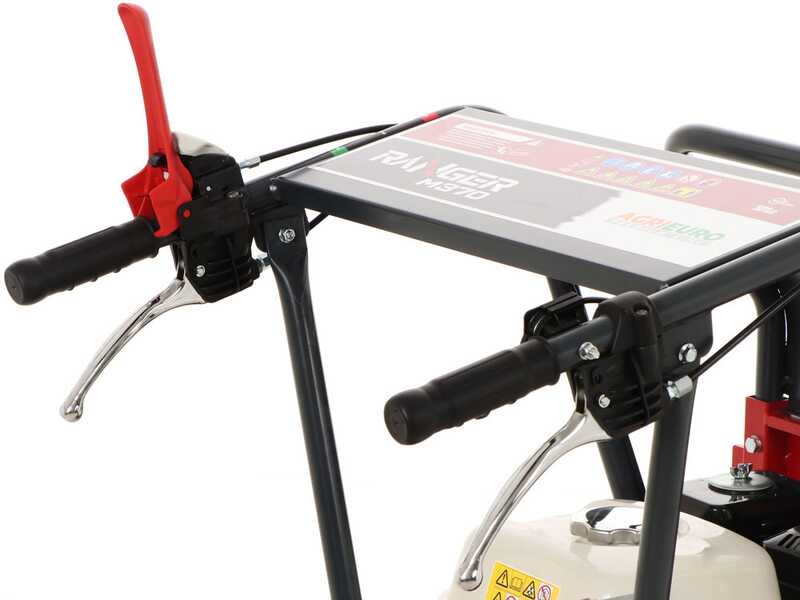

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever, and it allows moving smoothly. By partially pulling either lever, the steering of the track concerned, right or left, will also be partial.
This allows the power arrow to be steered extremely smoothly, without causing abrupt movements.

Safety brake allowing immediate stop.

Throttle lever

Dumper tipping lever
