RATO RT100NB26 Petrol Water Pump for Dirty Water

Add a question
ID: K601506

EAN: 6933027298980

MPN: RT100NB26-7.2Q

7,9/10
After-sales assistance & Spare parts
RATO RT100NB26 Petrol Water Pump for Dirty Water
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Producer-manufactured
Motor Model
R390
Cubic capacity
389 cm³
Nominal power
13 HP
Power supply
Petrol
For dirty waters
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1600 L/min
Fittings diameter
100 mm
Max. head lift
26 m
High delivery head
Yes
Max. suction height
7 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
RT100NB26
Power supply:
Petrol
Starting mode:
Recoil
For dirty waters:
Yes
Manufacturing country:
China
Motor data
Motor brand:
rato
Motor Model:
R390
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
7.2 L
Manufacturing country:
China
Pump data
Pump brand:
RATO
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
100 mm
Flow rate:
1600 L/min
Max. head lift:
26 m
High delivery head:
Yes
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

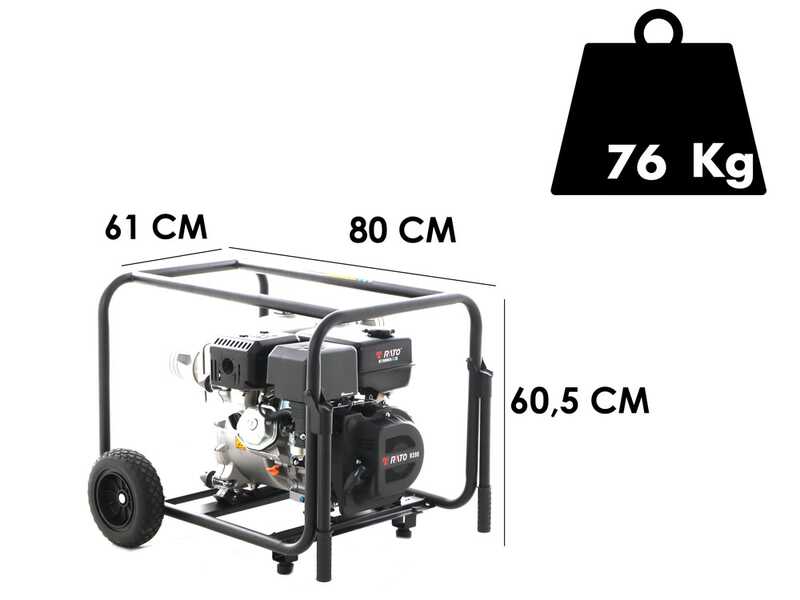

Dimensions and logistics
Product dimensions in cm (L x W x H):
80X61X60.5 cm
Net weight:
76 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
81X63X61 cm
Gross weight (packaging included) :
84 Kg
Assembly time:
15 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 27/11/2024 - 29/11/2024
€ 1.240,80
VAT Included
You're viewing:
Customers also viewed:
Description

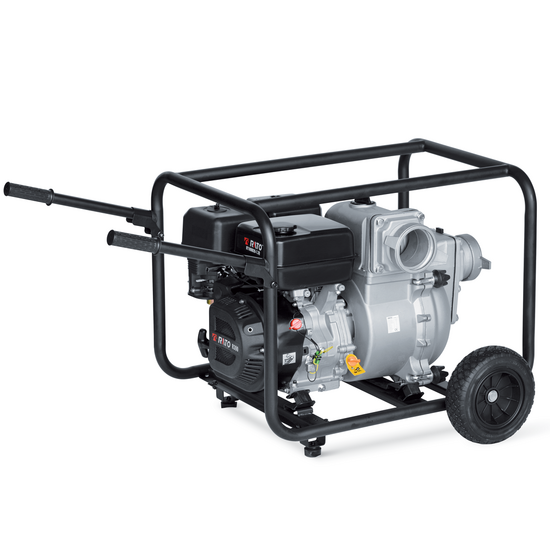

RATO RT100NB26 Petrol Water Pump for Dirty Water

RATO RT100NB26 water pump for dirty waters is a specific machine to drain dirty water, and it stands among the standard petrol pumps for the large dimensions and exceptional volume of its pump unit.

This pump allows it to handle liquids that may also contain solids, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like. It is also equipped with a specific metal filter, resistant to shocks and wear due to debris that dirty waters contain.

Unlike other water pumps, or other Rato water pumps, RT100NB26 stands out for its ease of transport due to the convenient handlebars and the two wheels supplied. Therefore, these machines are even more versatile for situations where a high performance product is required. The maximum flow rate is 1600 L per minute, with a maximum head lift of 26 m; such technical specifications make it suitable for large spaces and heavy-duty work.

It is also equipped with a sturdy wrap-around frame which protects it from unwanted shocks while maintaining a very low weight.

The pump is self-priming, and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

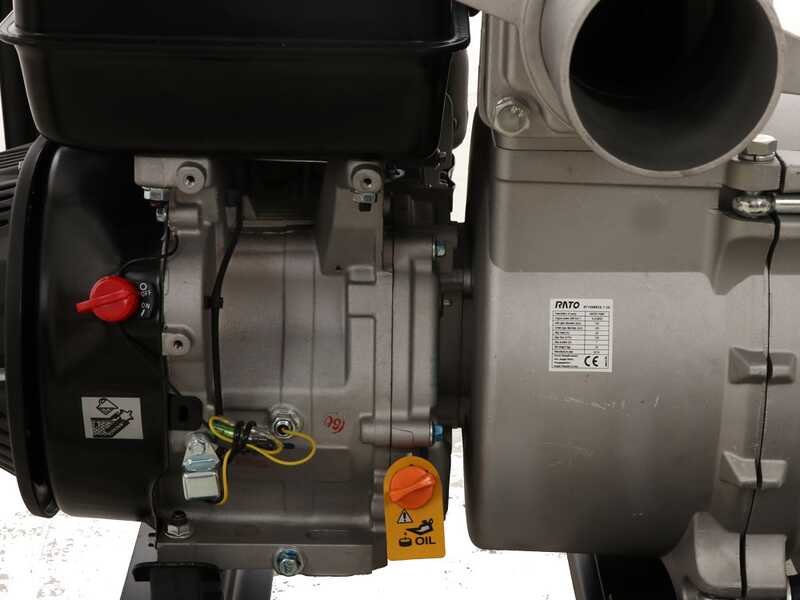

Engine Technical Features

Engine features:


Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 389 cc
Power: 13 Hp
Fuel: petrol
Tank: 7.2 L

RATO 390 engine is equipped with recoil start system;

Focus on the air filter: (open) and (closed);

Focus on the spark plug;

Oil sensor;

Nominal Power: 13 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

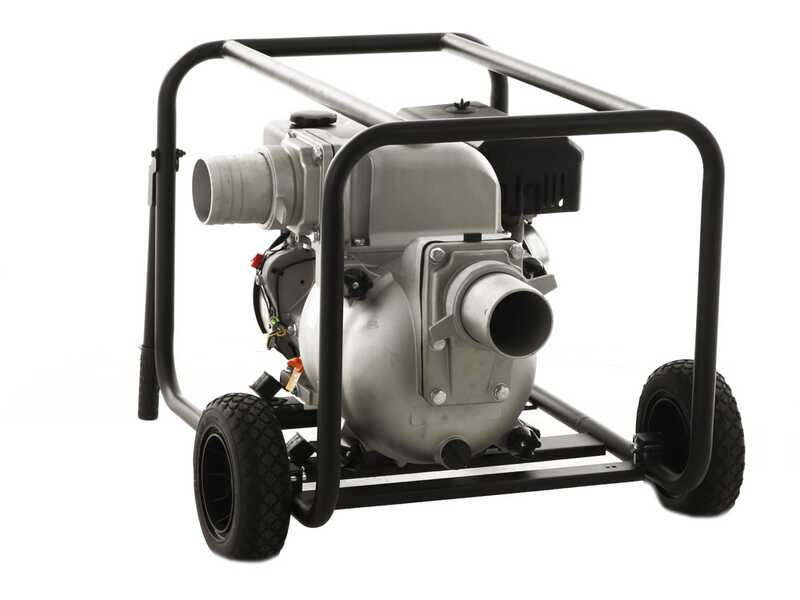

Pump Technical Features

The pump mounted on the RT100NB26 is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 100 mm - 4 inches
Discharge: 100 mm - 4 inches
Maximum suction height: 7 m
Max. flow rate: 1600 L/min
Max. head lift: 26 m

Focus on the 100 mm - 4 inch suction and discharge fittings;

Pump-engine fitting

Pump filling cap

Pump emptying cap

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

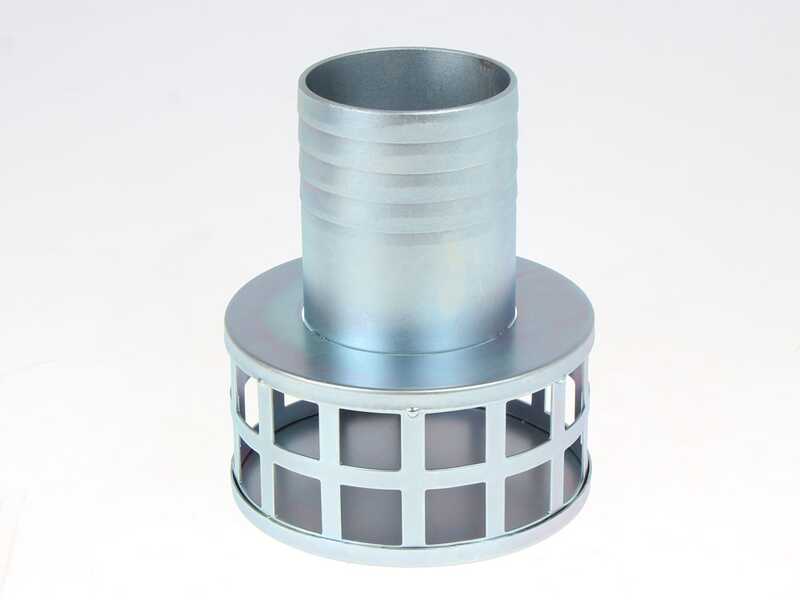

The pump is shipped in its original packaging on pallet, equipped with tools for assembly and maintenance, 2 100 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

2 wheels and 2 handlebars for lifting and transporting the machine

Instructions manual included.
