Rato RT100ZB26-5.2Q Petrol Water Pump - R270 engine with oil sensor

Add a question
ID: K601493

EAN: 6933027223449

MPN: RT100ZB26-5.2Q

7,9/10
After-sales assistance & Spare parts
Rato RT100ZB26-5.2Q Petrol Water Pump - R270 engine with oil sensor
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Motor brand
Producer-manufactured
Motor Model
R270
Cubic capacity
270 cm³
Nominal power
9 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1600 L/min
Fittings diameter
100 mm
Max. head lift
30 m
Max. suction height
8 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
RT100ZB26-5.2QRT1
Power supply:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
rato
Motor Model:
R270
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
5.2 L
Manufacturing country:
China
Pump data
Pump brand:
RATO
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
100 mm
Flow rate:
1600 L/min
Max. head lift:
30 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

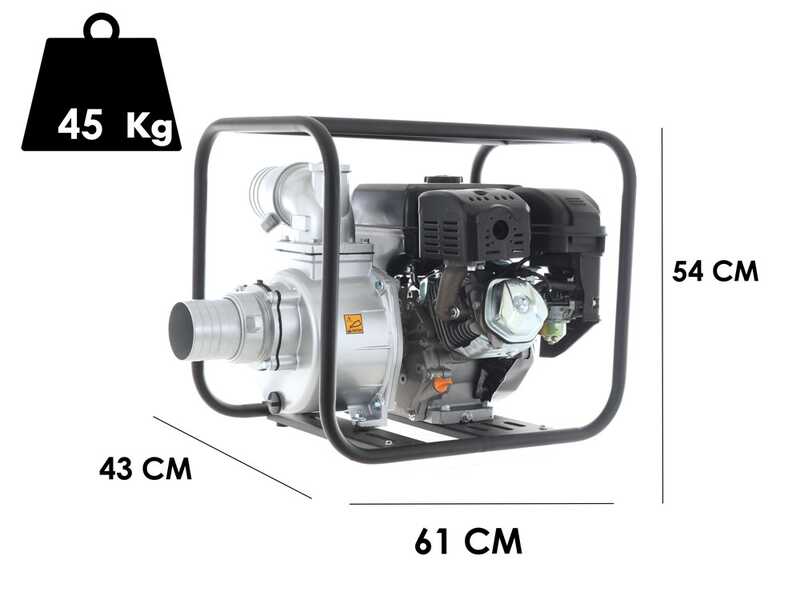

Product dimensions in cm (L x W x H):
61X43X54 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
62X48X55 cm
Gross weight (packaging included) :
49 Kg
Assembly time:
5 minutes
Prompt Delivery
14 items in stock
Free Shipping
Estimated delivery: 26/11/2024 - 28/11/2024
€ 616,51
VAT Included

You're viewing:
Customers also viewed:
Description

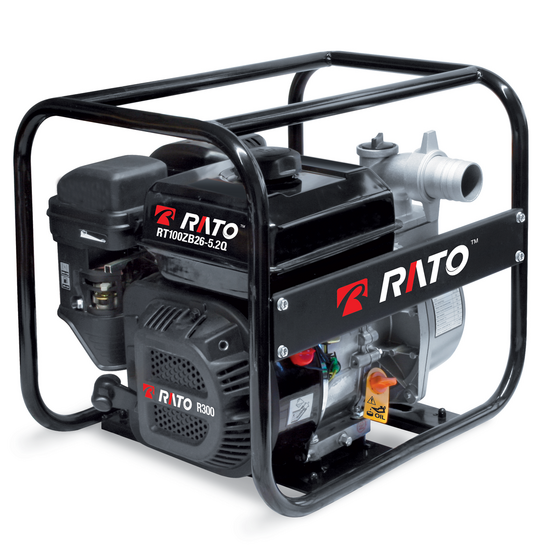

Rato RT100ZB26-5.2Q Water Pump

Rato RT100zb26-5.2Q water pump is a heavy-duty product which allows you to irrigate large fields, empty and fill tanks and swimming pools. Water pumps are highly versatile, thanks to their functionality, guaranteed by an excellent weight/power ratio. The product is equipped with "oil sensor", you can check the oil level simply by unscrewing the oil tank cap.

Useful to distribute water when electricity is not available. The water pump, weighing only 45 g, is easy to transport. Highly versatile and easy to handle, you can use this water pump to irrigate gardens and fields, but also to empty and fill medium/large pools.

It is also equipped with a sturdy wrap-around frame which protects it from unwanted shocks while maintaining a very low weight.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:


Type: 4-stroke, single-cylinder, forced cooling, OHV
Cubic capacity: 270 cc
Power: 9 Hp
Fuel: petrol
Tank: 5.2 L

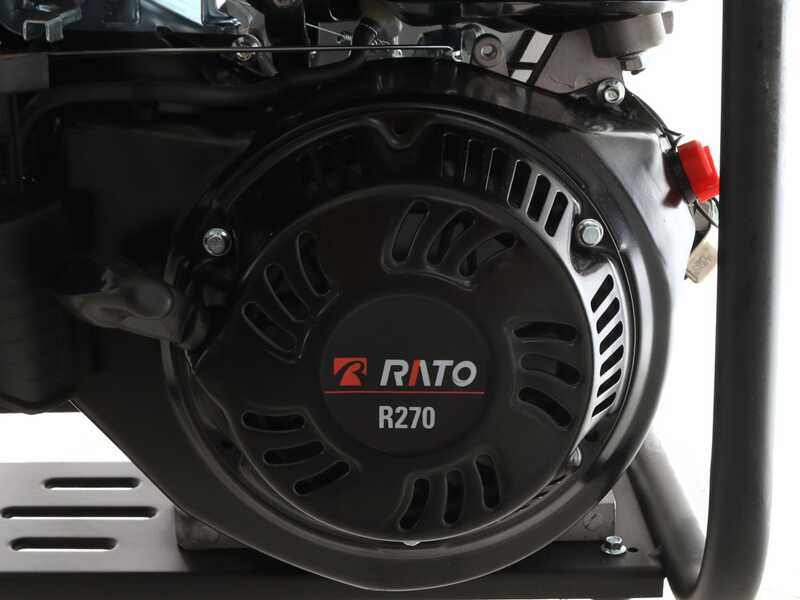

RATO 270 engine is equipped with recoil start system;

Focus on the air filter: (open) and (closed);

Focus on the spark plug;

Focus on the rope and switch start;

Oil sensor;

Nominal Power: 9 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Water Pump Technical Features

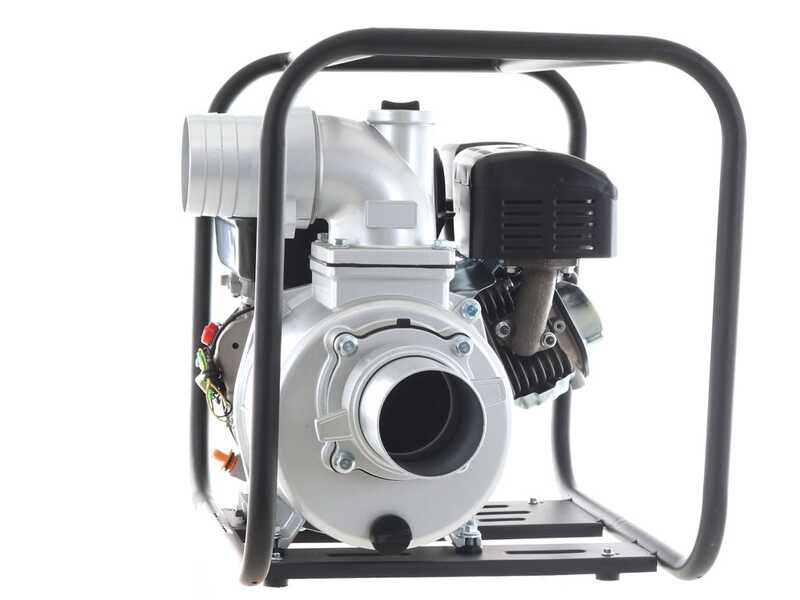

The pump mounted on the RT100ZB26-5.2Q is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 100 mm - 4 inches
Discharge: 100 mm - 4 inches
Maximum suction height: 8 m
Max. flow rate: 1600 L/min
Max. head lift: 30 m

Focus on the 100 mm - 4 inch suction and discharge fittings

Pump-engine fitting

Pump filling cap

Pump emptying cap

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free Items Included

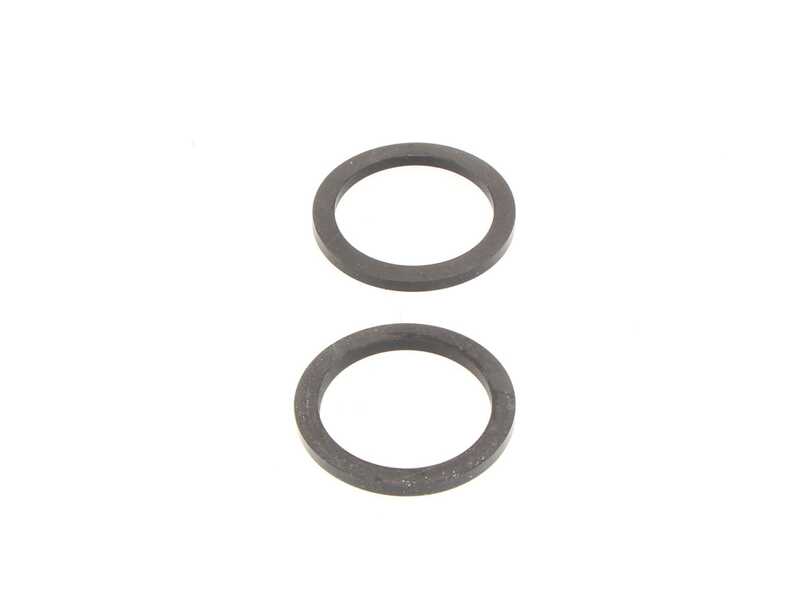

The pump is shipped in its original packaging on pallet, equipped with tools for assembly and maintenance, 2 100 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
