Rato RT50YB100-7.2Q High-Head Lift Water Pump

Add a question
ID: K601500

EAN: 6974880290216

MPN: 6933027212436

7,9/10
After-sales assistance & Spare parts
Rato RT50YB100-7.2Q High-Head Lift Water Pump
Special offer
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Motor brand
Producer-manufactured
Motor Model
R390
Cubic capacity
389 cm³
Nominal power
13 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
500 L/min
Fittings diameter
50 mm
Max. head lift
90 m
High delivery head
Yes
Max. suction height
7 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
RT50YB100-7.2Q
Power supply:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
rato
Motor Model:
R390
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
5.2 L
Manufacturing country:
China
Pump data
Pump brand:
RATO
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Flow rate:
500 L/min
Max. head lift:
90 m
High delivery head:
Yes
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

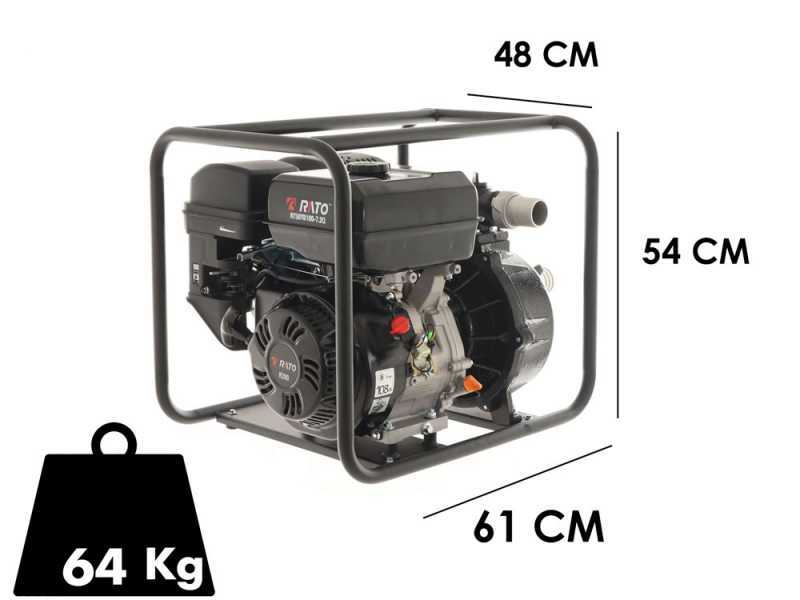

Dimensions and logistics
Product dimensions in cm (L x W x H):
63X51X54 cm
Net weight:
64 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
61X48X54 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 30/04/2025 - 05/05/2025
Lowest price:
€ 798,07
-11 %
€ 709,39
Vat included

You're viewing:
Customers also viewed:
Description

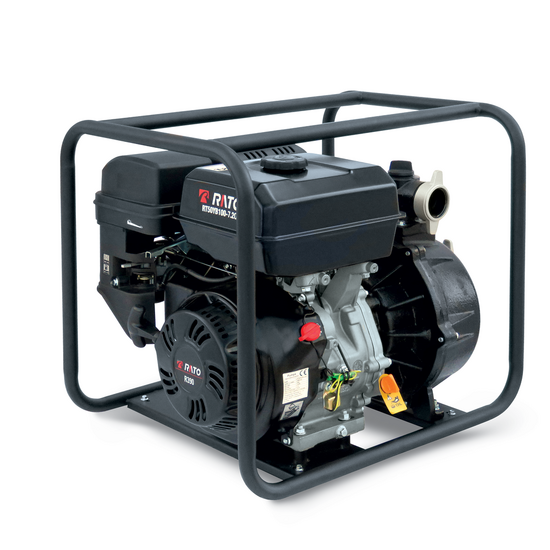

Rato RT50YB100-7.2Q High-Head Lift Water Pump

Rato RT50YB100-7.2Q high-head lift water pump is a heavy-duty product suitable for irrigating large fields, emptying and filling tanks and swimming pools. Water pumps are highly versatile, thanks to their functionality, guaranteed by an excellent weight/power ratio. This product is equipped with "oil sensor", you can check the oil level simply by unscrewing the oil tank cap.

Useful to distribute water when electricity is not available. Highly versatile and easy to handle, you can use this water pump to irrigate gardens and fields, but also to empty and fill medium/large pools.

It is also equipped with a sturdy wrap-around frame which protects it from unwanted shocks while maintaining a very low weight.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:


Type: 4-stroke, single-cylinder, forced cooling, OHV
Cubic capacity: 389 cc
Power: 12 Hp
Fuel: petrol
Tank: 7.2 L

RATO 390 engine is equipped with recoil start system;

Focus on the air filter: (open) and (closed);

Focus on the spark plug;

Focus on the rope start;

Oil sensor;

Nominal Power: 13 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 12 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

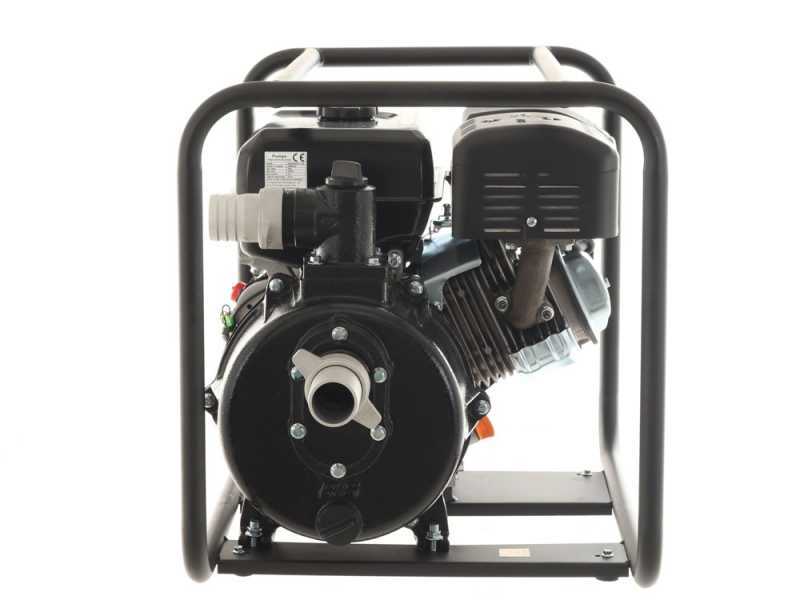

Water Pump Technical Features

The pump mounted on the RT50YB100-7.2Q is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 50 mm - 2 inches
Discharge: 50 mm - 2 inches
Maximum suction height: 7 m
Max. flow rate: 500 L/min
Max. head lift: 90 m

Focus on the 50 mm - 2 inch suction and discharge fittings;

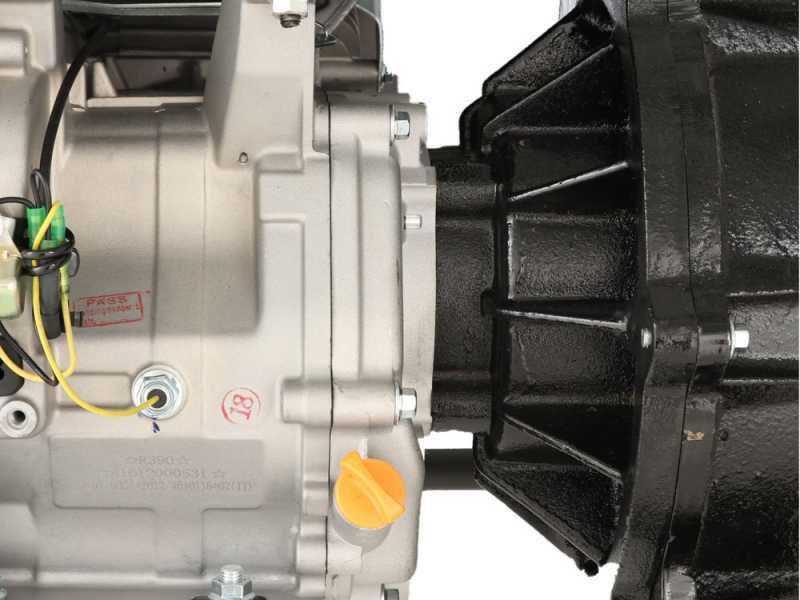

Pump-engine fitting

Pump filling cap

Pump emptying cap

Free items & Standard equipment

Spare Parts and Maintenance Kit for Petrol Engines

Universal spare parts and accessories maintenance kit for the 4-stroke engines for gardening machineries.

WARNING: this kit is not suitable for all types of engines on the market. We do not provide different kits from those you see already published on this site nor do we guarantee the adaptability on machines not purchased on our site.

Included in the packaging are:

  • No. 02 1 L oil bottles: synthetic lubricant formulated for high performance levels. Suitable for all modern petrol engines which require maximum performance from a lubricant.
  • No. 01 original GeoTech spark plug
  • No. 01 professional joint spark plug socket wrench

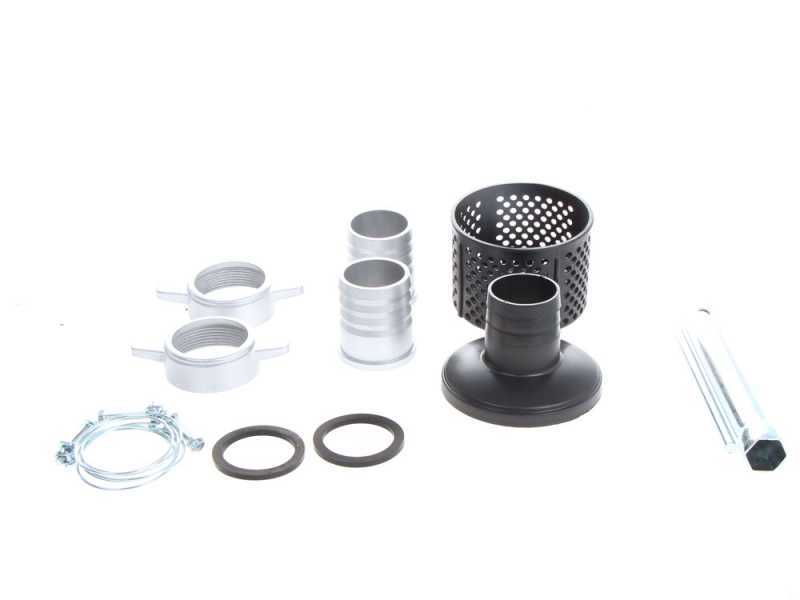

Free Items Included

The pump is shipped in its original packaging on pallet, equipped with tools for assembly and maintenance, 2 100 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
