Rato RT50YB50-3.8Q High-Head Lift Petrol Water Pump

Questions & Answers (1)
ID: K601510

EAN: 6933027213426

MPN: RT50YB50-3.8Q

7,9/10
After-sales assistance & Spare parts

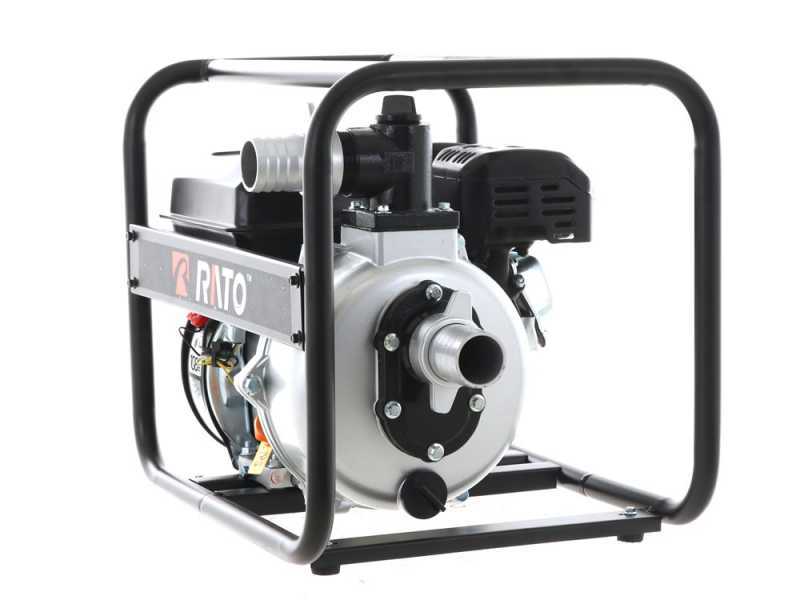

Rato RT50YB50-3.8Q High-Head Lift Petrol Water Pump
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Motor brand
Producer-manufactured
Motor Model
R210
Cubic capacity
212 cm³
Nominal power
7 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
500 L/min
Fittings diameter
50 mm
Max. head lift
50 m
High delivery head
Yes
Max. suction height
7 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
RT50YB50-3.8 Q
Power supply:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
rato
Motor Model:
R210
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.8 L
Manufacturing country:
China
Pump data
Pump brand:
RATO
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Flow rate:
500 L/min
Max. head lift:
50 m
High delivery head:
Yes
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

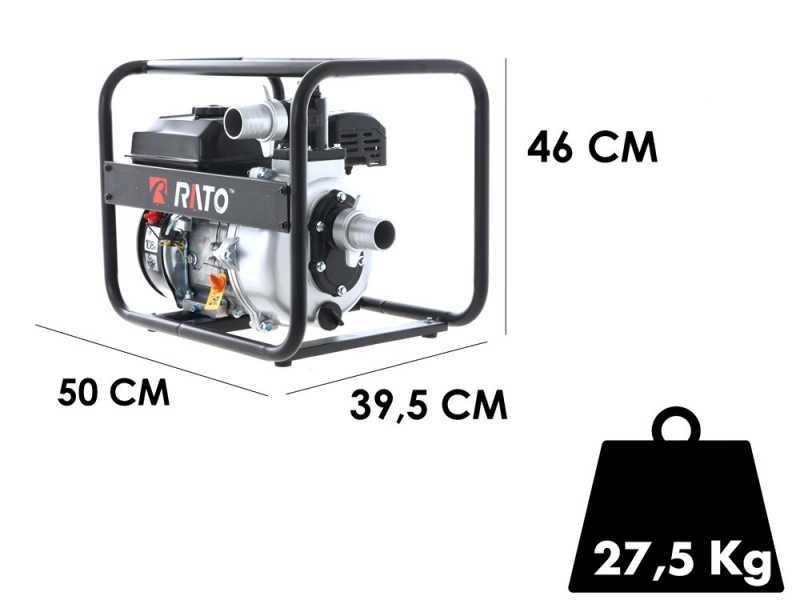

Dimensions and logistics
Product dimensions in cm (L x W x H):
50x39.5x45 cm
Net weight:
27.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
52x42.5x46 cm
Gross weight (packaging included) :
29.3 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 26/11/2024 - 28/11/2024
€ 446,45
VAT Included

You're viewing:
Customers also viewed:
Description

Rato RT50YB100-7.2Q High-Head Lift Water Pump

Rato RT50YB50-3.8Q high-head lift water pump is a heavy-duty product suitable for irrigating large fields, emptying and filling tanks and swimming pools. Water pumps are highly versatile, thanks to their functionality, guaranteed by an excellent weight/power ratio. This product is equipped with "oil sensor", you can check the oil level simply by unscrewing the oil tank cap.

Useful to distribute water when electricity is not available. Highly versatile and easy to handle, you can use this water pump to irrigate gardens and fields, but also to empty and fill medium/large pools.

It is also equipped with a sturdy wrap-around frame which protects it from unwanted shocks while maintaining a very low weight.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

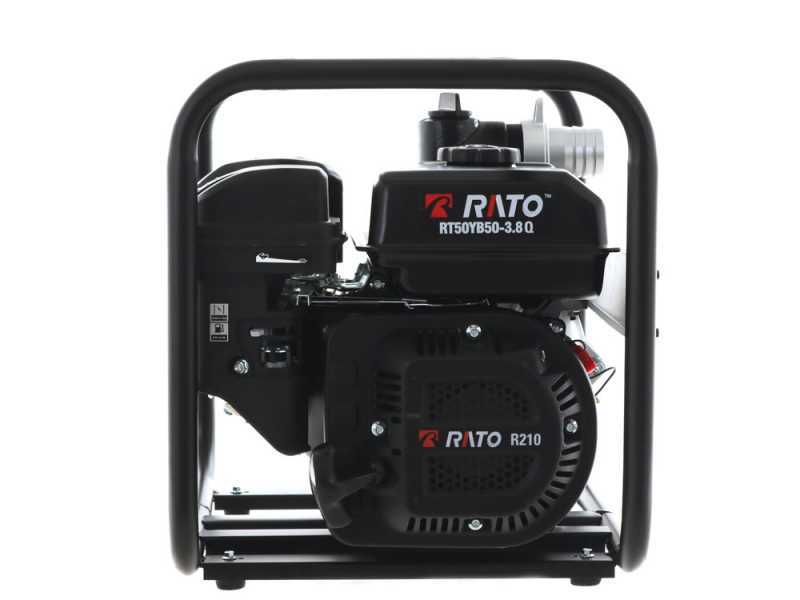

Engine Technical Features

Engine features:


Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 212 cc
Power: 7 Hp
Fuel: petrol
Tank: 3.8 L

RATO 210 engine is equipped with recoil start system;

Focus on the air filter: (open) and (closed);

Focus on the spark plug;

Oil sensor;

Nominal Power: 7 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Water Pump Technical Features

The pump mounted on the RT50YB100-7.2Q is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 50 mm - 2 inches
Discharge: 50 mm - 2 inches
Maximum suction height: 7 m
Max. flow rate: 500 L/min
Max. head lift: 90 m

Focus on the 50 mm - 2 inch suction and discharge fittings;

Pump-engine fitting

Pump filling cap

Pump emptying cap

Free items & Standard equipment

1° GIFT: Spare parts and maintenance kit for petrol engines

Universal spare parts and accessories maintenance kit for 4-stroke engine gardening machines.

WARNING: this kit is not suitable for all types of engines on the market. We do not supply sets other than those already published on this website nor do we guarantee their adaptability to machines not purchased on our website.

Included in the packaging are:

  • No. 01 original GeoTech spark plug

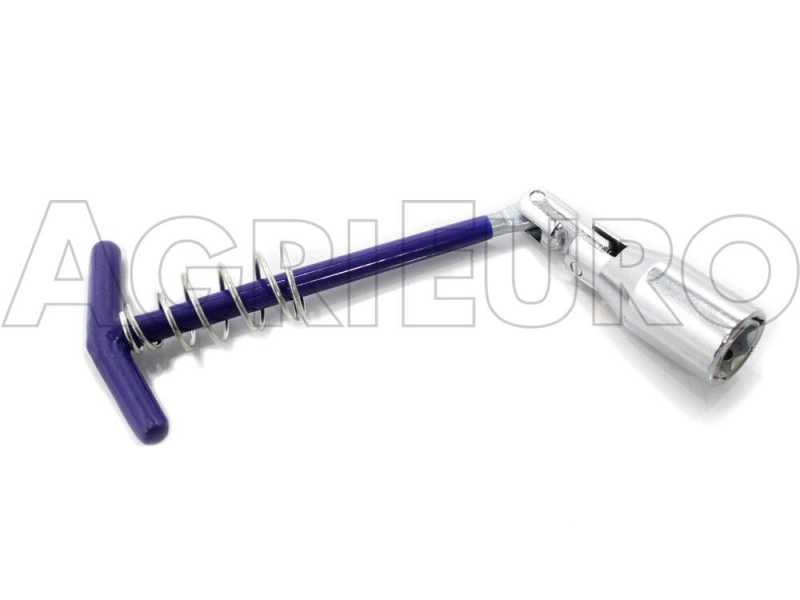

  • No. 01 professional spark plug wrench with jointed socket

2° GIFT: 600 ml oil bottles

COMPLIMENTARY: two sae 15 W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

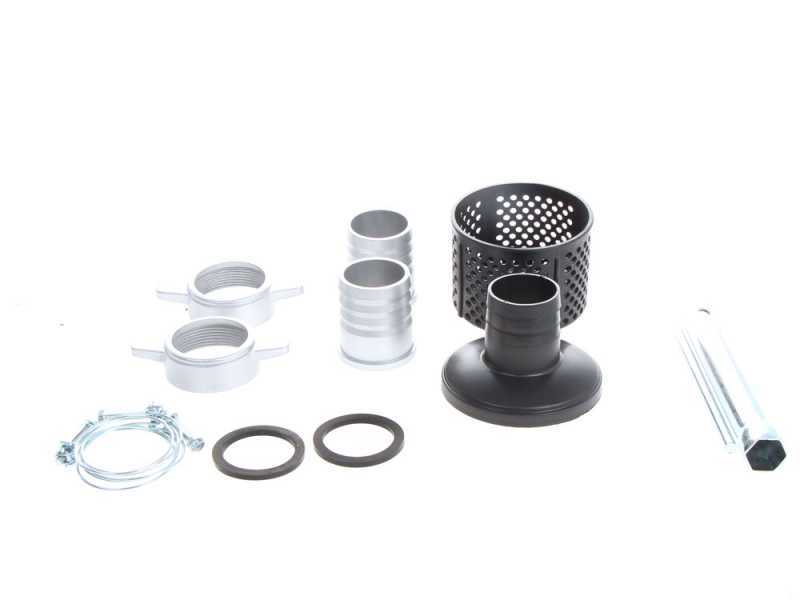

Free Items Included

The pump is shipped in its original packaging on pallet, equipped with tools for assembly and maintenance, 2 50 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instruction manual included.
