RATO RT80NB20 Petrol Water Pump for Dirty Waters

Add a question
ID: K601531

EAN: 6933027224569

MPN: RT80NB20-5.2Q

7,9/10
After-sales assistance & Spare parts
RATO RT80NB20 Petrol Water Pump for Dirty Waters
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
R270
Cubic capacity
270 cm³
Nominal power
9 HP
Power supply
Petrol
For dirty waters
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1100 L/min
Fittings diameter
80 mm
Max. head lift
20 m
High delivery head
Yes
Max. suction height
7 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
RT80NB26-5.2Q
Power supply:
Petrol
Starting mode:
Recoil
For dirty waters:
Yes
Manufacturing country:
China
Motor data
Motor brand:
rato
Motor Model:
R270
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
5.2 L
Manufacturing country:
China
Pump data
Pump brand:
RATO
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
80 mm
Flow rate:
1100 L/min
Max. head lift:
20 m
High delivery head:
Yes
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

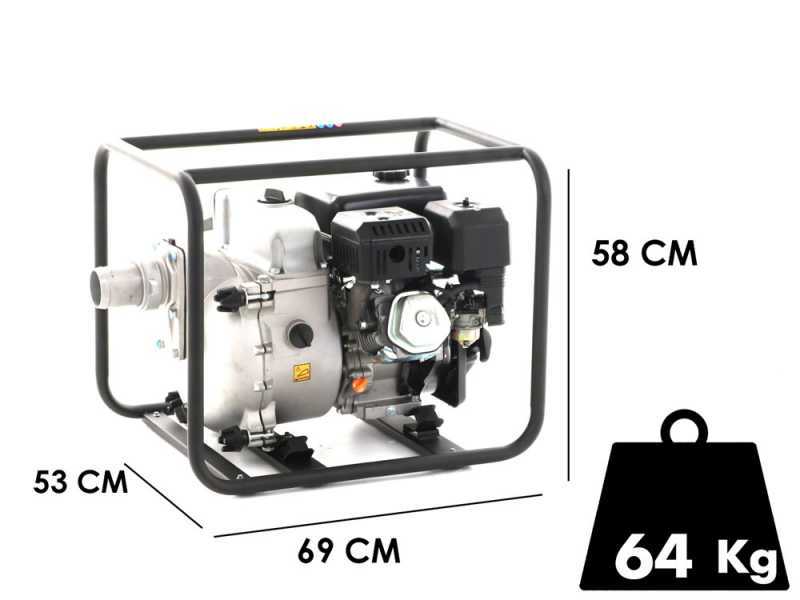

Dimensions and logistics
Product dimensions in cm (L x W x H):
69X53X58 cm
Net weight:
64 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
72X56X58 cm
Gross weight (packaging included) :
70 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 04/03/2025 - 06/03/2025
€ 917,00
Vat included

You're viewing:
Customers also viewed:
Description

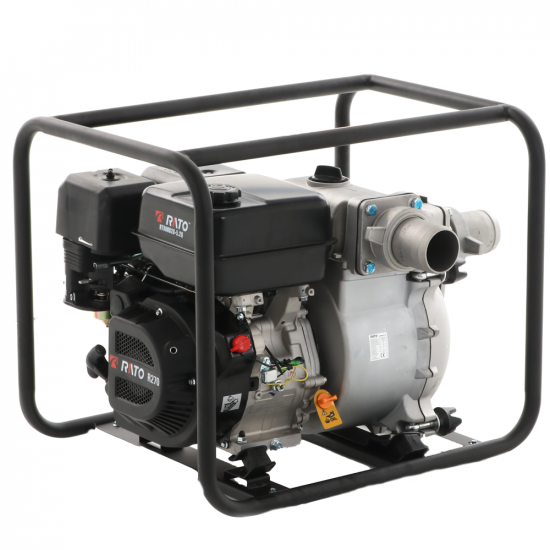

RATO RT80NB20 Petrol Water Pump for Dirty Waters

RATO RT80NB20 petrol water pump for dirty waters is a machine specifically built to drain dirty waters, and it stands among the standard petrol engine pumps for the large dimensions of its pump unit and for its excellent performance.

This pump can handle liquids that may also contain solids, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like. It is also equipped with a specific metal filter, resistant to shocks and wear due to debris that dirty waters contain.

The maximum flow rate is 1100 litres per minute, with a maximum head of 20 meters; those technical specifications make it a pump suitable for large spaces and large professional jobs.

It is also equipped with a sturdy wrap-around frame which protects it from unwanted shocks while maintaining a very low weight.

The pump is self-priming, and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:


Type: 4-stroke, single-cylinder, forced cooling, OHV
Cubic capacity: 270 cc
Power: 9 Hp
Fuel: petrol
Tank: 5.2 L

RATO 270 engine is equipped with recoil start system;

Focus on the air filter: (open) and (closed);

Focus on the spark plug;

Oil sensor;

Nominal Power: 9 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 7 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

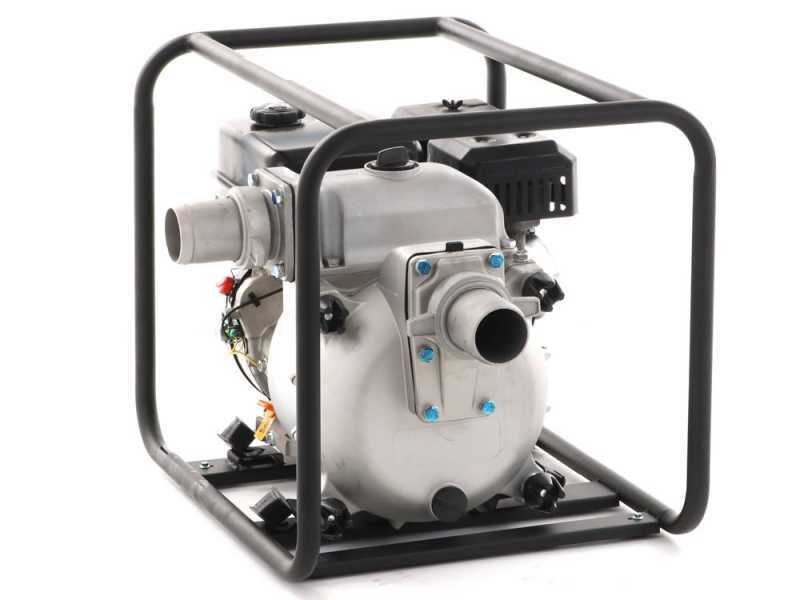

Pump Technical Features

The pump mounted on the RT80NB20 is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 80 mm - 3 inches
Discharge: 80 mm - 3 inches
Maximum suction height: 7 m
Max. flow rate: 1100 L/min
Max. head lift: 20 m

Focus on the 80 mm - 3 inch suction and discharge fittings;

Pump-engine fitting

Pump filling cap

Pump emptying cap

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free Items Included

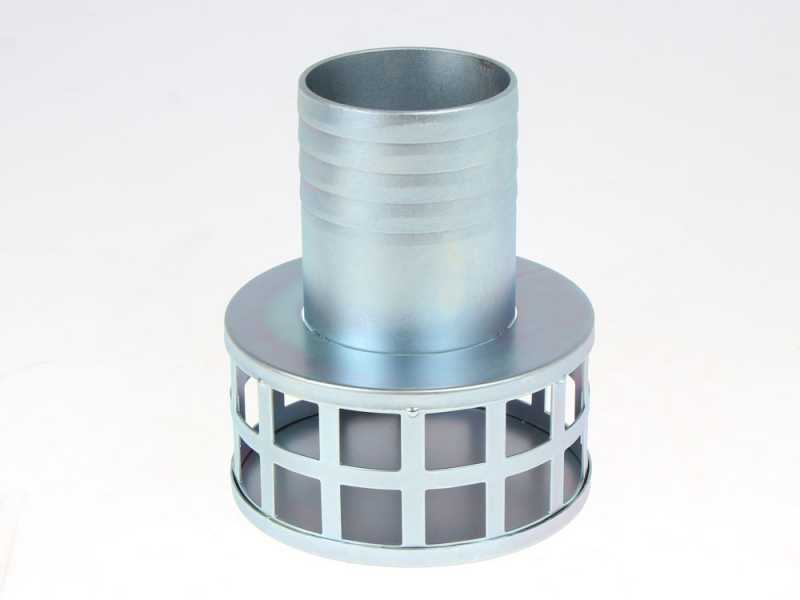

The pump is shipped in its original packaging on pallet, equipped with tools for assembly and maintenance, 2 80 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
