RATO RT80W26 3.8 Water Pump for Dirty Water - R210 Engine

Questions & Answers (3)
ID: K601487

EAN: 6933027225689

MPN: RT80WB26-3.8Q

7,9/10
After-sales assistance & Spare parts
RATO RT80W26 3.8 Water Pump for Dirty Water - R210 Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Replacement oval tapered foam air filter for the engineReplacement oval tapered foam air filter for the engine
Motor brand
Producer-manufactured
Motor Model
R210
Cubic capacity
212 cm³
Nominal power
7 HP
Power supply
Petrol
For dirty waters
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1100 L/min
Fittings diameter
80 mm
Max. head lift
26 m
Max. suction height
7 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
RT80WB26 3.8
Power supply:
Petrol
Starting mode:
Recoil
For dirty waters:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Rato
Motor Model:
R210
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Manufacturing country:
China
Pump data
Pump brand:
RATO
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
80 mm
Flow rate:
1100 L/min
Max. head lift:
26 m
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

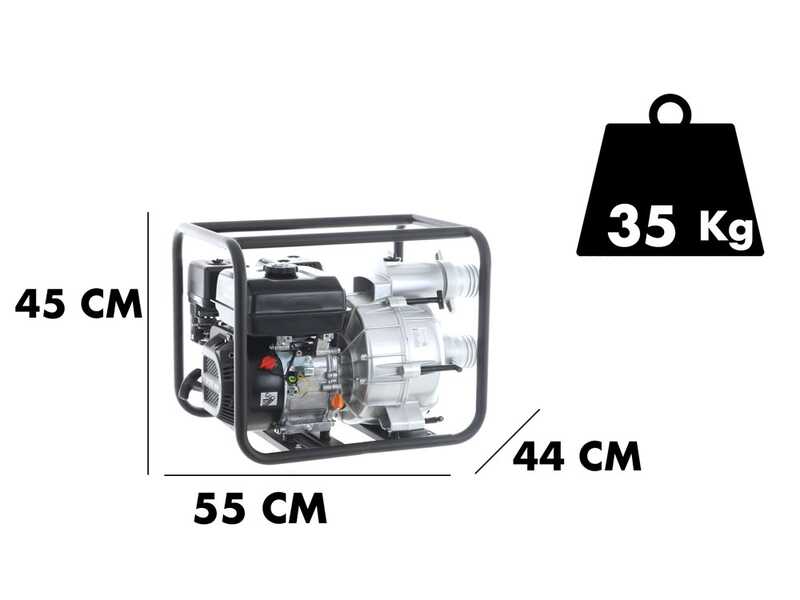

Product dimensions in cm (L x W x H):
55X43X45 cm
Net weight:
35 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
57X48X47 cm
Gross weight (packaging included) :
37.5 Kg
Assembly time:
5 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 23/01/2025 - 27/01/2025
€ 489,26
Vat included

You're viewing:
Customers also viewed:
Description

RATO RT80W26 3.8 Water Pump - R210 Engine

RATO RT80W26 3.8 water pump for dirty water is a machine specifically built to drain dirty water, i.e. water with solid and muddy debris on the bottom. This product, unlike regular petrol pumps on the market, differs in the ratio between its low weight, which makes it easy to transport, and its maximum capacity of 1100 L per minute.

This pump can handle liquids that may also contain solids, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like. It is also equipped with a specific metal filter, resistant to shocks and wear due to debris that dirty waters contain.

Its high flow rate of 1100 L per minute, due to its 80 mm fittings and the powerful 7 Hp engine, allows draining large quantities of dirty water very quickly.

It is also equipped with a sturdy double frame, which guarantees considerable impact resistance and at the same time high handling.

The pump is self-priming, and you can start it by simply topping up the water through the dedicated cap in the pump body.

Items included: 2 80 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:

Model: R210
Type: 4-stroke, single-cylinder, forced cooling, OHV
Cubic capacity: 212 cc
Power: 7 Hp
Fuel: petrol
Tank: 3.6 L

The engine features a recoil start system and a metal tank with fuel shut-off valve.

Air filter for cooling;

Nominal Power: 7 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

Water Pump Technical Features

The pump mounted on the water pump is made of cast aluminium alloy, which makes it lightweight and robust at the same time. Its exceptional volume allows it to also operate with liquids which may contain solid parts, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like.. It is also equipped with a special metal filter, resistant to shocks and wear due to debris that dirty waters contain.

Pump features:

Suction: 80 mm - 3 inches
Discharge: 80 mm - 3 inches
Maximum suction height: 7 m
Max flow rate: 1100 L/min
Max. head lift: 26 m

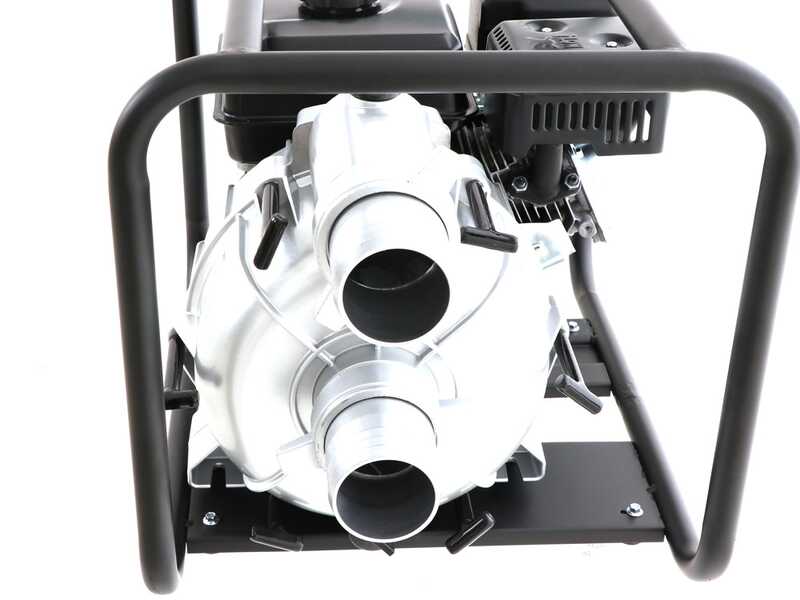

Focus on the suction and discharge fittings

Focus on the pump-engine fitting

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free Items Included

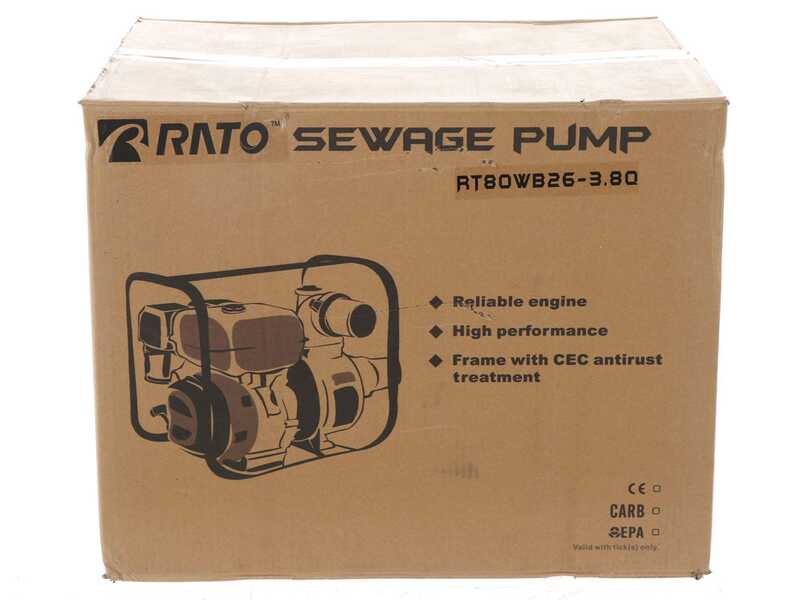

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 80 mm fittings , metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
