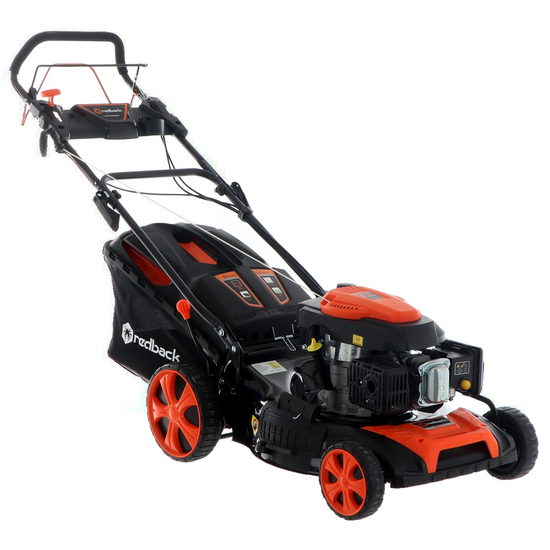

Redback S511 VHY-K Self-propelled Lawn Mower - 4 in 1 - 50 cm Cutting Width

The Redback S511 VHY-K is a petrol lawn mower that meets the needs even of the most demanding hobbyists. It is equipped with 4 cutting systems:

• Grass collection system: 60 L grass collector
• Mulching cutting system
• Side discharge
• Rear discharge

The lawn mower is powered by the new 196 cc TX OHV engine which can develop a power of up to 6.5 Hp. Really powerful and reliable engine.

Possibility to collect the grass in the reinforced grass collector or select the mulching or rear discharge cutting system in order to drop the grass clippings directly from the back or the side of the lawn mower.

The grass cutting system can be quickly changed without the need of any extra assembly tool.

Large-sized 60 L grass collector with 254 mm rear wheels mounted on ball bearings.

This lawn mower is equipped with a centralised cutting height adjustment system in 7 different positions from 25 mm to 75 mm.

New model of self-propelled lawn mower, ideal for green maintenance! Compact, lightweight, and sturdy cutting tool. Manoeuvrability and versatility are the strongest points of this cutting tool and you can switch from a cutting system to another without needing any tool.

The lawn mower is provided with a steel handlebar that can be folded and adjusted according to the Operator’s height for minimising the space required for storage and make it easy to transport.

The 52 cm steel cutting deck and the high rear wheels make the work easier, faster and more efficient. The rear-wheel traction makes the mowing operation even more efficient on every lawn.

The TX is an air cooled 4-stroke petrol engine with aluminium cylinder, 196 cc and 6.5 Hp nominal power.

It is provided with a grass collector, which ensures a good working autonomy thanks to the low power consumption.

The engine is easy to start thanks to its primer ignition and the handy recoil starter.

Technical features:

WARNING:
The engine is provided without oil. Check the oil level before the first starting.

Real blade cutting width: 50 cm

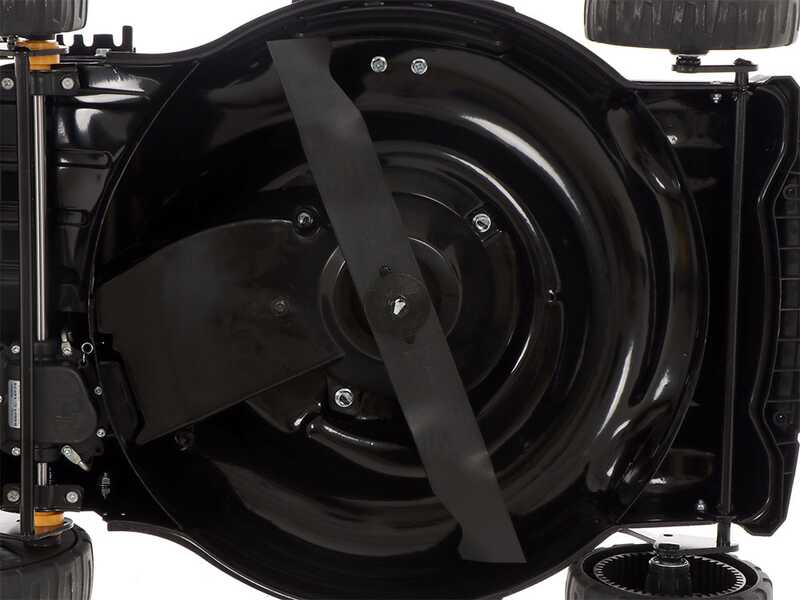

Universal hardened steel blade, which is suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

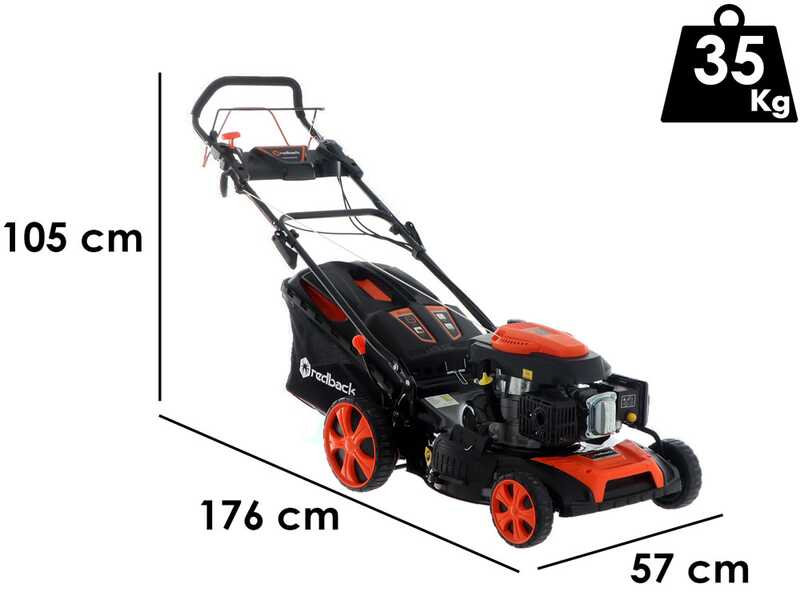

The steel housing gives to this machine a high sturdiness, combined with an excellent lightness. Overall weight: 35 kg.

Cutting deck washing joint

Rear-wheel drive (Self-propelled).

Equipped with a sturdy gear transmission which allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency.

The high-wheel system guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rubber wheels for a perfect grip to the ground.

Rear wheel diameter: 254 mm
Front wheels diameter: 177 mm

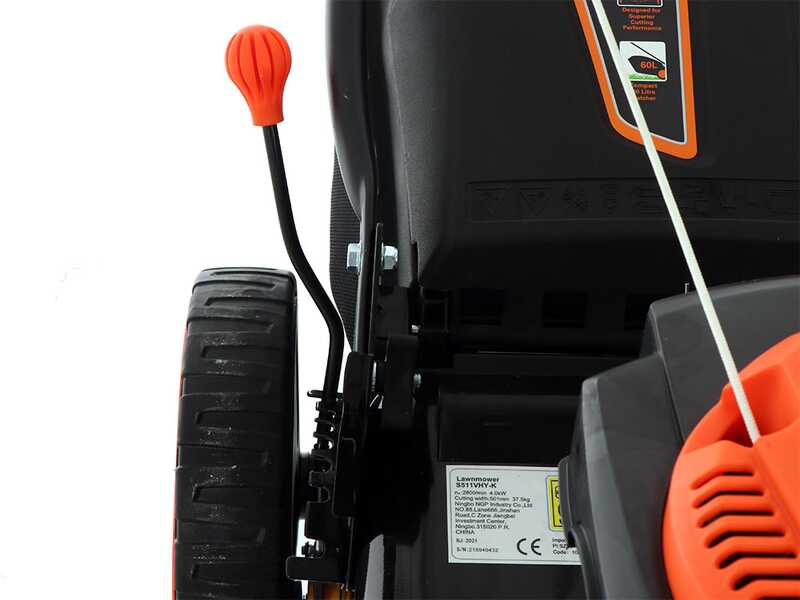

This lawn mower is equipped with 7 cutting height adjustments, from 25 mm to 75 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

GRASS COLLECTION SYSTEM
It is equipped with a large 60 L hybrid grass collector easy to remove and empty.

It is made of reinforced double layer plastic in its upper part, which makes it sturdy and resistant. which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Convenient handle on the upper side of the grass collector in order to facilitate the collector removal.

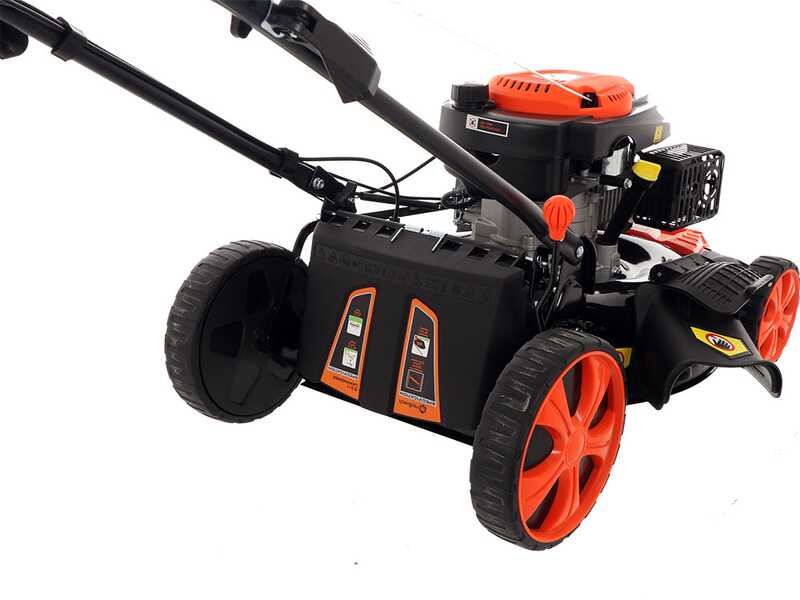

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

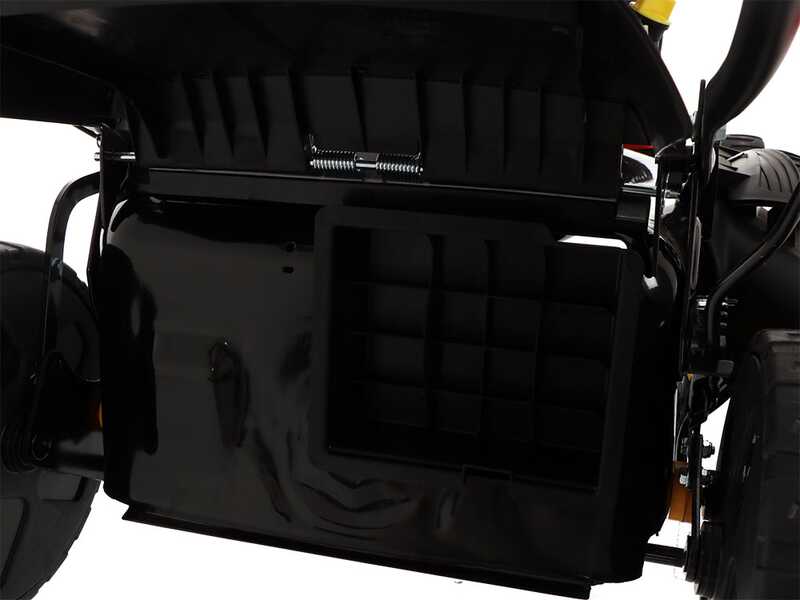

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

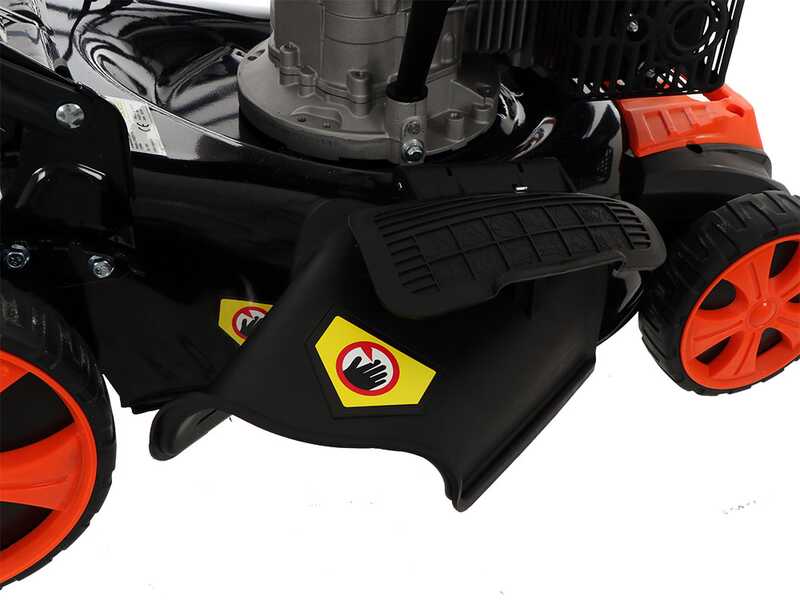

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

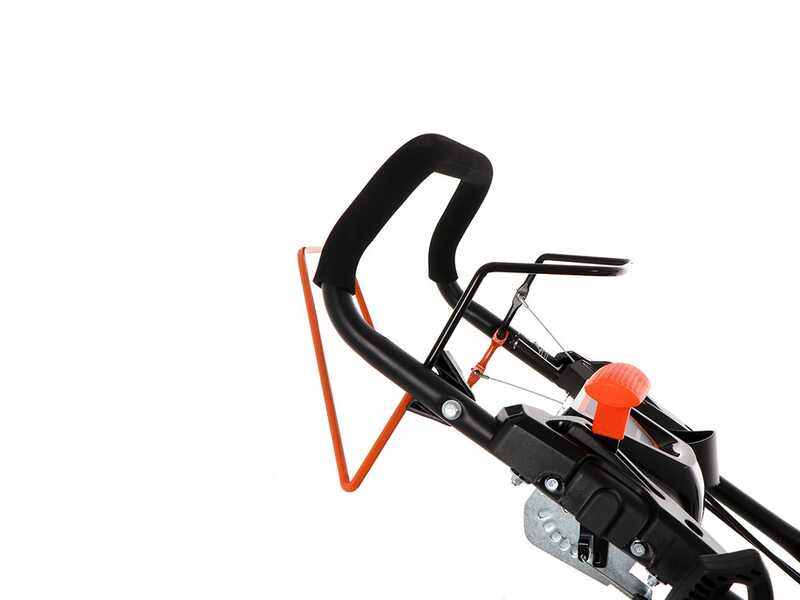

Easy and intuitive controls placed on the handlebar.

Rubber-coated handle for optimal working comfort.

Blade engagement lever.

Self-propelled engagement lever.

Height adjustable handlebar.
