RF230 Power Harrow - 230 cm Working Width - 22 Blades Medium Series - Cage Roller

Add a question
ID: 104624

EAN: 9999237543590

9,0/10
After-sales assistance & Spare parts
RF230 Power Harrow - 230 cm Working Width - 22 Blades Medium Series - Cage Roller
Sturdiness/Series
Medium
Tractor power
60 to 70 HP
Working width
230 cm
Cardan shaft
With safety bolt
Cast iron gearbox
Yes
Manufacturing country
Italy
Product Features
Model:
RH230
Tractor power:
60 to 70 HP
Sturdiness/Series:
Medium
Max. power:
70 HP
Lower power absorption:
Yes
Manufacturing country:
Italy
Transmission data
Cast iron gearbox:
Yes
Cutting data
Working width:
230 cm
Blade type:
Rotor with blades
No. of rotors:
11
Rotor blades:
2
N° of chopper blades:
22
Equipment
Three-point-hitch:
2° category
Rear roller:
Cage roller
Stone guard:
Yes
Adjustable refinement bar:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan shaft:
With safety bolt
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
230x110x105 cm
Net weight:
525 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
230x110x110 cm
Gross weight (packaging included) :
545 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 6.199,08
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

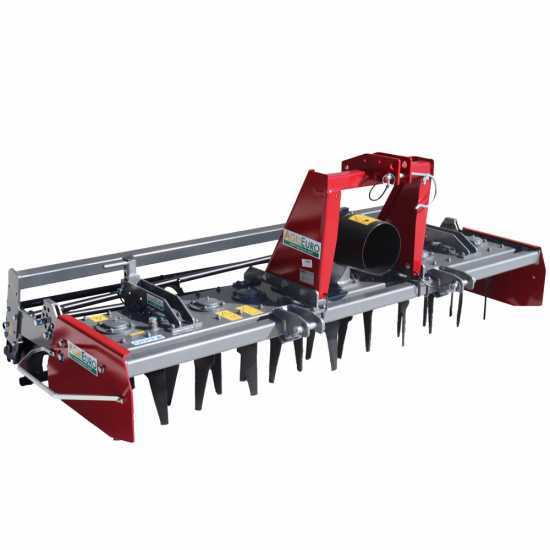

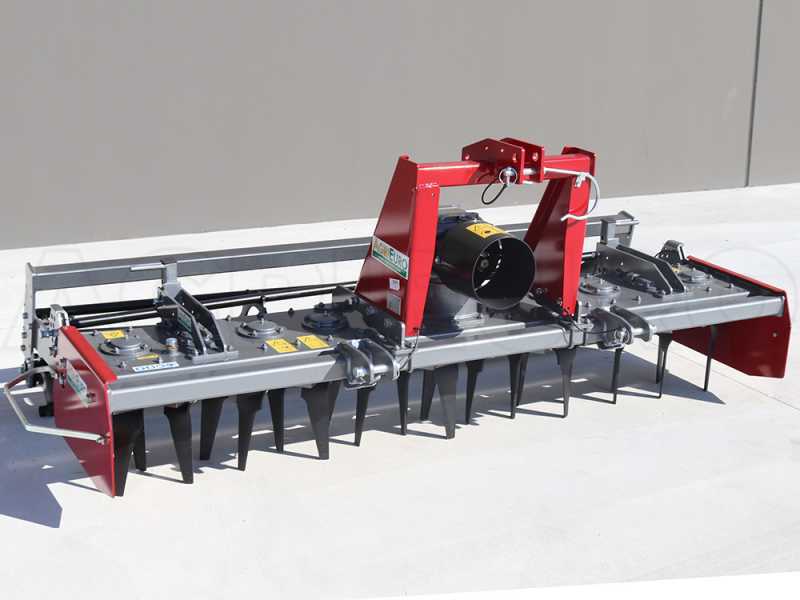

RH230 Rolling Harrow

The RH230 rolling harrow is a long-lasting and high-performing machine for soil refinement.

Medium-series agricultural tool, adaptable to most tractors on the market and versatile on multiple soil types.

Of innovative design, its gears have a smaller diameter compared to competitors, allowing not only to have a lower overall power consumption, but also to use many blades in the same space.

22 knives for a 230 cm work area which, combined with the special adjustable refining bar , allow a better clod crumbling and make RH230 an excellent tool for seedbed preparation.

Its blades, with a rotational and vertical movement in relation to the ground, make the soil porous and extremely permeable.

Also, thanks again to the blades, this tool is able to uprooting the turf rather than cutting it, preventing its regrowth for a long period of time.



Technical Features

Technical features of the harrow:

  • Total width: 270 cm (with bars mounted)
  • Operating width: 230 cm
  • Weight: 525 kg
  • Required power 60 - 70 HP
  • Number of blades per rotors: 2
  • Number of blades: 22
  • Rotor Number: 11

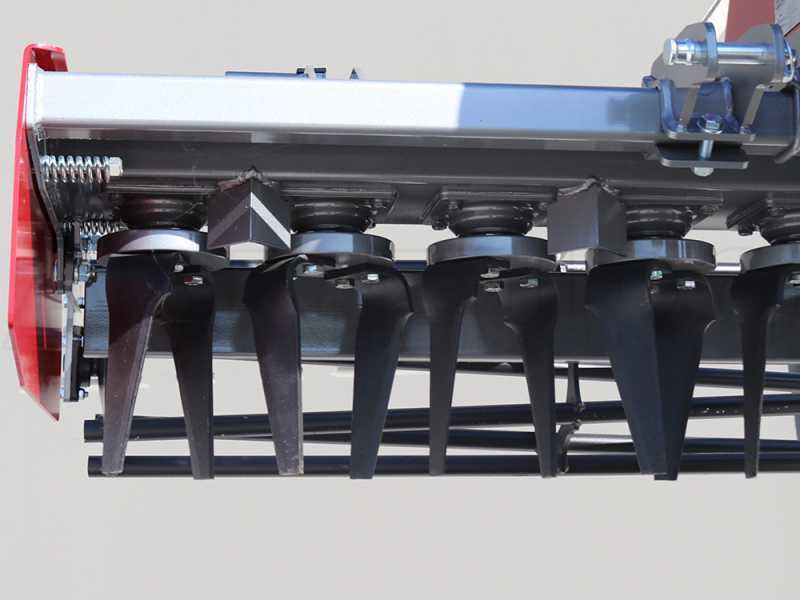

Blades and Transmission

Steel blades:

  • Nr. 11 discs
  • with 2 blades each (22 blades in total)

Focus on the single grease nipple for each rotor, each one with its own bearing.

Casing of the transmission with cast iron gearbox.

Gear transmission in oil bath.

Side Roller Adjustment, Refining Bar and 3-Point Hitch

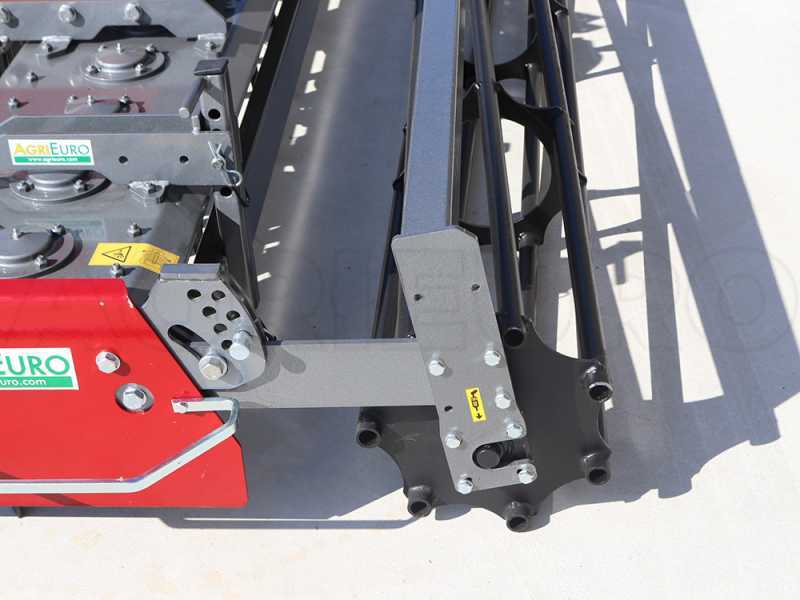

The harrow is equipped with manual roller adjustment.

Focus on the quick adjustment pins.

The export roller slightly compacts the soil freshly tilled by the blades, making it airy on several levels and avoiding the "brick" effect

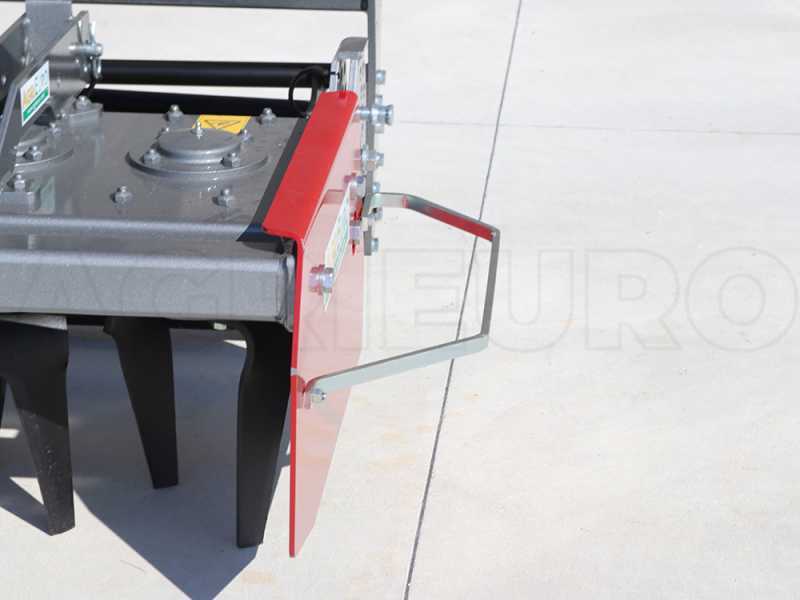

The shock-absorbing side carters allow to uniformly work the soil, preventing the clods from leaving the work surface but adapting to the unevenness of the soil without stopping.

Universal joint support for storage periods.

3-Point Hitch

Adjustable refining bar

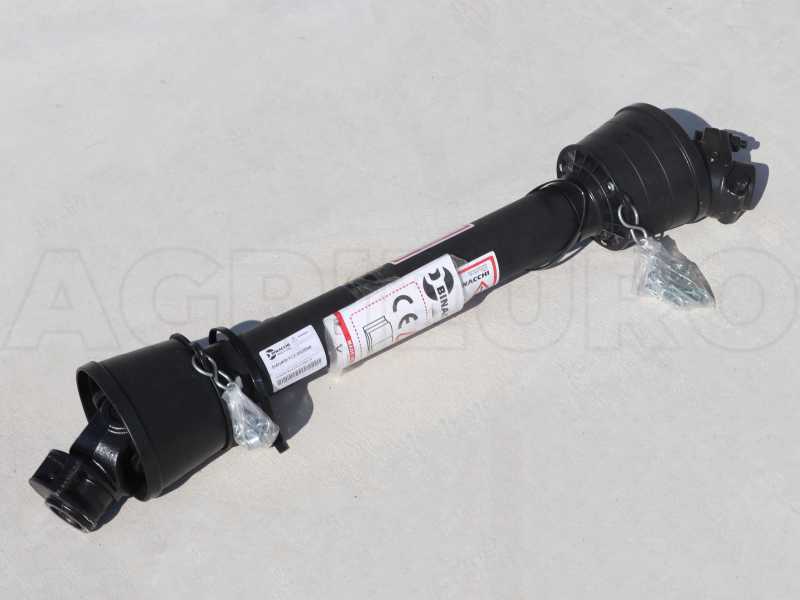

Universal Joint

Universal joint for tractor connection included.

Equipped with safety bolt in case of harrow overwork.

Free items & Standard equipment

Free Items Included

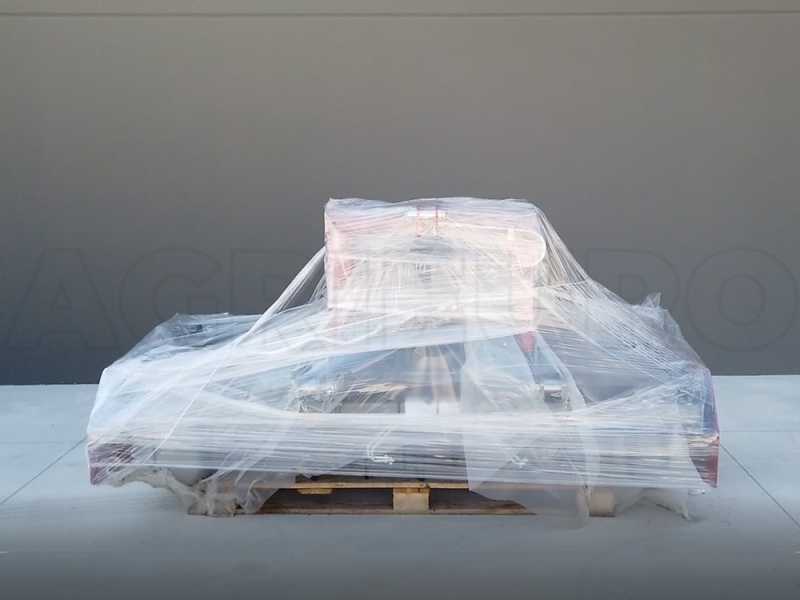

The harrow is shipped on pallet. You will just need to assemble three-point hitch and few additional parts.

Cardan shaft included in the packaging.

Instruction and Assembly Manual
