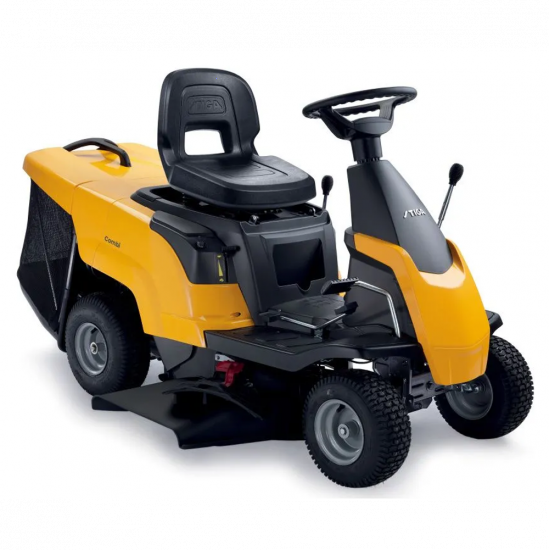

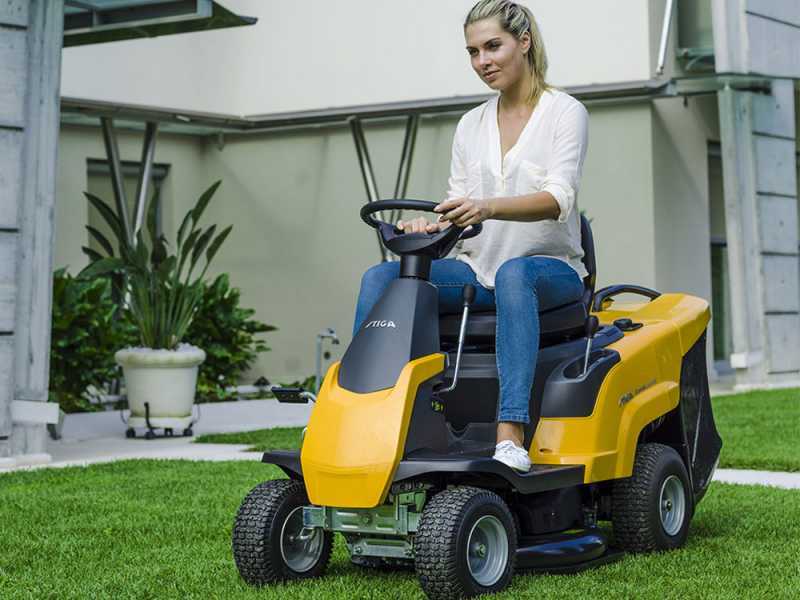

Rider lawn tractor Stiga COMBI 166 - Engine 224 cc - Cutting width 66 cm

The Stiga Rider Combi 166 will be ideal for tight gardens, with difficult angles and tight curves. Thanks to its compactness and small size, it can cross confined spaces and easily circumvent any obstacle.

It has a 224 cc single-cylinder engine, which at maximum rpm develops a power of 3.6 kW.

The 66 cm cutting width and the comfortable 150 L collection basket make it suitable for covering surfaces up to a maximum of 1500 m2.

Lawn tractor capable of making 3 different types of cut:

1. Harvesting in the 150L basket
2. Mulching cut
3. Side discharge

Adjustable cutting height in 6 different heights, from 30 to 76 mm, to configure the mower according to the conditions of the turf.

The COMBI 166 rider also has a reverse cut, which, combined with the modern hydrostatic pedal gearbox, will provide an easy and accessible driving experience even for the less experienced user.

Ideal for the user looking for means for hobby-level jobs.

1- GRASS COLLECTION SYSTEM (on standard equipment)

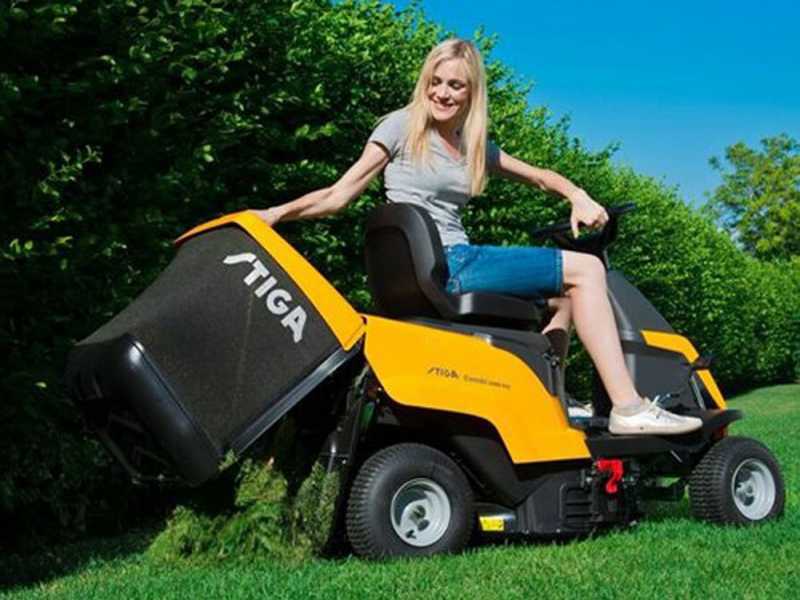

With the basket mounted, the Stiga COMBI 166 rider will collect the grass directly into the basket. This allows leaving the lawn clean and choosing where emptying the collector, Just manually remove the grass collector for emptying it. The grass collector is easy removable: simply lift it upwards to remove it from its housing.

2- MULCHING (for free): this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal. Moreover, grass clippings will break down into nutrients and water for the lawn, thus ensuring a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

Converting the machine from a cutting system to the other one is very easy. Simply detach the bag and attach the mulching cap.

SIDE DISCHARGE (standard): this system is suitable for large surfaces and for users who do not need to collect the shredded grass.

Conversion to side cutting is very easy, Simply remove the grass collector, remove the mulching plug and apply the supplied side deflector in the dedicated opening.

The ST series 250 ES is a high-performing engine, suitable for demanding operations that require high reliability and long durability over time.

Features:

• Engine type: 4-Stroke, single cylinder
• Cylinder type: Aluminium
• Cylinder capacity: 224 cm³
• Power supply: Petrol
• Max. rpm: 2450 rpm
• Activation: Electric

- The engine is located under the driver’s seat, fully enclosed and protected inside the mower.

To access the engine remove the protection under the driver’s seat

The standard supplied battery and also placed under the Operator's seat.

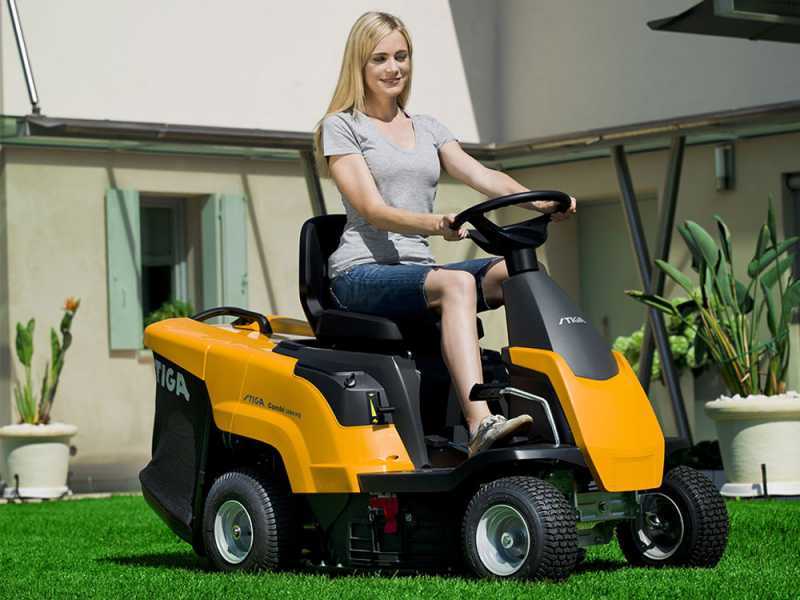

- Detail of the hydrostatic transmission

Nominal Power: 7.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 2600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver.
** Engine photo is illustrative only

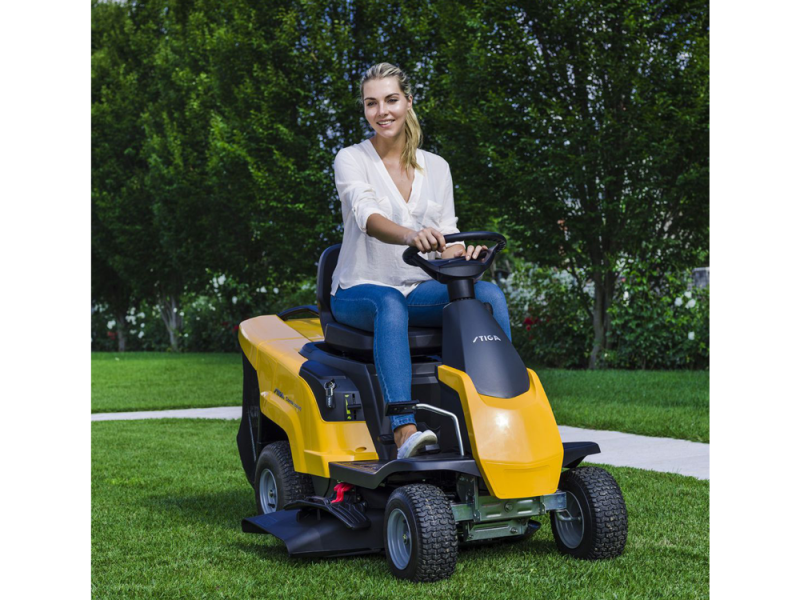

A modern and highly functional gearbox, increasingly in demand for its great working comfort.

Everything is controlled on the hydrostatic platform, where the pedals that allow advancement, reversing and stopping are present.

Easy operation: just push the pedal with the tip of your foot to move forward. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

- The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to standard manual transmission gears. The latter obliges the Operator to stop, change gear, release the clutch and start operating again at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

- Detail of the foot pedal

- Detail of the reverse pedal

- Detail of the stop pedal

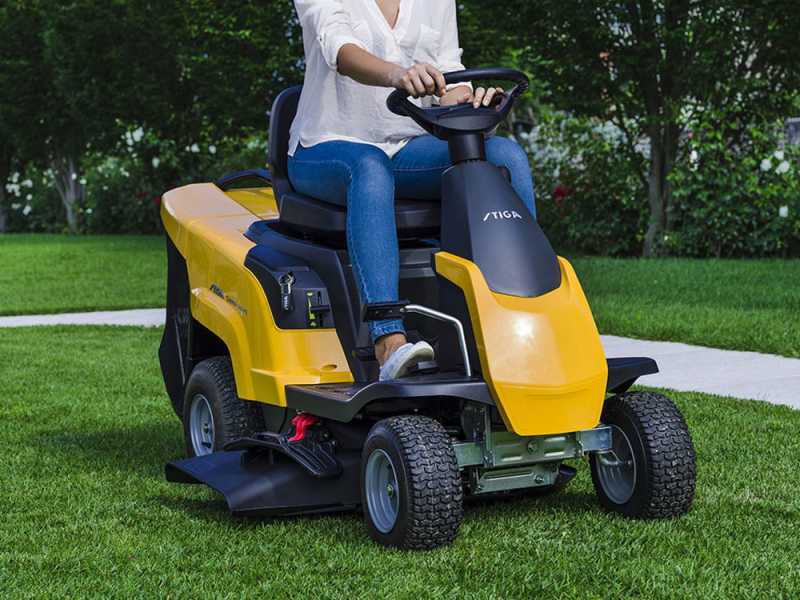

The Stiga COMBI 166 lawn tractor is fitted with a single-blade cutting deck with a width of 66 cm

The standard mulching blade ensures a clean and precise cut of the grass.

- The plate of the mower is tilting: it adapts easily to the undulations of the ground (as long as it is not excessively rough), and ensures a smooth and uniform cutting pattern.

The cutting height can be adjusted in 6 different positions, from 40 mm to 76 mm. The heights are adjustable through an easily accessible side lever.

The blades are engaged manually, through a special lever.

- Detail of the lever that adjusts the cutting heights

- Detail of mulching blade

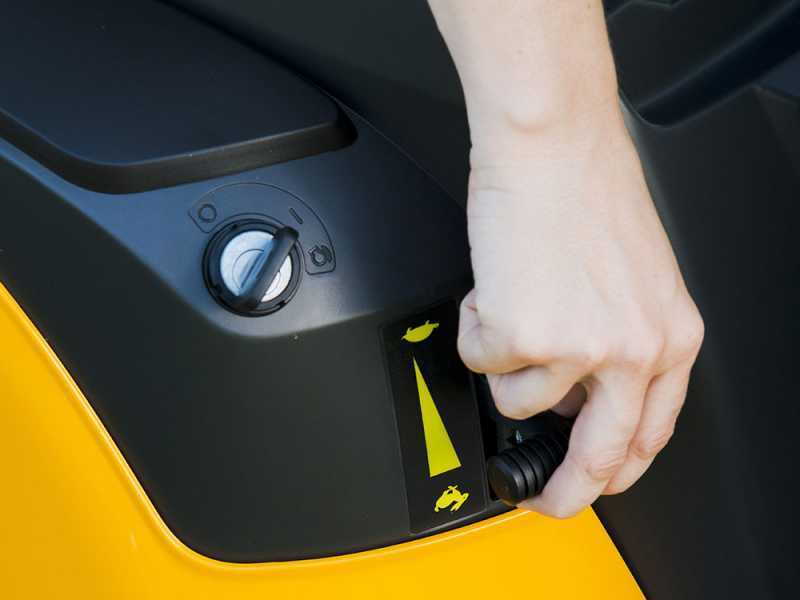

The controls and adjustments of the Stiga COMBI 166 lawn tractor are easy and intuitive

• Speed variator
• Parking brake
• Ignition lock with key
• Braking pedal
• Cutting height adjustment lever
• Engaging forward or reverse gear
• Manual blade coupling

STIGA Combi 166 riding-on mower additional features:

• Adjustable Comfort seat for maximum comfort during use
• Ergonomic steering wheel
• Rear pneumatic wheels, size 15 x 6.00-6
• Front pneumatic wheels: : wheel dimensions are 13 x 5.00-6
• Convenient and immediate tank access
• Accessories holder
• Flushing connection: for cleaning the cutting deck
• Transmission release system: allows the machine to be moved with the engine switched off
