Rover Colombo 12 - Carton and plate filter with bronze pump

Questions & Answers (32)
ID: 0151

EAN: 8032706070560

MPN: 6010015

8,9/10
After-sales assistance & Spare parts
Rover Colombo 12 - Carton and plate filter with bronze pump
+3000 sold
FREE
Colombo FiltersColombo Filters
Body material
Enamelled steel
Type of filter sheets
20x20 cm
No. of filter sheets
12
Portable
Motor type
Induction
Nominal power
0.5 HP
Pump material
Bronze
Fittings diameter
20 mm
Max. suction height
4 m
Manufacturing country
Italy
Product Features
Model:
Colombo 12
Type:
a piastre e cartoni
Body material:
Enamelled steel
Portable:
Operating mode:
Electric 230 V
Type of filter sheets:
20x20 cm
No. of filter sheets :
12
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Rover
Pump material:
Bronze
Fittings diameter:
20 mm
Flow rate:
240-1680 L/h
Max. suction height:
4 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Drain liquid recovery tray:
Yes
Free gifts/extra features
Filter sheets for free:
24
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(L x W x H) 430 x 280 x 270 mm
Net weight:
16 Kg
Packaging:
Original packaging
Assembly time:
Assembled
Prompt Delivery
80 items in stock
Free Shipping
Estimated delivery: 29/11/2024 - 03/12/2024
€ 284,37
VAT Included

You're viewing:
Customers also viewed:
Description

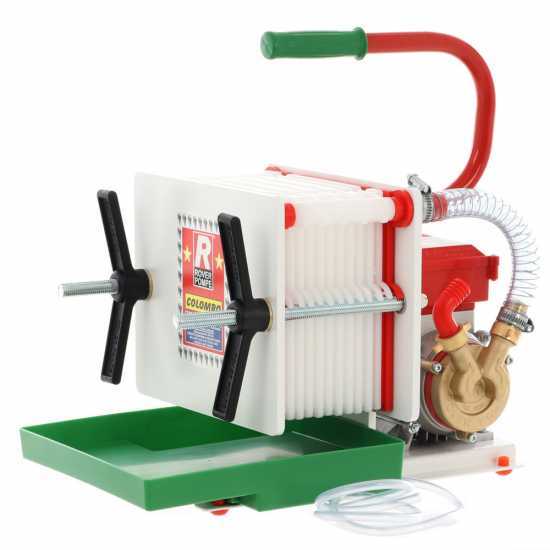

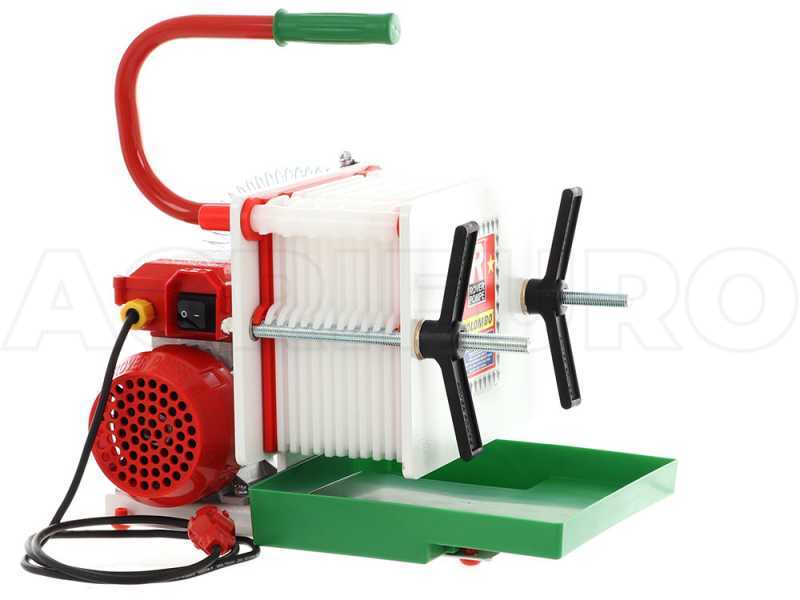

Rover Colombo 12 Plate and Sheet Filter for Wine

The greatest innovation of this filtering pump is the reversed impeller.

This heavy-duty filter model features 13 top-quality filter plates made of PVC.

The assembly is fast and easy, the replacement of the filter sheets is immediate; most importantly, liquid leakage that can occur during filtering operations has been drastically reduced.

When detached from the filter, the filtering pump can also be used as a common transfer pump.

It can house up to 12 filter sheets. It is also possible to mount various types of filter sheets to obtain different types of productions.

The pump can also operate with fewer than the 12 filter sheets for which it is designed. For example, 10, 8 or 6 can be mounted: simply slide the chosen plates off. The filtering quality remains the same, only the amount filtered per hour will decrease.

For example, if only 7 plates (i.e. 6 filter sheets) are used, the hourly production of filtered litres will be equal to half. But in some cases this can allow to save money in the use of filter sheets.

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

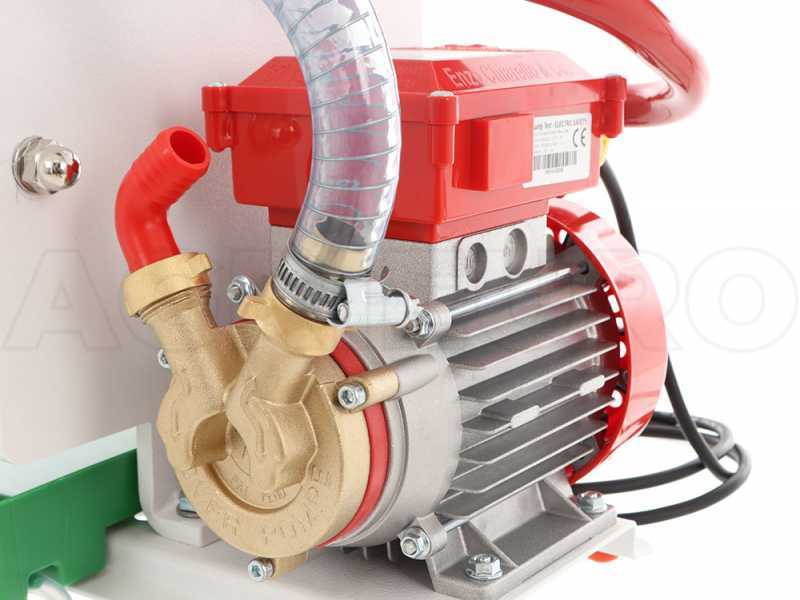

Bronze pump with reversed impeller

ADVANTAGES OF THE NEW PUMP WITH REVERSED IMPELLER SYSTEM

  • working pressure up to 2.5 bar (instead of 2.0 bar of the previous model)
  • higher head lift (increased by 1.5 meters)
  • pump service life definitely increased. This is a fundamental aspect since these pumps are subjected to a continuous working effort due to the plates filtering system applied to them
  • greater constructive simplicity
  • patented system

Pump body

The pump is "self-priming".

ATTENTION: HOSE CONNECTORS ARE MADE OF METAL, PICTURES ARE FOR ILLUSTRATION PURPOSES ONLY

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

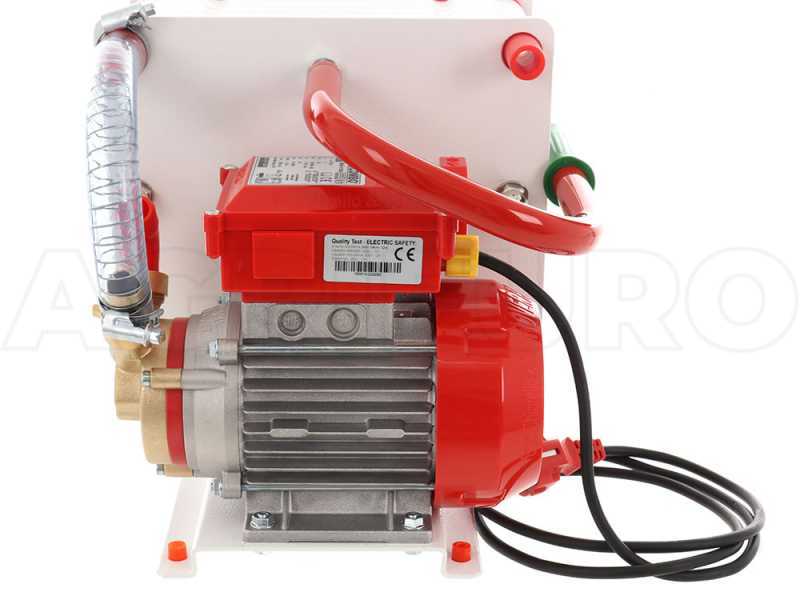

0.5 Hp electric motor

The Colombo 12 pump mounts an electric induction motor which guarantees a long service life.

This motor is capable of delivering a power of 0.5 Hp

Additional technical features:

  • power supply: 230 V - 50 Hz
  • motor rpm: 2850 rpm

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

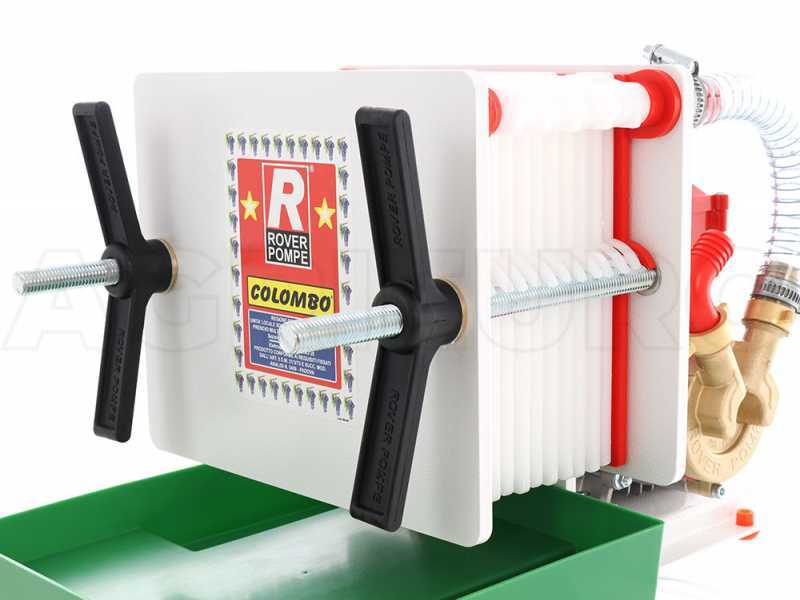

Filtering system with 13 filter plates

No. 13 filter plates.

It can mount up to 12 20x20 cm filter sheets

Hourly filtering capacity: max 500 L/h


The COLOMBO® FILTER consists of a special electric pump and a filtering system called liquid system with pressed layers.

This particular type of filtration allows excellent levels of purification without altering the fundamental characteristics of the decanted liquid. This is why it is particularly appreciated for domestic filtration, but also in the professional sector, such as pharmaceutical factories, laboratories.

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

Other features

Sturdy frame realized in thick enamelled steel

Details of the power switch to turn the electric motor on

Details of the filters clamping knobs

Drain liquid recovery tray with hose to immediately reintroduce the liquid to the main container.

Details of the connection of coiled hose between the filtering stage and the pumping stage

Details of the lifting handle

Lifting foldable handle

Details of the filter outlet

Details of the suction filter supplied

THIS ELECTRIC PUMP IS NOT SUITABLE FOR FOOD USE!

Free items & Standard equipment

Free items included

The plate filter is shipped in its original packaging. Included in the packaging are:

Instructions manual and catalogue

Drain liquid recovery tray

Suction filter

Gaskets

COMPLIMENTARY: 24 FILTER SHEETS

Also included in the packaging are:

- 12 20x20 type "4” filter sheets

- 12 20x20 type "16” filter sheets

Additional purchases of filter sheets can be carried out combined with the purchase of the pump, since they are on sale in specific listings from our website.

These filters are universal, so they can easily be found on sale in any store across Italy.
