Description

Rover MARINA MINI 24 V Electric Transfer Pump

The new transfer pump by Rover Pumps, Marina Mini 20 24 V direct current is designed for all commonly performed temporary transfers.

The electric motor develops a power of 300W and is designed to maintain the necessary power for a maximum of 20 minutes continuously, sufficient for the most common operations.

The self-priming pump features, as all Rover pumps, a star impeller that ensures optimal operation even if there is a discontinuity of the suction liquid such as in case of air or other gases. In addition, used with a dispensing gun, it can operate with closed delivery for 20 seconds, after which it must be turned off.

Rover pumps are very reliable products, easy to clean and perfectly suitable for transferring large amounts of product. They are entirely MADE in ITALY to guarantee products of excellent manufacture and functionality. A cable with pliers is required to connect it to the battery

Main features:

24 V
300 W
13A
Fittings ø: 20 mm
rpm: 2950
Maximum flow rate: 38 L/min
Head lift: 5 m clockwise and 2 m counterclockwise

‘Bronze pumps have no self-declaration of conformity according to Reg. (EC) No. 1935/2004 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 October 2004 and according to Reg. (EC) No. 2023/2006 OF THE COMMISSION of 22 December 2006.

For applications requiring compliance with the above Regulations, please refer to the Rover Novax range of pumps’.

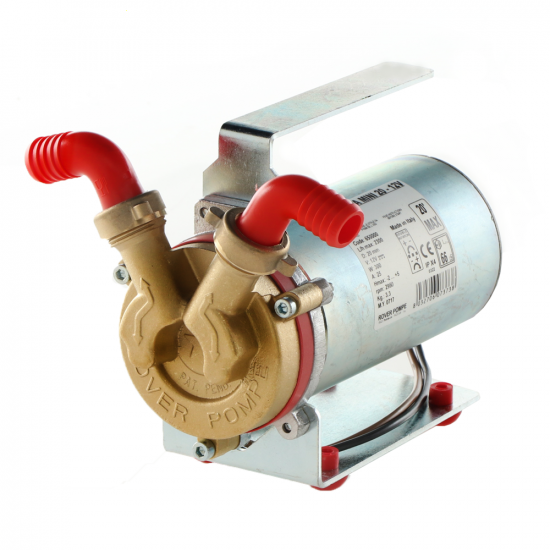

Rover Marina Mini 20 - Bronze electric transfer pump - 24V

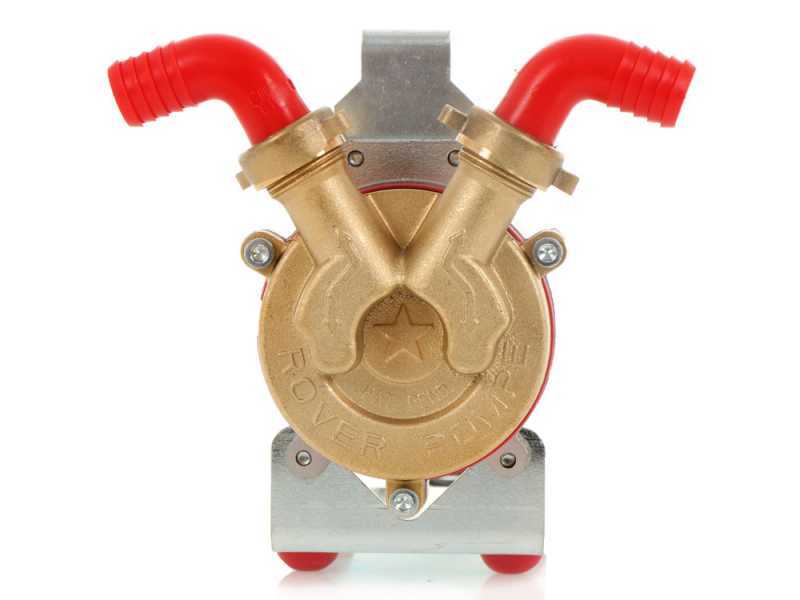

Brass Impeller and Main Features

Top-quality bronze pump body.

The pump is "self-priming": just put a little liquid in the impeller before use, turn it on, and it will suction every type of liquid by itself.

Two-way: it can pump liquids in both directions. One of the many advantages is that it allows very precise transferring, with the possibility of making corrections by pumping the liquid in the opposite direction if necessary. The direction is determined by reversing the power supply polarity.

The liquids to be transferred must be neutral and clean, or contain a percentage of solids (0.2-0.5% max) having such hardness and granulometry features so as not to wear the internal surfaces of the pump.

In extreme cases, a fine mesh filter applied on the suction hose may be useful. Suitable liquids: water, wine, milk, must, liquid detergents, diesel and glycol.

This type of pump is not suitable for transferring medium and high-viscosity oil.

The pump is equipped with two cables (one for each pole) equipped with faston terminal.

Equipped with base and handle for transport, both made of metal.

The electric pump has the following self-priming power:

with full pump and empty suction pipe without foot valve, 3 m

with full pump and full suction pipe with foot valve, 7 m

For applications requiring compliance with the above Regulations, please refer to the Rover Novax range of pumps’.
