Sbaraglia S21 Pneumatic Olive Harvester - Compressed Air Olive Shaker - 2100 bpm

Questions & Answers (2)
ID: K604898

EAN: 0789011171083

MPN: A47 SBARAGLIA

7,3/10
After-sales assistance & Spare parts
Sbaraglia S21 Pneumatic Olive Harvester - Compressed Air Olive Shaker - 2100 bpm
FREE
Lubricant for olive harvestersLubricant for olive harvesters
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
Motion
Vertical, double
Speed (bpm)
2100 bpm
Max. prongs opening
16 cm
Max. operating pressure
5 bar
Air consumption
120 L/min
Olive harvester head weight
850 g
Motor speed levels
1
ABS Prongs
Manufacturing country
Italy
Product Features
Model:
S21
Head material:
Titanium
Type:
Pneumatic
Motion:
Vertical, double
Speed (bpm):
2100 bpm
No. of prongs:
7+7
Prongs length:
16 cm
Prongs material:
High-resistance technopolymers
ABS Prongs:
Max. prongs opening:
16 cm
Max. operating pressure:
5 bar
Minimum operating pressure:
4 bar
Air consumption:
120 L/min
Lubrication type:
With oil for pneumatic tools
Olive harvester head weight:
850 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
No. of cylinders:
1
Power supply:
Compressed air

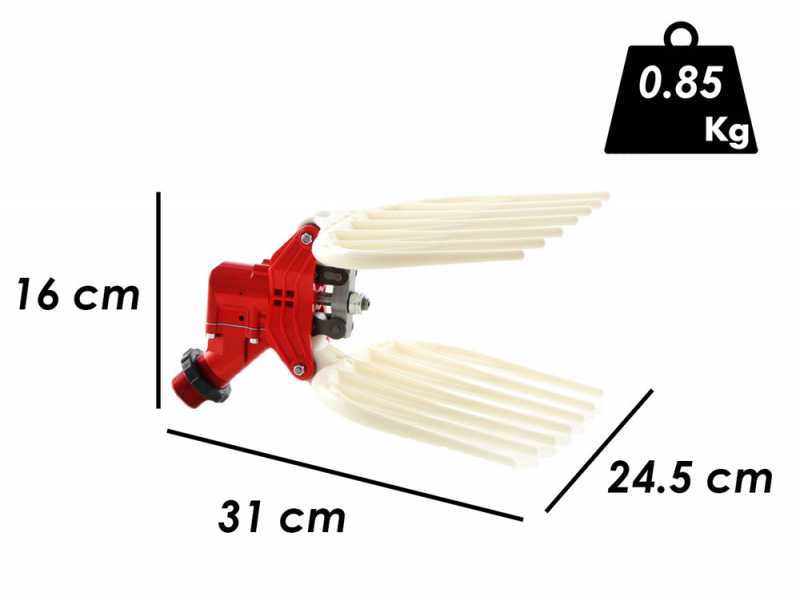

Dimensions and logistics
Product dimensions in cm (L x W x H):
31x24.5x16 cm
Net weight:
0.85 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
35x15x28 cm
Gross weight (packaging included) :
2 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 22/01/2025 - 24/01/2025
€ 365,01
Vat included
You're viewing:
Customers also viewed:
Description

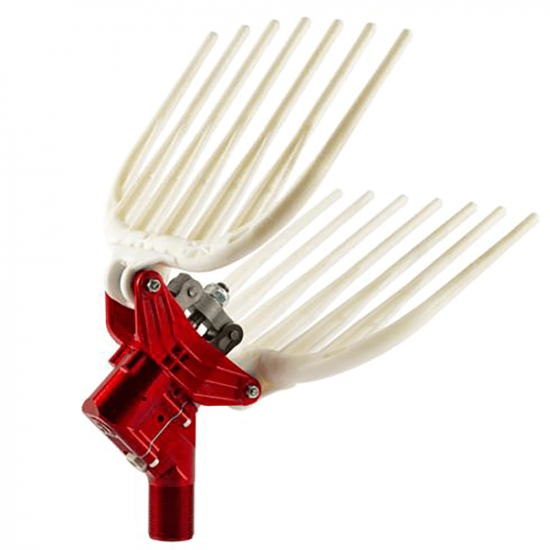

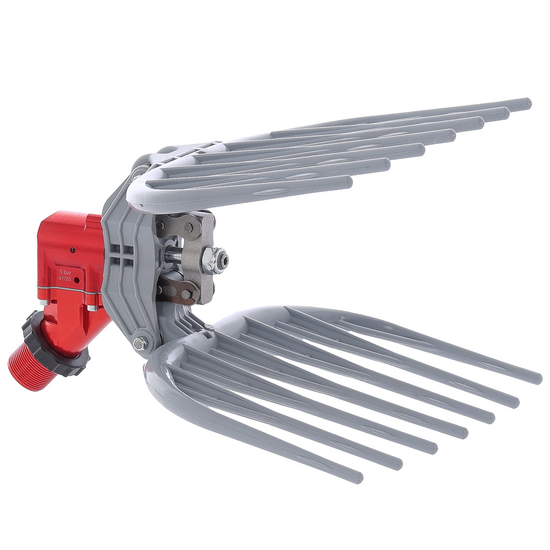

Sbaraglia S21 Pneumatic Olive Harvester

The Sbaraglia S21 pneumatic olive harvester is an extremely versatile olive harvesting tool.

Its power and lightness are combined with high longevity and power.

2100 beats per minute in only 850 g

made of TITANIUM and ALUMINIUM components, synonymous with SUPER LIGHTNESS, POWER

It features qualities that it one of the best products on the market:

  • IT WORKS WITHOUT O-RINGS: the plunger AND/OR EXCHANGER has no sealing rings (the only patented one in the world)

  • CYLINDER WITH A 35 mm DIAMETER (all other olive harvesters on the market have a 30 mm diameter)

  • PISTON HOUSING IN STAINLESS STEEL (all other olive harvesters on the market feature brass piston housing)

  • THERE ARE NO SEALING RINGS IN THE PISTON BUT CERAMIC THREAD BRONDS (makes the olive harvester unique and powerful)

  • PUMPS AT 5 BAR 2100 BEATS (for those using other harvesters, we recommend a small reducer for the 5 bar pressure)

It also stands out because it features excellent flexibility; which leads to:
1) better penetration into the foliage, even in the thickest of branches (the model shown opposite with extremely dense single prongs also has exceptional penetration);
2) greater respect for the plant and drastically reduced twig and leaf breakage compared to all other olive harvesters with rigid teeth;
3) no breakage of the prongs themselves, which are therefore never prone to breakage.

* but even if this were the case, we reiterate how it is among the very few olive harvesters with interchangeable prongs. The vast majority of olive harvesters involve replacing the whole rake.

Made in Italy

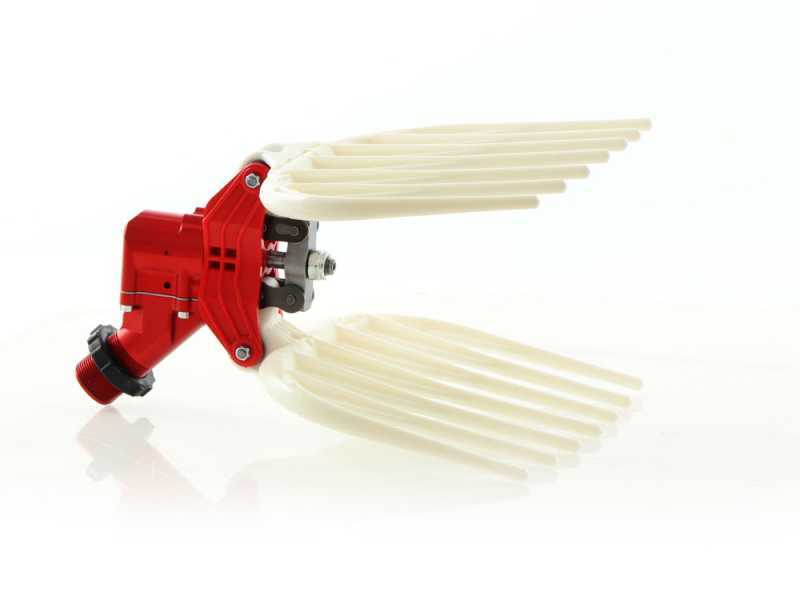

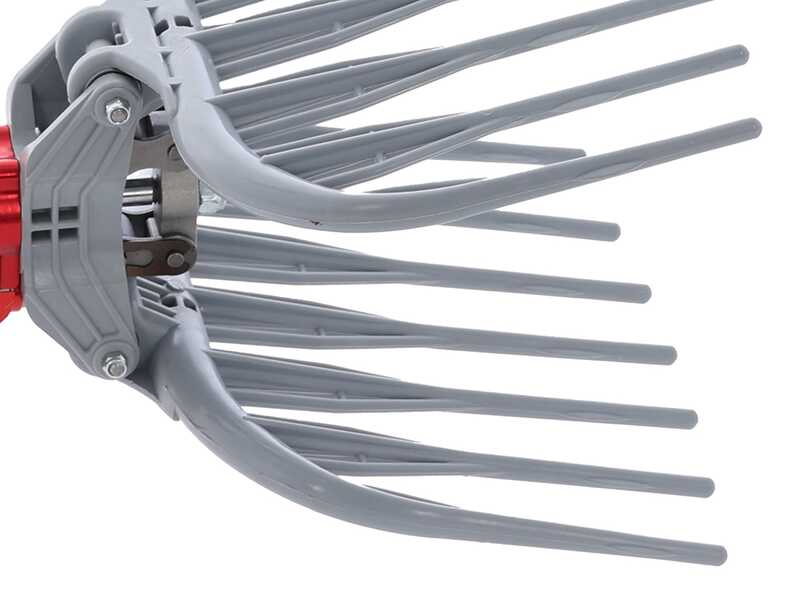

Prongs

This olive harvester is equipped with rakes in Technopolymer with long, elastic prongs, which guarantee good performance without any damage.

All these characteristics make it particularly suitable for working on all types crops at all levels of ripeness, especially in thick foliage.

Thanks to the beating frequency speed of 2100 beats per minute, it can easily penetrate into the olive tree.

Technical Specifications:

  • Rake width: 23 cm
  • Number of prongs: 7 + 7
  • Prong length: 16 / 7 cm
  • Maximum opening: 23 cm

WARNING: pole not included

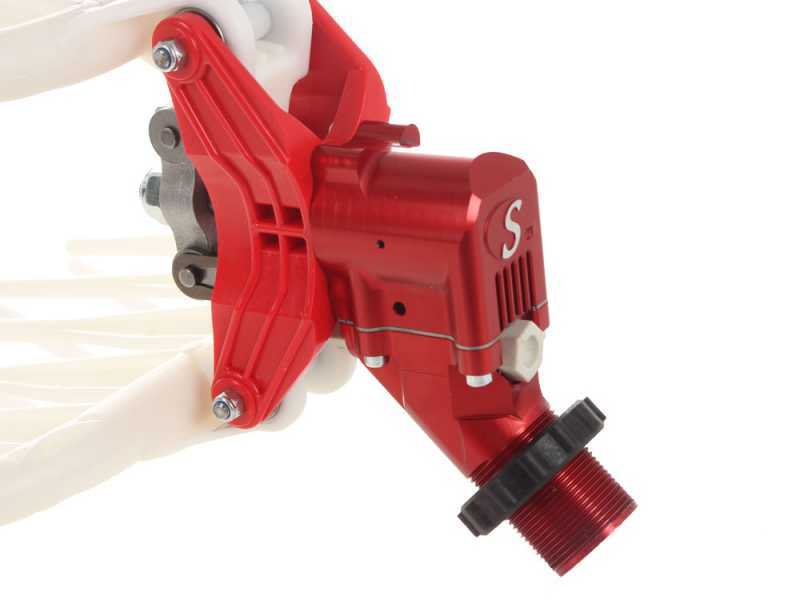

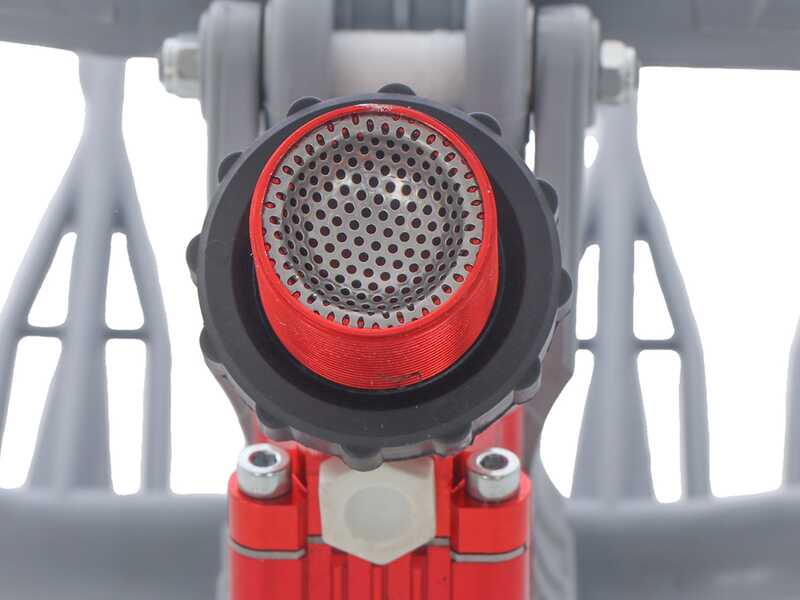

Technical features

One of the great strengths of these harvesters is definitely the beating speed, 2100 rpm, thanks to the short-stroke piston and rakes.

Weight: only 850 g. One of the lightest on the market, despite the considerable width and length of the combs.

Operating pressure: 5 bar

Air consumption: 120 L/min

WARNING: pole not included

Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

Standard equipment

The product will be shipped in its original packaging along with the instruction manual.

WARNING: pole not included
