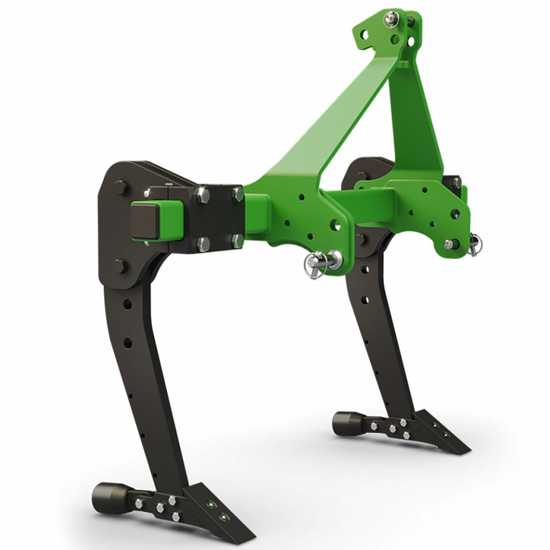

Name: Seven Italy Simply - 2-element Tractor-mounted Agricultural Drainer/Subsoiler - 120 cm Frame
Brand: Seven Italy
SKU: K606841
Price: 760 EUR
Availability: OutOfStock
Rating: 3.33 (3 reviews)

Description

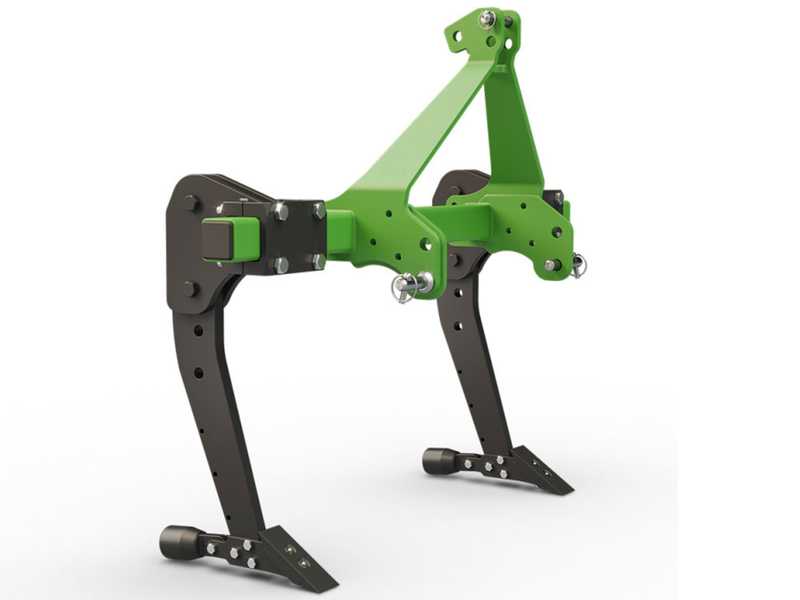

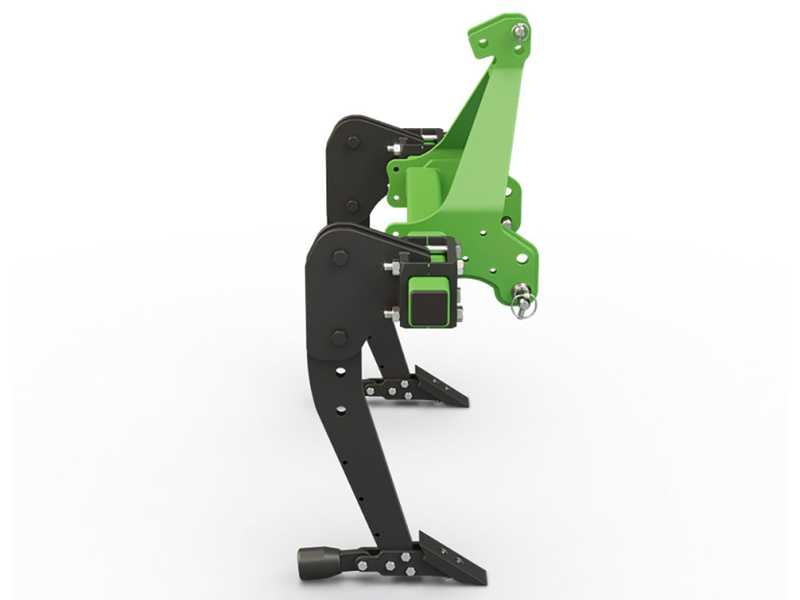

Seven Italy Simply 2-Element Tractor-Mounted Ripper for Drainage

The Multy DSV frame has been specially designed to provide comfort and convenience to the operator through its versatility in different applications.

This type of frame allows a flexible configuration of 1, 2 or 3 elements, with the possibility of easily switching between them.

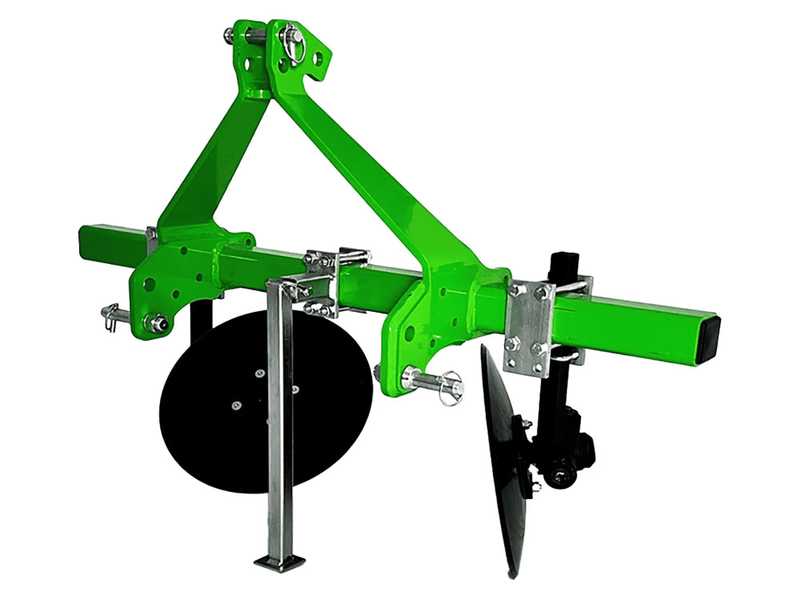

It is possible to mount furrowers, potato diggers, rippers and other accessories, according to the operator’s specific needs.

This interchangeability allows the Multy DSV frame to be adapted to different operations, ensuring optimum utilisation and maximising work efficiency. The user can easily configure the frame according to his needs, without the need to purchase several frames for each individual function.

Furthermore, the Multy DSV frame is designed with a special focus on operator comfort.

Finally, the Multy DSV frame is a versatile and convenient solutions for those users who need to perform different activities. Its configuration and interchangeability between elements makes it easy to adapt to specific needs, ensuring comfort and convenience during use.

Working depth: 54 cm

Seven Italy Simply - 2-element Tractor-mounted Agricultural Drainer/Subsoiler - 120 cm Frame

Subsoiling

Soil drainage

In agricultural soils, the damage caused by excess water is essentially the slowing down or hindering of crop growth, which consequently leads to a reduction in productivity, complicates farming operations and, in general, all crop-related activities. On agricultural land, excess water is generally removed by surface sinking.

What does well-drained soil mean?

A soil is well drained by nature when the water table is at an adequate depth and the porosity is such that excess water percolation is not hindered.

So what are the real advantages of using a ripper for drainage?

Broken slab due to ploughing or milling
Complete absence of water stagnation in the field, excellent practicability of soils that are neither saturated with water nor compacted.
Elimination of weeds resulting in a reduction in the use of herbicides
Reduced tillage time, great ease of soil cultivation
Cost reduction with noticeable fuel savings
Anticipation of sowing resulting in improved crop yields
Increased effectiveness of fertilisers
Improved plant growth
Improved crop rotation

Main features

Connected to the three-point hitch (category 1)

The drainage function is very effective with compact, clayey soils. In not very compact soils, the action is still effective in breaking up tillage soles as well as improving drainage action.

If we treat a compact or clay soil, this could remain drained for 2-3 years, thanks to the width of the furrow created by the 8 cm diameter mole. If the treated soil is fragile or loosely compacted, drainage may have to be repeated every year.

Indeed, thanks to its action, the soil will be loosened on the surface and marked by a series of small furrows. The tillage from the bottom up creates a certain amount of macro-porosity and crumbling in the soil, thus causing little or no change in the profile of the layers.

This ripper for drainage is a high-quality device with the following features as standard:

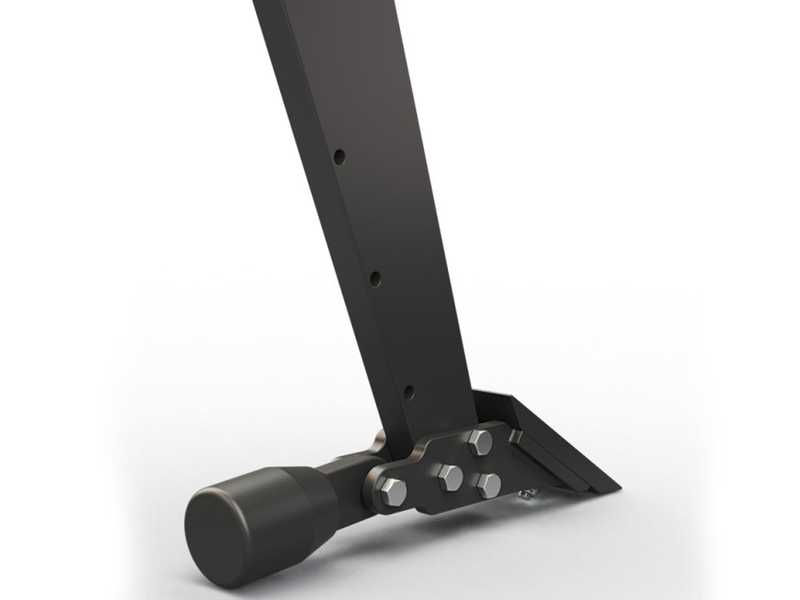

The included mole features perfect size to compact the gutter.
The ripper for drainage’s anchor is made of a bend-resistant material and has a shear bolt.
It features three depth adjustment positions.
The ripper for drainage's ploughshare is equipped with a replaceable and reversible double cutting edge.
The anti-wear bushings are positioned in the mole holder.

Sub-frame height - ground: 415 mm/490mm/565mm
