Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic

Industrial
Add a question
ID: 105467

EAN: 9999237545877

MPN: 000161new

Simatech
Catalog Simatech
8,3/10
After-sales assistance & Spare parts
3Pictures
Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
Max. trunk diameter
70 cm
Piston stroke
80 cm
Ground splitting system
Yes
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
35 t
Pump
Maxi - professional
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
V300
Type:
verticale
Type:
Vertical
Double speed:
No
Operating mode:
Tractor-driven PTO
Operating mode:
a trattore
Nominal splitting force:
35 t
Piston stroke:
80 cm
Adjustable piston stroke (for short logs):
Yes
Ground splitting system:
Yes
Manufacturing country:
Italy
Motor data
Oil tank capacity:
50 L
Pump data
Flow rate:
46 L/min
Operating pressure:
250 bar
Hydraulic cylinder outer diameter:
150 mm
Piston diameter:
60 mm
Manufacturing country:
Italy
Cutting data
Max. trunk diameter:
70 cm
Equipment
Frame:
Standard
Pump:
Maxi - professional
Trunk lifting system:
No
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(L x W x H) 90 x 90 x 210 cm
Net weight:
400 Kg
Packaging:
On pallet
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 30/01/2025 - 03/02/2025
Free returns (up to 30 days after receipt) *
€ 3.956,81
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

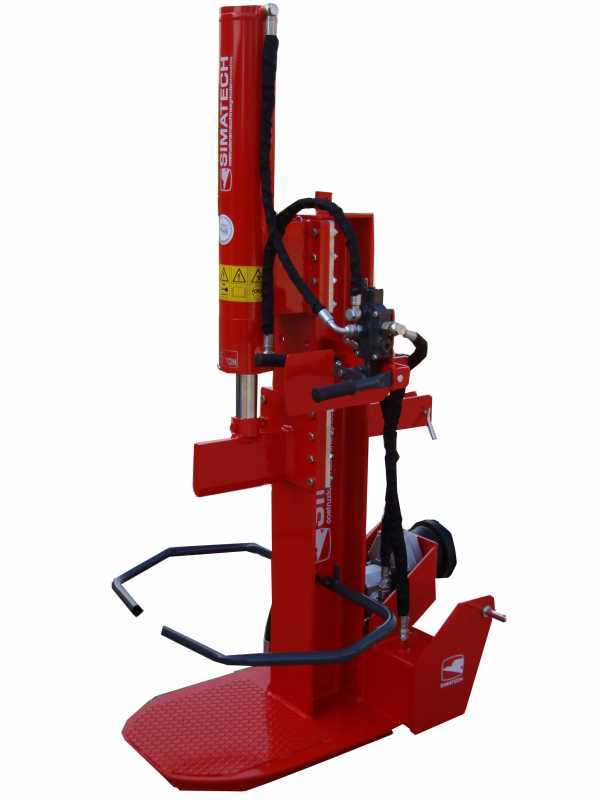

New V300/800 model of 35 tons vertical log splitter

The new model of the Simatech V300 / 800 tractor-mounted vertical log splitter, compared to the old model, is provided with the following features:

  • New 50 L oil tank
  • New attachment
  • New AMI distributor Made in Italy

Tractor-mounted vertical log splitter
35 tons

--MADE IN ITALY --

The N° 1 log splitter on the market in terms of power and sturdiness


MAIN FEATURES

... the most powerful on the market ...

35 tons splitting force


Piston stroke: 80 cm

(Max. splitting height, 85 cm logs)


Highly-professional large-sized hydraulic pump

(100% Made in Italy)

FLOW RATE: 46 L / min
the largest ever mounted on vertical tractor log splitter

Undoubtedly, the largest pump and most professional ever mounted on a log splitter.

Among other advantages, it ensures a great splitting speed.

Easy to store

It is provided with the largest piston in its category:

Cylinder diameter: 150 mm

Piston diameter 60 mm

Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic

35 tons vertical log splitter

The piston, which can be closed, is mounted on its sliding guides: simply remove the 2 support pins and it folds down to the platform. This would really minimise its size.

You can then reassemble it on the top of the frame by simply operating the splitting mode. When the piston slips, it will lift the cylinder up to the top of the frame, where it can be re-attached re-applying the 2 proper pins.
It features 2 different heights for fixing the logs and then 2 different splitting heights. In addition to the 80 cm height, there is a second 50 cm height that can be set, where the 2 pins for fixing the cylinder can be entered (see the 2 holes in the picture on the side)

The interchangeable guides are made of hardened steel, highly sturdy

Supporting beam made of highly sturdy steel with H-shaped profile (the most sturdy and professional one)

The largest beam that you could find on a vertical tractor log splitter.

Retaining supports for the split logs (which will lean on them without falling to the ground).

Lifting arms

Heavy-duty large-sized hydraulic distributor (100% Made in Italy)

Double lever for splitting operation according to CE safety regulations.
Equipped with three-point hitch PTO unit for cardan shaft attachment to tractor (cardan joint not included)

Focus on the integrated oil tank
Sturdy gap platform close to the ground: you can split even very large and hard logs without having to lift them up

Dimensions: 170 x 90 x 90 cm

WEIGHT: 400 KG

This is a truly heavy-duty tractor-mounted horizontal log splitter.
It represents the maximum reference point on the market thanks to the 5 main components that every log splitter must have:

  • Pump
  • Piston
  • Distributor
  • Frame
  • Guides

This product is shipped already assembled and ready for use

Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
Simatech 35 Tons Tractor-mounted Vertical Log Splitter - 800 mm Piston Stroke - Hydraulic
