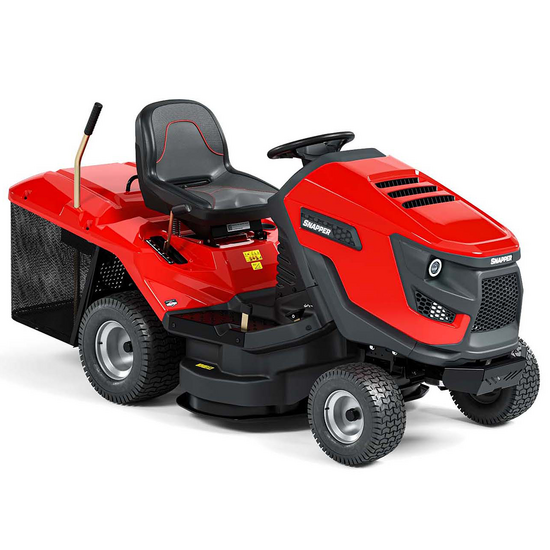

Snapper RPX92 - Lawn Mower Tractor - Briggs&Stratton 656cc - Grass Collection Basket

Snapper RPX92 lawn tractor, featuring a robust frame and numerous details designed to increase durability and ease of use.

With a revamped design and a powerful Briggs&Stratton Series 7160 EXi V-Twin OHV 656ccengine, the Snapper RPX92 lawn tractor offers superior reliability and performance.

Large 92cm 2-blade cutting deck and large 300 litre grass collection baskets.

300L collection basket can be emptied from the comfort of the driver's seat, thanks to the practical lever, reducing time.

Its ability to adjust the cutting deck in 6 different positions, from 30 to 85 mm, allows precise cutting on all types of ground.

A special feature of this tractor is the particularly robust cast-iron front axle, which guarantees a longer service life. It also helps to smoothly traverse uneven terrain to achieve an even cut.

Ideal for large spaces and without too many obstacles, the Snapper RPX92 lawn tractor is suitable for both domestic and professional use. Thanks to the electromagnetic blade activation system, cutting becomes even easier and more intuitive.

The riding-on mower is equipped with hydrostatic transmission, a very reliable mechanism which allows you to control the forward and reverse speed through a pedal, ensuring an excellent traction and a high driving comfort.

The mowing result is always optimal thanks to the blade shape (finned blades).

The Briggs & Stratton 7160 EXi Series OHV V-Twin engine is high-performing, suitable for jobs which require high working power.

This engine offers continuous, reliable power and ensures superior performance and durability.
With overhead valve technology (OHV) together with the V-Twin cylinder design, this engine offers reliable power in a well-balanced design.
The main features are:

Nominal Power: 16 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 11.6 Hp (at 2700 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

1- GRASS COLLECTION SYSTEM (on standard equipment):

Brand new capacious grass collection basket, with a capacity of no less than 300 L, among the largest in its class.

Easy grass collector emptying system: done through a very effective system, by levering the removable handle. Thus, it will be possible to empty the grass collector at any time while working, without any effort.

The grass collector is easy removable at any time: simply lift it upwards to remove it from its bridge-type housing through the two handles on top of the basket.

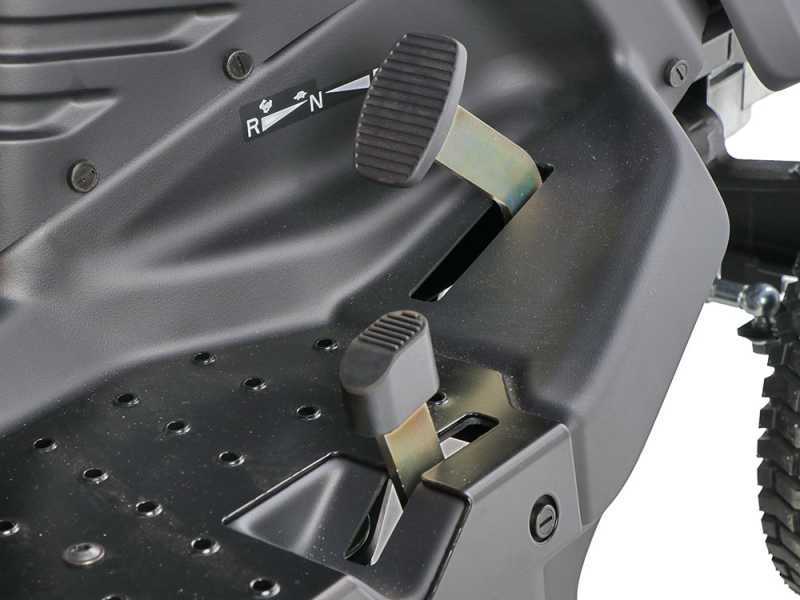

Thanks to the new 2-pedal Tuff Torq® K46 hydrostatic transmission, riding the mower tractor will be easy and intuitive. Simply control the riding-on mower with your right foot resting on the pedal.

Can reach speeds of up to 8 km/h and 5 km/h in reverse gear

The sturdy gears make the gearbox difficult to break. The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to standard manual transmission gears. The latter model, whenever it is necessary to adjust the speed, obliges the operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox, the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

The pressed steel cutting deck is equipped with 2 finned blades that create a powerful airflow necessary to collect the grass in all conditions.
The asymmetric cutting deck has an optimal cutting overlap avoiding the need to keep the blades synchronised.

The machine comes with the collecting blades already mounted.

Cutting deck width: 92 cm.

The mower tractor is equipped with cutting system in reverse gear

The cutting deck is tilting: it adapts easily to the undulations of the ground (as long as they are not overly sharp). Furthermore, this model features a large protection which wraps up the cutting deck entirely.

The electromagnetic blade engagement is operated via the button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The cutting deck height can be adjusted through a lever.

There are 6 different cutting height available, that can be ranged from a maximum of 85 mm to a minimum of 30 mm.

Detail of the washing connection on both sides of the plate

The controls are very simple and make it easy to operate the tractor: hour meter, ignition key, throttle lever, parking brake and blade engagement switch.

For maximum safety there is also a reverse mowing consent switch, if this is not activated the tractor shuts down.

• Speed controller
• Parking brake
• Ignition block with key, red button for electromagnetic blade engagement and black button for reverse cut activation
• Braking pedal
• Hydrostatic transmission
• Cutting height adjustment lever
• Handle for grass collector emptying
• Hour meter

Further features of the Snapper RPX92 riding-on mower:

• Stainless steel openable engine cover for cleaning and maintenance operations.
• Comfortable Operator’s seat and springs for maximum comfort during use, with mechanism to detect the presence of the operator during use.
• Ergonomic steering wheel
• Large rear wheels size: 18"x 8.5".
• Front wheels size: 15"x 6".

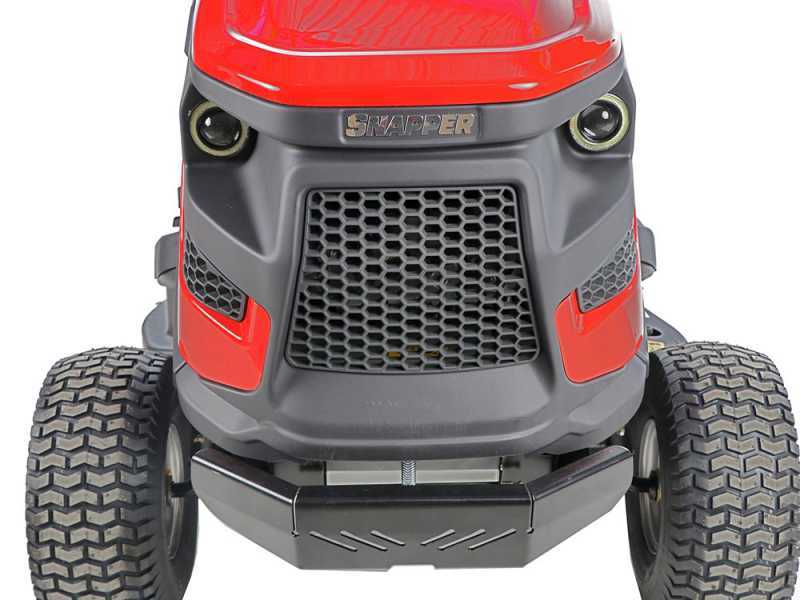

• Focus on the LED front headlamps
• Focus on the additional storage compartment
• ''Full bag'' indication sensor
• Bullbar
• Cupholder

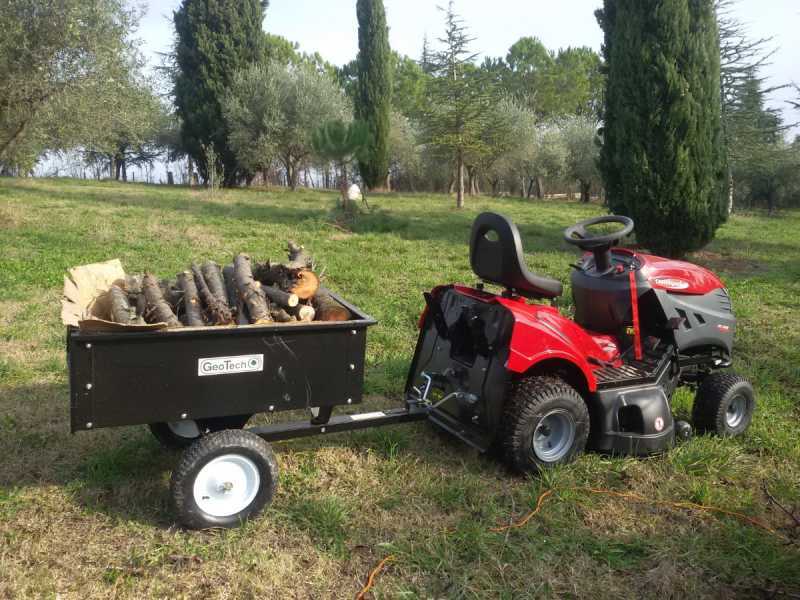

• Tow hitch
