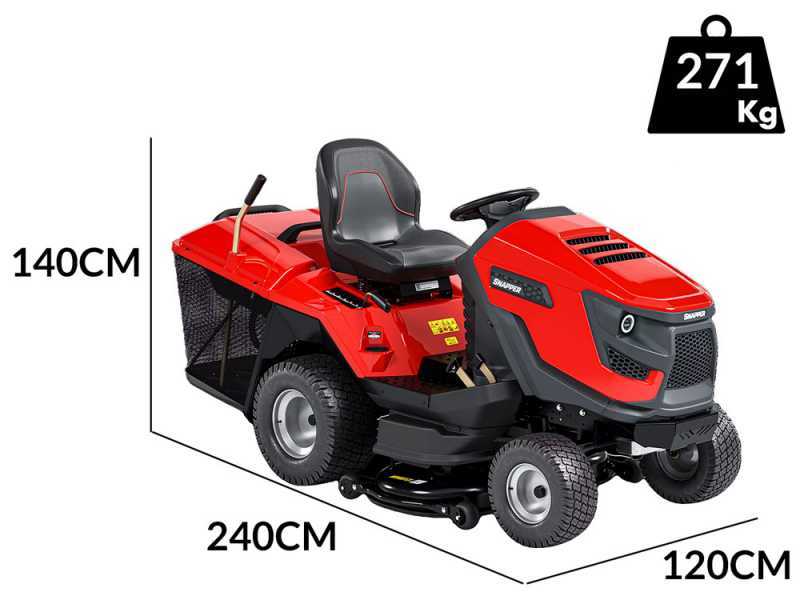

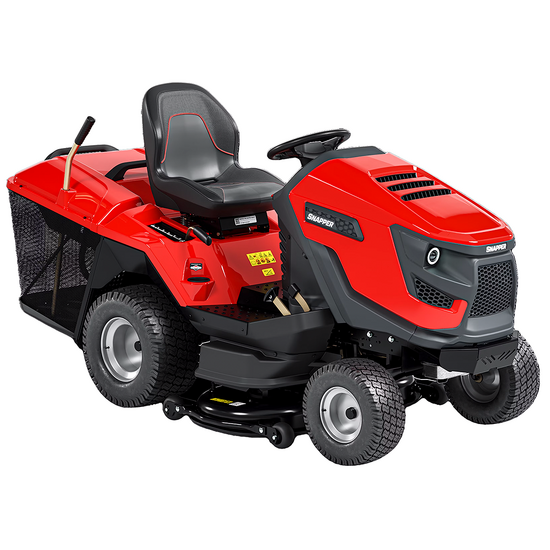

Snapper RTX102 - Lawn Tractor - Briggs&Stratton 724cc - Grass Collector - Mulching

Snapper RTX102 lawn tractor, offering top-of-the-range performance. This model is designed to offer an optimal solution for the maintenance of large green areas, combining advanced technology with ease of use.

Featuring a powerful 724 cc Briggs & Stratton 8240 PXi V-Twin OHV engine, the Snapper RTX102 delivers superior cutting performance, a symbol of reliability and power. The modern design and innovative features, including a large 102 cm cutting deck with two blades, make this tractor ideal for precise and efficient cutting.

Distinctive features of the RTX102 include:

• LED screen for intuitive monitoring of tractor functions.
• Cruise speed control to maintain a constant cutting speed.
• USB ports for charging electronic devices, together with a dedicated compartment for the phone.
• Premium adjustable seat, designed to maximise comfort during use.

The Snapper RTX102 is equipped with a large, very strong 102cm cutting deck with 2 blades and allows two different cutting modes:

1. Large 320-litre collection basket to maximise work efficiency by reducing emptying time. Practicality is further emphasised by the possibility of emptying the basket directly from the driver's seat, using a convenient lever
2. Mulching cut thanks to the supplied cap, simply insert it into the rear tunnel

A further noteworthy feature is the presence of reverse cutting, which allows even the most complex spaces to be handled with ease.

Its ability to adjust the cutting deck in 7 different positions, from 25 to 95 mm, guarantees a flawless result on various types of surface. In addition, the introduction of a speed selector enriches the user experience, allowing users to adapt the cutting speed to the specific needs of the ground.

The hydrostatic transmission, which can be controlled with a pedal, facilitates manoeuvrability in forward and reverse, providing a comfortable, safe and precise driving experience. The four integrated anti-scalp wheels and special finned blades prevent damage on delicate surfaces, ensuring an even, high-quality cutting result.

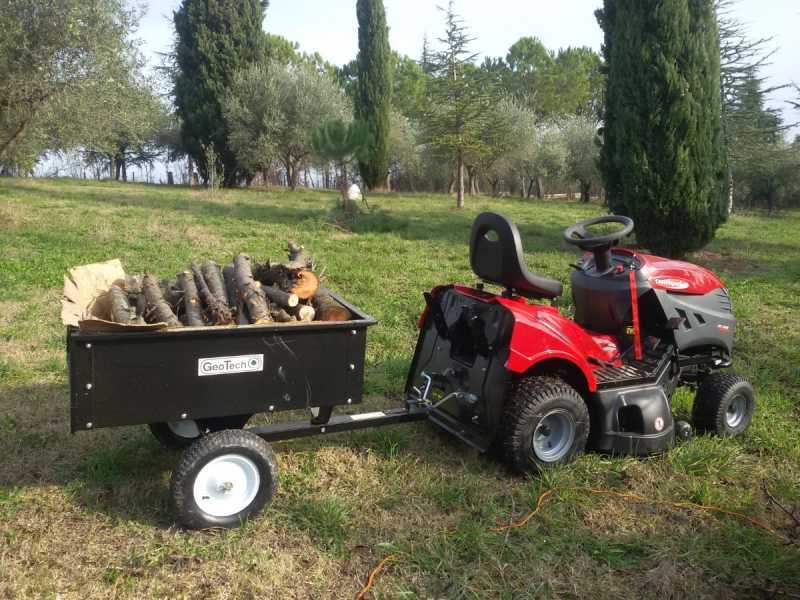

To further enhance its functionality, the Snapper RTX102 is equipped with a tow hitch, thus expanding its versatility and allowing the use of additional garden care accessories. This feature makes it not only an efficient lawn tractor but also a multifunctional tool for all green maintenance needs.

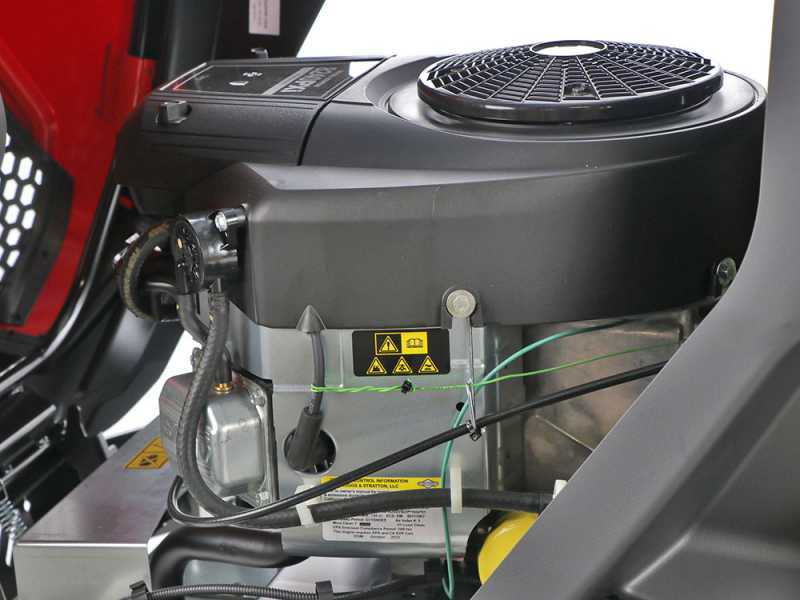

The Briggs & Stratton 8240 PXi V-Twin engine is high-performing, suitable for jobs which require high working power.

This engine offers continuous, reliable power and ensures superior performance and durability.
With overhead valve technology (OHV) together with the V-Twin cylinder design, this engine offers reliable power in a well-balanced design.
The main features are:

Nominal Power: 24 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 18.7 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

1- GRASS COLLECTION SYSTEM (on standard equipment):

Brand new capacious grass collection basket, with a capacity of no less than 320 L, among the largest in its class.

Easy grass collector emptying system: done through a very effective system, by levering the removable handle. Thus, it will be possible to empty the grass collector at any time while working, without any effort.

The grass collector is easy removable at any time: simply lift it upwards to remove it from its bridge-type housing through the two handles on top of the basket.

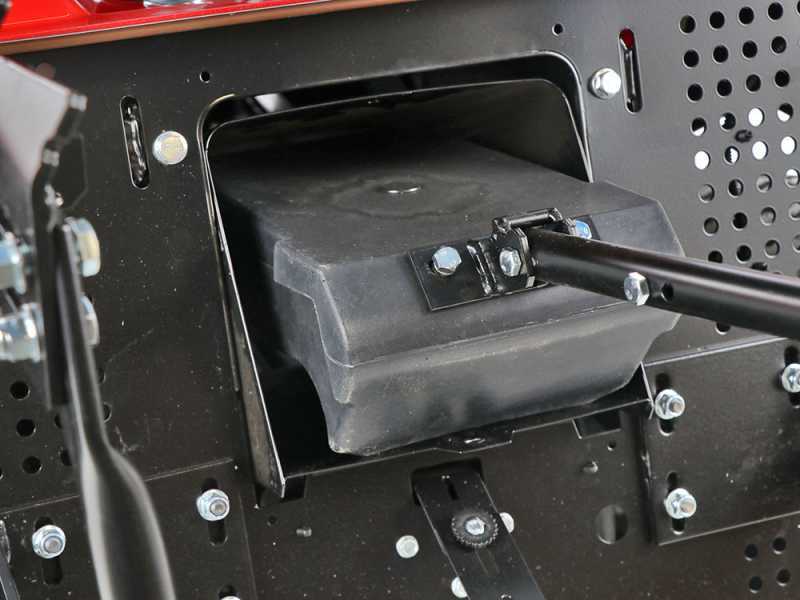

2- MULCHING CUTTING SYSTEM (on standard equipment):

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

Conversion: remove the grass collector and enter the mulching plug in the central opening.

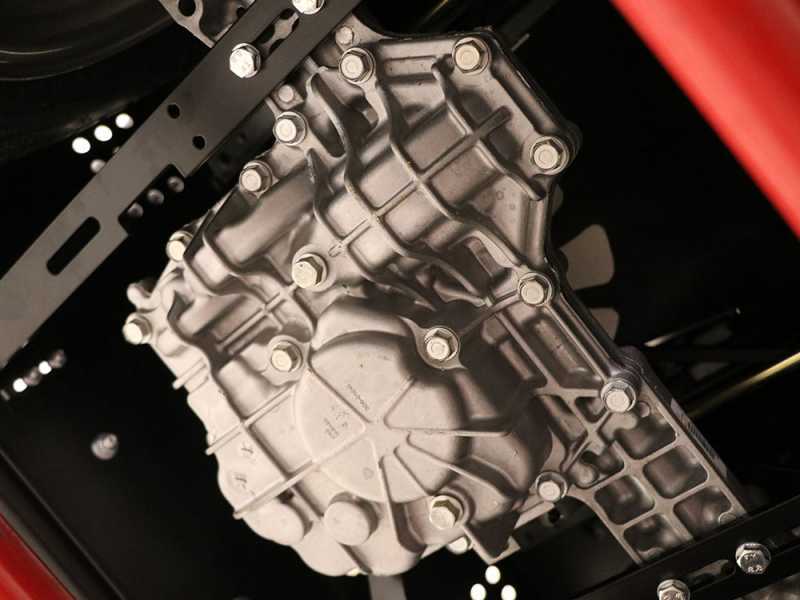

Thanks to the new 2-pedal Tuff Torq K46 hydrostatic gearbox, riding the mower tractor will be easy and intuitive. Everything can be easily controlled with your right foot resting on the pedal.

Can reach speeds of up to 9 km/h and 5 km/h in reverse gear

The sturdy gears make the gearbox difficult to break. The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to standard manual transmission gears. The latter model, whenever it is necessary to adjust the speed, obliges the operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox, the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

The pressed steel cutting deck is equipped with 2 finned blades that create a powerful airflow necessary to collect the grass in all conditions.
The asymmetric cutting deck has an optimal cutting overlap avoiding the need to keep the blades synchronised.

A 102cm wide, pressed steel, synchronised cutting deck

The mower tractor is equipped with cutting system in reverse gear

This model features a large protection which completely envelops the cutting deck.

The electromagnetic blade engagement is operated via the button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The cutting deck height can be adjusted through a lever.

There are 7 different cutting height available, that can be ranged from a maximum of 95 mm to a minimum of 25 mm.

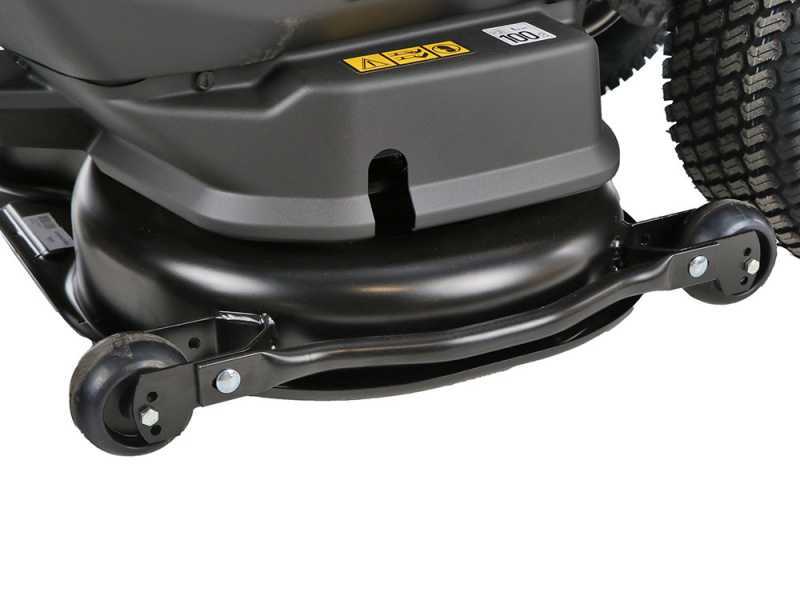

Focus on the four anti-scalp wheels and the washing connection

Focus on the cutting deck protection rails that allow the life of the cutter plate to be extended

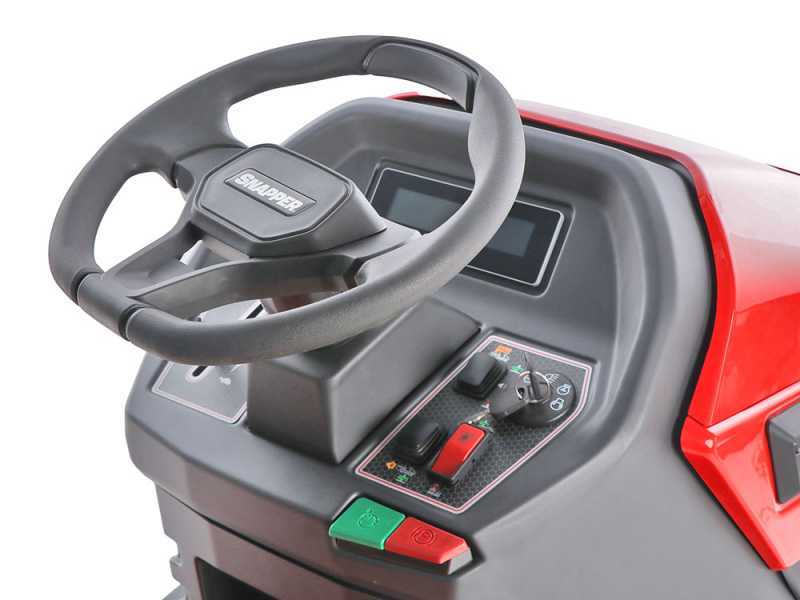

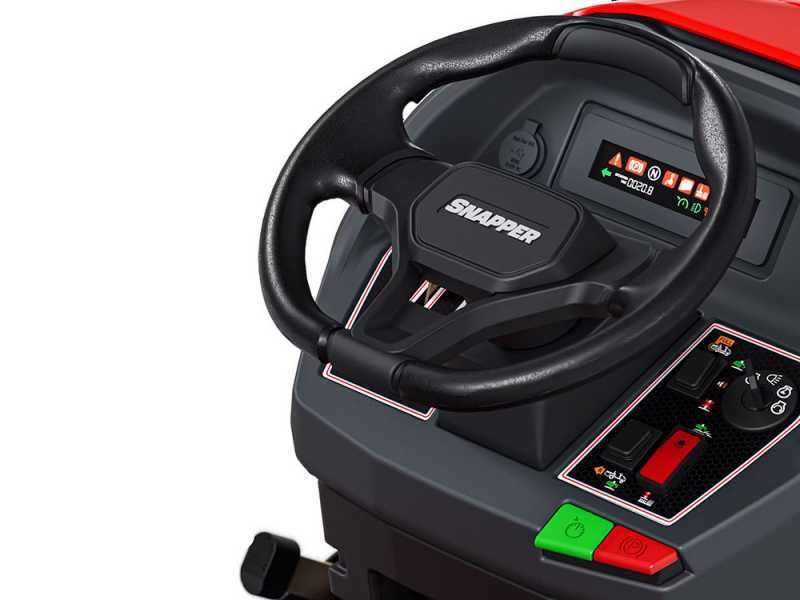

The controls are very simple and allow the tractor to be managed at its best. The dashboard houses a LED screen, 2 USB ports, RMO switch, parking brake, cruise control, automatic mower shut-off, throttle lever and handy phone pocket.

For maximum safety there is also a reverse mowing consent switch, if it is not activated, the tractor shuts down.

• Speed controller
• Parking brake
• ignition block with key, red button for electromagnetic blade engagement and black button for reverse cut activation
• Braking pedal
• Hydrostatic transmission
• Cutting height adjustment lever
• Handle for grass collector emptying
• USB-A and USB-C port with maximum power of 2.4A
• Driving seat adjustment lever
• Clearly readable fuel gauge
• Cruise Control (green button)

Further features of the Snapper RTX102 riding-on mower:

• Stainless steel openable engine cover for cleaning and maintenance operations.
• Adjustable premium seat with high backrest resting on comfortable springs for maximum comfort during use, with a mechanism to detect the presence of the Operator during use.
• Ergonomic steering wheel
• Large rear wheels size: 20 "x 10", for superior traction
• Front wheels size: 16"x 6.50".
• Focus on the LED front headlamps
• Focus on the additional storage compartment
• ''Full bag'' indication sensor
• Cast-iron front axle for superior strength and control
• Anti-scalp wheels
• Steel front bullbar providing extra protection against impacts
• Cupholder
• Tow hitch
